Tecumseh Compressor Models and Spare Parts

💱 Price Note: Prices stated on this page are USD-based reference values. For the current TL equivalent and stock status, we recommend visiting the product page. Prices on Yedepa.com are calculated at the daily exchange rate.

Tecumseh Compressor Models and Spare Parts: Overview

Tecumseh Products Company, founded in 1934 in Michigan, USA, is one of the brands that put the world's first hermetic refrigeration compressors into series production. Today, when Tecumseh compressor models and spare parts are mentioned, what comes to mind is commercial refrigeration, industrial refrigerators, cold stores, supermarket displays, fruit and vegetable cabinets, meat and dairy cooling cabinets and air conditioning systems. In the HVAC and commercial refrigeration sector in Turkey, Tecumseh is the first choice of technicians looking for long-lasting, highly parts-compatible and serviceable compressors.

At Yedepa.com, we keep in stock especially the Tecumseh TAG series semi-hermetic compressors and offer a wide range of R-404A models from 4 Hp to 8 Hp to technicians in the B2B field, refrigeration service companies and industrial plants. In this guide, we will cover the technical logic of Tecumseh compressors, model selection criteria, spare parts compatibility and the practical situations you will encounter in the field, in HVAC terms.

Technical Details and Operating Principle of Tecumseh Compressors

Tecumseh's TAG series are semi-hermetic reciprocating compressors. Unlike hermetic compressors, their housings can be opened, and the valve plate, connecting rod, piston, piston rings and motor winding assembly inside can be serviced. This significantly reduces the total cost of ownership (TCO) in commercial refrigeration: in the event of a failure, repair with spare parts is possible instead of replacing the whole compressor.

The operating principle is based on the classic vapor compression cycle:

Suction: Low-pressure refrigerant vapor (R-404A) is drawn into the cylinder.
Compression: The piston moves up and the gas reaches high pressure and temperature.
Discharge: The compressed gas is delivered to the condenser.
Lubrication: POE (polyolester) based oil works compatibly with R-404A and protects the bearings and piston rings.

R-404A is the HFC blend preferred for low and medium temperature applications in commercial refrigeration. The Tecumseh TAG Z series (the letter Z indicates compatibility with POE oil and R-404A/R-507) is produced precisely for this segment. They operate efficiently at evaporating temperatures between -35°C and -10°C; their performance is especially high in freezer and low temperature applications.

Tecumseh TAG Series Model Types

The Tecumseh models we offer at Yedepa.com cover different power classes of the TAG family. The table below summarizes the models most frequently encountered in the field:

Model	Power (Hp)	Refrigerant	Connection Type	Typical Application
Tecumseh TAG 2513 Z	4 Hp	R-404A	Rotalock	Medium-size cold room
Tecumseh TAG 2516 Z	5 Hp	R-404A	Rotalock	Supermarket freezer display
Tecumseh TAG 4561 Z	5 Hp	R-404A	Rotalock	Meat cooling cabinet
Tecumseh TAG 4568 Z	6 Hp	R-404A	Rotalock	Fruit and vegetable store
Tecumseh TAG 2522 Z	7 Hp	R-404A	Rotalock / Brazed	Dairy cooling
Tecumseh TAG 4573 Z	7 Hp	R-404A	Rotalock / Brazed	Restaurant/catering kitchen cold room
Tecumseh TAG 2525 Z	8 Hp	R-404A	Rotalock / Brazed	Industrial freezer
Tecumseh TAG 4581 Z	8 Hp	R-404A	Rotalock / Brazed	Cold storage, water chilling

A large proportion of the models are available with both Rotalock (threaded) and Brazed connection options. While the Rotalock version offers ease of service, brazed versions provide a more leak-tight and longer-lasting connection; they are preferred especially in continuously operating industrial applications.

Which Tecumseh Model to Choose in Which Case?

In our field experience, the wrong power class is the root cause of more than 40% of compressor failures. For correct model selection, evaluate the following criteria in order:

4-5 Hp range (TAG 2513 Z, TAG 2516 Z, TAG 4561 Z): Ideal for cold rooms of 15-25 m³, small supermarket freezer displays and meat/fish display cabinets. Versions that can also run on single phase are available.
6-7 Hp range (TAG 4568 Z, TAG 2522 Z, TAG 4573 Z): Tailor-made for medium-sized restaurant cold rooms, hotel kitchen stores and milk collection centers. A 380V three-phase supply is mandatory.
8 Hp class (TAG 2525 Z, TAG 4581 Z): Preferred for industrial cold stores, fishery plants, multi-evaporator systems and water chiller applications. Withstands high continuous operating loads.

When determining the model, look not only at the Hp value but also at the cooling capacity (W or BTU/h), as well as the evaporating and condensing temperatures. Two models with the same 7 Hp label can show a capacity difference of up to 20% at different operating points. On every product page at Yedepa.com, we refer you to the manufacturer's original performance curves.

Tecumseh Compressor Models Available at Yedepa.com

The following Tecumseh models are available from Yedepa.com stock with a corporate invoice, B2B price advantage and technician-service support:

Tecumseh TAG 4581 Z 8 Hp Refrigeration Compressor R-404A (Brazed) — The most powerful model of the series, priced from approximately 761 USD, for industrial applications.

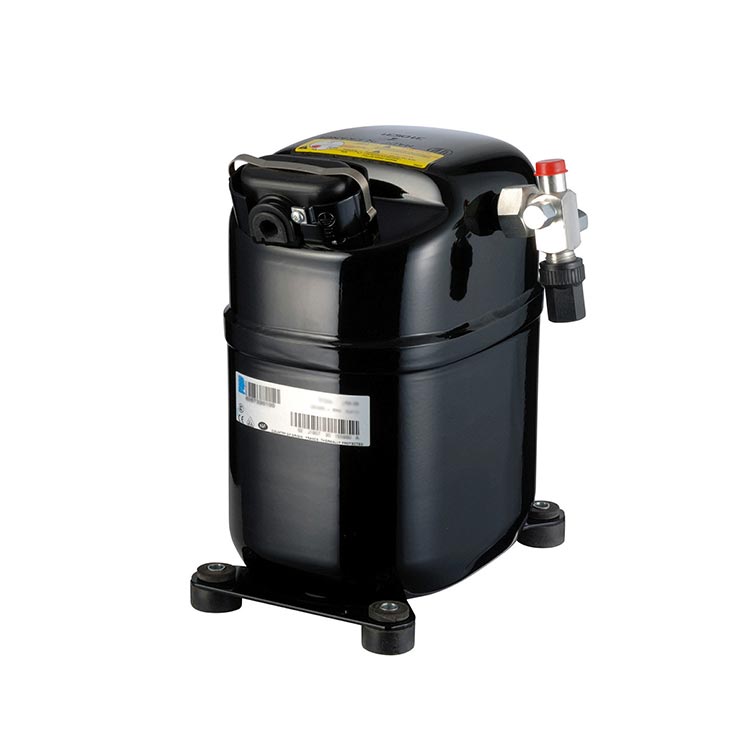

Tecumseh TAG 4581 Z 8 Hp Refrigeration Compressor R-404A — With Rotalock connection, for plants that want ease of service.

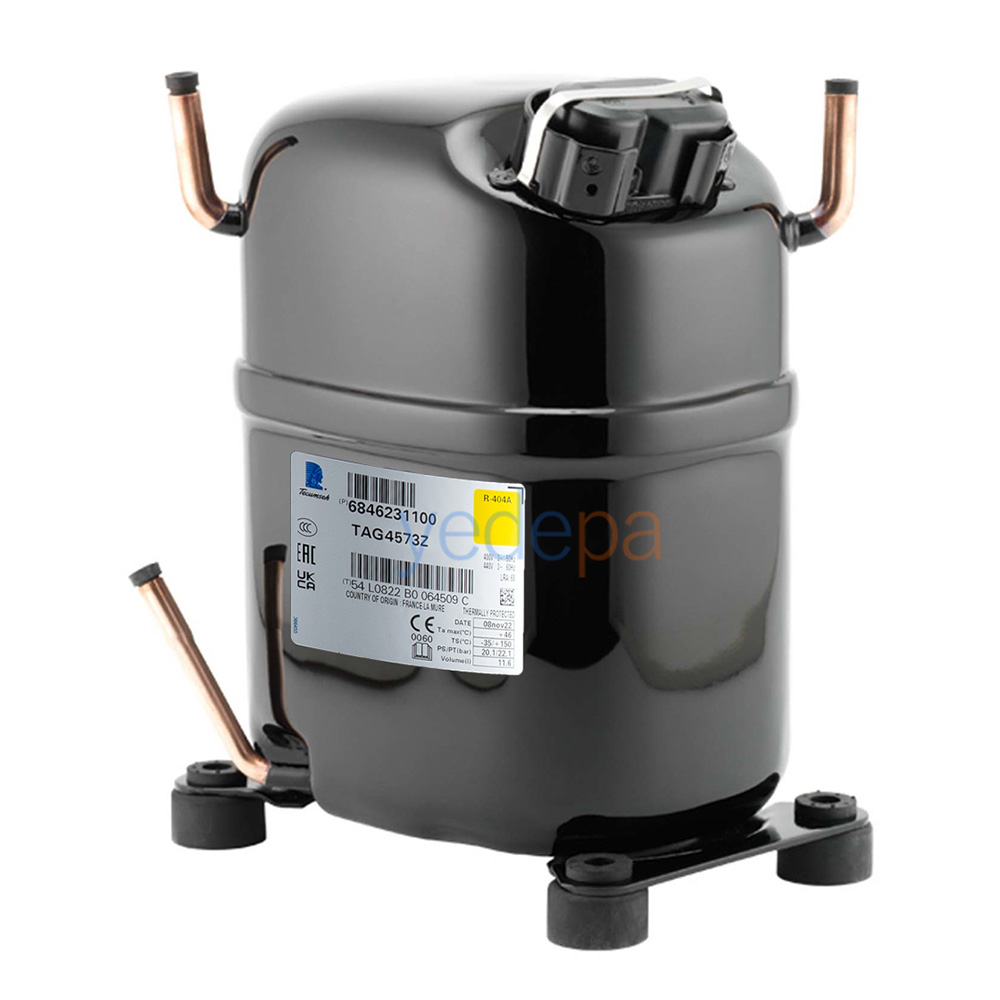

Tecumseh TAG 4573 Z 7 Hp Refrigeration Compressor R-404A — Upper-mid segment, a bestseller in restaurant and hotel applications.
Tecumseh TAG 2525 Z 8 Hp Refrigeration Compressor R-404A (Brazed) — For continuously operating industrial lines.

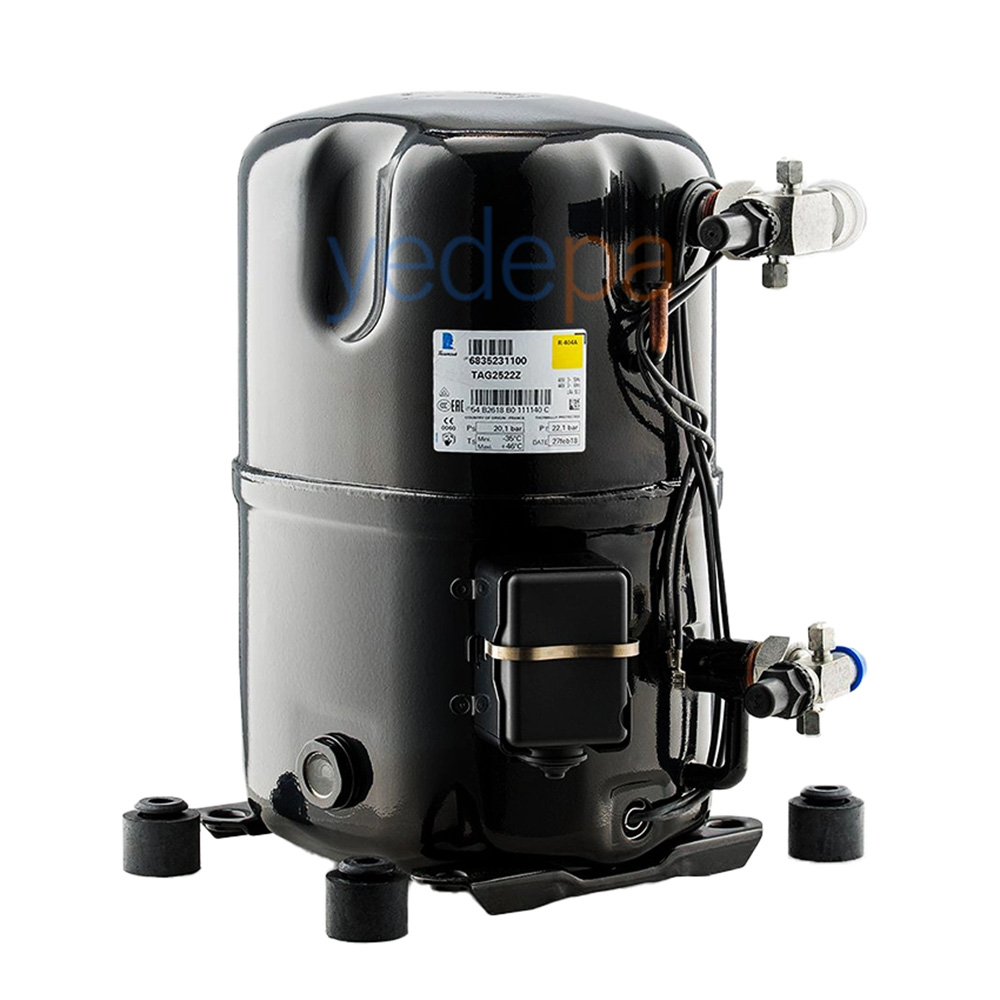

Tecumseh TAG 2522 Z 7 Hp Refrigeration Compressor R-404A — High compatibility rate in dairy and milk cooling systems.

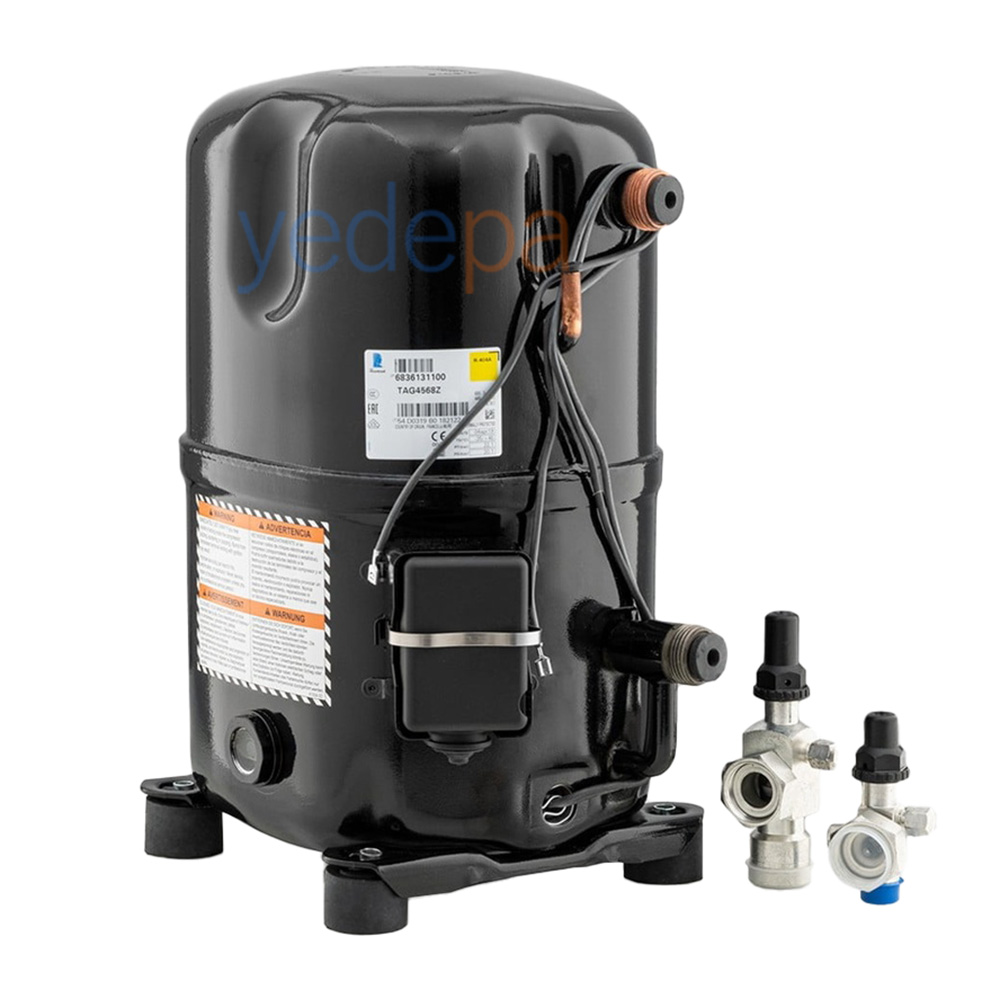

Tecumseh TAG 4568 Z 6 Hp Refrigeration Compressor R-404A — For fruit and vegetable stores and the wholesale food sector.

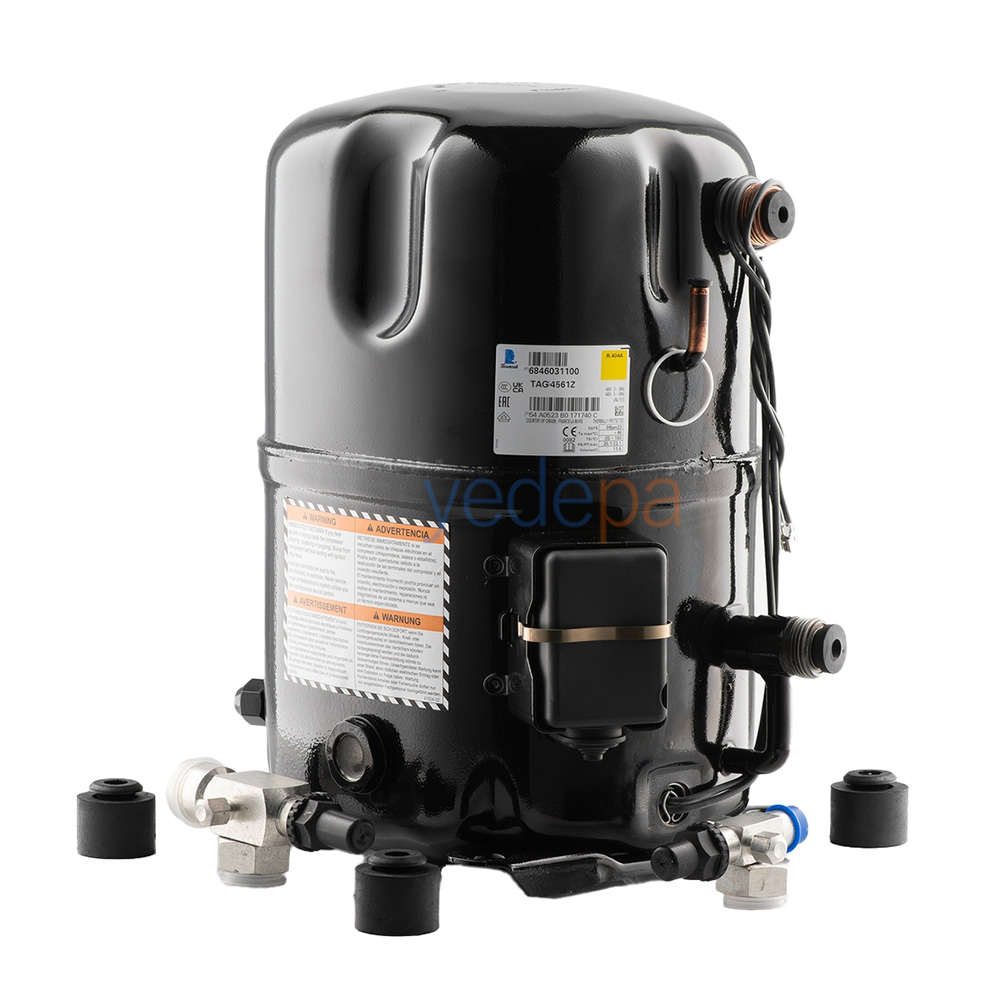

Tecumseh TAG 4561 Z 5 Hp Refrigeration Compressor R-404A — Economical solution for meat cooling and medium-size cold rooms.
Tecumseh TAG 2516 Z 5 Hp Refrigeration Compressor R-404A — The choice of supermarket freezer display manufacturers.
Tecumseh TAG 2513 Z 4 Hp Refrigeration Compressor R-404A — Entry level for small to medium-scale refrigeration.

All models are of OEM (original manufacturer) quality and are sourced from the authorized distribution network in Turkey. Yedepa.com offers its corporate customers current account opening, transparent calculation of deferred payment charges and technical service support.

Tecumseh Spare Parts Compatibility and Consumables

With the right spare parts policy, the life of a Tecumseh TAG compressor can be extended to 10-15 years. The parts most frequently replaced in the field are:

Valve plate set: The surface on which the suction and discharge valves sit; it is damaged by carbon build-up or impact.
Piston ring and piston set: Replaced in case of oil leakage or a drop in discharge pressure.
Crankshaft bearings: Wear after running without oil or after water ingress.
Electrical terminal block and winding: Burn out due to phase imbalance, lightning or prolonged high current.
Oil pump: The system that provides lubrication by pressure differential; its pressure must always be measured after servicing.
Service valves (Rotalock): The sealing O-rings must be renewed after every service.

At Yedepa.com, in addition to the main Tecumseh models, we also review the equivalent spare parts catalog; parts that are not original but meet OEM standards offer a price advantage. To check which model is compatible with which spare part code, you can refer to the fitment table on the product pages or consult our technical team via WhatsApp.

Selection Criteria and Professional Tips

7 golden rules shared by technicians who have worked with Tecumseh compressors for many years:

Verify the oil type: R-404A models use POE oil; mixing it with mineral oil quickly burns out the motor winding.
Strictly follow the evacuation time: The system must be evacuated to 500 microns and held for at least 30 minutes. Otherwise moisture reacts with the POE oil and acid forms.
The filter drier must be replaced at every service. The Tecumseh warranty explicitly requires this.
Voltage tolerance ±10%: In areas with mains fluctuations, always use a phase protection relay.
Crankcase heater: An oil heater is essential for compressors operating at low ambient temperatures; it prevents refrigerant migration.
Run time: Follow the rule of a minimum 5 minutes running and 3 minutes off per cycle.
Noise and vibration: If a new compressor makes an unusual metallic noise, it should not be accepted; contact the supplier.

Yedepa.com shares the serial number photo, production date and test certificate information with its corporate customers before shipment. This way you will not face any surprises when you open it in the field.

Maintenance and Usage Recommendations

Periodic maintenance schedule for long-lasting operation of the Tecumseh TAG series:

Monthly: Condenser cleaning, fan motor check, refrigerant pressure measurements (HP/LP).
Every 3 months: Check tightness of electrical terminals (thermal camera preferred), check the oil level.
Every 6 months: Leak test (nitrogen pressure test or electronic leak detector).
Annually: Oil analysis (acid and metal particle test), filter drier replacement, comparison of the discharge temperature curve.
Every 5 years (major overhaul): Valve plate check, piston ring replacement, motor winding insulation test (at least 100 MΩ with a megger).

If the oil color has darkened during maintenance (dark brown-black), there is acid formation in the system; in this case an acid-absorbing filter must be fitted and the oil tested again in the following weeks. Tecumseh explicitly states that the valve plate and winding warranty is void in a system where acid has formed.

Frequently Asked Questions (FAQ)

Which refrigerant do Tecumseh TAG series compressors work with?
TAG Z series models are designed to work with R-404A and R-507 HFC blends. They use POE (polyolester) oil. They are not directly compatible with refrigerants such as R-22 and R-134a; a retrofit is required.

What is the difference between the Tecumseh TAG 4581 and TAG 2525?
Both are in the 8 Hp power class, but their cylinder displacement, discharge head and efficiency curves differ. The TAG 4581 withstands higher discharge pressure, while the TAG 2525 has a higher suction flow. The selection should be made according to the plant's operating point.

What is the difference between the brazed and Rotalock versions?
The Rotalock threaded connection provides ease of service and replacement. The brazed version is more leak-tight, longer-lasting and vibration-resistant, but replacing it requires brazing work. The brazed version is preferred on continuously operating industrial lines, and Rotalock on supermarket displays that require frequent service.

What do Tecumseh compressor prices depend on?
They vary according to power class (Hp), connection type (Rotalock/Brazed), country of manufacture and exchange rate. At Yedepa.com, the range extends from the 4 Hp class (starting at approximately 617 USD) to the 8 Hp brazed version (up to approximately 761 USD).

Should I choose original or equivalent spare parts?
Always use original Tecumseh parts on compressors under warranty. On machines out of warranty and 8+ years old, equivalent parts of OEM standard reduce costs by 30-50%. Yedepa.com offers both options and clearly indicates the difference.

Which parts must be renewed after a compressor replacement?
The filter drier, sight glass, service valve O-rings and pressure switches must be checked and renewed if necessary. Oil and contamination left from the old compressor seriously shorten the life of the new compressor.

Is the Tecumseh compressor single-phase or three-phase?
Some models in the 4-5 Hp class are also available in single phase; however, TAG models of 6 Hp and above require a 380V three-phase supply. Verify your mains supply before ordering.

Conclusion and Yedepa.com Advantages

Tecumseh is one of the backbone brands of commercial and industrial refrigeration. Thanks to their serviceability, parts availability and standardized performance curves, TAG series semi-hermetic compressors continue to be one of the options most trusted by technicians and refrigeration service companies in Turkey. The information on Tecumseh compressor models and spare parts that we have covered in this guide spans all the main decisions, from choosing the right model to the maintenance schedule.

Our advantages at Yedepa.com:

Delivery from stock: Most of the Tecumseh TAG models in the list above are shipped from the warehouse with corporate shipping.
B2B pricing: Current accounts and special price agreements for refrigeration service companies, industrial plants and wholesale buyers.
Technical support: Support via WhatsApp and phone line for technicians on model selection, spare parts compatibility and post-installation issues.
Wide equivalent catalog: Besides Tecumseh, Embraco, Danfoss, Bitzer and Copeland spare parts compatibility is also reviewed; single-source supply.
Transparent payment terms and invoicing: Official invoices via Paraşüt integration; deferred payment charges are calculated openly for corporate purchases.

Choosing the right Tecumseh model is the first step to extending system life and keeping energy costs under control. If you would like to plan the most suitable TAG series compressor and spare parts set together for your refrigeration project, contact us via Yedepa.com; let us share our field experience with you.
