Copeland Scroll Compressor Models Guide: The Heart of Industrial Refrigeration

Copeland Scroll Compressor Models Guide is a comprehensive resource that every technician working with commercial refrigeration, air conditioning and industrial HVAC systems should consult. Founded in 1921 by Edwin H. Copeland and operating today under Emerson Climate Technologies, the Copeland brand is recognized worldwide as the pioneer of scroll (spiral) compressor technology. At Yedepa.com, we take pride in delivering original Copeland compressors to HVAC professionals throughout Turkey.

This guide was prepared for technicians working on cold stores, supermarket displays, air handling units, chillers, water cooling units and supermarket refrigeration systems. We answer critical questions such as which model works at which capacity, which refrigerant it suits and in which application it should be preferred. We explain using real models in Yedepa.com stock such as ZR19M3E, ZP485KCE, ZR380KCE, ZP385KCE, ZR310KCE, ZP120KCE, ZB76K5E, ZR160KCE, ZR125KCE, ZR81KCE and ZP182KCE.

History of the Copeland Brand and Its Place in the HVAC Sector

Copeland, which began its journey as a US-based engineering company, was the first manufacturer to commercialize scroll compressor technology in the mid-1980s. Containing far fewer moving parts than traditional reciprocating compressors, scroll technology became the standard of the global HVAC sector from the late 1990s thanks to both its quiet operation and high efficiency.

Today, worldwide, more than 200 million Copeland Scroll compressors are in service in the field. In the Turkish market, supermarket chains, food logistics companies, industrial air conditioner manufacturers and chiller manufacturers in particular prefer Copeland compressors. At Yedepa.com, we serve as one of the reliable suppliers of this brand in Turkey.

Scroll Compressor Technology: Operating Principle and Advantages

The scroll compressor takes its name from the two spiral-shaped metal plates inside it. One of these plates is fixed and the other moves in an orbital (circular) motion. Gas is drawn in at the outer edge of the spiral and is continuously compressed as it moves towards the center. This keeps vibration to a minimum and the efficiency curve flat.

Technical advantages of Copeland Scroll:

10-15% higher COP: Produces more cooling with the same energy compared to reciprocating compressors.
Low vibration and noise level: Operates in the 65-70 dB(A) range, suitable for office and retail environments.
Few moving parts: While reciprocating models have 15+ moving parts, a scroll has only 3 main parts.
Liquid slugging tolerance: Thanks to the compliant scroll mechanism, the compressor is not damaged when liquid floods back.
Wide operating envelope: Performance loss is low even at high ambient temperatures.

Copeland Scroll Compressor Model Families and Coding Logic

Copeland compressor codes look complicated at first glance, but once the logic is understood, model selection becomes quite easy. As an example, let us examine the code ZR160KCE-TFD-522:

Code Component	Meaning
Z	Scroll (spiral) type compressor
R / P / B / S / F	Application type (R: air conditioning/AC, P: high-efficiency AC, B: medium temperature refrigeration, S/F: low temperature)
160	Nominal capacity (BTU/h × 1000, i.e. 160,000 BTU/h)
K / M	Generation/version (K series classic, M series modular)
CE	European market (CE certified)
TFD / TWD	Motor voltage code (TFD: 380-420V/3Ph/50Hz, TWD: 400V/3Ph/50Hz)
522 / 455 / 567	Oil type and refrigerant compatibility code

Thanks to this coding, a technician can understand which system the compressor will work in without even opening it. On Yedepa.com product pages, we provide the explanation of these codes separately for each product.

Z Series (Air Conditioning) Models

ZR and ZP series are designed for air conditioning applications. ZR is the classic AC compressor, while ZP is the high-efficiency version. The Copeland Scroll Compressor ZR380KCE-TWD-523 and Copeland Scroll Compressor ZP485KCE-TWD-522 in Yedepa.com stock are two of the largest models in this series; they are preferred in commercial rooftop air conditioners and large VRF systems.

ZB Series (Medium Temperature Refrigeration) Models

The ZB series is optimized for supermarket displays, cold stores (between +2°C and +5°C) and food preservation applications. Copeland Scroll Compressor ZB76K5E-TFD-567 is a model widely used in the fruit and vegetable displays of medium-sized supermarkets.

Large Capacity Models: ZP485 and ZR380

The ZP485KCE and ZR380KCE, the two largest Copeland models in Yedepa.com's stock, are used in industrial chillers and large HVAC plants. These models are usually operated in tandem (pairs) or manifold (triples/quads) configurations to achieve capacities exceeding 100 HP.

Which Copeland Model to Choose in Which Case?

Correct compressor selection is critical for system efficiency and service life. The table below matches the Copeland models in Yedepa.com stock to the application type:

Application	Capacity	Recommended Model
Small supermarket AC system	5-7 HP	ZR81KCE-TFD-422
Medium-sized supermarket display (+4°C)	7-8 HP	ZB76K5E-TFD-567
Medium-sized chiller	10 HP	ZR125KCE-TFD-455 / ZR125KCE-TFD-522 (brazed)
Large rooftop air conditioner	13 HP	ZR160KCE-TFD-522
Industrial chiller (high efficiency)	15 HP	ZP182KCE-TFD-522
Supermarket central refrigeration	30 HP	ZR310KCE-TWD-523
Large HVAC plant	38 HP	ZR380KCE-TWD-523 / ZP385KCE-TWD-522
Industrial chiller (mega scale)	48 HP	ZP485KCE-TWD-522

Copeland Scroll Compressor Models Available at Yedepa.com

The main models in our stock within the scope of the Copeland Scroll Compressor Models Guide at Yedepa.com are:

Copeland Scroll Compressor ZR19M3E-TWD-961 — Top-segment modular scroll supporting digital capacity control, for premium industrial applications.
Copeland Scroll Compressor ZP485KCE-TWD-522 — 48 HP class high-efficiency model, preferred in large chillers.
Copeland Scroll Compressor ZR380KCE-TWD-523 — 38 HP classic AC series, standard in commercial HVAC plants.
Copeland Scroll Compressor ZP385KCE-TWD-522 — ZP series high efficiency, R407C and R410A compatible.
Copeland Scroll Compressor ZR310KCE-TWD-523 — 30 HP, ideal for supermarket central refrigeration.

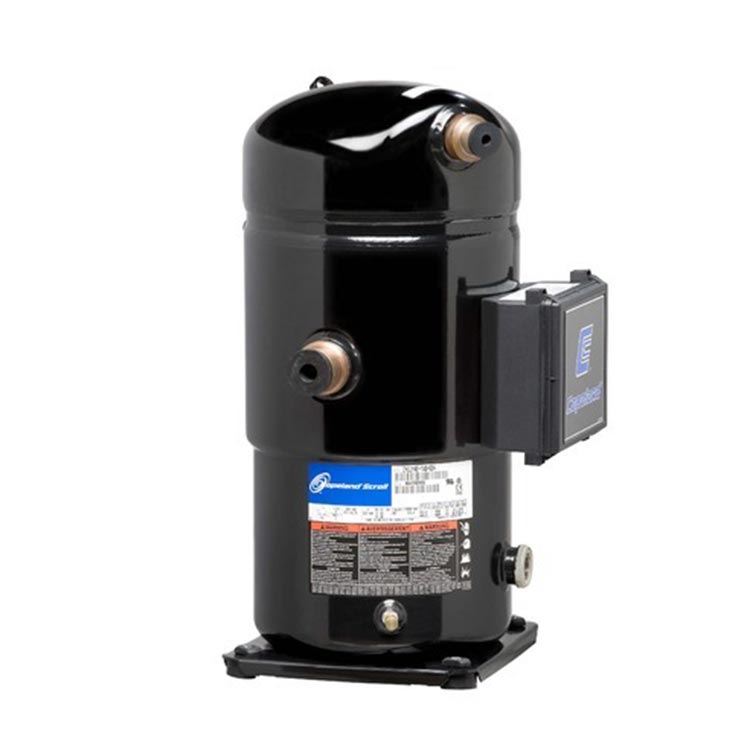

Copeland Scroll Compressor ZP120KCE-TFD-455 — 10 HP high efficiency, for small to medium chillers.
Copeland Scroll Compressor ZB76K5E-TFD-567 — Medium temperature refrigeration specialist, common in supermarket displays.
13 HP Copeland Scroll Compressor ZR160KCE-TFD-522 — The best-selling rooftop AC compressor.
10 HP Copeland Compressor ZR125-KCE-TFD-522 (Brazed) — Brazed connection version, for systems brazed in the field.
Copeland Scroll Compressor ZR125KCE-TFD-455 — 10 HP standard version with rotalock connection.
Copeland Scroll Compressor ZR81KCE-TFD-422 — 6.5 HP, the basic model for small commercial AC systems.
15 HP Copeland Compressor ZP182-KCE-TFD-522 — High efficiency 15 HP, for medium-sized chillers.

All our models are 100% original OEM Copeland products; we do not sell counterfeit or refurbished products. The price range starts at approximately 1,510 USD and rises to 11,404 USD; the investment increases as capacity and series grow.

Selection Criteria and Professional Tips

Critical parameters to consider when choosing the right Copeland compressor:

Refrigerant (gas) type: Which is used in the system: R22, R407C, R410A, R134a or new-generation refrigerants such as R448A/R449A? The refrigerant compatibility of Copeland models is indicated by the "522/455/567/961" digits at the end of the code.
Voltage and phase: In Turkey, models with TFD or TWD codes are preferred for the standard three-phase 380-400V/50Hz supply.
Connection type: Rotalock threaded connection or brazed connection? The ZR125-KCE-TFD-522 brazed version is suitable for installations requiring field brazing.
Oil type: POE (polyolester) oil is compatible with HFC refrigerants, mineral oil with older HCFC systems. Choosing the wrong oil kills the compressor within 6 months.
Operating envelope: Evaporator and condenser temperatures must stay within the compressor's operating envelope.
Capacity control: Is fixed speed, digital scroll or inverter required? Modular models such as the ZR19M3E support digital capacity modulation.

The Yedepa.com team strongly recommends sending us a photo of your existing label via WhatsApp before ordering; this reduces the risk of returns due to code mismatch to zero.

Copeland Compressor Installation and Commissioning Recommendations

The long service life of a Copeland Scroll compressor depends directly on care during installation and commissioning.

Evacuation: The system must be evacuated to ≤500 microns, using the triple evacuation technique.
Phase sequence: When scroll compressors run in reverse, the scroll mechanism inside separates and does not compress; running in reverse for more than 1 hour permanently damages the compressor. A phase monitor is mandatory.
Crankcase heater: The crankcase heater must be switched on at least 12 hours before starting the compressor to prevent refrigerant accumulating in the oil.
Filter drier installation: A new filter drier must always be fitted with a new compressor; acid and moisture left from the old system damage the compressor.
Oil level: The oil should be visible between 25-50% in the compressor sight glass; excess oil can cause liquid slugging.

Maintenance and Failure Prevention Recommendations

The most common Copeland compressor failures in the field and how to prevent them:

High pressure fault: Usually caused by a dirty condenser or fan failure; condenser cleaning twice a year is mandatory.
Low oil pressure (OPS): There may be a refrigerant leak or evaporator icing in the system; superheat should be kept in the 5-8K range.
Motor winding burnout: Phase imbalance or frequent start-stop (more than 6 per hour) is the most common cause; a minimum 5-minute run time (anti-short-cycle) timer is essential.
Liquid slugging: Caused by a misadjusted TXV (expansion valve) or a missing accumulator; a pump down circuit should be installed.
Annual maintenance: An oil acid test, current measurement, recording of operating pressures and a contactor/relay check are the annual routine.

Yedepa.com customer service also provides technical consultancy by phone/WhatsApp during commissioning of the Copeland compressor you purchased.

Frequently Asked Questions (FAQ)

Question 1: What is the average service life of Copeland Scroll compressors?
With correct installation, periodic maintenance and appropriate capacity selection, they run trouble-free for 12-15 years. In supermarket applications, 80,000-100,000 operating hours can be achieved.

Question 2: What is the difference between the ZR and ZP series?
ZR is the classic scroll series, while ZP is the high-efficiency series with 10-15% higher EER/COP. The ZP series complies with new energy efficiency regulations (e.g. Ecodesign Lot 21). Although the price difference between ZR and ZP models of the same capacity, e.g. ZR380 and ZP385, is small, ZP offers an advantage on the electricity bill in the long run.

Question 3: Should an original or an equivalent Copeland compressor be preferred?
Original OEM Copeland is essential in industrial applications. Equivalent products cause efficiency curve deviation, shorter winding life and warranty problems. Yedepa.com sells only OEM Copeland.

Question 4: Which refrigerants does the ZR160KCE-TFD-522 work with?
This model is compatible with R407C and R134a. For R410A, models ending in "455" and for R448A/R449A, models ending in "567" should be selected.

Question 5: Is there a performance difference between brazed and rotalock connections?
No, the performance is the same. The choice depends on site conditions: the brazed version reduces the likelihood of leaks but makes replacement harder; rotalock offers the advantage of quick replacement.

Question 6: Can any two Copeland models be used for a tandem (parallel) connection?
No. A tandem connection requires models of the same series and capacity that have a dedicated tandem kit (e.g. TRA/TRS tandem models). Otherwise the oil equalization line is insufficient.

Question 7: Why do Yedepa.com Copeland compressor prices cover a wide range?
Capacity increases sevenfold from the 6.5 HP ZR81 to the 48 HP ZP485; in addition, premium models with digital capacity modulation such as the ZR19M3E push the price up. Our range starts at approximately 1,510 USD and goes up to 11,404 USD.

Question 8: How long is the warranty?
All Copeland compressors sold through Yedepa.com are covered by a 12-month authorized supplier warranty; as long as correct installation documentation is provided, even winding burnout is covered by the warranty.

Conclusion and Yedepa.com Advantages

The Copeland Scroll Compressor Models Guide shows that the right product choice must be evaluated not only by price but together with capacity, refrigerant compatibility, voltage, connection type and application type. The added value we offer HVAC professionals at Yedepa.com is as follows:

100% original OEM Copeland stock: We do not sell counterfeit or refurbished products.
Wide model range: 12+ different Copeland models from 6.5 HP to 48 HP ready in stock.
Technical consultancy: We provide label reading, refrigerant compatibility and capacity verification support before purchase.
Technician- and service-focused B2B approach: Service at every scale, from single-product orders to fleet maintenance agreements.
Safe shipping throughout Turkey: Careful compressor packaging and insured shipment.
Detailed product pages: Technical data, operating envelope and application recommendations for each model on the product page.

Whether you are an HVAC technician, air conditioning technician, refrigeration system engineer or industrial plant maintenance manager, Yedepa.com is the right address for your Copeland compressor needs. When you contact us with the model you have in mind or a photo of the label, we offer the most suitable solution for your system in the field as quickly as possible.
