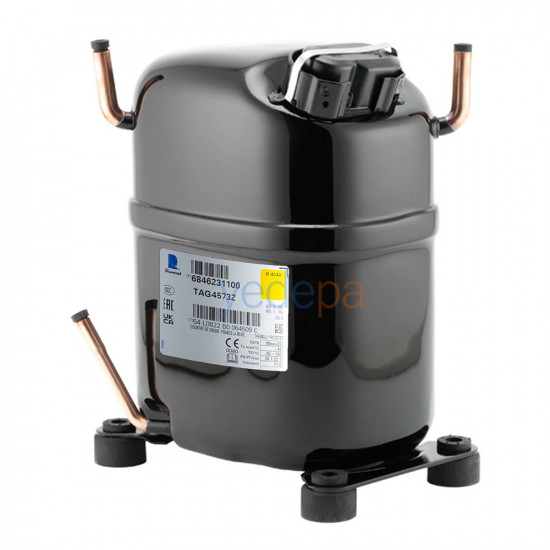

Tecumseh TAG 4573 Z 7 Hp Refrigeration Compressor R-404A (Brazed)

Hp: 7

Model: TAG 4573 Z

Refrigerant Type: R-404A

Application: Commercial

Origin: France

Technical Specifications

-10 ºC Evap. 45 ºC Cond. (Watt): 8532

Cylinder Displacement (cm³): 135

Power Supply: 400 V - 50 Hz / 440 V - 60 Hz

Connection Type: Brazed

Suction Connection: 1.125

Discharge Connection: 0.625

Product Description

With 7 Hp of power and the use of R-404A refrigerant, the Tecumseh TAG 4573 Z model offers an excellent solution for high-capacity commercial refrigeration applications. With a cooling capacity of 8532 Watt at -10 ºC evap. and 45 ºC condensing temperature, it meets large-scale commercial refrigeration needs. Its 135 cm³ cylinder displacement is designed for effective refrigeration performance.

Adapting to a wide range of applications with 400 V - 50 Hz and 440 V - 60 Hz power supply options, the TAG 4573 Z offers easy installation and maintenance with its brazed connection type. With a suction connection of 1.125 and a discharge connection of 0.625, it is able to fit a wide range of commercial refrigeration systems.

Of French origin and made with high-quality materials, the Tecumseh TAG 4573 Z 7 Hp refrigeration compressor is a reliable and efficient option for large commercial refrigeration projects. Order through Yedepa to improve the performance of your commercial refrigeration systems.
