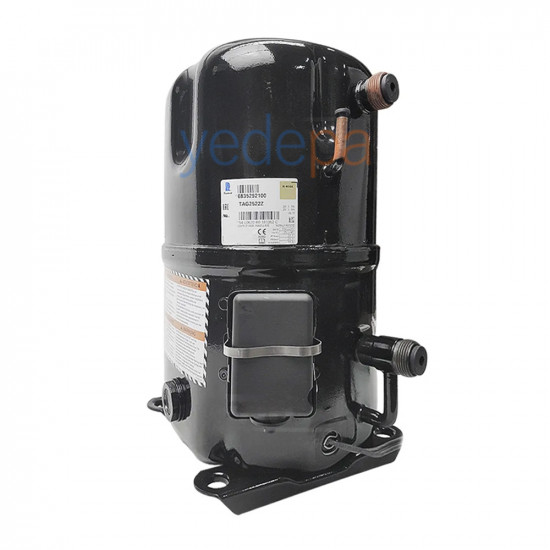

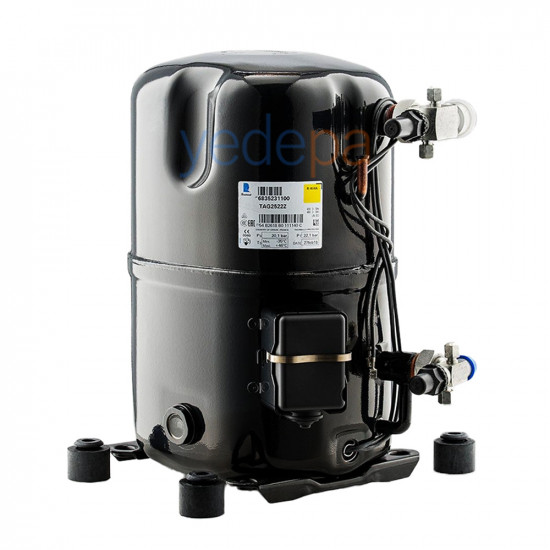

Tecumseh AG 2522 P-TZ (Old Code: TAG 2522 Z) 7 Hp R-404A Refrigeration Compressor

The TAG 2522 Z compressor by Tecumseh (France), well known in commercial refrigeration, is now produced under the code AG 2522 P-TZ following the brand's global catalogue update. The code change is only a naming standard: housing dimensions, rotalock valve connections and cooling capacity are identical. You can fit this original compressor with its new code in place of a failed TAG 2522 Z as a direct drop-in, without modifying the chassis or the fittings.

New Code and Old Code Cross-Reference

• New Model Code: Tecumseh AG 2522 P-TZ (AG2522P-TZ)
• Old Model Code: Tecumseh TAG 2522 Z (TAG2522Z)
• Code Suffix: TZ = three-phase motor, 400 V 3~ 50 Hz / 440 V 3~ 60 Hz
• Motor Power: 7 HP
• Cooling Capacity (R-404A, 50 Hz): 2,708 W / 9,240 BTU/h (−35 °C evaporating / +40 °C condensing, EN12900)
• Application: Low back pressure (LBP) deep freezing, evaporating −40 … −10 °C
• Approved Refrigerants: R-404A, R-452A, R-454C, R-455A
• Displacement: 135 cm³
• Current (50 Hz): RLA 6.2 A, LRA 61 A
• Oil: POE (polyolester), 1760 cm³
• Connection Type: Rotalock valves

Product Features

• HP: 7
• Model: TAG 2522 Z
• Refrigerant Type: R-404A
• Application: Low-Temperature Refrigeration
• Origin: France
• -10 ºC Evap. 45 ºC Cond. (Watt): 2708
• Displacement (cm³): 135
• Power Supply: 400 V - 50 Hz / 440 V - 60 Hz
• Connection Type: 2 Valves
• Suction Connection: 1.125 inch
• Discharge Connection: 0.625 inch

Product Description

The Tecumseh TAG 2522 Z 7 HP refrigeration compressor offers excellent performance in industrial low-temperature refrigeration applications with its 2708 Watt cooling capacity and 135 cm³ displacement. Providing energy efficiency and powerful cooling using R-404A refrigerant, this model is manufactured in France to high quality standards. The two-valve connection system and wide voltage range (400 V - 50 Hz / 440 V - 60 Hz) allow easy adaptation to different electrical networks.

Applications

The Tecumseh TAG 2522 Z is designed in particular for use in commercial and industrial environments with intensive cooling requirements. It is a reliable choice in areas such as food storage, medical refrigeration and process cooling.

Installation and Safety Information

For your safety, electrical safety precautions must be observed during installation of the compressor. Installation and maintenance work must be carried out by authorised service centres or expert technicians.

Conclusion

The Tecumseh TAG 2522 Z 7 HP refrigeration compressor is ideal for professionals looking for high performance and reliability in any application requiring low-temperature refrigeration. Manufactured with French engineering, this product offers a long-lasting, effective solution for your refrigeration systems.
