What Are Switches and Pressure Sensors?

Among the most critical components that ensure the safe and efficient operation of combi boiler systems are switches and pressure sensors. Also referred to in Turkish as pressure switches and pressure sensors, these parts continuously measure and monitor the pressure of the water circuit inside the combi boiler and send this information to the electronic board or directly to the control circuit. When the water pressure drops below the set lower limit, the combi boiler automatically switches to safety mode, the burner does not ignite and the circulation pump does not run unnecessarily. This protects both the appliance and the installation from serious faults.

At Yedepa.com, we bring together under one roof, from OEM and original manufacturer brands, the combi boiler pressure sensor, combi boiler pressure switch and combi boiler water pressure switch products that technicians and service companies need every day. By keeping in stock sensors compatible with many brands such as Viessmann, Ferroli, Demirdöküm, Eca, Baxi, Ariston, Buderus, Baymak, Maktek and Baykan, we enable technicians to respond in the field without losing time.

Technical Details and Operating Principle

The basic operating principle of pressure sensors is to convert the hydraulic pressure in the combi boiler water circuit into an electrical signal. There are generally two main operating approaches:

Mechanical pressure switch: It contains a diaphragm and a micro switch. When the pressure drops below a certain threshold, the NC (normally closed) or NO (normally open) contact changes position. This way the board receives a "no water" signal and locks out the burner.
Electronic pressure sensor (pressure transducer / sensor): It reports the pressure directly and proportionally to the electronic board, usually via a 0-5 V or 0.5-4.5 V analog output. In modern condensing combi boilers, this is the part that shows the bar value on the digital display.

In a standard combi boiler, the operating pressure is between 1.0-1.5 bar. The sensor gives an alarm below 0.2-0.5 bar, and above 3 bar it alerts the board so that the safety relief valve comes into operation. This sensitivity makes it essential that the sensor is the correct type and compatible. An incorrect sensor or a loose connection causes fault codes such as E1, F1, A1, 06 to appear on the display.

Type and Model Variants

Switches and pressure sensors come in many variants depending on the combi boiler models they are used in and their technical specifications. We have summarized the main type families you can find at Yedepa.com in a table:

Type	Operating Range	Connection	Typical Use
Mechanical Switch (Plastic body)	0.2 - 6 bar	G 1/4''	Demirdöküm Aden, Baxi 240 Fi
Electronic Sensor (Type 784)	0 - 4 bar	Quick clip	Ariston Clas / Genus Premium
Board-Read Sensor	0 - 4 bar	Threaded adapter	Eca, Demirdöküm condensing
OEM Sensor (Type: PE)	0 - 6 bar	Manufacturer-specific	Viessmann, Ferroli, Eca
Huba Industrial Sensor	0 - 10 bar	Manufacturer-specific	Ferroli condensing series

This variety allows technicians to find a suitable solution for every brand and model they encounter in the field. In particular, Bitron Type 784 and Huba Control AG branded sensors are preferred for their long service life and high calibration accuracy, as they are of European origin.

Which Model Should You Choose? Decision Guide

To choose the right pressure sensor, not only brand compatibility but also parameters such as connection type, electrical output and body material should be evaluated. The following decision steps will guide you in the field:

Read the manufacturer code: Note down the code on the existing sensor (for example 96577493, 505.91572, 32700021). This code provides the correct match 95% of the time.
Determine the connection type: Check whether it is clip-on, threaded (G 1/4''), board-read or with a threaded adapter. The wrong connection type causes leakage and installation problems.
Check the electrical interface: Is a 2-pin mechanical switch or a 3-pin electronic sensor used? The pin count of the board socket points the way.
Match the operating pressure: While 0.2-6 bar is sufficient in standard residences, 0-10 bar Huba type sensors should be preferred in cascade systems.
Pay attention to temperature resistance: Plastic-body sensors usually operate up to an upper temperature of 120°C. In applications requiring higher temperatures, metal-body OEM options are the safe choice.

Switches and Pressure Sensors You Can Find at Yedepa.com

At Yedepa.com, we keep the models most frequently needed in the field ready in stock. Here are some of our current popular products:

Viessmann Combi Boiler Pressure Sensor 96577493 — OEM original part for Viessmann condensing combi boilers. Long-lasting and factory calibrated.

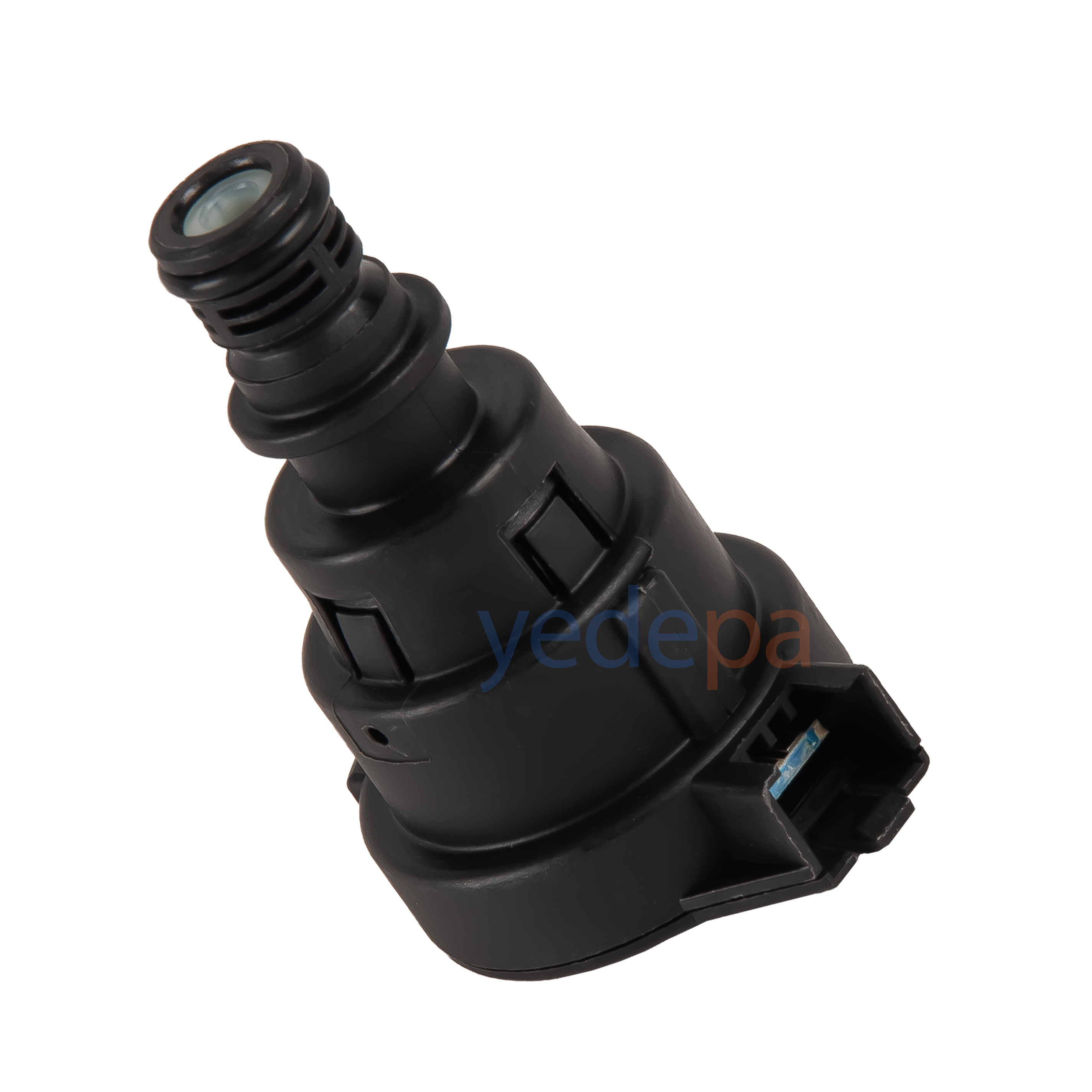

Combi Boiler Pressure Sensor Bitron Type 784 — Electronic sensor with quick clip connection, directly compatible with the Ariston Clas and Genus Premium series.

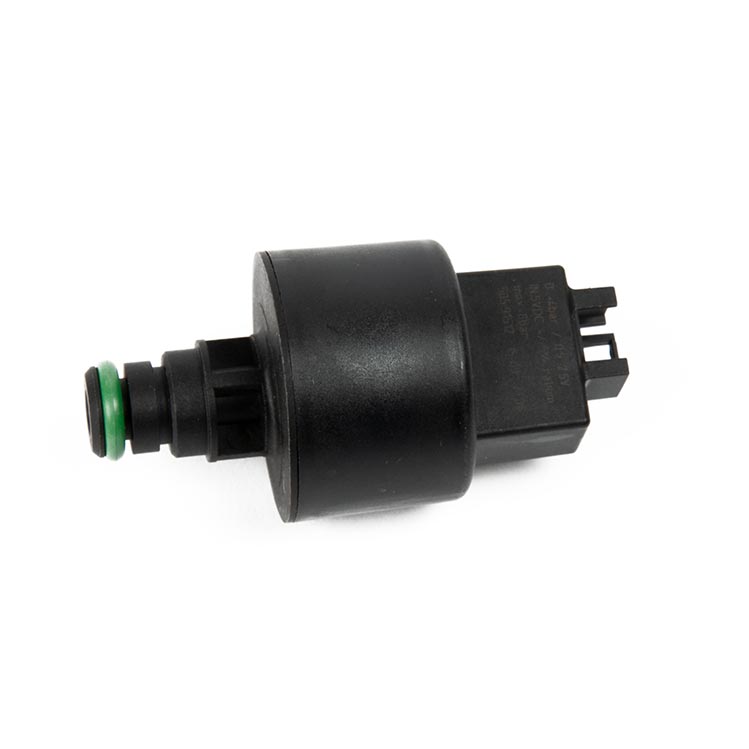

Ferroli Combi Boiler Pressure Sensor (Huba Control AG) — High-precision sensor of Swiss origin. Used as a standard part in Ferroli condensing series.

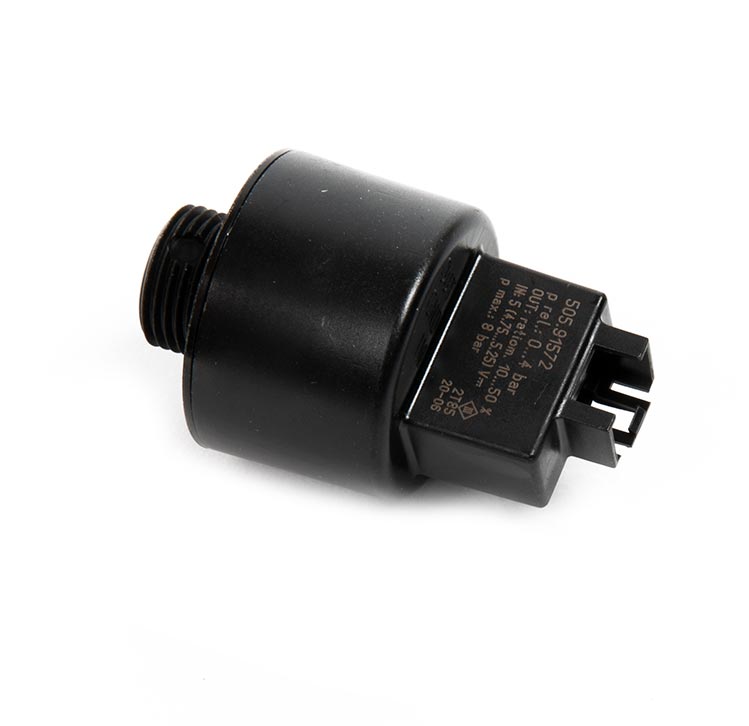

Ferroli Combi Boiler Pressure Sensor 505.91572 — Original Huba-branded replacement, a direct fit for specific Ferroli models.
Combi Boiler Pressure Switch G 1/4'' Plastic (Ceme) — 0.2-6 bar range, resistant to 120°C, NC contact. Ideal for Demirdöküm Aden and Baxi 240 Fi.

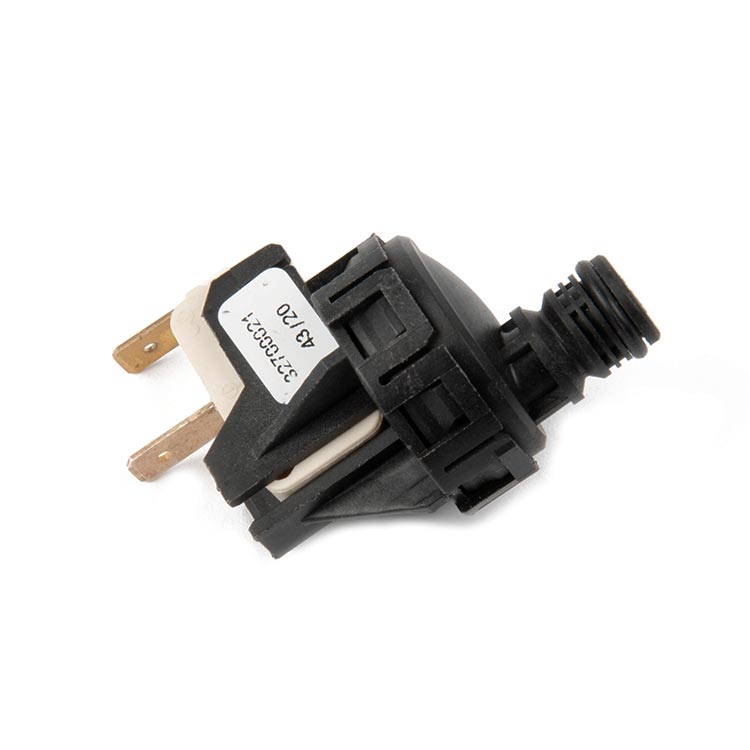

Combi Boiler Water Pressure Switch Bitron 32700021 — Bitron-branded switch commonly found in Baxi, Bosch and Buderus models.
Eca Combi Boiler Board-Read Pressure Sensor with Threaded Adapter (Ceme) — A solution suited to direct reading via the board in Eca condensing models.
CEME Combi Boiler Pressure Sensor (Type: PE) — Versatile Ceme-made sensor compatible with Eca, Ferroli and Demirdöküm.
Demirdöküm - Eca Combi Boiler Board-Read Pressure Sensor — Ceme-branded part widely preferred for its economical price.
Maktek & Baykan & Eca Combi Boiler Pressure Switch (Ma-Ter) — Mechanical switch directly compatible with appliances made by Maktek, Baykan and Eca.

All our products are listed with real stock, real images and real fitment information. At Yedepa.com, the compatibility information on our product cards is based on real data tested in the field.

Professional Selection Criteria

The professional criteria an HVAC technician or refrigeration technician should consider when choosing the right sensor are as follows:

OEM or equivalent: In appliances under warranty, an OEM part (with an original code, e.g. Viessmann 96577493) must always be used. In out-of-warranty appliances, equivalents such as Bitron, Ceme, Ma-Ter are a smart choice in terms of both performance and cost.
Brand reputation: Huba Control AG is the gold standard of precision, being of Swiss origin. Bitron offers the reliability of Italian manufacturing. Ceme and Ma-Ter stand out with their broad compatibility.
IP protection class: IP54 or higher should be preferred in combi boilers, and IP65 sensors should be considered in humid environments such as boiler rooms.
Connection check: The condition of the O-ring and gasket must also be checked on the new part. An old gasket causes leakage.
Calibration certificate: Brands such as Huba and Bitron come with a factory calibration report. This document is important in industrial applications requiring precision.

Use and Maintenance Recommendations

To extend the service life of pressure sensors and ensure trouble-free operation, the following maintenance recommendations should be taken into account:

Check during annual combi boiler maintenance: At every annual periodic maintenance, the output pin and socket of the sensor should be checked. If there is oxidation or green corrosion, it should be wiped with contact cleaner.
Manage water quality: Hard water causes scale buildup, and scale causes the diaphragm to stick. Adding an inhibitor (combi boiler protector) to the system water increases the life of the sensor 2-3 times.
Correct installation torque: Sensors with G 1/4'' threads should be tightened by hand and not overtightened with a wrench. Overtightening causes cracks in the plastic body.
Electrical test: Before replacing the sensor, a contact measurement with a multimeter or a signal reading with an oscilloscope should be performed. The problem may not always be the sensor.
Draining the circuit: Before installing a new sensor, the combi boiler system must be drained and bled of air. Otherwise, incorrect pressure readings will be obtained.

The Yedepa.com technical team provides technical information to technicians in the field before and after installation through its after-sales support line. Right part, right installation, long service life is our principle.

Frequently Asked Questions (FAQ)

Q1: My combi boiler keeps giving a low water pressure warning. Is the sensor faulty?
It does not always mean a sensor fault. First check the actual pressure in the system on the pressure gauge. If the pressure gauge shows 1.2 bar but the combi boiler says "low pressure", the sensor is most likely faulty.

Q2: Which models is the Bitron Type 784 sensor used in?
It has broad compatibility, primarily with the Ariston Clas series and Genus Premium condensing models. You can check the fitment list on the Yedepa.com product page.

Q3: Why is the Ferroli combi boiler pressure sensor so critical?
Ferroli combi boilers leave the factory with Huba Control AG branded sensors. If an equivalent is used, accuracy may decrease and frequent alarms may occur. For this reason, an original Huba Control AG sensor is recommended.

Q4: What is an OEM code and why is it important?
The OEM code (e.g. 96577493 or 505.91572) is the original number given to the part by the manufacturer. Thanks to this code, the risk of a wrong order drops to zero.

Q5: What is the difference between a plastic-body switch and an electronic sensor?
Plastic mechanical switches only give an "on/off" signal. Electronic sensors, on the other hand, send proportional pressure information. Modern condensing combi boilers require an electronic sensor, while older conventional combi boilers require a mechanical switch.

Q6: Can I install the part I bought from Yedepa.com myself?
A user with technical knowledge can carry out a basic sensor replacement; however, on natural gas appliances, installation must be carried out by an authorized technician and a leak tightness test must be performed afterward.

Conclusion and Yedepa Advantages

Switches and pressure sensors are the most important communication bridge between the electronic board, which is the heart of the combi boiler, and the water circuit. When the correct type is chosen, the combi boiler operates trouble-free for years; a wrong choice, however, endangers the safety of the appliance and the comfort of the user. For this reason, they form one of the most critical spare part groups for technicians and service companies.

At Yedepa.com, with our OEM, Bitron, Huba Control AG, Ceme and Ma-Ter branded products, we stand by technicians and service companies across Turkey. With our wide product range, real fitment information and technical support infrastructure, we provide our B2B customers with significant time and cost advantages. Whether you are looking for the Viessmann 96577493 original sensor, the Ferroli 505.91572 Huba-branded sensor, or the Bitron Type 784 Ariston-compatible sensor, the part you are looking for is in stock at Yedepa.com.

For professional HVAC technicians, refrigeration technicians and authorized service companies, Yedepa.com is the sector's reliable supply partner with its approach of the right part, the right information and the right price. For your combi boiler pressure sensor or pressure switch needs, you can browse our category page and reach any product you want with a single click.
