Combi Boiler Expansion Vessel Models and Selection Guide

What Is an Expansion Vessel? The Silent Hero of the Combi Boiler System

The expansion vessel is a critical combi boiler spare part that ensures system safety in closed-circuit heating systems by balancing the pressure created as the water volume increases when heated. The water circulating in a combi boiler is about 15°C when cold and can rise to 80°C when heated. This temperature difference causes an increase of about 4% in the water volume. This is exactly where the expansion vessel comes into play: it absorbs the volume increase and prevents the system from bursting, leaking or discharging water through the safety relief valve.

A combi boiler without an expansion vessel, or with a faulty one, soon causes problems such as rising pressure gauge readings, constant dripping from the safety relief valve, noise from the radiators and loss of heating comfort. At Yedepa.com, for HVAC technicians, heating technicians and service professionals we offer original and equivalent expansion vessels from leading industry brands such as Winkelmann, CIMM, Onaysan and Zilmet under one roof.

Technical Operating Principle of the Expansion Vessel

Modern combi boiler expansion vessels are mostly of the membrane (diaphragm) type. The inside of the vessel is divided into two chambers by a flexible EPDM or butyl rubber membrane. One side holds the boiler circuit water, and the other side holds nitrogen (N₂) or air compressed to a factory pre-charge pressure of usually 1 bar. When the system water heats up, it expands, pushes the membrane and compresses the gas side. When the water cools, the gas pushes the membrane back and returns the water to the system. This cycle is repeated hundreds of thousands of times over the entire life of the combi boiler.

The pre-charge pressure inside the vessel is a critical parameter for correct system operation. As a general rule, a pre-charge pressure of 0.8-1.0 bar is preferred in single-story apartments and 1.2-1.5 bar in detached two-story houses. This pressure must be measured, after the water side has been drained, at the vessel's gas valve (Schrader valve). An incorrect pre-charge pressure causes the vessel to wear out very quickly and the diaphragm to puncture.

Expansion Vessel Types and Models

Combi boiler expansion vessels are manufactured in different versions in terms of volume, connection size, mounting type and compatible brand. The most frequently chosen types at Yedepa.com are:

6 Liter vessels: Ideal for compact combi boilers and low-flow systems.
7-7.5 Liter vessels: Standard in mid-range wall-hung combi boilers.
8 Liter vessels: The most widely used size; found in many brands such as Vaillant, Bosch, Buderus, Ferroli and Baxi.
10-12 Liter vessels: Used in high-capacity and detached-house type combi boilers.

The most common connection sizes are 3/8" and 1/2", and some models also have a push-fit connection or an M14 threaded connection. The mounting type varies: hook-mounted (hanging), vertical body or horizontal compact.

Which Expansion Vessel Model Should You Choose? Decision Guide

Choosing the right vessel is vital for both combi boiler performance and service warranty. The table below will make it easier to choose a vessel according to the most popular combi boiler brands:

Combi Boiler Brand / Model	Recommended Vessel	Volume	Connection
Viessmann Vitodens 100	Winkelmann Original	8 L	3/8"
Buderus GB022 / Logamax U072	CIMM CP416 / Onaysan	7.5-12 L	1/2"
Bosch Classic / C2000	Onaysan / Winkelmann DGN 8	6-8 L	1/2"
Vaillant Turbotec / Ecotec	CIMM 8 L	8 L	3/8"
Baxi / Baymak / Westen	Zilmet M14	8 L	M14
Ferroli Domicompact / Domiproject	Onaysan Hook-Mounted	8 L	3/8"
Baxi / Broetje / De Dietrich / Remeha	CIMM Push-Fit Connection	7 L	Push-fit
Wamhaus Lava 24	CIMM RP250	8 L	1/2"

Important note: In addition to brand-model compatibility, always check the technical data on the old vessel's label (volume, pressure, connection size). If in doubt, you can send a photo of the product to Yedepa.com customer service and get direct confirmation from our expert team.

Expansion Vessel Types Available at Yedepa.com

Highlights among the most preferred and long-lasting expansion vessel models in our stock:

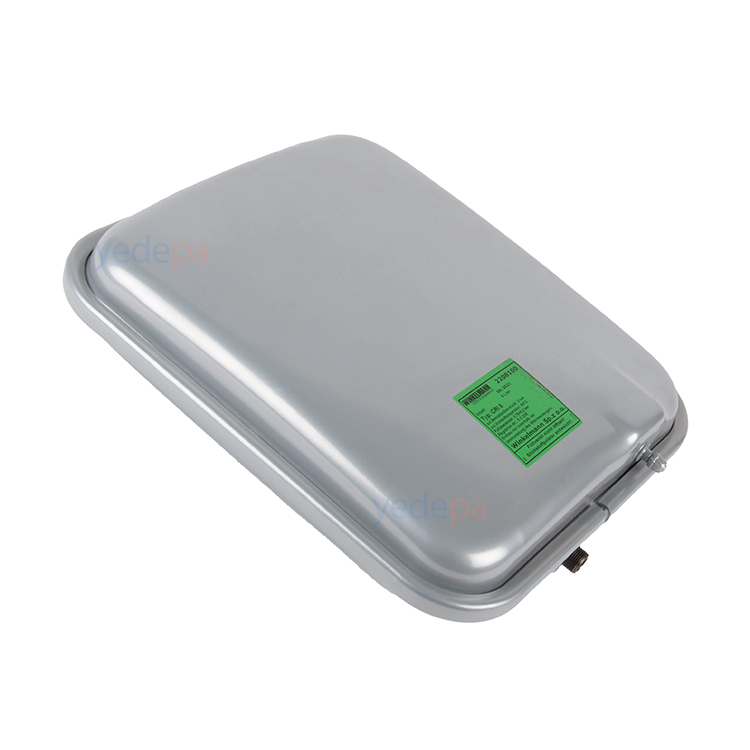

Viessman 8L 3/8" Vitodens 100 Combi Boiler Expansion Vessel (Winkelmann) — Original German-made product, the ideal choice for the Viessmann Vitodens series.
Combi Boiler Expansion Vessel CIMM CP416 - 7.5 Liter, 1/2" Buderus GB022 Compatible — Italian-made, a professional choice that stands out as a Buderus equivalent.

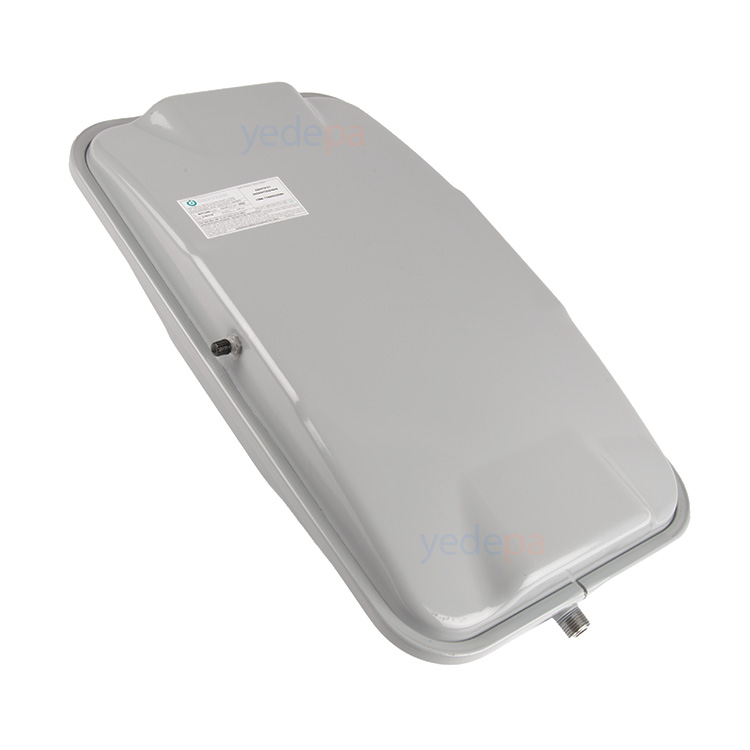

1/2" 12L Bosch Class & Buderus Logamax U072 Combi Boiler Expansion Vessel — Made by Onaysan, for high-capacity systems.
Combi Boiler Expansion Vessel Onaysan 6L 1/2" - Bosch C2000, Buderus, Worcester Compatible — An economical and robust solution for compact combi boilers.
Combi Boiler Expansion Vessel Winkelmann DGN 8 - 8 Liter, 1/2"-3/8" Connection, ECA Bosch Compatible — Versatile use with a dual connection option.

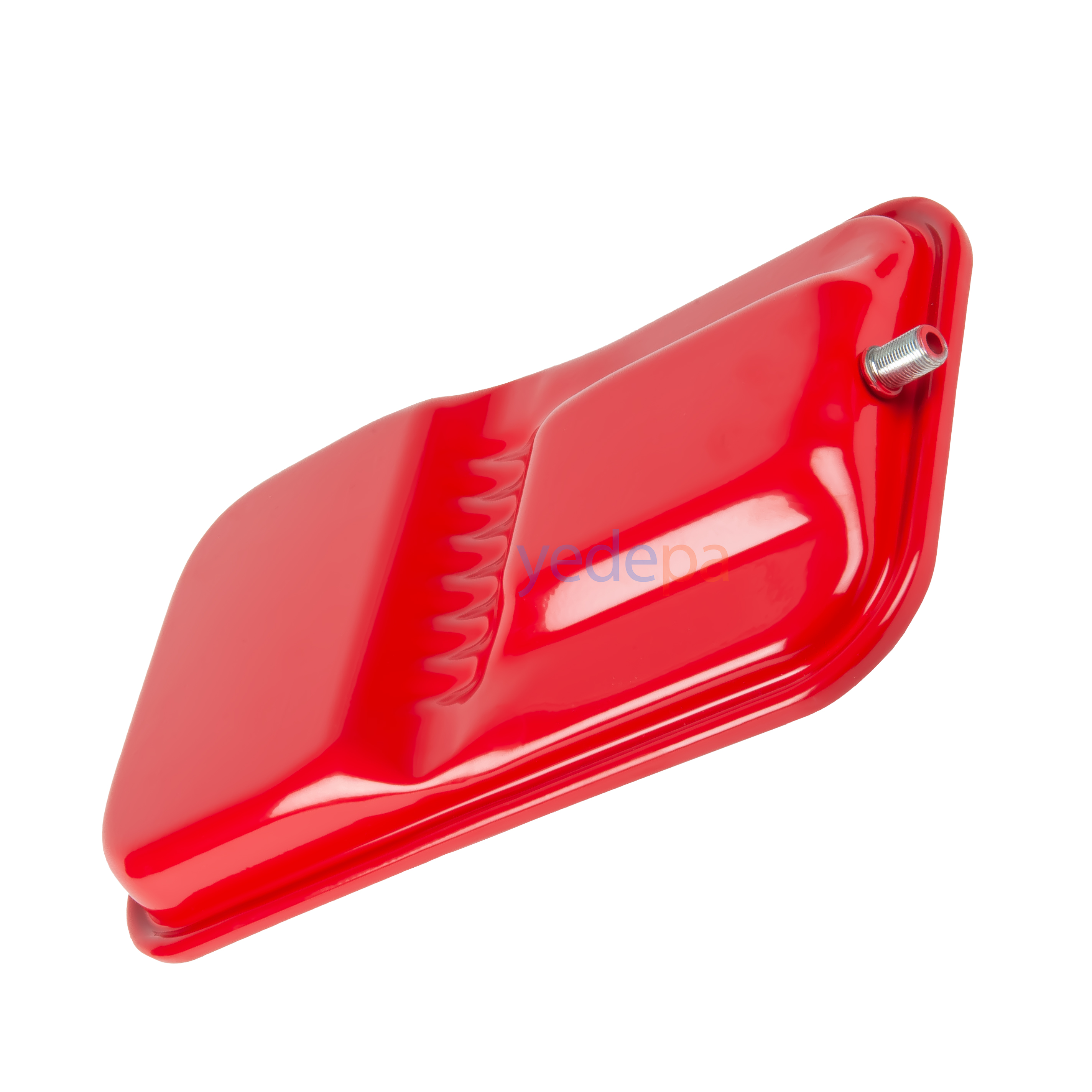

CIMM Combi Boiler Expansion Vessel RP250 - Wamhaus Lava 24 Compatible, 8 L — A dedicated solution for the less common Wamhaus models.
CIMM 7 L Combi Boiler Expansion Vessel - Push-Fit Connection (Baxi, Broetje, De Dietrich, Remeha) — A practical push-fit model sought after for European-made combi boilers.
3/8" 8 L Ferroli Hook-Mounted Combi Boiler Expansion Vessel — Made by Onaysan, can be used in place of the original Ferroli spare part.
Zilmet Combi Boiler Expansion Vessel 8 Liter M14 – Baxi, Baymak, Westen Compatible — Italian Zilmet quality, the reference for models with the special M14 connection.
CIMM 8 L Combi Boiler Expansion Vessel - 3/8" Vaillant Turbotec, Ecotec Compatible — The most frequently requested equivalent for Vaillant series.

Professional Selection Criteria (For HVAC Technicians)

When choosing an expansion vessel, not only the brand but also the manufacturing quality is decisive. The criteria shared by our technicians who have worked in the field for years are as follows:

Membrane material: EPDM rubber is long-lasting, while butyl rubber withstands higher temperatures. In systems in contact with domestic hot water, a food-grade membrane should be preferred.
Body quality: The carbon steel body should be cataphoresis (electrostatic) coated. A double coat of paint provides long-term protection against rust.
Test pressure: The expansion vessel must withstand a test pressure of at least 1.5 times the operating pressure (usually 4.5-5 bar test).
Certification: CE, PED 2014/68/EU or WRAS certificates are an indicator of manufacturing quality. European brands such as Winkelmann and Zilmet are the reference in this respect.
Gas valve (Schrader valve): An automotive-type Schrader valve makes pressure adjustment and measurement easier. Models with a cap are safer.
Volume accuracy: The volume stated on the label should be close to the actual volume. Some low-quality products are labeled 8 L but turn out to be 6.5 L.

Use, Installation and Maintenance Recommendations

The life of an expansion vessel is extended by correct installation and regular maintenance. The practices that we at Yedepa.com recommend to our technicians:

Before installation: Measure the vessel's pre-charge pressure with a pump fitted with a pressure gauge and adjust it to suit the system pressure. For most combi boilers, the factory setting of 1 bar is suitable.
Positioning: Connect the vessel to the boiler's return line, if possible on the suction side of the circulation pump. This is the position that provides the longest service life.
Annual maintenance: Check the pre-charge pressure when the system is cold and after the water side has been drained. If it has dropped by more than 0.2 bar, add nitrogen/air.
Membrane test: If water or moisture comes out when you hold your finger to the Schrader valve opening, the membrane is punctured; the vessel must be replaced.
System filling: After installing a new vessel, fill the system slowly and do not allow sudden pressure shocks.
Corrosion prevention: By adding a suitable corrosion inhibitor to the system (e.g. Sentinel X100, Fernox F1), you can extend membrane life by 2-3 times.

If a combi boiler needs repeated vessel replacements within a short time, secondary causes such as limescale, circulation pump failure, safety relief valve leakage or pressure gauge failure should also be investigated.

Common Fault Symptoms and Their Relation to the Expansion Vessel

The following symptoms are clear indicators of a problem with the expansion vessel:

The pressure gauge rising above 2.5-3 bar as the system heats up
Constant dripping or running of water from the safety relief valve
The pressure dropping below 0.3 bar and the boiler giving a warning when it cools down
Abnormal noise from the radiators or the combi boiler
Water coming out of the Schrader valve on the gas side of the vessel (punctured membrane)
Temperature fluctuations and loss of comfort

Brand Profiles: Winkelmann, CIMM, Onaysan, Zilmet

Winkelmann (Germany): Founded in 1898, factory supplier to German combi boiler giants such as Viessmann and Vaillant. It stands out for its premium quality and long service life.

CIMM (Italy): Italian manufacturer founded in 1962. It supplies OEM parts to European combi boiler brands and, thanks to its price-performance balance, is the most preferred brand at Yedepa.

Onaysan (Turkey): Turkey's leading domestic expansion vessel manufacturer. Specialized in Bosch, Buderus and Ferroli equivalents, it offers the advantage of fast supply.

Zilmet (Italy): Founded in 1955, one of the world's leading brands in vessel manufacturing. It is the reference especially for Baxi/Baymak/Westen models with the M14 connection.

Frequently Asked Questions (FAQ)

How often should an expansion vessel be replaced?
The average service life is 5-8 years. With good water quality, correct pre-charge pressure and regular maintenance, this can extend up to 10 years. Service life is shorter with calcareous, hard water.

How is the vessel's pre-charge pressure checked?
After the combi boiler is switched off and the system water is drained, the Schrader valve cap on the top of the vessel is opened and a measurement is taken with a pump fitted with a pressure gauge. 0.8-1.2 bar is normal.

Can a vessel of a different brand be fitted to the same combi boiler?
Yes, as long as the volume, connection size and mounting type are compatible. For example, instead of the original Vaillant vessel, a CIMM 8 L 3/8" with the same specifications can easily be used.

Can the vessel be repaired if it has swollen, burst or the membrane is punctured?
No. Since expansion vessels have a sealed body, repairing them is not practical; they must be replaced with a new one.

Is fitting a larger vessel harmful?
No, quite the opposite: it provides a larger buffer for the system. However, a vessel that is too small leads to pressure fluctuations and safety relief valve leakage.

Can the user replace an expansion vessel without a technician?
It can be done; however, gas tightness, correct pre-charge pressure setting and bleeding the air from the system require technical knowledge. We recommend working with a certified service company or HVAC technician.
