Combi Boiler Air Pressure Switches: A Detailed Guide to Huba Control and Brand-Specific Models

One of the critical links in a combi boiler's safety chain is the air pressure switch. It checks that the blower fan is actually running and that the flue is venting properly; if this condition is not met, it does not allow the appliance to ignite. Air pressure switch failure is among the most common reasons combi boilers are called in for service. Yedepa.com stocks both the universally used Huba Control models and brand-specific air pressure switches for brands such as Baymak, Baxi, Vaillant, Ariston, Demirdöküm and Bosch-Profilo under one roof. In this guide we will examine the Huba Control 401.93000 Air Pressure Switch, Huba Control 401.95000 Air Pressure Switch, Huba Control 605.99E42, Baymak Baxi Compatible Air Pressure Switch and Vaillant ecoTEC Compatible Air Pressure Switch models.

1. What Is an Air Pressure Switch and How Does It Work?

An air pressure switch is a diaphragm-switch mechanism that measures the pressure difference created by the fan in room-sealed combi boilers. When the fan runs, a pressure difference forms between two points due to the Venturi effect; this difference pushes the switch diaphragm, which closes the contacts of the micro switch behind it. The boiler PCB does not ignite until it sees this signal.

1.1 Negative Pressure (Vacuum) Type

The vast majority of room-sealed combi boilers are the negative pressure type; the fan draws air out of the boiler, creating a vacuum. Huba Control 401.93000 Air Pressure Switch is a reference model for this segment.

1.2 Differential Pressure Type

In condensing combi boilers, the pressure difference between two points is measured. Huba Control 605.99E42 is a differential-type model designed for these applications.

2. The Importance of Huba Control Models

Huba Control is a Swiss manufacturer of precision measurement devices. Many combi boiler manufacturers sell Huba Control models under their own labels as original spare parts.

2.1 Huba Control 401.93000

Huba Control 401.93000 Air Pressure Switch can be used directly in the vast majority of room-sealed combi boilers. Its set pressure is generally around 80-100 Pa; it may vary depending on the appliance manufacturer.

2.2 Huba Control 401.95000

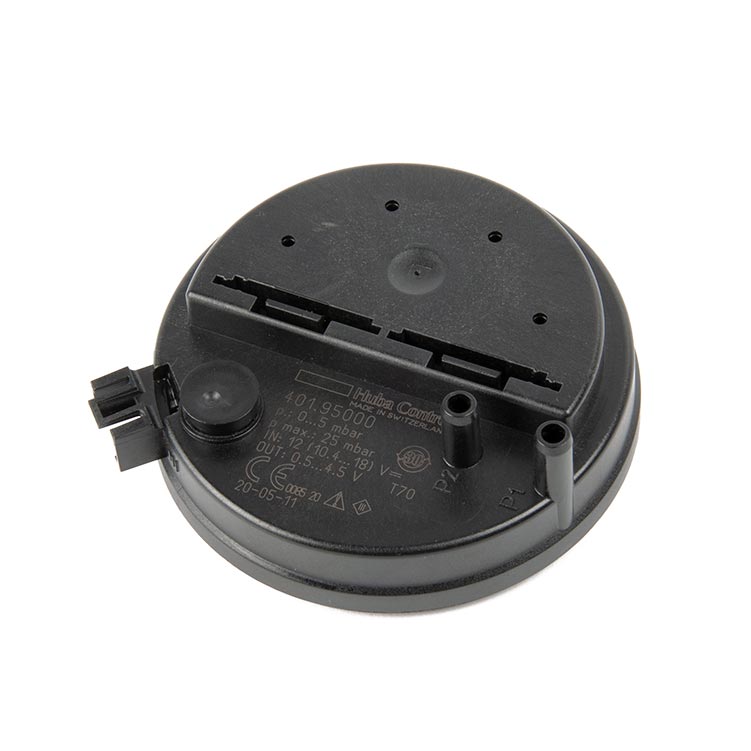

Huba Control 401.95000 Air Pressure Switch has a slightly higher set pressure (100-130 Pa) and is preferred in high-capacity combi boilers.

2.3 Huba Control 605.99E42

Huba Control 605.99E42, on the other hand, is a differential type designed for premium condensing combi boilers; it is used particularly in the Vaillant ecoTEC and Bosch Condens series.

3. Brand-Based Compatibility Table

Model	Type	Application	Set Pressure	Price (USD)
Huba Control 401.93000	Negative Pressure	Room-Sealed Combi Boiler (General)	~80-100 Pa	27
Huba Control 401.95000	Negative Pressure	High-Capacity Combi Boiler	~100-130 Pa	25
Huba Control 605.99E42	Differential	Premium Condensing	40-200 Pa Range	22
Baymak Baxi Compatible	Negative Pressure	Baymak, Baxi	~95 Pa	18
Demirdöküm Nitron	Negative Pressure	Demirdöküm Nitron, Atron	~90 Pa	16
Vaillant ecoTEC Compatible	Differential	Vaillant Condensing	40-180 Pa	15
Ariston Clas	Negative Pressure	Ariston Clas, Genus	~85 Pa	13
Bosch Profilo	Negative Pressure	Bosch ZWA, Profilo	~95 Pa	12

4. Fault Symptoms

4.1 Boiler Does Not Ignite, Fan Runs

This is a classic symptom of air pressure switch failure. The fan runs, but if the switch contact does not close, the PCB does not give the ignition command.

4.2 Stuck at Pre-Purge

If the boiler runs the fan for 30-40 seconds and then shuts down, the switch diaphragm may be fatigued or the silicone hose may be blocked.

4.3 Error Codes Such as E01, E03, A04

Many brands report air pressure switch failure with specific error codes. When these codes appear on the boiler panel, the air pressure switch should be checked first, then the fan motor.

5. Air Pressure Switch Test Methods

Resistance test with a multimeter: With the fan off, the contacts should be open (infinite resistance); when you blow into the port by hand, they should be closed (0 ohm).
Silicone hose check: Cracks, kinks or condensate build-up in the hose distort the signal.
Set pressure check: The pressure created by the fan should be measured with a precision manometer; if it is below the manufacturer's tolerance, the fan motor is also faulty.

6. Brand-Specific Details

6.1 Baymak and Baxi

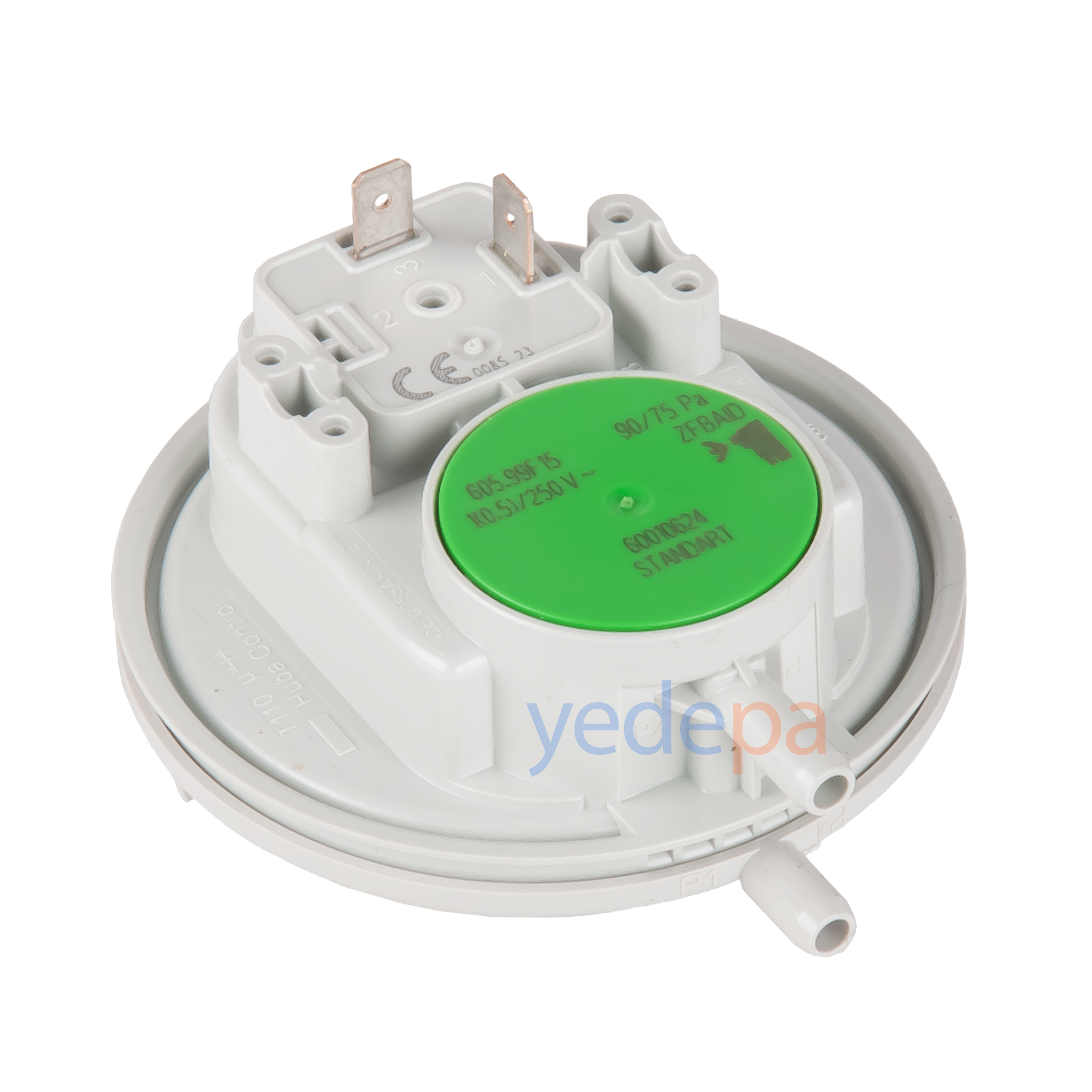

Baymak Baxi Compatible Air Pressure Switch can be used directly in the Eco-3, Eco-4, Mainfour and Luna series. It has a plastic housing and a single silicone hose inlet.

6.2 Vaillant

Vaillant ecoTEC Compatible Air Pressure Switch is a differential type used in the ecoTEC pure and ecoTEC plus series. It belongs to the high-end spare part group frequently needed by the manufacturer's technical service.

6.3 Ariston

Ariston Clas Air Pressure Switch is used as a standard spare in the Clas and Genus series. Attention must be paid to the polarity of the manufacturer's connector.

6.4 Demirdöküm

Demirdöküm Nitron Air Pressure Switch is compatible with the Nitron, Atron and Adix series. Its plastic clip mounting makes it practical.

6.5 Bosch and Profilo

Bosch Profilo Air Pressure Switch is a compact model used in Bosch ZWA and Profilo NLN series combi boilers.

7. Replacement and Calibration

7.1 Removal

Disconnect the power to the boiler and open the casing. Mark and remove the silicone hose connected to the air pressure switch (if the positions get mixed up and the hose is connected the wrong way round, the switch reads the wrong pressure).

7.2 Installing the New Pressure Switch

Mount the new pressure switch in the same orientation (the arrow on it should generally point upward). Reconnect the hoses as you marked them.

7.3 Testing and Calibration

Some models can be adjusted with a potentiometer; however, models such as the Huba Control 401 series are factory-set and must not be adjusted.

8. Air Pressure Switch Supply at Yedepa.com

The Yedepa.com catalog offers an air pressure switch option for almost every combi boiler brand in Turkey. With fast shipping, service technicians get the part on the same or the next business day. With a Yedepa.com B2B account, invoices can be issued on a current account; monthly end-of-period payments ease your cash flow. A practical benefit for service companies: by typing the model number on the Yedepa.com website, you can go directly to the compatibility map and find the new equivalent part using your old part code.

9. Frequently Asked Questions

9.1 How often should an air pressure switch be replaced?

Under normal use it has a service life of 5-8 years. However, flue condensate leaking into the silicone hose can shorten its life dramatically.

9.2 Can I fit a 401.95000 instead of a Huba Control 401.93000?

Because the set pressure is different, even if the appliance runs, it will trip at the wrong safety threshold. It counts as an equivalent only if the manufacturer approves it.

9.3 What does water build-up in the silicone hose indicate?

A blockage in the flue or an incorrect flue slope. Clean the hose, but unless the underlying flue problem is solved, the pressure switch will fail again within a short time.

9.4 The air pressure switch is not working; can I just power the fan directly?

Absolutely not. The air pressure switch is part of the safety chain; bypassing it creates a risk of fire and carbon monoxide poisoning.

9.5 Is there such a thing as a universal air pressure switch?

Apart from brand labeling, the Huba Control 401 series is the model that comes closest to the 'universal' definition in the industry; however, set pressure compatibility must always be checked.

9.6 Will the air pressure switch I buy from Yedepa.com fit my combi boiler?

All you need to do is provide your boiler's brand and model information before ordering; the Yedepa.com technical team will verify the compatible model for you.

Combi boiler air pressure switches may look small, but they are at the center of the safety chain. At Yedepa.com we offer a wide range of Huba Control and brand-specific stock to help you find the right part at the right price.

10. Practical Notes from Service Experience

Air pressure switch failure is one of the fault groups combi boiler installers encounter most often. From the perspective of an experienced field technician, these are the points that should not be overlooked:

Always check the inside of the silicone hose before replacing the air pressure switch; a blocked hose quickly wears out the new switch as well.
Huba Control 401.93000 Air Pressure Switch and Huba Control 401.95000 Air Pressure Switch: although the difference in set pressure between them looks small, if the wrong model is fitted the appliance keeps shutting down on safety lockout.
Vaillant ecoTEC Compatible Air Pressure Switch: when replacing it, the polarity of the electrical connector must be verified against the wiring diagram.
If the horizontal slope of the flue is insufficient, replacing the pressure switch alone will not solve the problem.
Demirdöküm Nitron Air Pressure Switch and Bosch Profilo Air Pressure Switch: when fitting them, it is essential to pay attention to the direction arrow.
The Yedepa.com catalog clearly lists the combi boiler models each air pressure switch is compatible with.

11. Preventive Maintenance at the Change of Season

Combi boilers are serviced before the winter season starts, but the air pressure switch is usually among the neglected parts. Visual inspection of the hose and diaphragm during periodic maintenance extends the life of the pressure switch. Ariston Clas Air Pressure Switch and Baymak Baxi Compatible Air Pressure Switch: for home and apartment owners using these, creating an annual maintenance schedule reduces the cost of service calls.

11.1 Condensate Drainage

In condensing combi boilers, a blocked condensate trap causes condensate to escape into the silicone hose. Huba Control 605.99E42 and similar differential pressure switches are very sensitive to this; cleaning the trap should be an integral part of preventive maintenance.

11.2 Flue Line Check

A flue terminal guard blocked by a bird's nest or leaves lowers the fan pressure, and the pressure switch stays open. An annual flue check reduces how often the air pressure switch needs to be replaced.

At Yedepa.com we offer brand-specific and universal Huba Control models under one catalog in our air pressure switch category; you can get a compatibility check from our technical team before ordering.

12. Pressure Switch Integration in New-Generation Combi Boilers

In the latest generation of condensing combi boilers there is a growing trend toward using an electronic pressure sensor instead of a separate air pressure switch. However, in the mid-range segment and in replacements on existing installations, traditional diaphragm models still dominate. The Yedepa.com catalog has spare parts for both technologies. Huba Control 605.99E42 differential model is the closest traditional alternative for sensor-based combi boilers; it is frequently preferred especially in 24-28 kW condensing combi boilers.

12.1 Service Mode and Testing

On modern combi boilers, the air pressure switch status can be viewed live through service mode. By entering the appliance parameter menu, the status of the pressure switch signal is checked with parameters such as 'P00' or 'd.27'; this provides a definite diagnosis before any component is replaced.

12.2 Hose Diameter and Length

The silicone hose length should be chosen in accordance with the manufacturer's diagram. A hose that is too long causes a pressure drop, while a hose that is too short puts mechanical strain on the diaphragm. Huba Control 401.93000 Air Pressure Switch: the recommended hose length for it is in the 15-25 cm range.

13. Winter Season Call Volume and Supply

In the winter months, service calls caused by air pressure switch failure increase significantly. During this period, spare parts for Baymak, Baxi and Demirdöküm models in particular can sell out quickly. Anticipating seasonal demand, Yedepa.com expands its stock from October onward; a pre-order option is offered to our service companies.

In the October-February period, order volume for the Baymak Baxi Compatible Air Pressure Switch triples.
Yedepa.com offers B2B service companies the option of a pre-season supply agreement.
Demirdöküm Nitron Air Pressure Switch and Ariston Clas Air Pressure Switch are placed on a special stock schedule during the winter peak period.
A same-day shipping option for emergency service calls is active in major cities.
Bulk order discounts apply to orders of 10 or more pressure switches.

14. After-Sales Support

The Yedepa.com customer service team continues to provide technical advice after the product is sold. Service technicians can get a quick opinion on unexpected behavior they encounter after replacing an air pressure switch by writing to our WhatsApp line. In this way, cases thought to be caused by fitting the wrong part are quickly identified as actually being a flue blockage or a diaphragm setting problem.

At Yedepa.com our goal is to increase the field efficiency of combi boiler service technicians; our wide range of Huba Control and brand-specific spare parts is concrete evidence of this goal.
