3 Bar Safety Valve: Combi Boiler Safety Valve Selection Guide

Introduction: What Is a 3 Bar Safety Valve and Why Is It Critical?

The 3 bar safety valve is one of the most vital safety components of the combi boiler and your home's heating system, preventing the pressure in your combi boiler installation from rising above the safe limit. As the name suggests, these valves open automatically as soon as the water pressure in the circuit exceeds the 3 bar value and prevent serious damage by discharging the excess water. Without this valve, whenever the expansion vessel failed to do its job properly, a thermostat failure occurred or a blockage formed in the installation, the combi boiler would carry a risk of bursting as if under bombardment.

At Yedepa.com, we have been in the HVAC sector for years, and from field feedback we know that a significant share of combi boiler faults stems from safety valve fatigue, limescale build-up or wrong model selection. In this guide, we have compiled all the critical information for technicians and industry professionals, from the working principle of the 3 bar safety valve to its brands and models, and from the right selection criteria to maintenance recommendations.

Working Principle and Technical Details of the 3 Bar Safety Valve

Safety valves are based on a simple but ingenious mechanical principle. Inside there is a calibrated spring, a seal or O-ring pressed by this spring, and a brass or high-strength technopolymer body that holds them. The spring force is factory-set to resist exactly 3 bar of pressure. When the pressure in the circuit reaches this value, the force of the water compresses the spring and the seal lifts off its seat, opening the discharge channel.

The critical technical specifications are:

Opening pressure: 3 bar (±5% tolerance, according to TS EN 1268 / EN 1490)
Operating temperature: Between 5°C and 120°C (sufficient for the combi boiler circuit)
Connection size: Usually 1/2 inch male (M) or female thread (F)
Body material: Forged brass, chrome-plated brass or high-strength plastic (technopolymer)
Discharge diameter: Usually compatible with a Ø19.80 mm hose end
Pressure gauge connection: Extra outlet on some models (such as the Novasfer models with gauge connection)

When the valve opens, it directs the water to the discharge hose under the combi boiler; this hose must always be connected to an open drain. Otherwise the discharge backs up and the valve's calibration deteriorates over time.

3 Bar Safety Valve Types and Models

There are many models on the market that look alike but are functionally different. Choosing the wrong model either voids the combi boiler's warranty or causes premature valve fatigue. The main types are:

Classic threaded valves: 1/2" male or female thread, the most common model. Used as standard in many combi boiler brands such as Bosch, Buderus, ECA and Vaillant.
Valves with gauge connection: Models with an additional outlet for a pressure gauge. Common in the Buderus Delta and Ariston Microtec TX series.
O-ring push-fit valves: Threadless, direct-seating models. Used especially in the Bosch Worcester series.
Plastic (technopolymer) valves: Lightweight, corrosion-resistant models made by Watts, optimized for modern condensing combi boilers.
Forged brass valves: Designed for heavy-duty conditions, longer-lasting, found in brands such as Kramer and Caleffi.

Which Model Should You Choose? Brand-Based Decision Guide

Choosing the right safety valve doesn't end with it saying "3 bar". The combi boiler's brand, model series and connection type must be compatible. Main brand recommendations from the Yedepa.com catalog:

Brand	Key Feature	Compatible Combi Boilers
Watts	Plastic body, lightweight, ideal for modern condensing	Bosch, Buderus, ECA, Vaillant, Viessmann, Ferroli
Bitron	Italian-made, optimized for condensing combi boilers	Ferroli, ECA, Innovita
Novasfer	With gauge connection, classic thread	Buderus Delta, Ariston Microtec TX, Baymak, Baxi, Potterton
Orkli	Italian forged brass, OEM quality	Baymak, Baxi, Vaillant, Protherm, Saunier Duval, Ferroli
TS Valve	Economical, broad compatibility	Bosch, Buderus
Caleffi	O-ring push-fit, premium Italian	Bosch Worcester series
Kramer	Forged brass, resistant to heavy-duty conditions	Bosch, Worcester

3 Bar Safety Valves You Can Find on Yedepa.com

At Yedepa.com, we stock original and equivalent products from the most reliable brands that our technicians search for most in the field. Below is a summary list of the popular 3 bar safety valve models in our catalog:

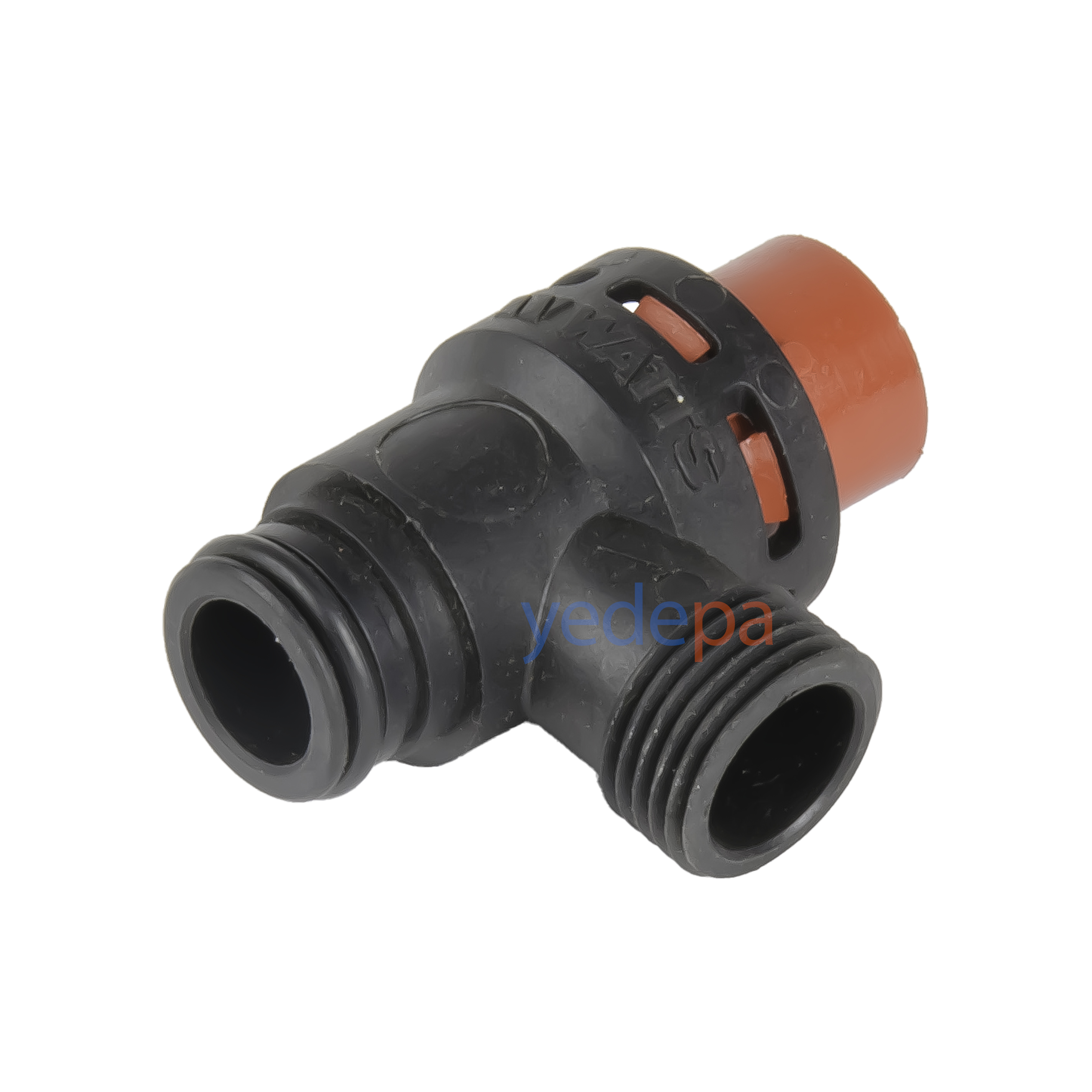

Watts Plastic Combi Boiler Safety Valve 1/2" — A technopolymer model compatible with Bosch, Buderus, ECA, Vaillant, Viessmann and Ferroli combi boilers, ideal for modern condensing systems.
Bitron 3 Bar Safety Valve — A reliable Italian-made model frequently used in Ferroli, ECA and Innovita condensing combi boilers.

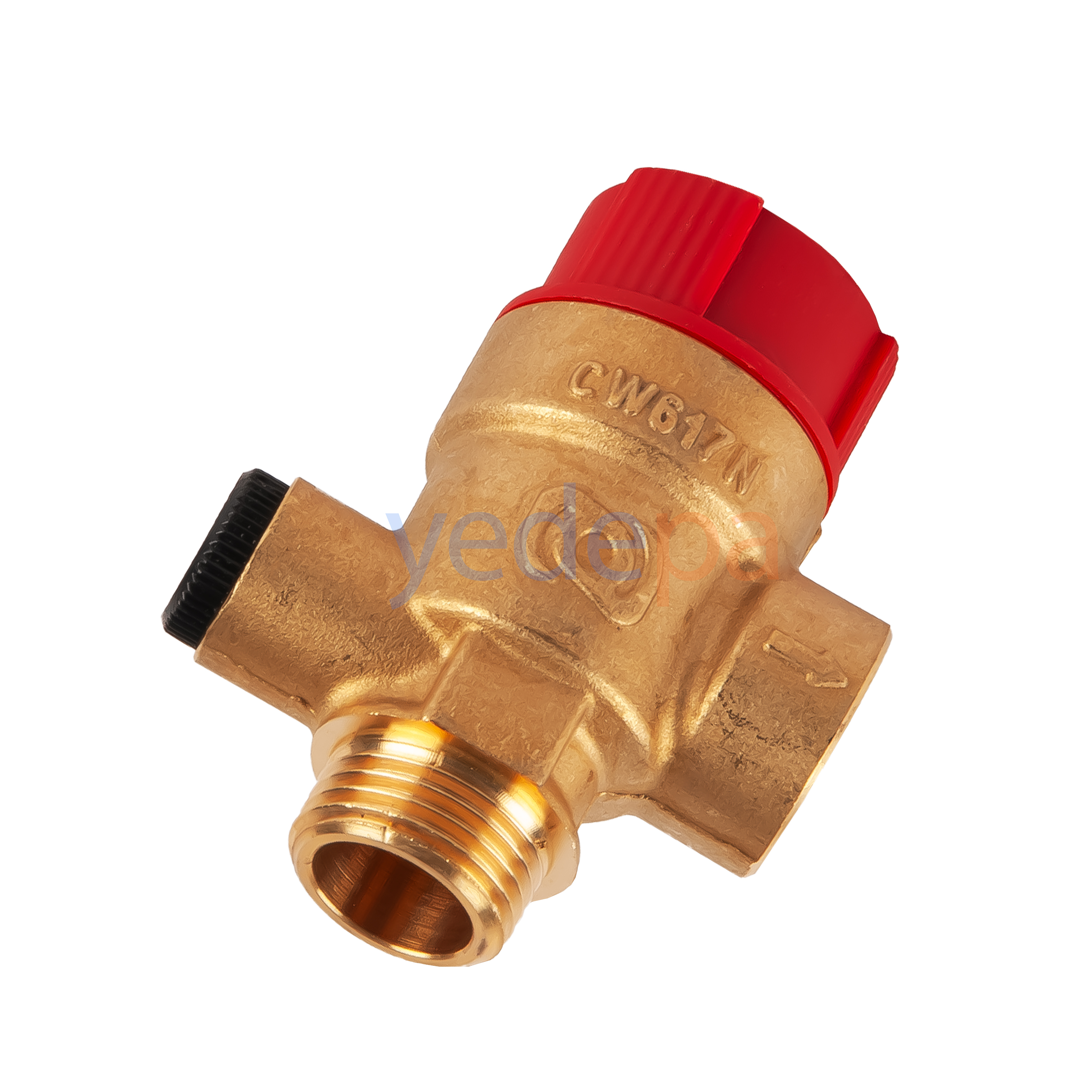

Combi Boiler 3 Bar Safety Valve (Novasfer – With Gauge Connection 1/2 Male) — A practical solution with gauge outlet for the Buderus Delta and Ariston Microtec TX series.
Baymak Baxi Combi Boiler Water Safety Valve Ø19.80 mm – Orkli (Italy) — Italian-made, OEM quality for Baymak and Baxi combi boilers.

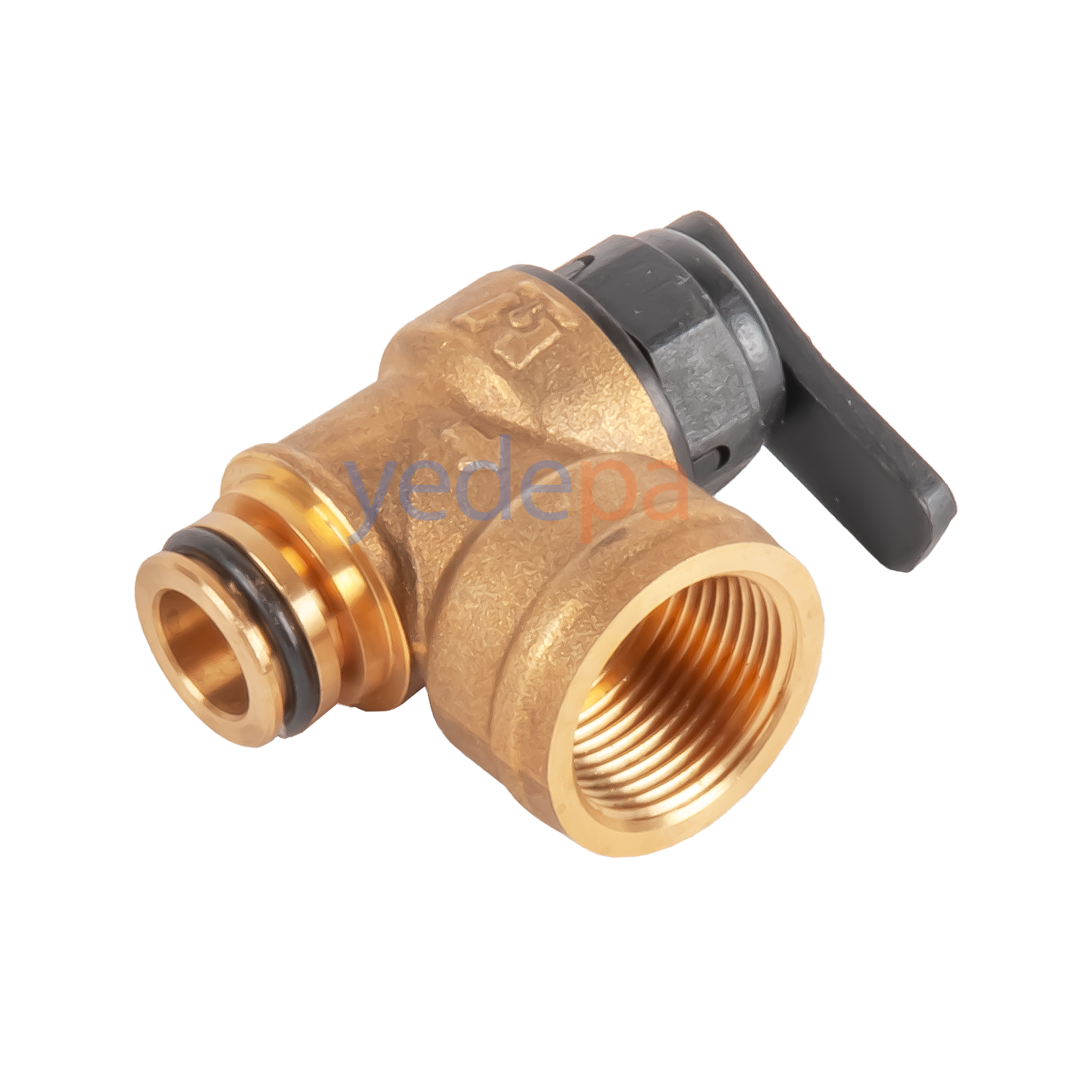

3 Bar Combi Boiler Safety Valve - Bosch and Buderus Compatible (TS Valve) — An economical alternative offering broad compatibility.

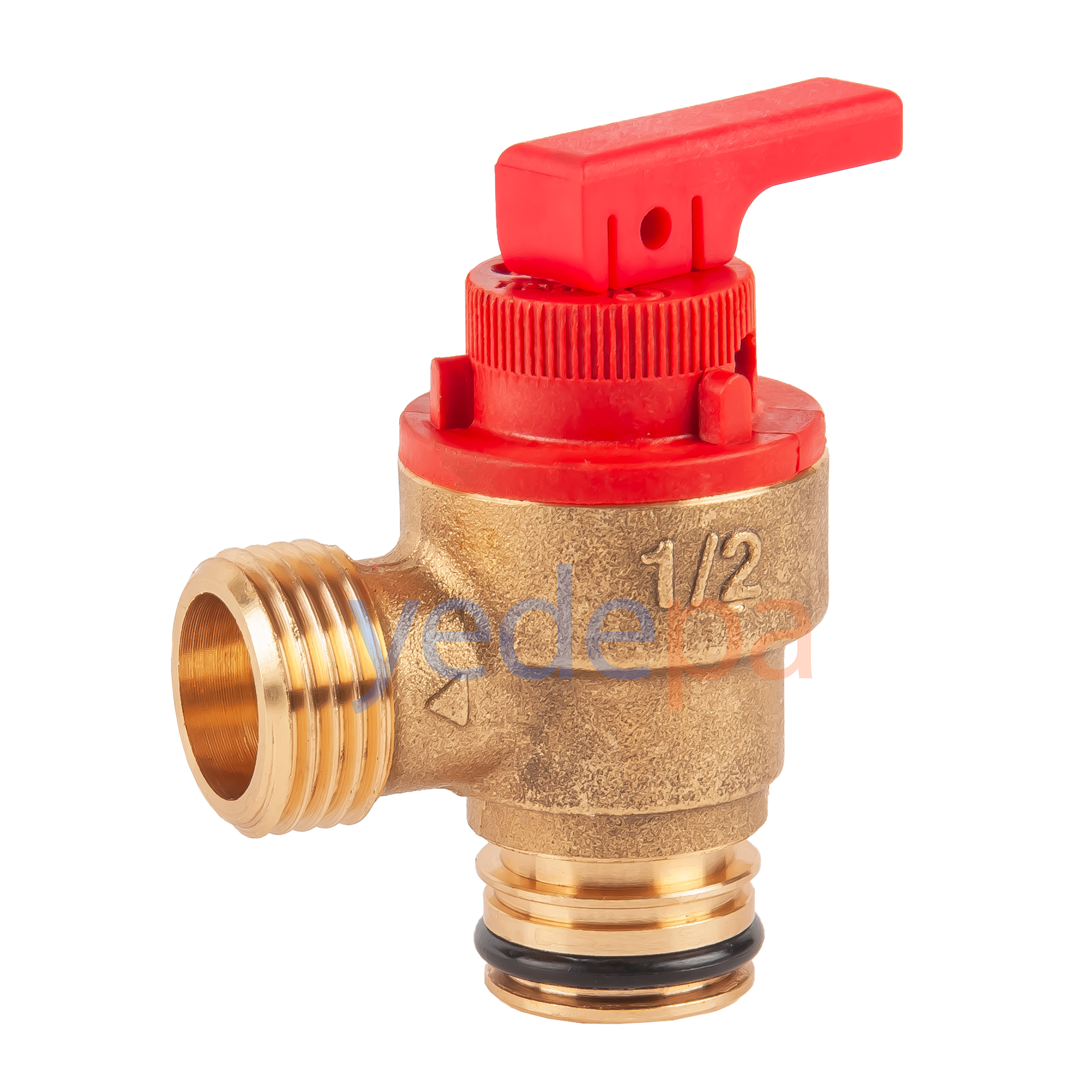

Combi Boiler Safety Valve 1/2" – Vaillant, Protherm, Saunier Duval, Ferroli Compatible (Orkli OEM 178985 / 0020047005) — Easy identification for technicians with multiple OEM code compatibility.

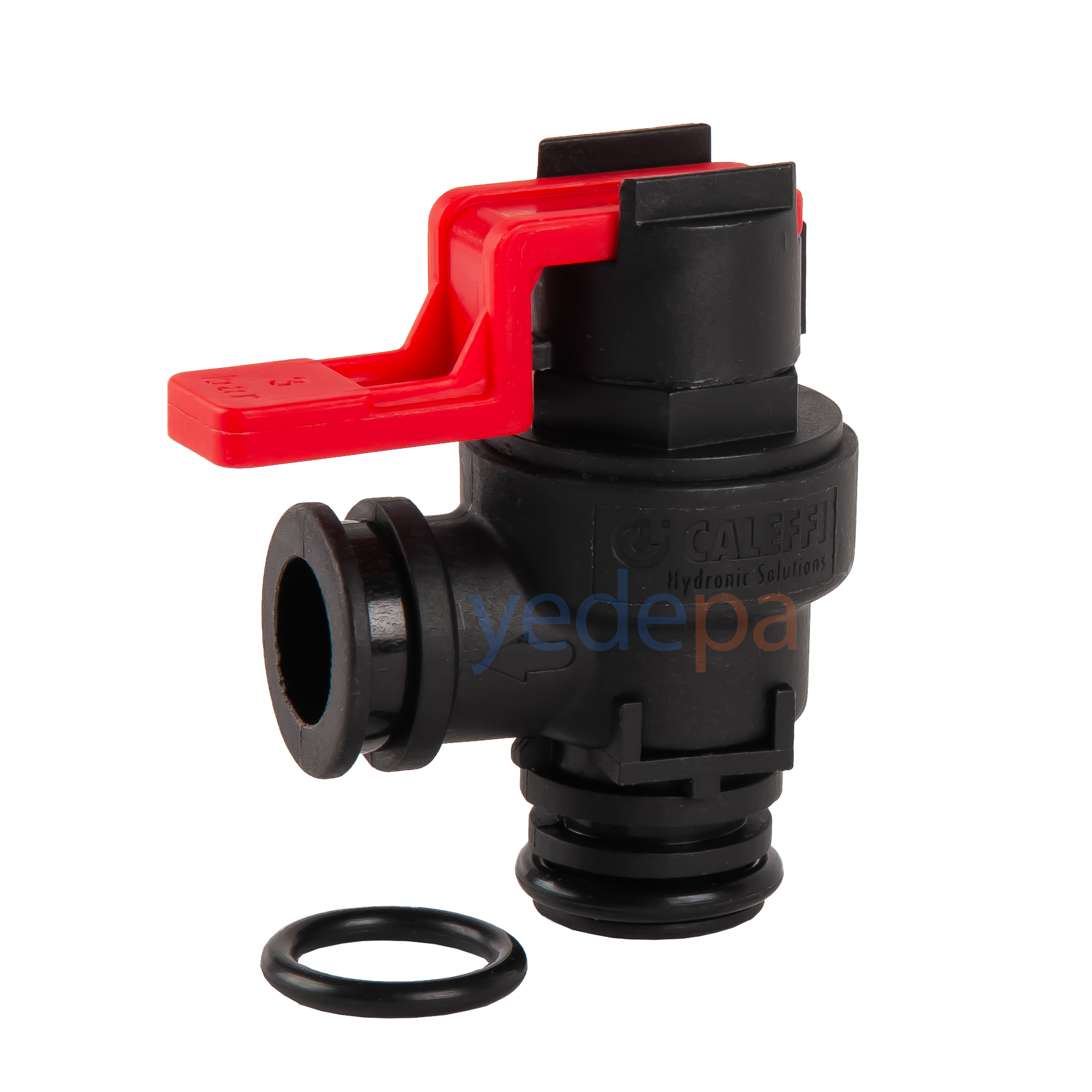

3 Bar Combi Boiler Safety Valve (O-Ring Push-Fit – Bosch Worcester Compatible - Caleffi) — Premium Italian valve with push-fit connection.

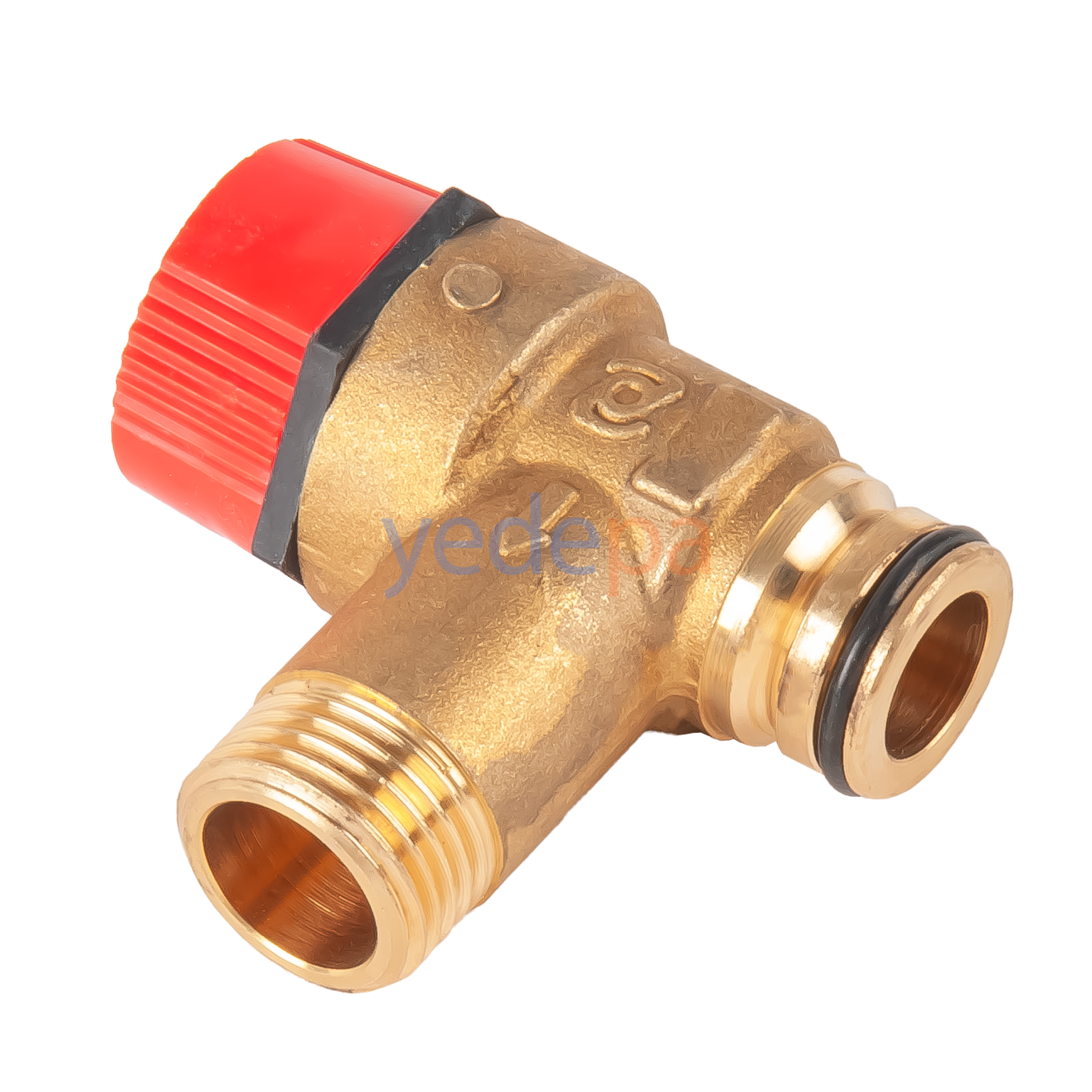

3 Bar Combi Boiler Safety Valve - Baymak, Baxi, Potterton Compatible (Novasfer) — Compatible with a wide range of British-Italian combi boilers.
Combi Boiler 3 Bar Safety Valve - Bosch and Worcester Combi Boiler Compatible (Kramer Forged Brass) — Forged brass durability for heavy-duty conditions.
1/2 Baymak Combi Boiler Safety Valve Female Thread (Novasfer) — An economical female-thread solution for Baymak combi boilers.

Professional Selection Criteria: 7 Points from a Technician's Perspective

Most of the errors we encounter in the field stem from choosing the wrong safety valve. Here are the critical criteria professional technicians should consider:

Connection type and size: 1/2" male, female thread or O-ring push-fit? A wrong connection leaks.
Opening pressure accuracy: It must be labeled 3 bar. 2.5 or 4 bar models look the same but cannot protect the combi boiler.
Gauge outlet: If the old valve has a gauge connection, the new valve must have the same outlet.
Body material: Brass may be preferred in regions with very hard water, and technopolymer in regions with fewer limescale problems.
Original OEM code: Check original codes such as Vaillant 0020047005 and Orkli 178985; even with an equivalent, this compatibility is guaranteed.
CE and TS EN certification: To avoid counterfeit products, always look for the CE mark and TS EN 1268 certification.
Brand reliability: Long-established brands such as Watts, Bitron, Orkli and Caleffi are generally longer-lasting.

Use and Maintenance Recommendations

A safety valve is not a "fit and forget" part. Correct use and regular checks both extend the valve's life and protect your combi boiler from major faults. Here are our technicians' recommendations:

Annual maintenance: During combi boiler service, the safety valve must be checked by hand; if there are limescale residues, it should be cleaned or replaced.
If it drips: If the valve drips constantly, either the expansion vessel has failed or the valve is fatigued. Dripping should not be ignored.
Discharge hose: The discharge hose must be open and must not be left on a blocked drain or on the floor.
Limescale prevention: In hard-water regions, using a descaler before filling the system extends the valve's life.
Tightening force: Do not overtighten during installation; cracking can occur, especially on plastic-body Watts models.
3-5 year replacement: Valve replacement is recommended every 3-5 years in heavily used areas and every 7-8 years under normal conditions.

Frequently Asked Questions (FAQ)

Q1: My combi boiler's safety valve keeps dripping water, what should I do?
There are two common causes: (1) If the expansion vessel has gone flat or its pressure has dropped, the circuit pressure rises continuously and the valve has to discharge. (2) The seal inside the valve is fatigued or scaled up. First check the expansion vessel pressure; if the problem is not solved, replace the valve. You can easily find the compatible model on Yedepa.com.

Q2: Can I fit a 2.5 bar or 4 bar valve instead of 3 bar?
Absolutely not. The combi boiler manufacturer designed the circuit for a 3 bar opening pressure. A valve with a lower bar value discharges constantly, while a higher one damages the combi boiler. Always use a model labeled 3 bar.

Q3: Which is better, plastic or brass?
In modern condensing combi boilers, technopolymer plastic models such as Watts may be preferred for their light weight and corrosion resistance. For heavy-duty conditions or very hard water, forged brass models such as Kramer or Orkli last longer.

Q4: Which valve should I fit to my Bosch Worcester combi boiler?
The most suitable solution for the Bosch Worcester series is the O-ring push-fit Caleffi or Kramer forged brass model. These models are in stock at Yedepa.com.

Q5: What is the difference with a gauge-connection valve?
On some combi boilers, the pressure gauge is fitted directly to the safety valve. On these combi boilers, a model with a gauge outlet must be selected. The Novasfer With Gauge Connection model is made specifically for this need.

Q6: Can I replace the safety valve myself?
If you do not have technical knowledge, we recommend that you call an authorized service or HVAC technician. Incorrect installation leads to leaks and voided warranties. At Yedepa.com we supply products to both technicians and end users; for arranging a technician, we can refer you to the service network in your area.

Conclusion: Make the Right Choice with Yedepa Advantages

The 3 bar safety valve is your combi boiler's silent hero. When the right model is chosen, it works trouble-free for years; when the wrong one is chosen, it can lead to major faults, installation bursts and even life-safety problems. That is why the combi boiler's brand and model, connection type, opening pressure and body material must be taken into account when choosing a valve.

At Yedepa.com we offer HVAC technicians and authorized services the following advantages:

Wide brand range: Watts, Bitron, Novasfer, Orkli, TS Valve, Caleffi, Kramer and OEM brands under one roof.
OEM code matching: Original Vaillant, Bosch, Baymak and Ferroli codes are clearly matched with equivalent products; technicians find what they are looking for in seconds.
Stock guarantee: All listed models are physically in stock; you won't get an "out of stock" surprise.
Technician-backed technical consultancy: If you are not sure about the model, you can consult our team via WhatsApp or phone.
Certified products: All our 3 bar safety valves are CE marked and comply with TS EN standards.
B2B and service network support: We offer special prices and bulk order advantages for authorized services.

If you are undecided about choosing the right 3 bar safety valve for your combi boiler, you can review the compatibility list in Yedepa.com product descriptions or consult our technical team. The right part at the right time — with the Yedepa.com difference.
