Scroll Compressor Models and Comparison: Professional Guide

Scroll compressors are at the heart of modern refrigeration and air conditioning systems. Used in a wide range of applications from industrial chillers to commercial air conditioning systems and from supermarket refrigeration to VRF systems, these compressors stand out for their efficiency, quiet operation and long service life. As Yedepa.com, Türkiye's leading HVAC spare parts supplier, we have gathered all the technical information that HVAC technicians, air conditioning technicians and refrigeration system engineers need in a single resource under the title Scroll Compressor Models and Comparison.

Stocking original scroll compressors from leading brands in the sector such as Copeland, Danfoss and Mitsubishi Heavy, Yedepa.com provides technician- and service-focused B2B support for correct model selection, capacity matching and post-installation support. In this guide, we present a detailed comparison starting from the working principle of scroll technology up to which model you should choose for which application.

What Is a Scroll Compressor and Its Working Principle

A scroll compressor is a positive displacement compressor type based on two spiral-shaped (scroll) elements meshed together to compress the refrigerant. One of these spirals is fixed, while the other moves in an orbital path. Driven by an eccentric shaft, the moving spiral compresses the gaseous refrigerant from the outside toward the center until it reaches discharge pressure.

Having fewer moving parts than reciprocating compressors is the main advantage of scroll compressors. This mechanical simplicity provides:

Lower vibration and noise level (typically between 65-75 dB)
High volumetric efficiency (filling ratio of up to 95%)
Longer service life (over 80,000-100,000 hours with proper use)
Continuous and steady compression, and therefore less torque fluctuation
Resistance to backflow and liquid slug tolerance

Scroll technology is particularly compatible with R410A, R407C, R134a, R454B and the new-generation R32 refrigerants. All scroll compressors available at Yedepa.com come factory-charged with the original oil type specified by the manufacturer (usually POE - Polyolester).

Scroll Compressor Models and Types

Scroll compressors are divided into various classes according to their intended use and technical specifications. Evaluating them based on the models in the Yedepa.com stock:

1. Air Conditioning Type Scroll Compressors

These models are designed for comfort air conditioners, commercial air conditioning systems, rooftop packaged units and chiller applications. The Copeland ZR series is the cornerstone of this category. The Copeland ZR19M3E-TWD-961, ZR310KCE-TWD-523 and ZR380KCE-TWD-523 models available at Yedepa.com are R407C/R22 compatible air conditioning type scrolls.

2. Refrigeration Type Scroll Compressors

For supermarket cabinets, cold rooms and applications requiring low evaporating temperatures, the Copeland ZP series stands out. The Copeland ZP485KCE-TWD-522 and ZP385KCE-TWD-522 models in the Yedepa.com stock are R410A compatible high-capacity options.

3. R410A High-Efficiency Scroll Compressors

Within the framework of the European F-Gas regulations, models with R410A refrigerant have become standard in modern chillers. The Danfoss DSH, SH and SY families are the leaders in this category. Models such as the Danfoss DSH381-4 (30,370 W, 103,651 BTU/h, 3 phase), SH 300 (75,186 W, 256,559 BTU/h, 25 HP) and DSH295B4APC (25 HP, 246,500 BTU/h, ready for tandem use) are available from Yedepa.com.

4. Tandem and Manifold Systems

In high-capacity chillers, two or more scroll compressors are connected in parallel. Models such as the Danfoss DSH295B4APC (120H1370) are designed to be compatible with tandem manifolds. These systems provide stepped capacity control.

Which Scroll Compressor Model Should You Choose for Which Situation?

Correct compressor selection is critical for system efficiency, service life and operating costs. You can use the table below as a reference when making a Scroll Compressor Models and Comparison:

Application Type	Recommended Brand/Model Family	Capacity Range	Refrigerant
Comfort Air Conditioning 5-15 HP	Copeland ZR / Danfoss SY	15-45 kW	R407C / R410A
Industrial Chiller 20-30 HP	Danfoss DSH / SH series	60-90 kW	R410A
Supermarket Refrigeration (medium temperature)	Copeland ZP series	20-60 kW	R410A / R404A
VRF Systems	Mitsubishi Heavy AGF	5-25 HP	R410A / R32
Rooftop packaged unit	Copeland ZR380/ZR310	30-60 kW	R407C

For example, for a 25 HP water-cooled chiller, the Danfoss SH 300 or DSH295B4APC is an ideal choice, while the Mitsubishi Heavy AGF201A858DF may be preferred for a medium-scale VRF system. Options for different budgets and capacities are available in the Yedepa.com catalog, from Mitsubishi models starting at approximately 2,574 USD to high-capacity Copeland ZR19M3E models reaching the 11,404 USD range.

Scroll Compressor Models Available at Yedepa.com

As Yedepa.com, we offer original, warranted and in-stock scroll compressors to HVAC technicians and refrigeration services. Below you can find the featured models in our catalog:

Copeland Scroll Compressor ZR19M3E-TWD-961 — High-capacity air conditioning type, for commercial and industrial applications
Copeland Scroll Compressor ZP485KCE-TWD-522 — R410A compatible, refrigeration type high-efficiency model
Copeland Scroll Compressor ZR380KCE-TWD-523 — Ideal for rooftop packaged units and chillers
Copeland Scroll Compressor ZP385KCE-TWD-522 — Medium temperature refrigeration applications

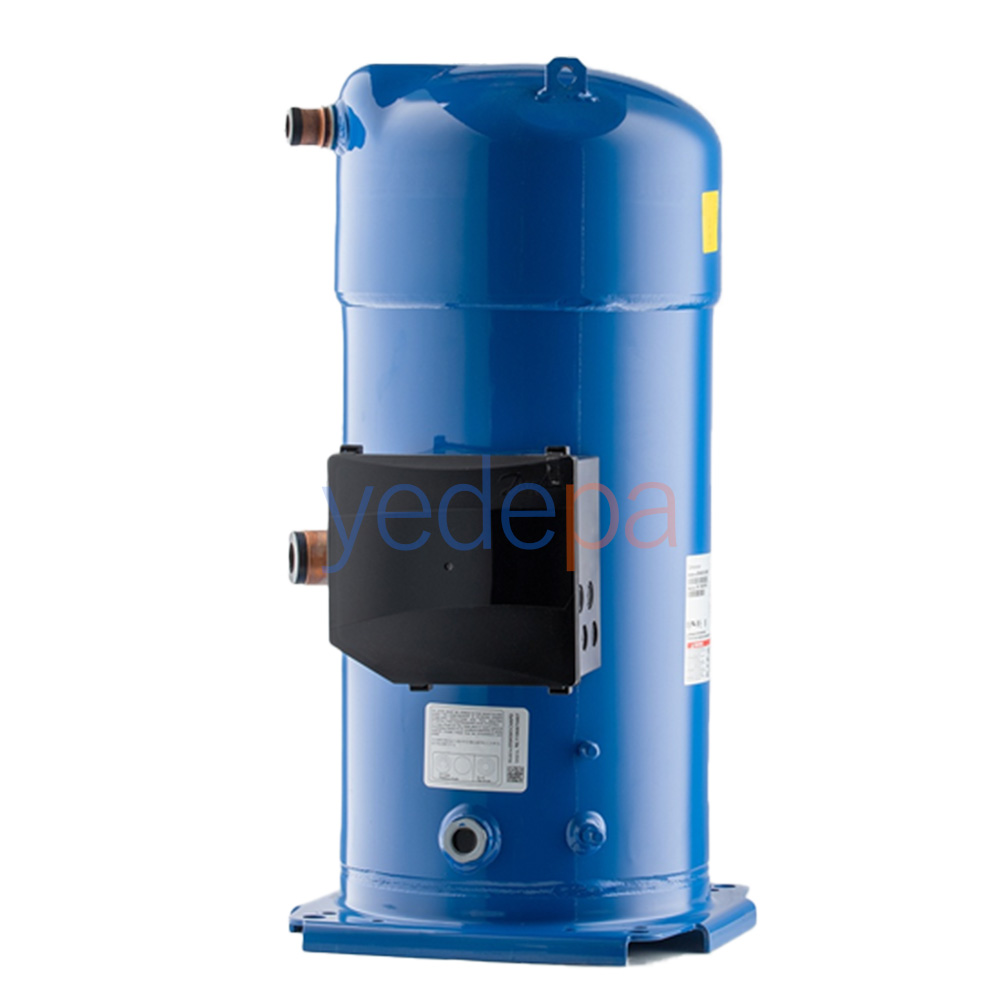

Danfoss DSH381-4 Scroll Compressor — 30,370 W (103,651 BTU/h), R410A, 3 phase
Copeland Scroll Compressor ZR310KCE-TWD-523 — Medium-capacity air conditioning applications
Danfoss SH 300 Scroll Compressor — 75,186 W (256,559 BTU/h), 25 HP, R410A, 3 phase
Danfoss DSH295B4APC Scroll Compressor — 25 HP, 246,500 BTU/h, ready for tandem use (120H1370)
Danfoss SY300A4PBI — Air conditioning type scroll with 248,356 BTU/h capacity
Danfoss SH 295 Scroll Compressor — 20 HP, 59,742 W (302,080 BTU), industrial refrigeration
Mitsubishi Heavy AGF201A858DF Scroll Compressor — For VRF and air conditioning applications

The price range starts at approximately 2,574 USD and goes up to over 11,404 USD for the highest-capacity Copeland ZR19M3E model. All our models carry the original manufacturer's warranty and are shipped after OEM code matching.

Scroll Compressor Selection Criteria and Professional Tips

When selecting a scroll compressor, there are critical parameters to consider from a technician's and engineer's perspective:

Cooling Capacity (BTU/h or kW): Should be selected according to the system load calculation with a +10% safety margin. For example, for a 250,000 BTU/h load, the Danfoss DSH295B4APC (246,500 BTU/h) is suitable.
Refrigerant Compatibility: R410A, R407C, R22, R454B or R32 — the compressor's factory-charged oil must be compatible with the gas type in the system.
Electrical Requirements: 3 phase 380-400V/50Hz is standard for Türkiye. Single-phase models are available only in low capacities.
Evaporating and Condensing Temperatures: Operation must stay within the manufacturer's envelope curve. ZP is suitable for low evaporating temperatures, ZR for high evaporating temperatures.
Oil Type (POE vs Mineral): POE oil must be used in R410A models.
Connection Types: Rotalock, brazed or flanged connection options should be selected according to the system pipe diameter.
Brand and OEM Code Compatibility: Match the exact OEM code of the existing compressor. Sending your OEM code to Yedepa.com makes it easier for us to find the correct equivalent.

Professional tip: When a compressor failure occurs in the system, it is necessary to replace not only the compressor but also the filter drier, the sight glass and sometimes the expansion valve. Acidic oil from a burnt-out compressor can also shorten the life of the new compressor.

Maintenance and Usage Recommendations

For long-lasting operation of scroll compressors, following the maintenance protocol below is recommended:

Annual periodic maintenance: Oil analysis, current measurement, recording of pressure values.
Evacuation: Before compressor installation, the system must be evacuated to below 500 microns. Residual moisture causes POE oil acidification and scroll erosion.
Oil level monitoring: The oil level should be checked periodically through the sight glass. An oil equalization line is a must in tandem systems.
Filter drier replacement: The filter should be replaced after every major intervention.
Crankcase heater: For cold starts it must be energized at least 6-8 hours in advance; otherwise "liquid slug" damage may occur.
Phase protection relay: The direction of rotation is critical in three-phase scroll compressors; if run in reverse, the compressor cannot compress and fails within a short time.
High/Low pressure switch: Must be in working order, with set values adjusted according to the manufacturer's table.

The Yedepa.com expert team provides support through the technician and service channel to answer technical questions encountered during scroll compressor installation.

Brand Comparison: Copeland vs Danfoss vs Mitsubishi Heavy

When making a Scroll Compressor Models and Comparison, three giant manufacturers of the sector come to the fore:

Copeland (Emerson): Considered the inventor of scroll technology. With its ZR (air conditioning) and ZP (refrigeration) series, it is the most widespread brand worldwide. It is the brand with the highest spare parts availability and OEM compatibility.
Danfoss: A leader especially in the high-capacity chiller market. With its SH, SY, DSH and VZH (inverter) series, it offers a very wide portfolio in the 5-40 HP range. It stands out with high COP (coefficient of performance) values.
Mitsubishi Heavy Industries: Better known as an OEM supplier for VRF and packaged air conditioners. The AGF series offers Japanese quality and focuses on quiet operation.

All three brands are supplied by Yedepa.com as original products; there is no room for confusion with OEM equivalents.

Frequently Asked Questions (FAQ)

What is the service life of a scroll compressor?

The service life of a scroll compressor operated with correct installation, proper evacuation, suitable oil and electrical protection systems is between 80,000 and 100,000 operating hours. This corresponds to approximately 18-22 years for a system running 12 hours a day.

What is the difference between the Copeland ZR and ZP series?

The ZR series is optimized for air conditioning applications, i.e. operating points with high evaporating temperatures (+5°C and above). The ZP series is designed for refrigeration and provides high efficiency at low evaporating temperatures (between -20°C and +5°C).

What are the Danfoss SH and DSH series used for?

Both are R410A compatible air conditioning/chiller type scrolls. The DSH series is the newer generation and has a wider operating envelope thanks to dual-port discharge and low pressure point technology. The SH series maintains the classic dual spiral architecture.

What happens if a scroll compressor runs in reverse?

Scroll compressors are designed to run in one direction only. If the phase sequence is connected in reverse, the compressor runs but cannot compress gas, makes noise, builds no pressure and suffers internal part damage within a short time. Therefore, the suction-discharge pressure difference must be checked at the first start-up.

What is a tandem scroll compressor system?

It is a system in which two or more scroll compressors are connected to a common suction and discharge manifold and operated together with an oil equalization line. Models such as the Danfoss DSH295B4APC are manufactured ready for tandem use. It provides stepped capacity control and redundancy.

Does Yedepa.com provide a warranty on scroll compressors?

Yes. All original Copeland, Danfoss and Mitsubishi Heavy scroll compressors are delivered with the manufacturer's warranty. The warranty period varies between 12-24 months depending on the brand and model.

What should be considered when replacing a burnt-out compressor?

If acidic oil and carbon residues from a burnt-out compressor remain in the system, the new compressor will also fail within a short time. The system must be flushed with nitrogen, a filter drier (preferably an acid-filter type) must be installed and an oil analysis must be performed.

Conclusion and Yedepa.com Advantages

Scroll compressors form the backbone of modern HVAC and refrigeration systems. With correct model selection, proper installation and regular maintenance, these compressors can provide trouble-free service for decades. In this guide, under the title Scroll Compressor Models and Comparison, we covered in detail the technical differences, selection criteria and maintenance recommendations of the Copeland ZR/ZP, Danfoss SH/DSH/SY and Mitsubishi Heavy AGF series.

The main advantages we offer to HVAC technicians and refrigeration services as Yedepa.com:

Products in stock — All the models we list are physically available in our warehouse.
Original product guarantee — Official manufacturer distributor chain.
OEM code matching support — If you send the code of your old compressor, our technical team finds the correct equivalent.
Technician- and service-focused B2B pricing — Special terms for professional users.
Technical consultancy — Technical support line before and after installation.
Wide brand portfolio — Copeland, Danfoss and Mitsubishi Heavy supply from a single supplier.

Whenever you are unsure about scroll compressor selection, you can get support from the Yedepa.com expert team and determine the most suitable model for your system together. The right part, the right support and delivery at the right time — the triple assurance that strengthens Yedepa.com's position in the sector.
