What Are 3-Way Valve Motors? Their Role in Combi Boilers

Among the unsung heroes of combi boiler systems are 3-way valve motors, the electromechanical components that route the boiler water between the space heating circuit and the domestic hot water (DHW) circuit. Also known as a diverter valve motor, this part is an actuator that converts the signals sent by the electronic board, the "brain" of the boiler, into mechanical movement. Drawing on our years of experience in the HVAC sector at Yedepa.com, we often explain to our technicians that when this small but critical part fails, typical problems arise, such as the boiler heating only the radiators or supplying hot water only from the tap.

Especially in popular combi boiler brands such as Bosch, Buderus, Junkers, Viessmann, Vaillant, Worcester and Alarko, 3-way valve motor failure is one of the five most common faults. Choosing the right model directly affects whether the boiler operates efficiently, quietly and with a long service life.

\\ \\

Technical Details and Operating Principle

3-way valve motors are basically built on two technologies: step motor (stepper motor) and synchronous motor types. While the vast majority of modern combi boilers use diverter systems with 24V DC step motors, 230V AC synchronous valve motors are found in older-generation appliances. The operating principle is as follows: when the boiler's electronic board detects a hot water demand at the tap, the flow sensor sends the signal to the control board. The board then sends a command to the 3-way valve motor, which rotates the mechanical shaft and directs the water toward the heat exchanger side.

In the step motor type, the motor rotates in defined steps to move into the calibrated position; this makes the changeover between heating and DHW both fast and quiet. In synchronous motor models, a microswitch feeds the position information back to the board. Over many years, the motor shaft can seize due to sediment, limescale and electrical wear; the typical symptom is a "click click" sound when the boiler starts up, or an error code.

\\ \\

Types and Models: Step Motor, Synchronous and Block Systems

The 3-way valve motors you will come across on the market fall roughly into three main groups:

Step Motor Type (24V DC): The modern solution that has become standard in Bosch, Buderus, Junkers, Viessmann and Worcester combi boilers. It is quiet, fast and service-friendly.
Synchronous Motor Type (230V AC): Used in classic models such as the Honeywell VC4012 and VC8010 series. Preferred in industrial applications and older combi boilers.
Motorized Valve Block Systems: In models such as the Vaillant Turbotec, Ecotec Pro and Ecofit, the motor and body are replaced as a single unit; fitting a separate motor is not possible.

In addition, the distinction between holed and flat type models is also critical. The Generous brand holed model compatible with Bosch–Buderus–Junkers–Viessmann guarantees precise positioning during installation thanks to the locating pin at the end of the shaft, while Viessmann flat type models are preferred in older Vitopend series. In models such as the Vitodens 100, a long-type step motor and repair kit come together as a set; this both shortens labor time and prevents water leaks caused by O-rings.

\\ \\

Which Model Should You Choose? A Decision Guide for Technicians

Our Yedepa technical team summarizes the criteria to consider when choosing the right 3-way valve motor as follows:

Boiler Brand and Model: The boilers the Honeywell VC4012 is compatible with differ from those the NMB 24V DC model is compatible with. First, read the exact model from the appliance label.
Voltage Information: If 24V DC and 230V AC are mixed up, the motor burns out instantly.
Shaft Diameter and Pin Structure: Whether it is holed or flat, the number of gear teeth and the shaft length are critical physical parameters.
Connector Type: There are socket differences such as Molex 4-pin and Amp 3-pin; if no socket adapter is available, the cable may need to be replaced.
Original or Equivalent: Honeywell represents the original segment, Generous and Scopo the first-class equivalent segment, and OEM the economy equivalent segment.

\\ \\

3-Way Valve Motors Available at Yedepa.com

We make a point of keeping in stock at Yedepa.com the models HVAC technicians need most often. Here are the highlights of our current product range:

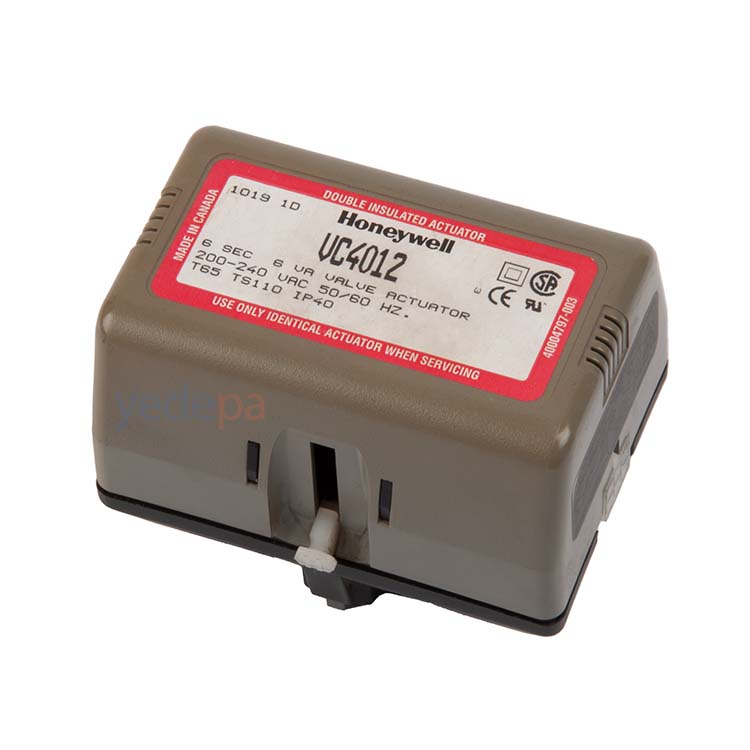

Honeywell VC4012 Combi Boiler 3-Way Valve Motor — A classic synchronous motor solution at 40 USD, for those looking for long service life and original quality.

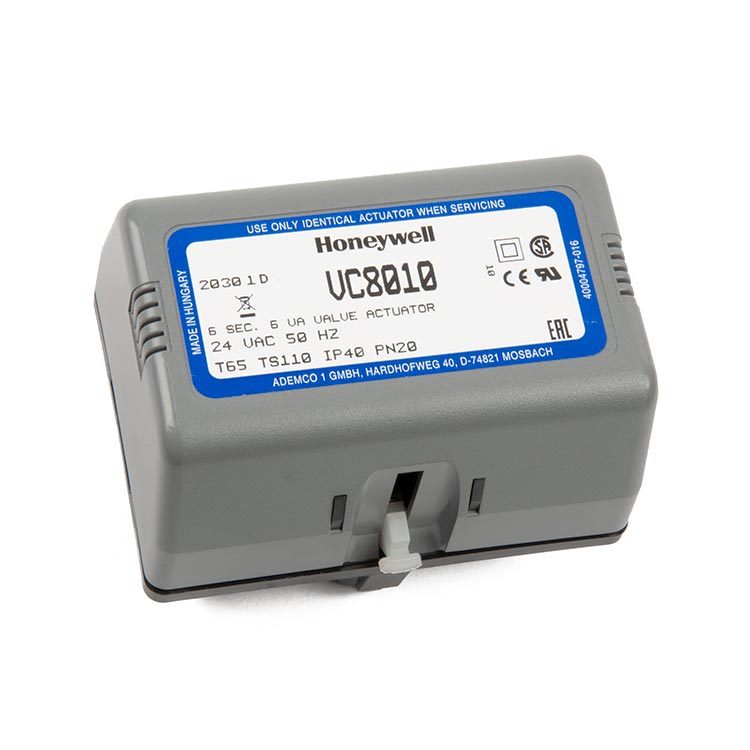

Honeywell Combi Boiler Valve Motor VC 8010 — The reference series in professional applications, 33 USD.

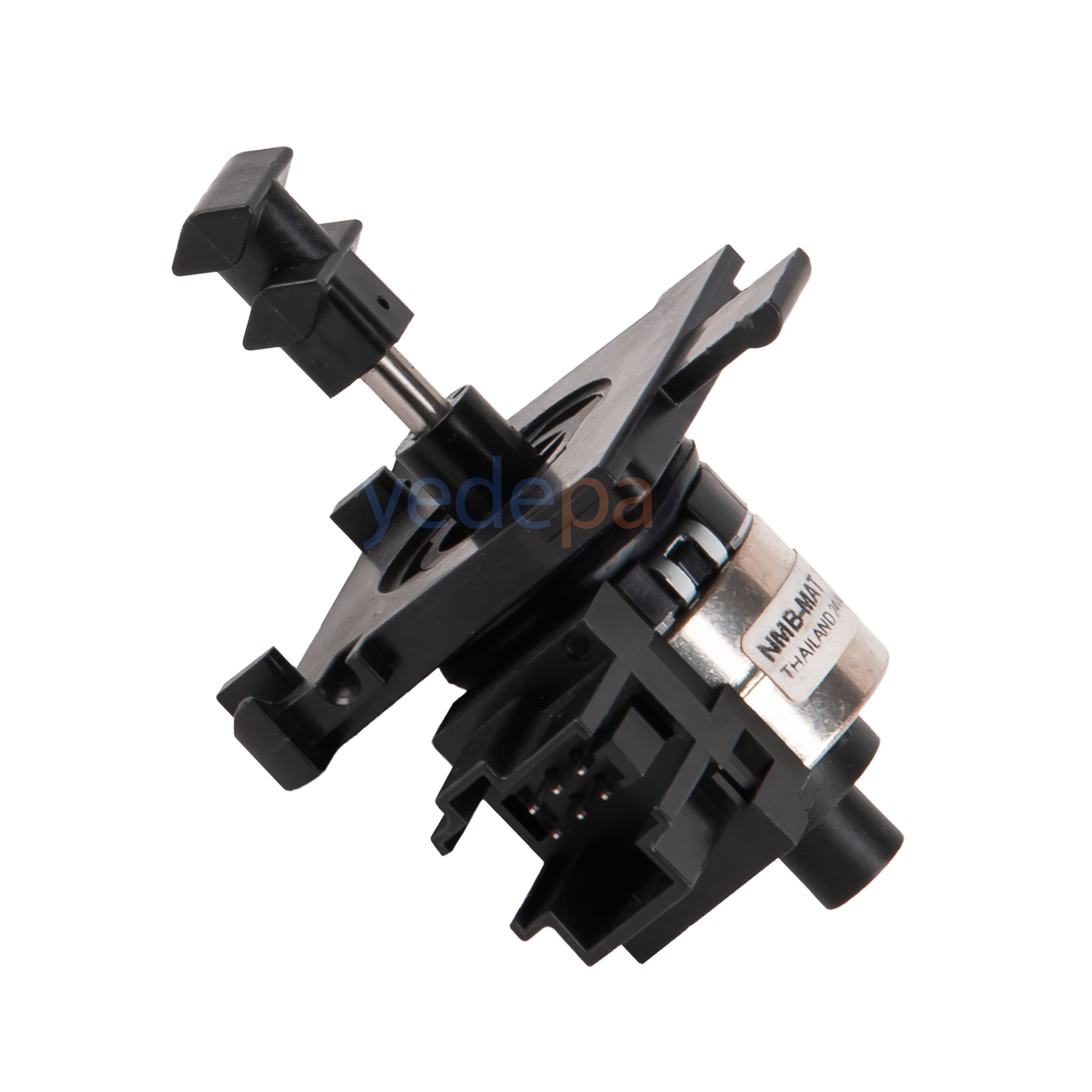

Combi Boiler 3-Way Valve Motor NMB 24V DC — OEM solution compatible with Viessmann, Bosch, Buderus, Junkers and Worcester, 30 USD.
Bosch – Buderus – Junkers – Viessmann Combi Boiler 3-Way Valve Motor (Holed, DC 24V) — Quality Generous brand equivalent, 26 USD.
Viessmann Combi Boiler 3-Way Valve Motor (Flat Type, DC 24V) — Generous for flat type applications, 26 USD.

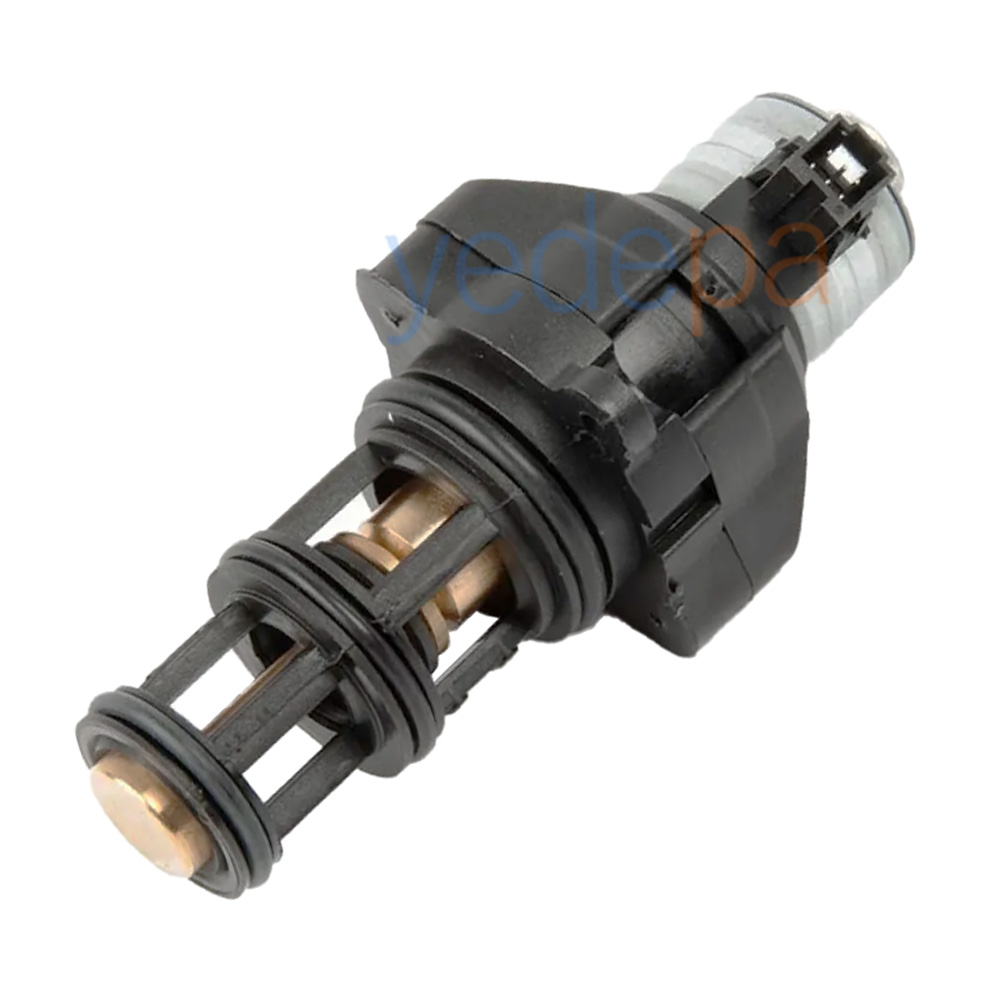

Combi Boiler 3-Way Valve Step Motor and Repair Kit – Long Type, Vitodens 100 Compatible — Complete set, 26 USD.
Combi Boiler 3-Way Valve Motor ATVA-03 – Alarko Yeni Serena Compatible — A staple of the Turkish market, 25 USD.

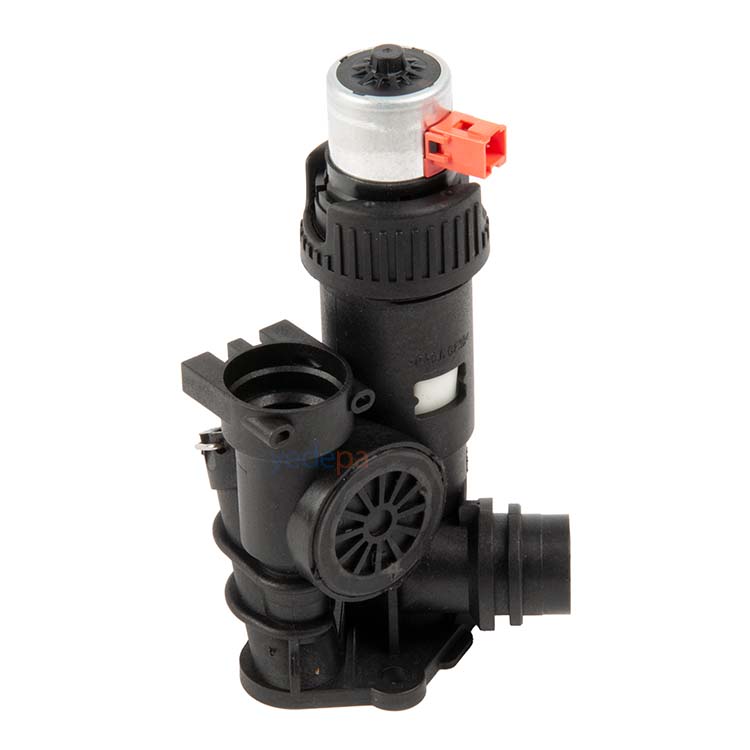

Vaillant Turbotec Combi Boiler Motorized 3-Way Valve Block — Complete Scopo brand block, 23 USD.
Vaillant Ecofit & Ecotec Pro Combi Boiler Motorized 3-Way Block — Scopo, 20 USD.

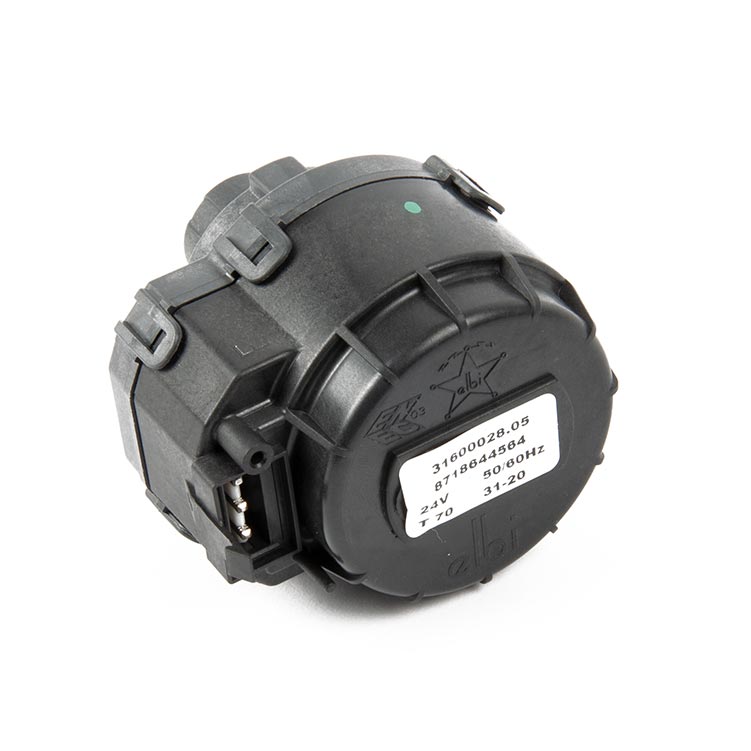

Bosch - Buderus Combi Boiler 3-Way Step Motor 24V — Economical Elbi brand option, 16 USD.

\\ \\

Professional Selection Criteria: Brand-Based Comparison

Let us simplify the profiles of the five main brands available at Yedepa.com for our technicians:

\\ \\ \\ \\ \\ \\ \\ \\ \\ \\ \\ \\

Brand	Segment	Key Feature	Suitable Boilers
Honeywell	Premium / Original	Long service life, industrial standard	Vaillant, Beretta, Demirdöküm older series
Generous	First-class equivalent	European quality, flat/holed alternatives	Bosch, Buderus, Viessmann, Junkers
Scopo	Upper-segment equivalent	Complete block solution	Vaillant Turbotec, Ecofit, Ecotec Pro
Elbi	Italian economy quality	Competitive price, fast availability	Bosch, Buderus step motor compatible
OEM	Economy equivalent	NMB motor, repair kit options	Viessmann, Alarko Serena, Vitodens 100

When choosing by brand, the customer's budget and the age of the appliance should be the deciding factors. On a boiler more than 10 years old, choosing an economy equivalent instead of fitting a premium part makes more sense in terms of return on investment.

\\ \\

What to Do Before Installation

Rushing a 3-way valve motor replacement can burn out both the motor and the electronic board. Points to note:

Disconnect the power: The boiler's mains supply must always be switched off at the circuit breaker.
Draining the water: If the valve body is to be opened, the drain valve on the front of the boiler is used.
Connector photo: Always photograph the socket connection of the old motor before disconnecting it.
O-ring check: Old O-rings may have dried out and hardened; always fit new ones.
Test circuit: After the new motor is fitted, the system should be bled, the pressure kept between 1.2-1.5 bar, and the DHW tap opened to listen for the changeover sound.

\\ \\

Usage and Maintenance Recommendations

The most effective way to extend the life of a 3-way valve motor is to improve the water quality. Hard (limescale-laden) water is the biggest cause of the motor shaft seizing. The following maintenance routines are critical for technicians:

Once a year, during the periodic boiler service, the valve motor shaft should be turned by hand to check that it moves freely.
If the hardness of the system water is high, an inhibitor or magnetic filter should be added to the system.
Long idle periods in the summer months cause the motor shaft to seize; running the boiler for 5-10 minutes once a month keeps the motor moving freely.
When an error code appears (e.g. Vaillant F.61, F.62; Bosch EA, A3), the electrical connection should be checked first before moving on to replacing the motor.
On step motor models, the calibration (reset) procedure must always be carried out.

We detail all these procedures by brand in Yedepa.com's technical bulletins; our technicians can also request visual support via our WhatsApp support line.

\\ \\

Common Faults and Solutions

The five scenarios most frequently encountered in the field are:

The boiler only supplies hot water and does not switch to the radiators: The valve motor shaft cannot move to the heating position; usually the shaft has seized.
The boiler only switches to the radiators and no hot water comes from the tap: The flow sensor or the 3-way valve motor's changeover to the DHW position is faulty.
Click-click sound during changeover: The step motor is losing steps; calibration or replacement is needed.
Water leak: The O-ring or shaft seal is worn; a repair kit provides the solution.
Error code on the electronic board: The motor coil has gone open circuit; a resistance measurement with a multimeter confirms it.

\\ \\

Frequently Asked Questions (FAQ)

Q1: Can a 3-way valve motor fail on its own?
\\ Yes. Shaft seizure is the most common cause of failure, especially with hard water. Regular maintenance extends its service life.

Q2: What is the difference between the Honeywell VC4012 and VC8010?
\\ The VC4012 has a lower power rating and is mostly used in residential combi boilers, while the VC8010 is used in applications requiring a higher flow rate. Their socket and shaft designs are different.

Q3: Can I fit an equivalent instead of the original on a Bosch combi boiler?
\\ Yes. The Generous holed model and the Elbi step motor are proven equivalent options for the Bosch–Buderus series.

Q4: Is only the motor replaced on a Vaillant Turbotec?
\\ No. On Vaillant Turbotec, Ecofit and Ecotec Pro models, the Scopo brand motorized valve block is replaced as a complete unit; fitting a separate motor is not technically possible.

Q5: Which combi boilers does the NMB 24V DC motor fit?
\\ It is compatible with the vast majority of the Viessmann Vitopend, Bosch Condens, Buderus Logamax, Junkers Cerapur and Worcester Greenstar series.

Q6: How is step motor calibration carried out?
\\ On most boilers, automatic calibration starts when the power is cut, you wait 30 seconds and then switch it back on. On Vaillant, a reset is performed with parameter D.030 in the service menu.

Q7: Which model is suitable for the Alarko Yeni Serena?
\\ The OEM brand ATVA-03 model is the factory-equivalent replacement for the Alarko Yeni Serena.

\\ \\

Conclusion and the Yedepa Advantage

3-way valve motors are among the most heavily used parts of a combi boiler system, and choosing the right one directly affects both the technician's reputation and the end user's comfort. Keeping a wide range in stock, from premium synchronous models such as the Honeywell VC4012 and VC8010 to Generous holed and flat type Viessmann-compatible solutions, Scopo brand Vaillant block systems and Elbi step motors, is what sets Yedepa.com apart in the sector.
