What Is a Water Filling Tap? The Silent Hero of the Combi Boiler System

For combi boilers to work properly, the water in the system must be kept at a certain pressure. This is exactly where the water filling tap comes into play: a critical component that transfers water from the city mains supply into the closed heating circuit of the combi boiler in a controlled manner. Usually located at the bottom of the combi boiler, between the cold water inlet and the return line, this small valve allows us to keep the pressure at 1-1.5 bar. When the pressure drops, the combi boiler shuts down, the radiators do not heat up and no hot water flows. For this reason, the combi boiler water filling tap is not a dull accessory but the main artery leading to the heart of the heating system.

At Yedepa.com, we bring together under one roof all the filling tap types needed by HVAC technicians, combi boiler service companies and informed users who work on their own appliances. We have a wide stock ranging from Ma-Ter solenoid valves and Ceme automatic groups to original spare parts made by Bitron, Novasfer, Immergas and I.T.M. In this guide, we cover everything from the technical operating principle of the water filling tap to selection criteria, and from brand comparison to maintenance recommendations, from a professional perspective.

\\ \\

Operating Principle and Technical Details of the Water Filling Tap

A water filling tap is essentially a combination of a check valve and a control valve. It acts as a regulating bridge between the mains water pressure (usually 3-6 bar) and the pressure of the combi boiler circuit (1-1.5 bar). On manual models, the user fills the system by turning the lever; on automatic (solenoid) models, the combi boiler's electronic board senses the pressure and opens the valve electromechanically. Automatic filling systems are especially common in the latest generation of condensing combi boilers and free the user from manual pressure monitoring.

The check valve (non-return valve) inside the filling tap prevents dirty water in the combi boiler circuit from flowing back into the mains. This feature is a mandatory safety measure for drinking water hygiene and is also defined in the TSE and EN 1717 standards. In low-quality taps, limescale buildup on the check valve or hardening of the elastomer gaskets leads to backflow and constant pressure loss. For this reason, choosing a branded, original or quality-equivalent product is extremely important.

In terms of connection sizes, the most common standards are 3/8" and 1/4" thread sizes and 15 mm compression fitting sizes. Depending on the combi boiler model, the body material may be brass, while the top head may be ABS or nylon-reinforced polymer. The operating temperature is usually 0-90 °C, and the maximum operating pressure is around 10 bar.

\\ \\

Water Filling Tap Types and Models

The filling taps found on the market fall functionally into several main groups. An HVAC technician needs to know this classification well in order to source the right product.

Manual filling taps: Models with a classic butterfly head that are opened and closed by hand by the user. Models such as Ferroli Domicompact, Domina and Domitop fall into this group.
Automatic (solenoid) filling valves: Electromechanical valves operated by a 230V or 24V signal from the combi boiler's electronic board. Ma-Ter and Ceme are the leading manufacturers in this segment.
Short type and long type bodies: They are produced in different lengths depending on the internal chassis design of the combi boiler. If the Ferroli short type and long type are mixed up, installation becomes impossible.
Single-body systems with check valve: Filling and backflow prevention are combined in a single part; the Immergas Maior series uses this design.
Models with threaded / flare nut connections: The 3/8 x 1/4 threaded type is standard on models such as the Ferroli Blue Helix.

Within this variety, the Yedepa.com catalog includes filling taps directly compatible with dozens of the most widely used combi boiler models.

\\ \\

Which Model Should You Choose? Decision Guide

To choose the right water filling tap, three basic criteria must be evaluated in order: combi boiler brand and model, connection type and manual/automatic operation preference. The comparison table below summarizes common scenarios.

\\ \\ \\ \\ \\ \\ \\ \\ \\ \\ \\ \\ \\ \\ \\ \\ \\

Combi Boiler Brand / Model	Recommended Filling Tap	Type
Ferroli New Elit	CEME Automatic Combi Boiler Filling Tap	Automatic (solenoid)
Hermann / Ferroli (general)	Mater Solenoid Valve Automatic Filling	Automatic
Ariston (wide model range)	Ariston Combi Boiler Automatic Water Filling Valve	Automatic (Bitron)
Ferroli (short chassis)	Ferroli Combi Boiler Water Filling Tap Short Type	Manual
Immergas Maior	Immergas Maior Water Filling Tap	Manual
Ferroli Domicompact / Domina / Domitop	Ferroli 39817740 Filling Valve	Manual
Viessmann Vitopend (old type)	Viessmann Vitopend Water Filling Valve	Manual
Ferroli Blue Helix	3/8 x 1/4 Threaded Tap with Black Head	Manual
Baxi Main Four / Westen Quasar D	Baxi/Westen Compatible Filling Tap	Manual
Vaillant Turbotec / Aquaplus / Turbomax / VUW	Vaillant Compatible Filling Tap	Manual

This table contains the most frequently encountered compatibility combinations compiled from the field by our sales support team. Nevertheless, if you send us the serial number and year of manufacture of your appliance, we will confirm whether the product is an exact fit.

\\ \\

Water Filling Tap Models You Can Find on Yedepa.com

In the Yedepa.com catalog, you can find a wide variety of both original OEM and quality-equivalent brands (Ma-Ter, Ceme, Bitron, Novasfer, Scopo, I.T.M). Here are the featured products in our stock:

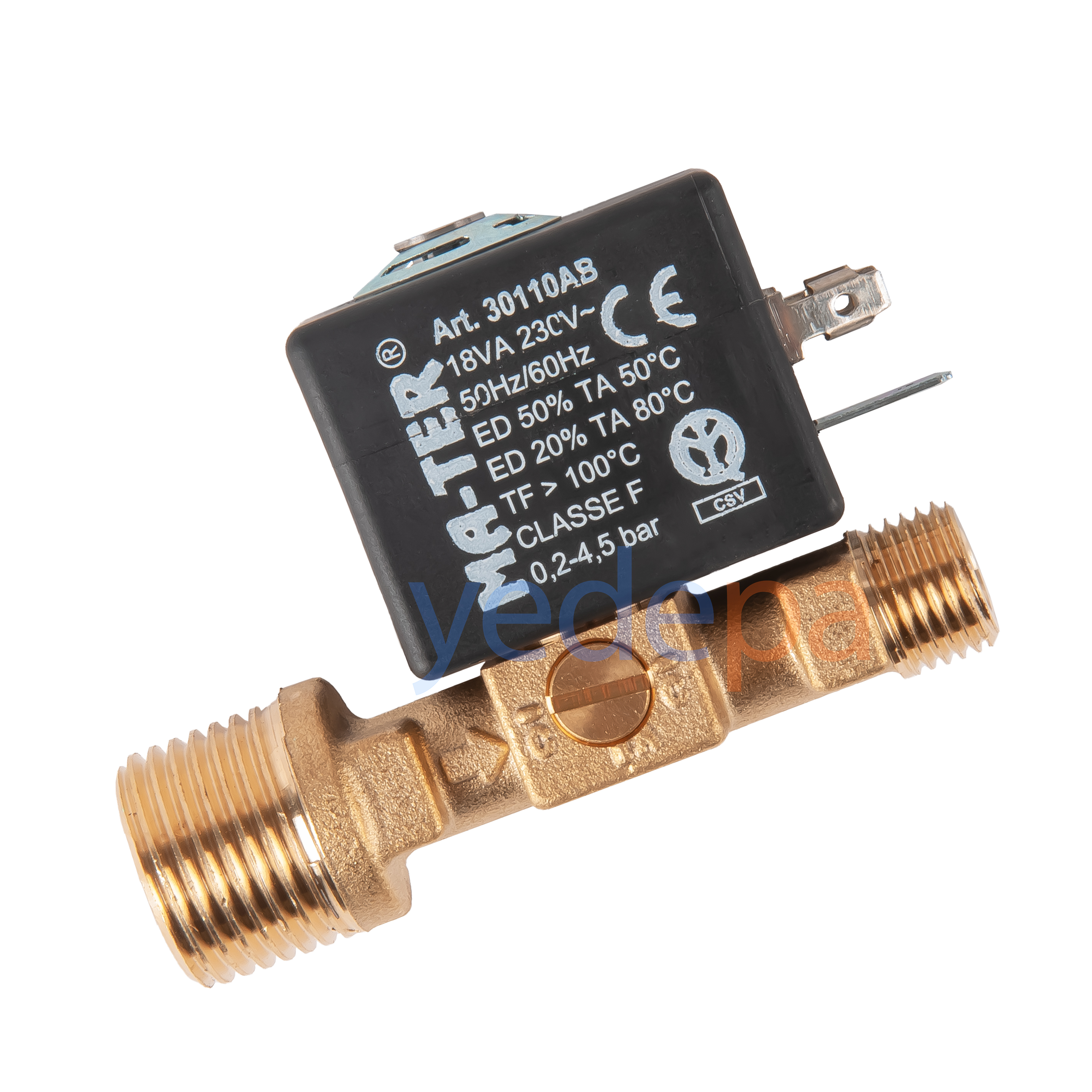

Combi Boiler Automatic Water Filling Tap - Mater Solenoid Valve, Hermann, Ferroli Compatible — 17 USD, made by Ma-Ter, the widest compatibility range.

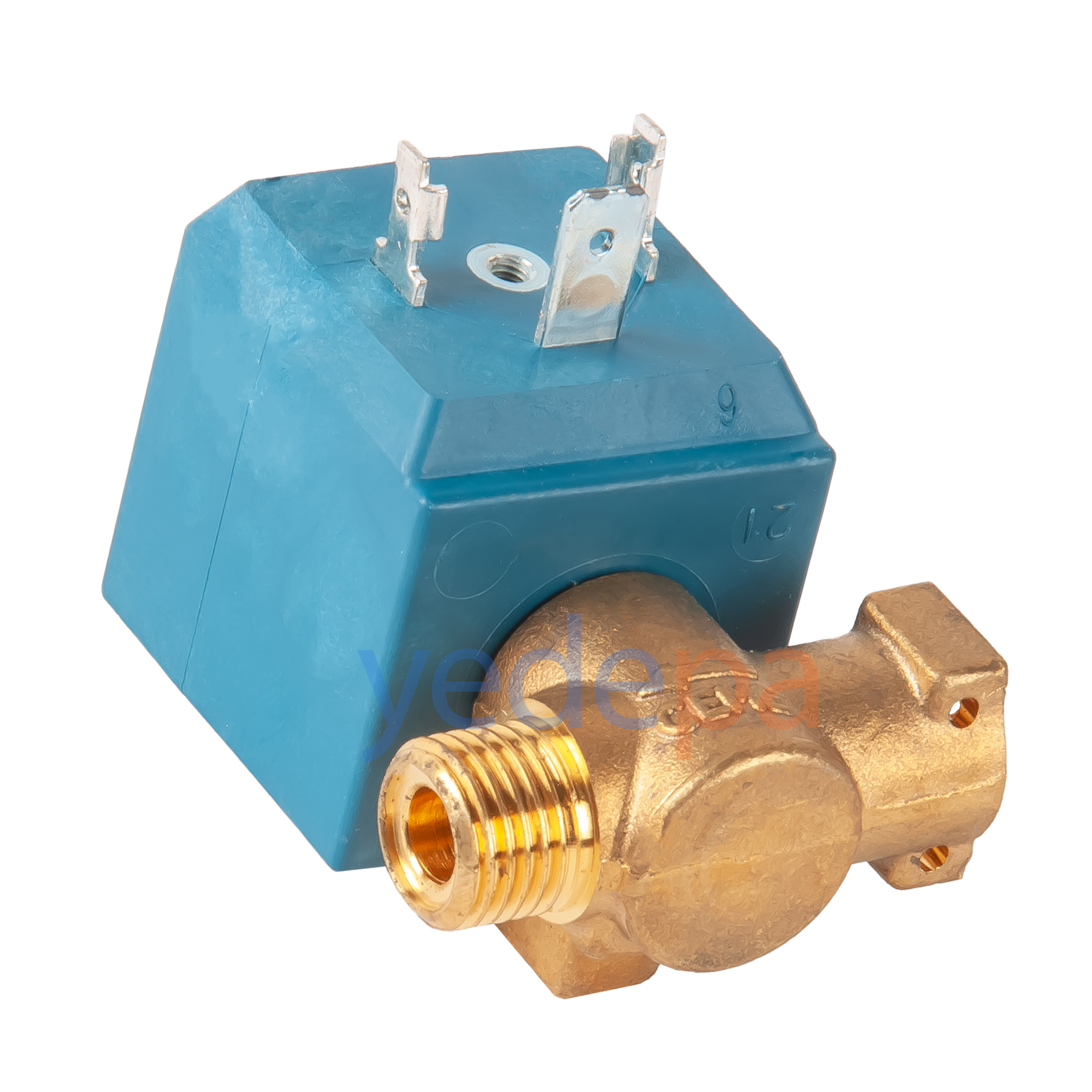

CEME Automatic Combi Boiler Filling Tap - Ferroli New Elit Compatible — 14 USD, Italian brand Ceme, proven durability.

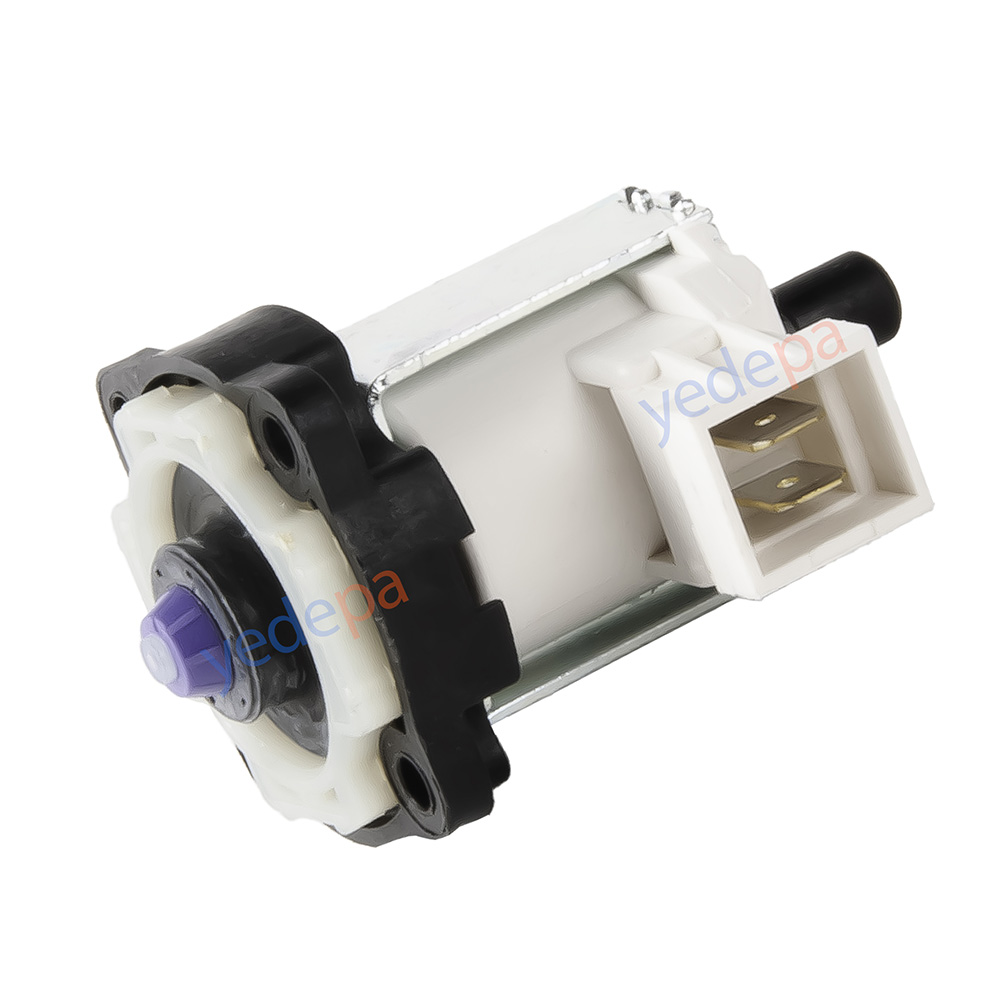

Ariston Combi Boiler Automatic Water Filling Valve — 12 USD, Bitron original quality, compatible with a wide range of Ariston models.

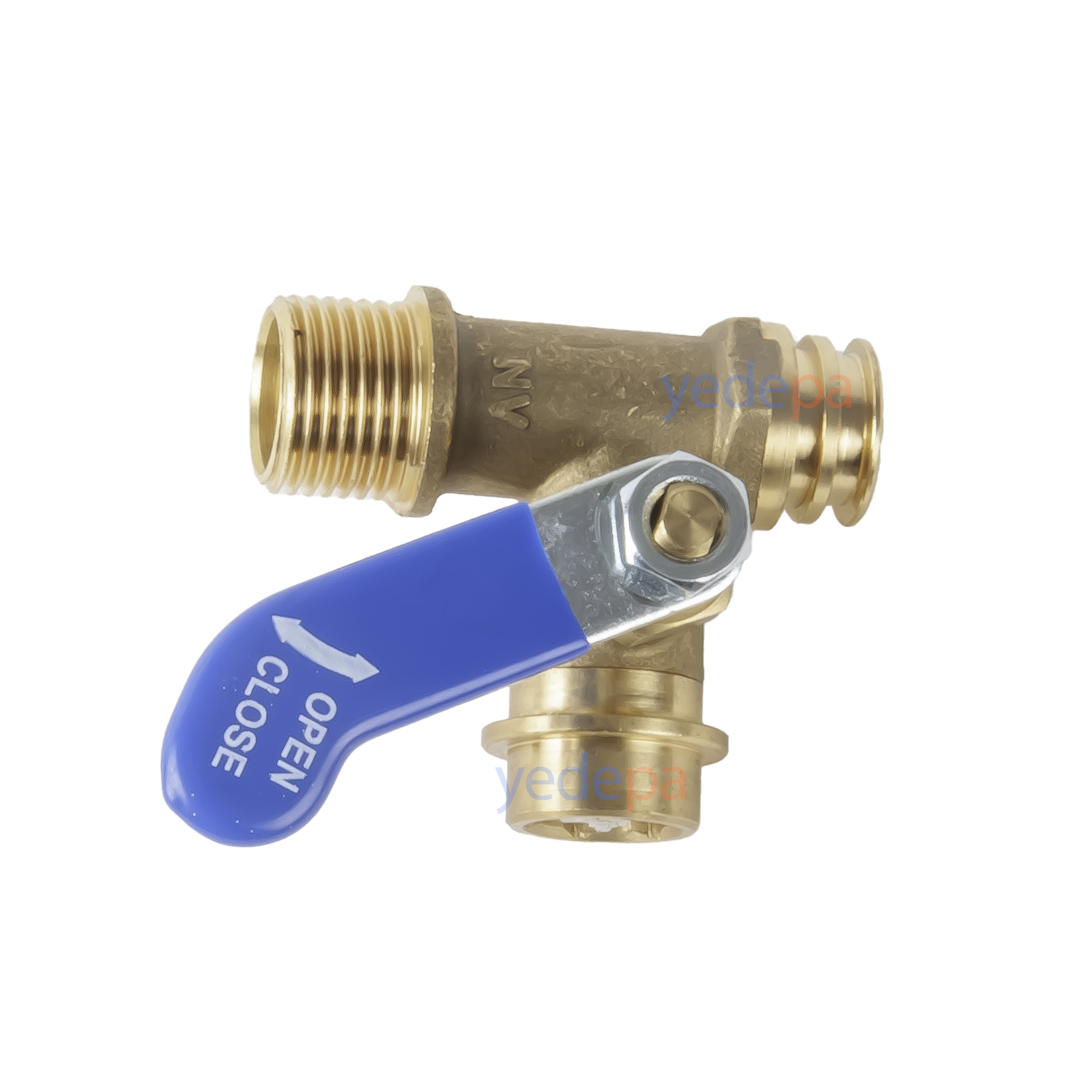

Ferroli Combi Boiler Water Filling Tap - Short Type — 10 USD, made by Novasfer, for Ferroli combi boilers with a narrow chassis.

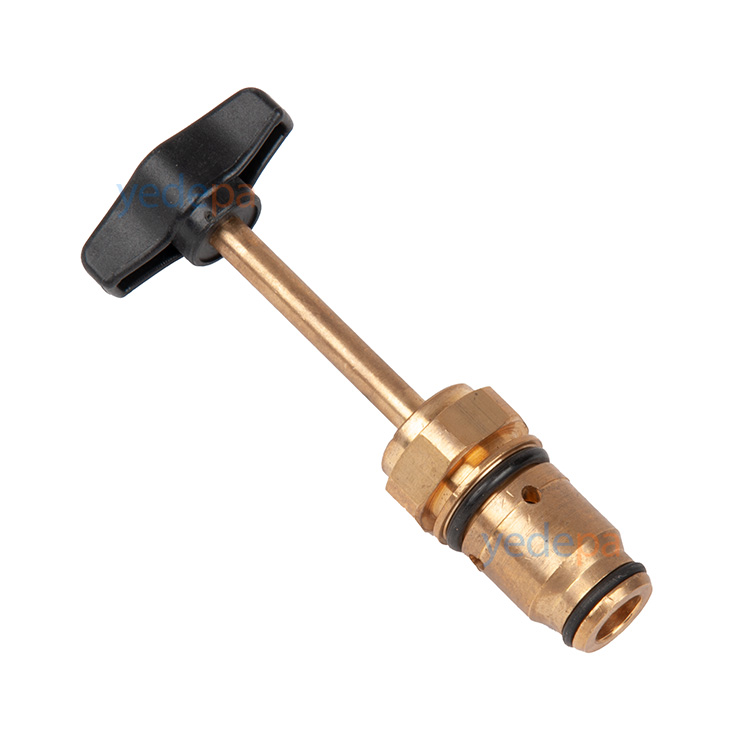

Immergas Maior Combi Boiler Water Filling Tap — 7 USD, Immergas brand, original.

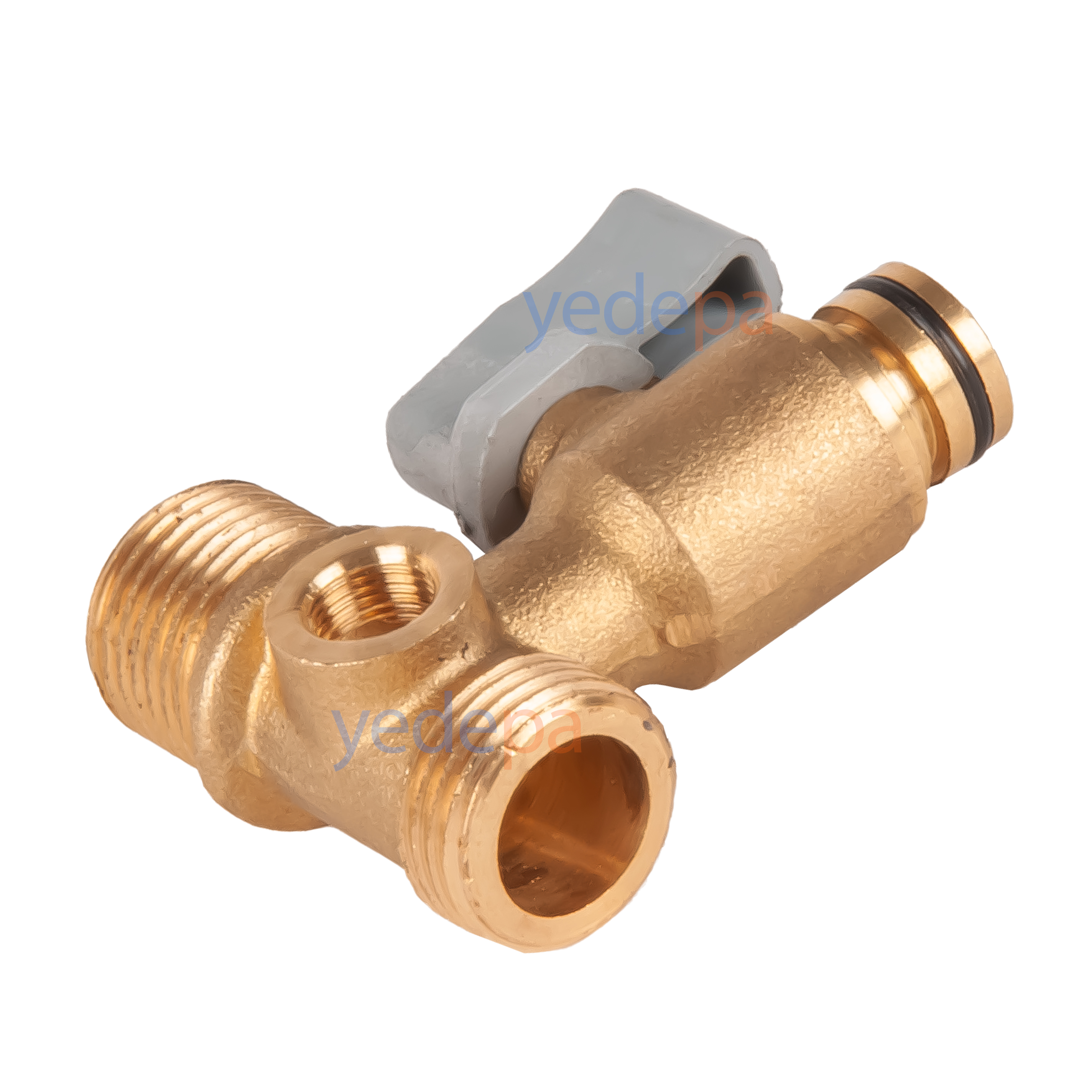

Ferroli Domicompact, Domina, Domitop Filling Tap 39817740 — 5 USD, made by I.T.M, ideal for the classic Ferroli series.
Viessmann Vitopend Water Filling Valve (Old Type) — 5 USD, OEM quality.
Combi Boiler Water Filling Tap - Baxi Main Four, Westen Quasar D Compatible — 5 USD, Novasfer.
Filling Tap Compatible with Vaillant Turbotec, Aquaplus, Turbomax Plus, Pro and VUW — 4 USD, Scopo brand.

All our products are shipped in their original packaging and with a warranty. At Yedepa.com, the price-performance balance is always a priority.

\\ \\

Professional Selection Criteria and Brand Comparison

The criteria an HVAC technician must consider when choosing a filling tap differ from the priorities of a retail user. From a professional perspective, the following points are decisive:

Body material quality: The lead content and casting quality of the brass body determine the risk of leakage in the long term. Ma-Ter, Ceme and Bitron are the manufacturers most faithful to European standards in this respect.
Elastomer gasket durability: EPDM gaskets are the most resistant to temperature and hard water. Low-quality NBR gaskets harden within 2-3 years.
Solenoid coil type: On automatic models, the choice between a 230V AC or 24V DC coil is made according to the combi boiler board. A coil of the wrong voltage burns out immediately.
Check valve reliability: The design of the backflow prevention mechanism against limescale buildup directly affects product life. Novasfer and I.T.M are very successful in check valve design.
Spare part availability: The separate availability of sub-parts such as the gasket set, top head and coil provides an advantage in long-term use.

Brand comparison: Ma-Ter and Ceme are the industry's reference brands in the automatic solenoid valve segment. Bitron is a brand that runs quietly and without vibration, preferred especially by Ariston service companies. Novasfer stands out in the Turkish market with its price-performance balance, while Immergas and I.T.M offer original solutions specific to their own product groups. Scopo, on the other hand, is known in the economy segment for its Vaillant-compatible products.

\\ \\

Water Filling Tap Use and Maintenance Recommendations

Using the right product correctly is just as important as choosing it. For long-lasting and trouble-free use of a filling tap, pay attention to the following practical recommendations:

On manual taps, after filling, turn the valve to the fully closed position. A tap left half open leads to both pressure surges and wear over time.
On automatic (solenoid) models, have the coil resistance measured during the annual combi boiler maintenance. A range of 4-6 kΩ usually indicates a healthy coil.
In regions with very hard mains water, a gasket set replacement is recommended every 2 years. This simple maintenance allows the valve to work trouble-free for 10 years.
While filling, do not let the combi boiler pressure exceed 2 bar. Excess pressure blows the safety relief valve and damages the expansion vessel as well.
Before the winter season, check whether the tap is leaking. A dripping tap causes unstable pressure and combi boiler faults.
To prevent limescale buildup on the check valve, it is beneficial to flush the combi boiler circuit once a year.

The Yedepa.com technical support team offers professionals free consultancy for product selection and compatibility verification before installation.

\\ \\

Frequently Asked Questions (FAQ)

1. How does a water filling tap work?
\\ It transfers mains water into the closed circuit of the combi boiler in a controlled manner and prevents backflow with the check valve inside it. On the manual model the user opens the tap; on the automatic model the electronic board does.

2. My filling tap keeps dripping, what should I do?
\\ This is usually caused by hardened gaskets or limescale on the check valve. The gasket set can be replaced; if the problem is not solved, replacing the complete unit is recommended.

3. Should I choose manual or automatic?
\\ Manual is standard on older combi boilers. On new-generation combi boilers, automatic (solenoid) filling provides user comfort; however, your combi boiler board must support this feature.

4. The automatic filling valve has burned out, will my combi boiler still work?
\\ The combi boiler will still work; however, it will not refill automatically when the pressure drops, so manual intervention is required. On appliances that generate an error code, it must be replaced.

5. Which brand of water filling tap is more durable?
\\ In the solenoid (automatic) segment, Ma-Ter and Ceme are very durable, and in the manual segment, Novasfer and I.T.M. Bitron is the industry standard for Ariston series.

6. Can I replace the combi boiler water filling tap myself?
\\ It is possible if you close the valve and have the necessary technical knowledge. However, unauthorized intervention may affect the combi boiler warranty; we recommend a professional service.

7. Will the tap I buy from Yedepa.com fit my combi boiler?
\\ The compatible brands and models are clearly stated in the product descriptions. If you are not sure, send us your appliance serial number and we will verify compatibility.

8. How often should the filling tap be replaced?
\\ Under normal conditions, a service life of 8-10 years is expected. With hard water, this period can drop to 4-5 years.

\\ \\

Conclusion and Yedepa.com Advantages

The water filling tap is a small but vital part of the combi boiler system. Choosing the right product both extends the life of the combi boiler and significantly reduces service costs. In light of the technical information, brand comparisons and maintenance recommendations presented in this guide, you can easily choose the product best suited to your needs from among the Ma-Ter, Ceme, Bitron, Novasfer, Immergas and I.T.M products in the Yedepa.com catalog.
