What Is a Smart Board? Everything About the Brain of an Air Conditioner

An air conditioner smart board is the main control unit that manages all electronic functions of split and inverter air conditioning systems. Every task, from the compressor start signal to fan motor speed control and from temperature sensor readings to processing remote control commands, is carried out on this small PCB. Commonly known as the air conditioner main board, electronic control board, air conditioner brain or PCB board, this component makes up the entire "smart" side of an air conditioner.

Approximately 35% of the most common faults encountered in the field with air conditioners are directly caused by the control board. Components on the board can be damaged by causes such as lightning strikes, low voltage, moisture build-up, insect ingress or capacitor aging. In this case, renewing only the smart board instead of replacing the entire air conditioner is both an economical and an environmentally friendly solution. Yedepa.com offers HVAC technicians and refrigeration technicians a wide range of universal smart boards precisely for this need.

Technical Details and Operating Principle

Modern air conditioner smart boards basically consist of a microcontroller (MCU), a power stage, sensor inputs, relay outputs and communication interfaces. In inverter air conditioners, the board also carries IPM (Intelligent Power Module) or IGBT drivers, which allow the compressor to run at variable frequency via a PWM signal.

Power stage: Rectifies the mains voltage to form a DC bus and converts 220V AC into the inverter output.
Microcontroller: Thermistor data is read, remote control commands are interpreted and the relay/triac outputs are driven here.
Sensor inputs: Indoor temperature, heat exchanger temperature, outdoor temperature and sometimes humidity measurements are taken from here.
Relay and triac outputs: Fan motor, swing motor, 4-way valve and compressor control signals are generated here.
Communication: A serial communication protocol is mostly used between the indoor unit and the outdoor unit.

In inverter systems, the compressor motor is a three-phase BLDC type and is managed with vector control by the driver circuit on the board. This achieves 30-40% lower energy consumption and much quieter operation compared to conventional on/off air conditioners.

Types and Models

Air conditioner smart boards are divided into several main groups according to their intended use. Knowing this classification is essential to choosing the right product.

Original (OEM) Boards: Made specifically for a certain brand and model; they replace the old board one-to-one and require no setup, but they can be hard to source and expensive.
Universal Inverter Boards: Boards compatible with most split inverter air conditioners, with the BTU/motor type selected via jumper or DIP switch. They are very popular with service companies because they are easy to keep in stock.
Universal On/Off Boards: Simpler boards designed for units with PG motors and conventional compressors.
Board + Remote Control Sets: Economical solutions that supply both a board and a compatible remote controltogether.

Board Type	Compatibility	Typical BTU	Application
Universal Inverter	DC inverter split	9,000 - 24,000 BTU	Modern home/office air conditioners
PG Motor Compatible	On/off split	9,000 - 24,000 BTU	Older-generation air conditioners
Board + Remote Control Set	Mixed	9,000 - 18,000 BTU	Units with a lost remote control
OEM Main Board	Brand-specific	Depends on model	Single-type repair with warranty

The Qunda Brand and Its Place in the Universal Board Market

In the Turkish HVAC market, the first brand that comes to mind for universal air conditioner smart boards is Qunda. Qunda boards are a product that refrigeration technicians always keep in their service vehicles, thanks to their broad model compatibility, simple jumper setup, integrated IR receiver design and competitive price. The product family, called the QD series, includes models at different capacity and feature levels such as QD80, QD81, QD82, QD-U03, QD-U08 and QD-U12.

The most important advantage of Qunda boards is that, right out of the box, they can be fitted to almost any brand of split air conditioner. The display cable set, temperature sensors, IR receiver and mounting brackets come in the box; the technician does not have to look for additional materials on site. Yedepa.com sources Qunda's current models through the authorized channel and offers them to the HVAC industry.

Which Model Should You Choose? Decision Guide

When choosing a smart board, the primary criterion is whether the air conditioner to be repaired is inverter or on/off. The second criterion is the BTU capacity; the third criterion is the type of the indoor unit fan motor (PG step motor / BLDC).

For inverter (DC) air conditioner repair: Universal Inverter AC Smart Board QD82+ for Split Air Conditioning Systems or QD80c Universal Inverter Air Conditioner Board is the ideal choice. Both support a wide BTU range.
If a mixed DC/AC solution is needed: QD81B DC/AC Inverter Air Conditioner Smart Board Set can be adapted to both inverter and conventional systems.
For a conventional split with a PG motor: QD-U08PGC PG Motor Compatible Universal Air Conditioner Control Smart Board (Max. 24,000 BTU) is the most suitable option.
For a unit whose remote control is also lost: Air Conditioner Smart Board and Remote Control Set QD-U12A or Air Conditioner Smart Board and Remote Control Set QD-U03C solves both the board and the remote control problem in a single purchase.
For customers on a low budget: The QD-U03C set is the most economical solution at 14 USD; it does an excellent job on low-BTU units.

Smart Board Models Available at Yedepa.com

As the supply point for HVAC technicians and refrigeration service companies across Turkey, Yedepa.com offers a product portfolio in the smart board category that is in stock and comes with a fast shipping guarantee:

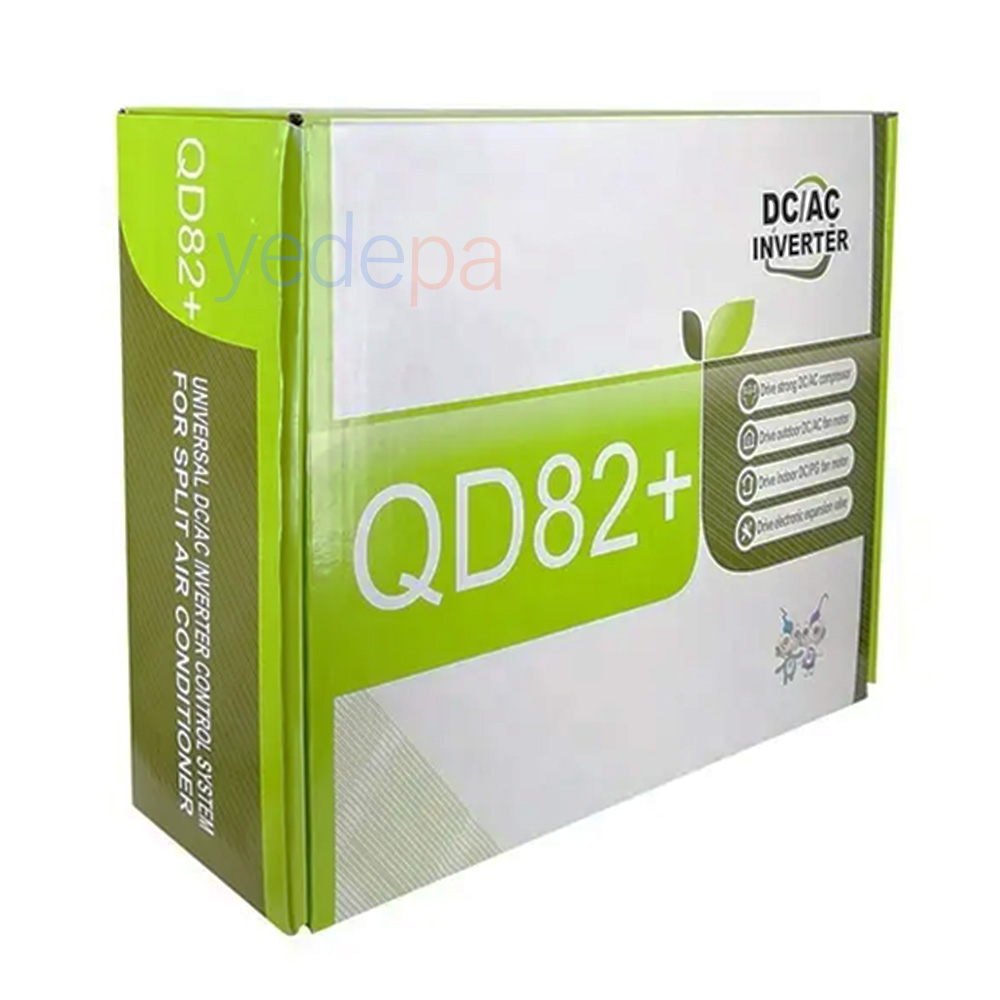

Universal Inverter AC Smart Board QD82+ for Split Air Conditioning Systems — 101 USD — Qunda's inverter solution with the broadest compatibility, BTU selection via jumper.

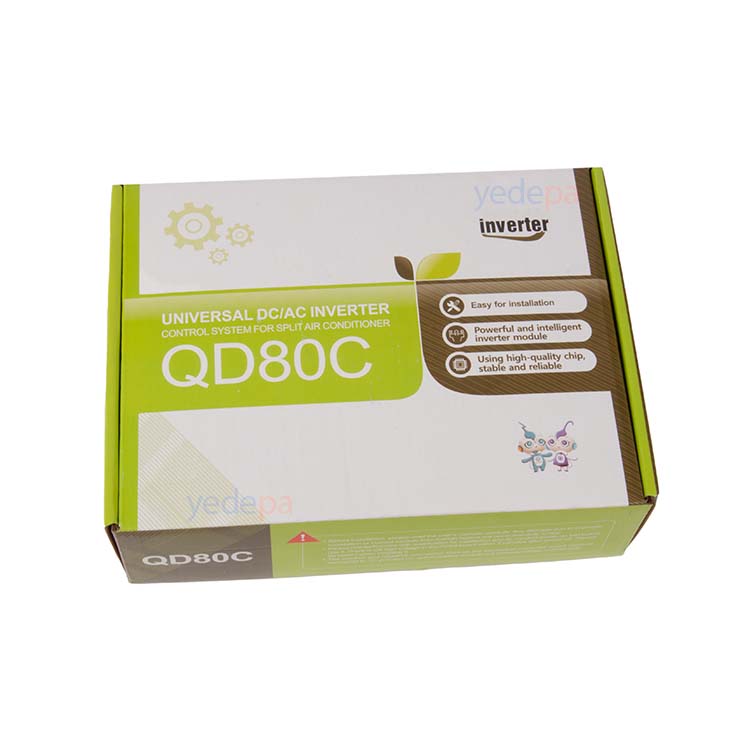

QD80c Universal Inverter Air Conditioner Board — 98 USD — An inverter board preferred by service companies for its simple interface and quick installation.

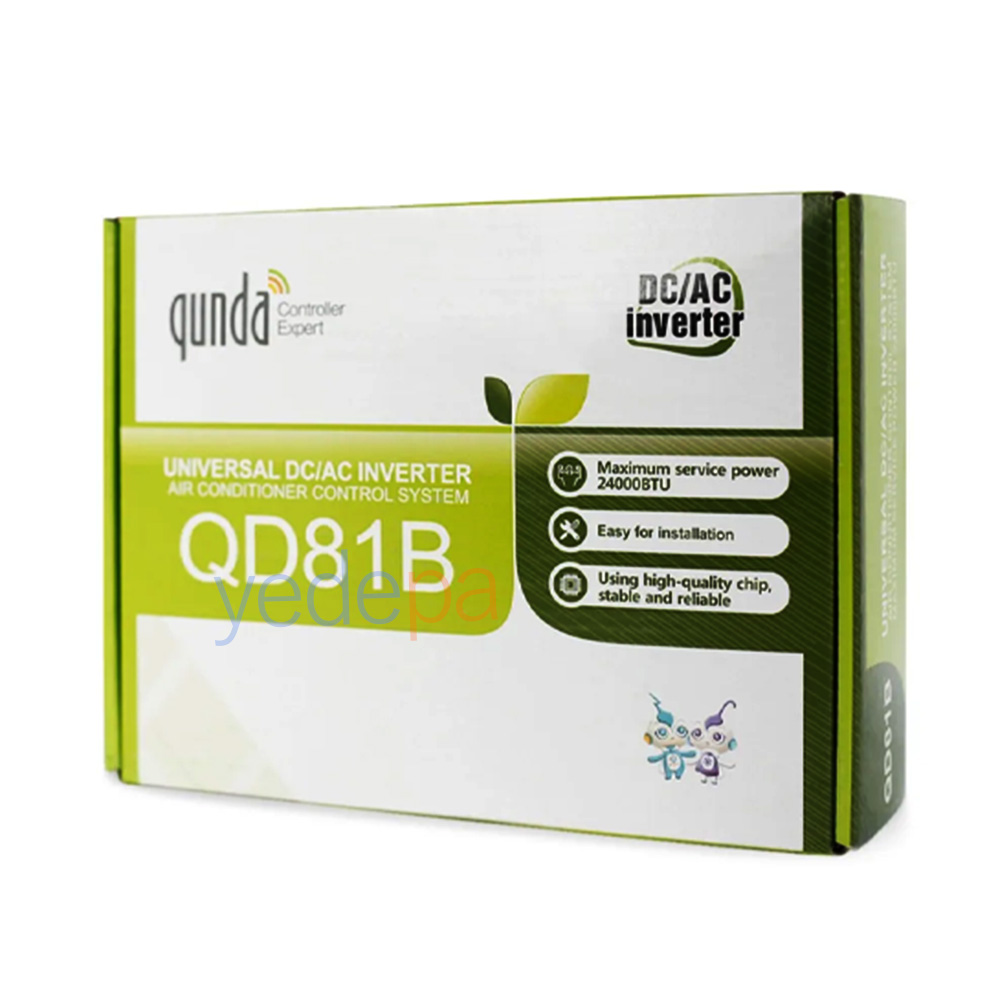

QD81B DC/AC Inverter Air Conditioner Smart Board Set — 96 USD — A flexible set serving in dual mode across DC and AC systems.
Air Conditioner Smart Board and Remote Control Set QD-U12A — 32 USD — An economical mid-range solution combining a main board and a compatible remote control.
QD-U08PGC PG Motor Compatible Universal Air Conditioner Control Smart Board (Max. 24,000 BTU) — 14 USD — A sensible price for conventional units with PG motors.
Air Conditioner Smart Board and Remote Control Set QD-U03C — 14 USD — The most economical board + remote control package for low-BTU air conditioners.

All products are shipped in their original box together with the IR receiver cable, temperature sensor and mounting accessories.

Professional Selection Criteria

Knowing the BTU alone is not enough to choose the right board in the field. Evaluating the following criteria in order eliminates the risk of a second site visit.

Compressor type: Determine whether it is DC inverter or conventional from the number of wires at the terminal block and the motor winding resistance.
Indoor unit fan motor: A PG step motor has 5-6 wires, while a BLDC motor has 3-phase + Hall sensor wires. This determines board compatibility.
Is there a 4-way valve? In cooling-heating (heat pump) air conditioners, a valve control relay output is essential.
Number of temperature sensors: At least indoor air + indoor heat exchanger (2 sensors) are required; some boards also add an outdoor sensor.
IR receiver placement: The length of the display cable must suit the size of the unit's front panel.
Whether the power supply comes from the board or from the outdoor unit: In inverter systems, the indoor unit board usually powers the outdoor unit.

Board Installation and Initial Start-Up

Smart board replacement nominally takes 30-45 minutes. Steps to follow:

First, power is cut at the main switch and you wait at least 5 minutes for the capacitors to discharge.
All wire positions on the old board are photographed; colors and terminal numbers are noted.
The jumper or DIP switch settings of the new Qunda board are set according to the unit's BTU.
The sensors are plugged into the correct sockets (a wrong sensor causes incorrect temperature readings).
The IR receiver and display are positioned on the front panel so that they are visible from outside.
After power is applied, the remote control is paired and a test run is performed (cooling 16°C, heating 30°C).

Use and Maintenance Recommendations

Extending the life of a newly fitted smart board depends largely on post-installation care. Passing the following recommendations on to your customer reduces callback complaints.

Voltage protection: In areas where the mains voltage fluctuates frequently, always use a voltage regulator or an SPD (surge/lightning protection).
Moisture and insect protection: If the indoor unit cover does not sit properly, cockroaches or ants can cause a short circuit on the board.
Grounding: The root cause of many board failures is missing grounding; do not fit a board without checking the installation.
Annual cleaning: Once a year, clean the dust off the board with compressed air; do not use a damp cloth.
Fuse rating: If the fuse on the board blows, it must be replaced with a new one of the same amperage.

Common Faults and Diagnosis

The symptoms to watch for when diagnosing smart board faults are:

Air conditioner does not turn on, no response at all: Usually a power stage fuse or bridge diode failure.
Turns on but does not cool: The compressor trigger signal should be measured at the board output.
Does not respond to the remote control: The IR receiver module may be faulty; in this case, replacing the complete board is the most reliable solution.
Error code flashing: A sensor fault listed in the service manual usually extends back to the board inputs.
Fan runs but the swing motor does not work: The swing triac output has burned out.

Frequently Asked Questions (FAQ)

Does a Qunda board fit every brand of air conditioner?
Universal Qunda boards are compatible with split models from Arçelik, Vestel, Beko, Demirdöküm, Daikin, Mitsubishi, Samsung, LG, Bosch and many other brands. What matters is correctly identifying whether the air conditioner is inverter or on/off and whether its motor type is PG or BLDC.

What is the difference between the QD82+ and the QD80c?
The QD82+ is a newer generation and offers a wide BTU range and a more precise vector control algorithm. The QD80c is simpler and suited to conventional inverter applications. Both are suitable for inverter systems.

Which set do you recommend for an air conditioner without a remote control?
Depending on the budget, the QD-U03C (14 USD) or QD-U12A (32 USD) set can be chosen; both come as a board + remote control combo.

Can I fit an inverter board to an air conditioner with a PG motor?
No. A PG motor driver and a BLDC driver are different; for conventional units with PG motors, a PG-compatible board such as the QD-U08PGC is essential.

How long is the warranty period?
For Qunda boards sold through Yedepa.com, the manufacturer's warranty period applies; it is sufficient to keep the board together with the invoice.

Can I install it myself?
Board replacement is not recommended for users without electronics knowledge; getting support from an authorized HVAC service is necessary for both personal safety and warranty reasons.

Conclusion and Yedepa Advantages

The air conditioner smart board is the heart of modern cooling units, and choosing the right product directly affects service quality. Qunda QD series universal boards continue to be the first choice of HVAC technicians in Turkey thanks to their broad compatibility, field-tested quality and economical price. Yedepa.com, with stock ranging from high-end inverter boards such as the QD82+ and QD80c to entry-level sets such as the QD-U03C, offers the convenience of one-stop supply.

Yedepa's advantages specific to the HVAC industry include an original Qunda product guarantee, fast shipping across Turkey, B2B pricing for technicians and a technical support line. Always keeping 1-2 universal Qunda boards in your service vehicle noticeably reduces your rate of second site visits. For your smart board needs, you can visit the Yedepa.com smart board category and get expert support on model selection via live support.
