What Are Measuring Instruments? Why Are They Indispensable in Refrigeration and Air Conditioning?

Measuring instruments are professional equipment that allow temperature, pressure, humidity and electrical parameters to be read accurately in refrigeration, heating and air conditioning systems. The cooling performance of a refrigerator, the supply air temperature of an air conditioner indoor unit, the evaporator outlet of a cold room or the compressor suction line of a display cooler — the only way to know that all of them are working correctly is to see the figure in the field with a reliable measuring instrument. At Yedepa.com, we offer under one roof, at competitive prices, the thermometers, thermostats and temperature controllers that HVAC technicians, household appliance service companies and refrigeration technicians need in their daily work.

The days of trying to tell "hot or cold by touch" are long gone. Today, a correct diagnosis of a modern refrigeration system is not possible without measuring tools such as a digital thermometer, analog mechanical thermometer, digital thermostat and temperature controller. On this page we will examine in detail which device is suitable for which job, what you should pay attention to when buying, and the models you can find in stock at Yedepa.com.

Technical Details and Operating Principle of Measuring Instruments

At the core of the measuring instruments used in the refrigeration and air conditioning sector lies temperature sensor technology. These devices generally operate according to one of the following principles:

NTC (Negative Temperature Coefficient) Thermistor: Semiconductor sensors whose resistance decreases as temperature rises. They are used in the vast majority of digital thermometers and thermostats. They offer high sensitivity and a short response time.
Bimetal (Bimetallic) System: Used in analog mechanical thermometers, it is based on the principle that two different metals expand at different rates with heat. It needs no battery, is durable and works trouble-free in the field for many years.
Thermocouple: A sensor type preferred for high-temperature applications that measures the voltage difference generated at the junction of two different metals.
PT100 / PT1000 Resistance Thermometers: Used in industrial cold storage and laboratory-type high-precision applications.

The operating ranges of the devices we offer on Yedepa.com are generally between -50°C and +110°C, and this range covers all household refrigerator, freezer, display cooler, split air conditioner and VRF indoor unit applications.

Types and Models: Which Device Does What?

Measuring instruments are divided into three main groups according to their intended use:

1. Analog Mechanical Thermometers

Classic devices that work without a battery and are read from a needle/scale. Analog Mechanical Thermometer WTY-100B is an ideal solution for cold storage rooms, dry air panels, food storage cabinets and industrial-type coolers. Thanks to its bimetal technology, it keeps working even during power outages. Its panel-mount design allows easy integration into a cabinet door or control panel.

2. Digital Thermometers

Devices with an LCD display that measure remotely via a probe (lead-type) sensor. Digital Probe Thermometer TPM10 is frequently chosen for refrigerator interior temperature, aquariums, incubators, drinking water coolers and mini display coolers. Since it runs on a battery, it requires no electrical wiring and allows quick installation.

3. Digital Thermostats / Temperature Controllers

Devices that not only measure but also switch loads such as the compressor, fan or heating element on and off according to the set temperature. XH-W3001 Digital Thermostat Temperature Controller 220V 1500W can carry loads up to 10A thanks to its on-board relay and is widely used in incubators, aquarium heaters, display coolers, household-type coolers and beer fermentation cabinets.

Which Model Should You Choose? Decision Guide for HVAC Technicians

You can use the table below as a reference when choosing the right measuring instrument:

Application Scenario	Recommended Device	Why?
Cold storage room panel display	Analog Mechanical Thermometer WTY-100B	No battery, durable, continuous reading
Refrigerator / display cooler interior temperature monitoring	Digital Probe Thermometer TPM10	Probe sensor, fast reading, low-cost solution
Incubator / heating control	XH-W3001 Digital Thermostat	Automatic on-off, 220V output, programmable
Mini bar / wine cooler	XH-W3001 Digital Thermostat	Precise hysteresis setting, compressor protection
Household refrigerator service measurement	Digital Probe Thermometer TPM10	Instant measurement, portable, economical

If you are undecided, our Yedepa.com customer service team can recommend a product specific to your application. You can send a photo via our WhatsApp line and ask for the equivalent of the old device in your existing system.

Measuring Instruments You Can Find at Yedepa.com

In our measuring instruments category at Yedepa.com, we keep in stock, in OEM quality, the products most needed by technicians and end users. Our featured models:

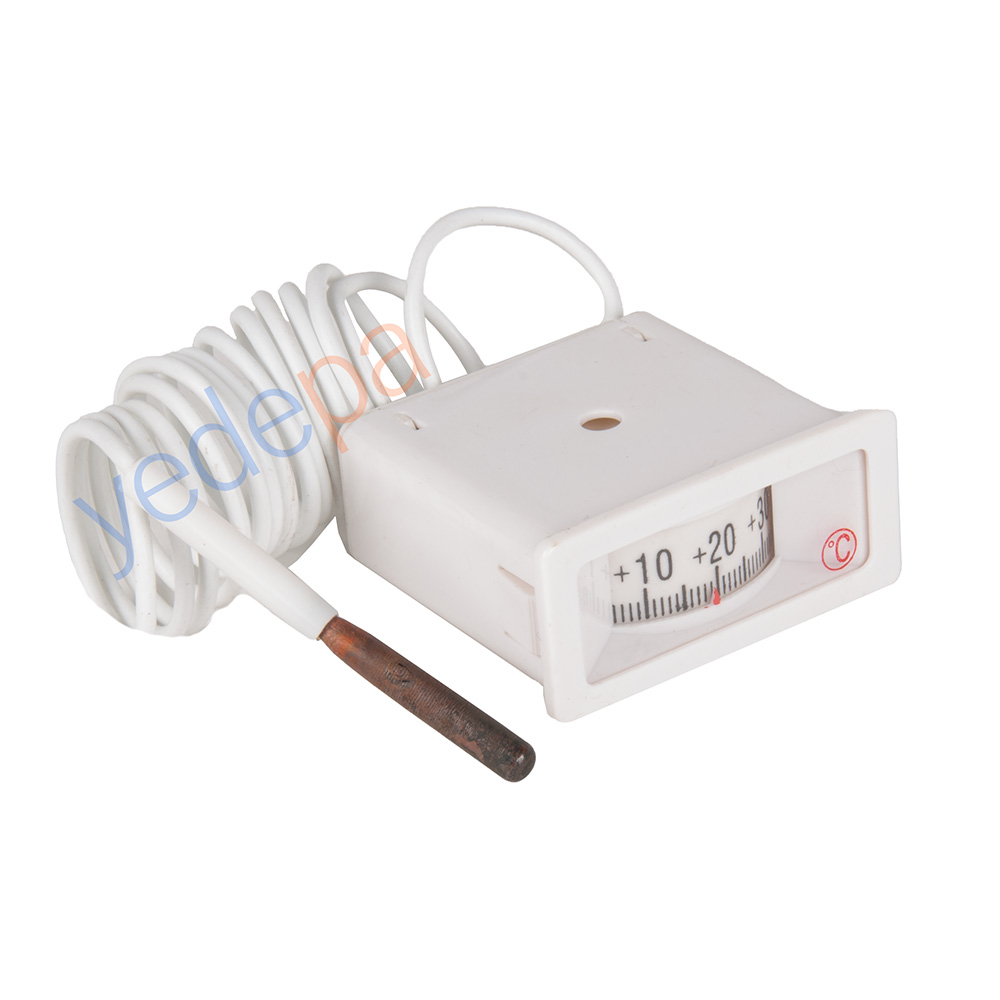

Analog Mechanical Thermometer WTY-100B — Battery-free, panel-type bimetal thermometer, ideal for cold rooms and food storage cabinets. 4 USD.
XH-W3001 Digital Thermostat Temperature Controller 220V 1500W — Digital thermostat with an on-board relay that can drive a compressor/heating element load. 4 USD.
Digital Probe Thermometer TPM10 — Portable digital thermometer with a compact display and probe sensor, ideal for refrigerators and aquariums. 3 USD.
In addition: panel-type digital displays, NTC sensors, dual-probe thermostats, defrost sensors and fan control modules are continuously being added to our category.

All our products are manufactured to OEM quality standards and carry the required CE, RoHS and other test certificates. Every measuring instrument sold on Yedepa.com goes through visual inspection processes in stock before sale.

Professional Selection Criteria

When buying a measuring instrument, a professional HVAC technician or refrigeration technician should pay attention to the following criteria:

Measuring range: The temperature band in which the device will operate must cover the application. For example, a freezer requires models that read below -40°C, and an air conditioner requires devices that can go below 0°C.
Accuracy (±°C tolerance): For digital devices ±1°C is expected, and ±0.5°C for precision applications. For analog devices such as the WTY-100B, ±2°C is acceptable.
Probe/sensor length and type: For probe thermometers, the probe cable length should be chosen according to the point you want to reach. On the TPM10 model, the standard probe length is sufficient for the vast majority of applications.
Supply voltage: The XH-W3001 model operates on 220V mains voltage; this point should be noted for 12V/24V applications.
Switching capacity (relay current): Thermostats must have a relay with sufficient current rating for the compressor, fan and heating element load. The 10A relay in the XH-W3001 model can be used safely for household loads up to 1500W.
Hysteresis setting: The on-off differential of the thermostat, i.e. hysteresis, prevents the compressor from short cycling. Programmable hysteresis extends equipment life.
Mounting type: Panel type, rail type, wall type or free-standing — choose the one suited to your application. The WTY-100B is suitable for panel mounting, while the TPM10 is suitable for magnetic/free placement.

Usage and Maintenance Recommendations

Apply the following maintenance rules for long-lasting and accurate operation of measuring instruments:

Sensor placement: Place the probe at the evaporator outlet or in the middle of the cooled space. Never place it near the compressor, the hot gas line or the door gasket — this causes false readings.
Cable protection: Always use a protective spiral sleeve when routing the digital thermometer probe cable past metal door edges. Otherwise the cable will be cut over time and the device will show an "E1" error.
Moisture protection: Especially on mains-voltage devices such as the XH-W3001, the terminal blocks must not be exposed to moisture. Condensation in cold rooms can cause short circuits; place the device in an IP-rated enclosure.
Battery check: The Digital Probe Thermometer TPM10 model runs on an LR44 / AG13 type button cell. Check it once a year; a low battery leads to false readings.
Calibration check: Once a year, compare against a reference thermometer (e.g. ice water = 0°C, boiling water = 100°C). If there is a deviation, the device should be replaced.
Cleaning: Wipe the display and probe surface with a damp cloth; do not use solvent chemicals.

A refrigeration technician who performs regular maintenance gets 10 years of trouble-free operation from a simple Analog Mechanical Thermometer WTY-100B and at least 5 years from a digital XH-W3001.

Application Examples: Which Device Is Used Where in the Field?

As Yedepa.com, which has been supplying spare parts to thousands of HVAC technicians for years, let us share with you the most common application scenarios in the field:

Supermarket display cooler: WTY-100B panel thermometer + XH-W3001 digital thermostat combination — the operator sees the temperature visually, and the thermostat manages the compressor automatically.
Refrigerator service: A TPM10 digital probe thermometer is kept in the technician's bag; on a service call, the actual interior temperature of the cabinet is measured in 2-3 minutes.
Mini beer fermentation cabinet: With the XH-W3001, the cabinet temperature is held at the desired value between 4-18°C; hysteresis is set to 0.5°C.
Incubator: The XH-W3001 can control both the heating element and the fan; it is a common solution in the agricultural sector.
Cold storage room: A WTY-100B analog thermometer is fitted outside the door; a thermostat with a digital display operates inside the control panel. Thanks to this dual control, both the operator and the system get independent readings.

Frequently Asked Questions (FAQ)

1. Does an analog thermometer or a digital thermometer give more accurate results?
A correctly calibrated digital thermometer usually offers ±1°C accuracy, while an analog bimetal thermometer is around ±2°C. However, since analog devices work without a battery, they provide uninterrupted readings. At Yedepa.com we keep both types in stock.

2. Can the XH-W3001 thermostat drive a 220V compressor directly?
Yes; the relay on the XH-W3001 carries loads up to 10A. Small compressors such as 1/8 HP and 1/4 HP can be driven directly. For larger compressors, we recommend using an auxiliary contactor in between.

3. How long does the battery of the TPM10 digital thermometer last?
In normal use, the LR44/AG13 battery lasts approximately 12-18 months. The battery should be replaced when the display starts to fade.

4. Do measuring instruments come with a warranty?
All measuring instruments offered for sale on Yedepa.com are covered by the manufacturer's warranty. Warranty terms apply to unopened products without physical damage.

5. Does the WTY-100B thermometer freeze in a cold storage room?
No; thanks to its bimetal design, the WTY-100B works trouble-free down to -30°C. It is suitable for cold storage rooms (-18°C to -25°C band).

6. Can one of these devices be used when an air conditioner indoor unit sensor fails?
An original NTC sensor is required for connection to the original AC control board. However, for measurement/diagnostic purposes, you can use the TPM10 digital thermometer by fixing its probe onto the evaporator.

7. When will the product I ordered be shipped?
In-stock products on Yedepa.com are prepared within reasonable time frames for weekday orders and shipped with contracted courier companies. For detailed information, you can follow the SMS/e-mail notifications after ordering.

Conclusion + Yedepa.com Advantages

Measuring instruments are the eyes and ears of the refrigeration and air conditioning sector. When you install the right device in the right place, you prevent compressor failures, reduce energy consumption and give confidence to the end customer. Analog Mechanical Thermometer WTY-100B, XH-W3001 Digital Thermostat and Digital Probe Thermometer TPM10 — all of the most preferred models on the market, such as these, are in stock at Yedepa.com.

When you choose Yedepa.com:

OEM quality guarantee: All products are tested original/equivalent parts.
Technician-friendly prices: Direct supplier prices with no middlemen.
Technical support: Product consulting before and after ordering.
Wide stock: Deep inventory of air conditioner, household appliance and HVAC spare parts.
Service network compatibility: The range of parts needed by authorized service centers and independent technicians.

If you want to be sure that your refrigeration system is working correctly, invest in a proper measuring instrument. At Yedepa.com we continue to stand by HVAC technicians — for your questions, you can reach us through our customer service channels or our WhatsApp line.
