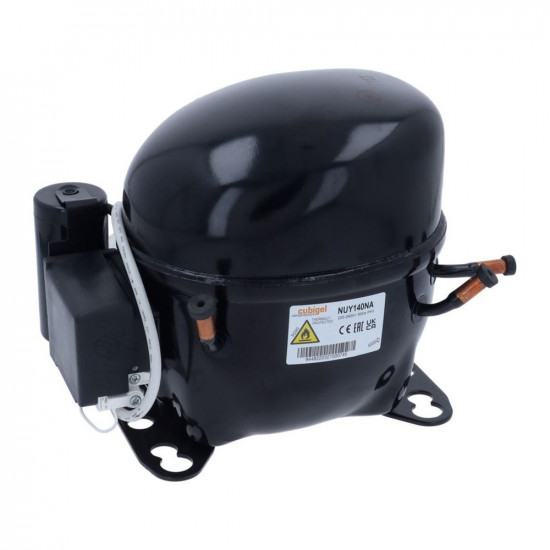

Cubigel NUY140NAb Hermetic Compressor – 1/2 HP, R290, LMBP 663 W

Cubigel NUY140NAb is a 1/2 HP hermetic reciprocating compressor made for commercial refrigeration appliances operating at sub-zero and low positive temperatures, such as freezer cabinets, ice cream display cases and refrigerated cabinets. It runs on R290 (propane); with a displacement of 14.2 cm³ it delivers a cooling capacity of 663 W (2,262 BTU/h) at ASHRAE LMBP conditions.

R290 Propane LMBP Compressor: Wide Operating Range for Freezer and Refrigerated Cabinets

The NUY140NAb belongs to the LMBP (low-medium back pressure) class and can operate at evaporating temperatures between −40 °C and 0 °C; the same compressor can be used in both freezer and low-temperature cooler applications. Thanks to its CSR (start and run capacitor) motor, fan-cooled body and ability to work with a capillary tube or an expansion valve, it suits a wide range of appliances. Propane has a GWP of 3; it is a suitable option for low-charge systems that are not affected by F-Gas restrictions.

Key Technical Specifications and Equipment

• Brand / Model: Cubigel NUY140NAb
• Refrigerant: R290 (propane) · explosion safety approved to EN 60335-2-34 for R290 and R600a
• Application: LMBP (low-medium back pressure) · evaporating −40 … 0 °C
• Displacement: 14.2 cm³
• Motor: CSR · locked rotor current (LRA) 17.7 A · max. continuous current 3.7 A
• Power supply: 220-240 V / 50 Hz single-phase · operating range 187-255 V
• Cooling: fan-cooled · expansion: capillary tube or expansion valve
• Oil: ISO VG 32 ester, 300 cm³

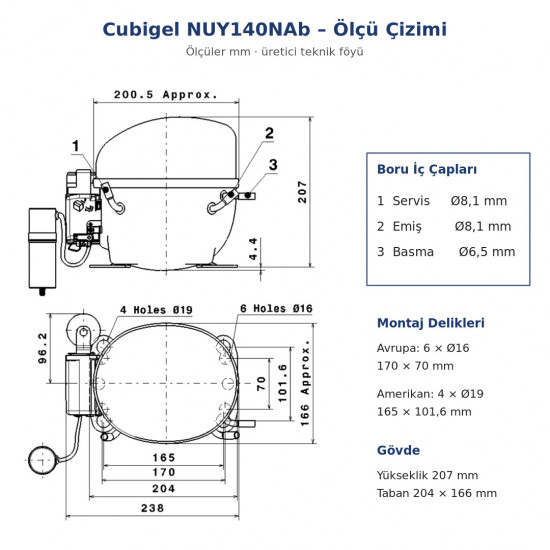

• Tube inner diameters: service Ø8.1 · suction Ø8.1 · discharge Ø6.5 mm
• Dimensions: height 207 mm · base 204 × 166 mm (238 mm with capacitor)
• Mounting holes: European type 6 × Ø16 (170 × 70 mm) · American type 4 × Ø19 (165 × 101.6 mm)
• Weight: 11.5 kg · max. ambient temperature 43 °C

Performance (ASHRAE, Condensing +55 °C)

ASHRAE: liquid, ambient and suction temperature 32 °C. At CECOMAF LMBP conditions (−25 °C, liquid 55 °C) 494 W, 436 W power input, COP 1.13. Capacity decreases as the evaporating temperature drops; make your selection according to the target cabinet temperature.

Electrical Equipment (Manufacturer References)

• Start capacitor: 60-61 µF 330 V
• Run capacitor: 10 µF 420 V
• Relay: 2014 158 or QLZ-9.05A (with NTC 15 Ω · pick-up 9.05 A / drop-out 7.70 A)
• Overload protector: B113-105 (11.5 A · open / close 110 / 52 °C)

• 🔥 R290 is a flammable refrigerant (class A3). Brazing, leak testing and charging must be carried out according to the rules for flammable refrigerants: a ventilated area, no ignition sources and compliance with charge limits are essential. This compressor is for R290 systems only.
• 🔧 When replacing: with the CSR connection, the start and run capacitors are used together; compare the refrigerant, application class and mounting hole spacing of the old compressor with the dimension drawing.
• Application limit: This model is LMBP — it is not used in water dispenser and air-conditioning type (HBP) applications where the evaporating temperature rises above 0 °C.
