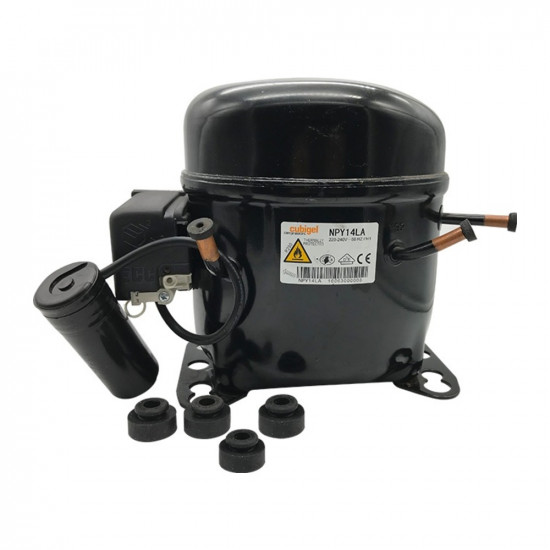

Cubigel NPY14LAa Hermetic Compressor – 1/2 HP, R290, LBP 651 W

Cubigel NPY14LAa is a 1/2 HP hermetic reciprocating compressor made for commercial refrigeration appliances operating at sub-zero temperatures, such as freezer cabinets, chest freezers and ice cream display cases. It runs on R290 (propane); with a displacement of 14.32 cm³ it delivers a cooling capacity of 651 W (2,221 BTU/h) at ASHRAE LBP conditions.

R290 Propane LBP Compressor: For Freezer Cabinets and Chest Freezers

Built on the P series body, the NPY14LAa operates at evaporating temperatures down to −40 °C with its fan-cooled design and CSIR (start capacitor) motor; it can be used in capillary tube and expansion valve systems. Propane has a GWP of 3; it is a suitable option for low-charge systems that are not affected by F-Gas restrictions.

Key Technical Specifications and Equipment

• Brand / Model: Cubigel NPY14LAa · P series
• Refrigerant: R290 (propane) · explosion safety approved to EN 60335-2-34 for R290 and R600a
• Application: LBP (low back pressure) · evaporating −40 … −10 °C
• Displacement: 14.32 cm³ · bore 29.37 mm · stroke 21.13 mm
• Motor: CSIR · locked rotor current (LRA) 18 A · max. continuous current 3.9 A
• Power supply: 220-240 V / 50 Hz single-phase · operating range 198-255 V
• Cooling: fan-cooled · expansion: capillary tube or expansion valve
• Oil: ISO VG 32 ester, 400 cm³
• Tube inner diameters: suction Ø8.1 · service Ø8.1 · discharge Ø6.5 mm
• Dimensions: height 210.5 mm · base 204 × 162 mm (231 mm with terminal box)
• Mounting holes: European type 6 × Ø16 (170 × 70 mm) · American type 4 × Ø19 (165 × 101.6 mm)
• Weight: 12.17 kg · max. ambient temperature 43 °C

Performance (ASHRAE, Condensing +55 °C)

ASHRAE: liquid, ambient and suction temperature 32 °C. At CECOMAF LBP conditions (−25 °C, liquid 55 °C) 485 W, 463 W power input, COP 1.05. Capacity decreases as the evaporating temperature drops; make your selection according to the target cabinet temperature.

Electrical Equipment (Manufacturer References)

• Start capacitor: 64-77 µF or 60-61 µF, 330 V
• Relay: 2014 158 or QLZ-9.05A (pick-up 9.05 A · drop-out 7.70 A)
• Overload protector: T0266 or B113-105

• 🔥 R290 is a flammable refrigerant (class A3). Brazing, leak testing and charging must be carried out according to the rules for flammable refrigerants: a ventilated area, no ignition sources and compliance with charge limits are essential. This compressor is for R290 systems only.
• ⚡ Supply voltage: The lower limit of the operating range is 198 V; in areas with voltage drops, the use of a voltage regulator is recommended.

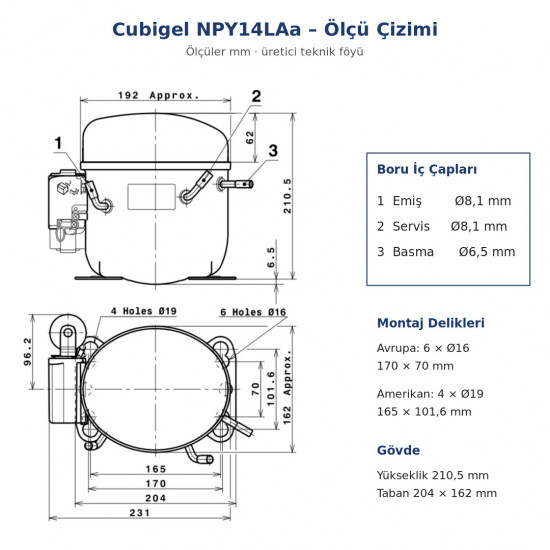

• 🔧 When replacing: the start capacitor and relay are fitted according to the CSIR connection; compare the refrigerant, LBP class and mounting hole spacing of the old compressor with the dimension drawing.
• Application limit: This model is LBP — it is for sub-zero freezers. It is not used in positive-temperature cooler and water dispenser (HBP) applications.
