What Are Condensing System Parts?

The most critical components that directly affect the efficiency of condensing combi boilers and ensure their long service life are condensing system parts. Modern condensing combi boilers gain extra heat by condensing the water vapor in the flue gas; this makes efficiency values of up to 107% achievable. However, the acidic condensate produced in this process (pH 3.5 - 5.0) can cause serious wear on system components such as the siphon, drain line, heat exchanger and pump. This is exactly where correctly selected condensing system parts both extend the life of the combi boiler and reduce service costs.

At Yedepa.com, for HVAC technicians and refrigeration technicians, we have brought together original and equivalent products from the Sauermann, Generous, I.T.M and Ariston brands on a single platform. In this guide, we cover everything you need to know about condensing system parts from a professional perspective, from their working principle to selection criteria, and from installation details to maintenance recommendations.

\\ \\

Technical Details and Working Principle

In condensing combi boilers, the flue gas temperature is lowered to 50-60 °C to recover the latent heat in the water vapor. The condensate formed in this process is directed through a drain channel collecting at the bottom of the heat exchanger to the siphon and from there to the drain line. Because its acidic nature causes corrosion in copper, aluminum and iron pipes, all components in the system must be made of acid-resistant polypropylene (PP) or EPDM based materials.

The main components of the condensing system are:

Condensate Siphon: Prevents flue gas from escaping into the drain line and acts as a water seal.
Condensate Pump: Pumps the condensate upward if the drain level is higher than the combi boiler.
Condensing Heat Exchanger: The main unit where heat transfer takes place, made of stainless steel or aluminum-silicon alloy.
Cleaning Tools: Protective and brushing tools used in the periodic maintenance of the heat exchanger.
Neutralizer Units: Neutralize the acidic water with calcium carbonate granules.

\\ \\

Types and Models

Condensing system parts are produced in different types according to the combi boiler's capacity, the location of the installation point and the brand used. The main types you can find on Yedepa.com are:

Acid-Resistant Condensate Pumps: Mandatory in basements or for combi boilers whose condensate outlet is lower than the drain line. Sauermann Si-61 Acidic Condensate Pump is the reference product in this category for condensing boilers and air conditioners up to 50 kW.
Siphon Bodies: Equivalent siphons made to fit different combi boiler brands such as Protherm, Baymak and Baxi offer budget-friendly solutions.
Brand-Specific Siphons: Ariston 65117391 Combi Boiler Condensate Siphon and similar original parts provide a perfect fit in the Clas One, Genus One, Alteas One Net and Cares Premium models.
Heat Exchanger Cleaning Sets: The 188 mm diameter cleaning tool with asbestos guardallows the heat exchanger to be cleaned while protected from flame exposure.
Bithermic / Recuperator Heat Exchangers: Used in semi-condensing systems, the Bosch Buderus GB012 Combi Boiler Main Heat Exchanger Recuperator is the best-known example of this class.

\\ \\

Which Model Should You Choose? Decision Guide

Choosing the right condensing system part depends as much on how the system is installed as on the brand of the combi boiler. The table below will guide you through the decision process:

\\ \\ \\ \\ \\ \\ \\ \\

Need	Recommended Part	Suitable Brand
Drain line higher than the combi boiler	Acid-Resistant Condensate Pump	Sauermann Si-61
General-purpose siphon replacement	Equivalent Siphon Body	I.T.M (Protherm/Baymak/Baxi)
Ariston series combi boiler	Original Siphon	Ariston 65117391
Periodic heat exchanger maintenance	Cleaning Tool + Asbestos Guard	Generous 188 mm
Semi-condensing heat exchanger replacement	Recuperator Heat Exchanger	Bosch Buderus GB012

\\ \\

Condensing System Parts You Can Find on Yedepa.com

Yedepa.com stocks the condensing system parts the HVAC sector needs after they have been tested by our expert team. The main products in our stock:

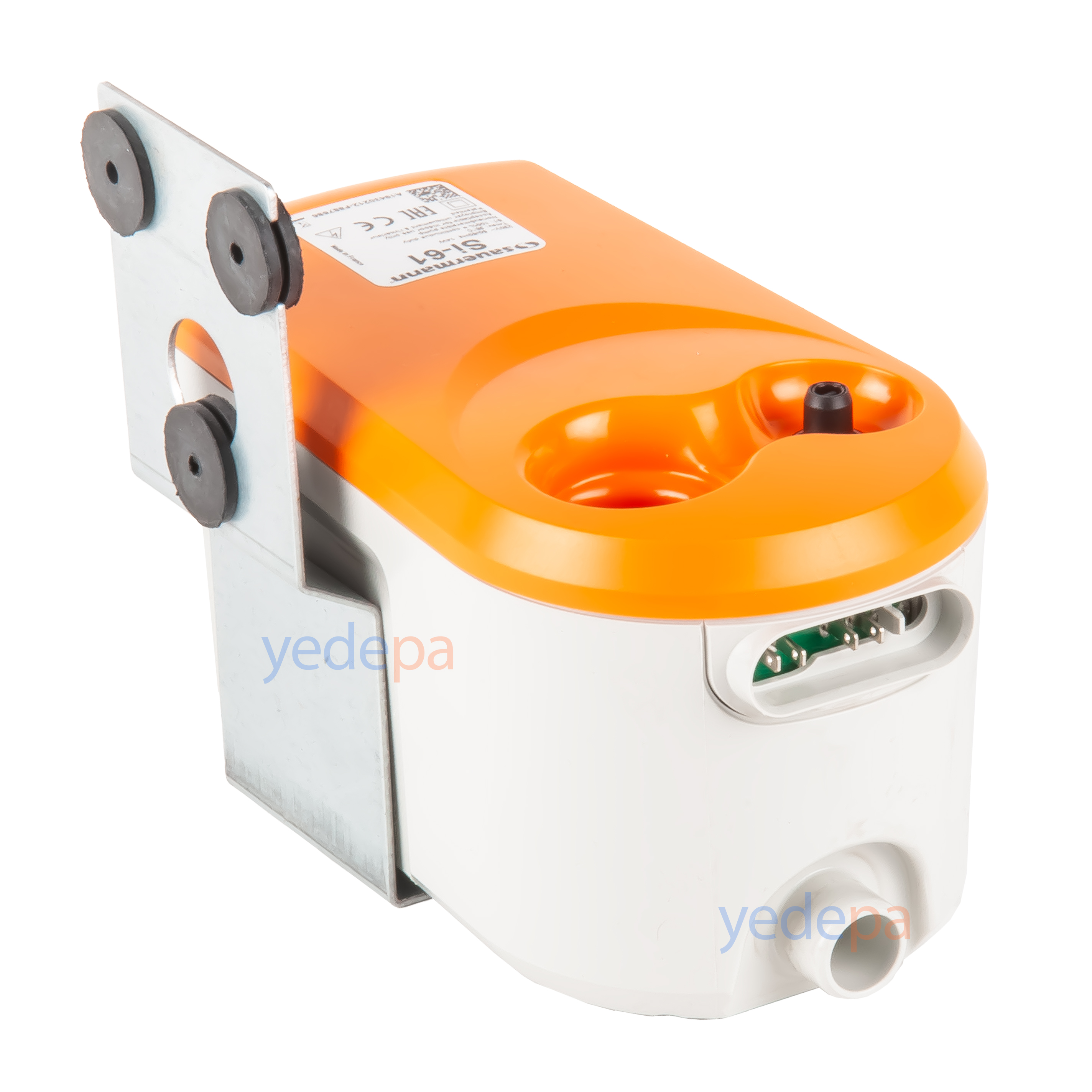

Sauermann Si-61 Acidic Condensate Pump (SI61CE01UN23) — Manufactured with the assurance of French engineering for condensing boiler and air conditioner applications up to 50 kW. Price: 90 USD.
Bosch Buderus GB012 Combi Boiler Main Heat Exchanger Recuperator (Semi-Condensing / Bithermic) — A Generous-brand equivalent solution, an economical alternative for main heat exchanger failures. Price: 71 USD.

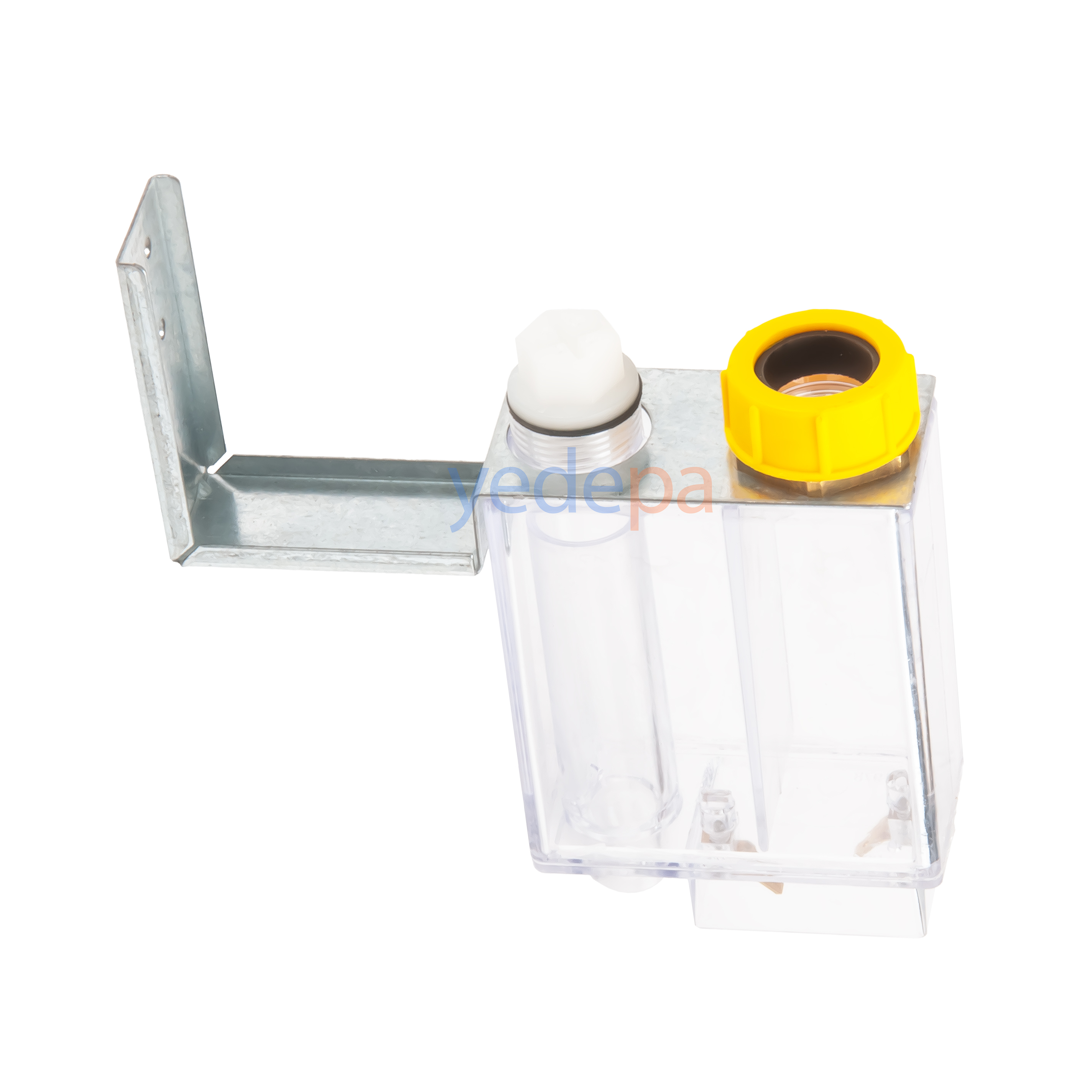

Combi Boiler Condensate Siphon Body - Protherm, Baymak, Baxi Compatible — A widely compatible siphon made by I.T.M, the first choice of technicians. Price: 21 USD.
Combi Boiler Condensing Heat Exchanger Cleaning Tool and Asbestos Guard (188 mm) — This Generous-brand set allows the heat exchanger to be cleaned without flame damage. Price: 16 USD.

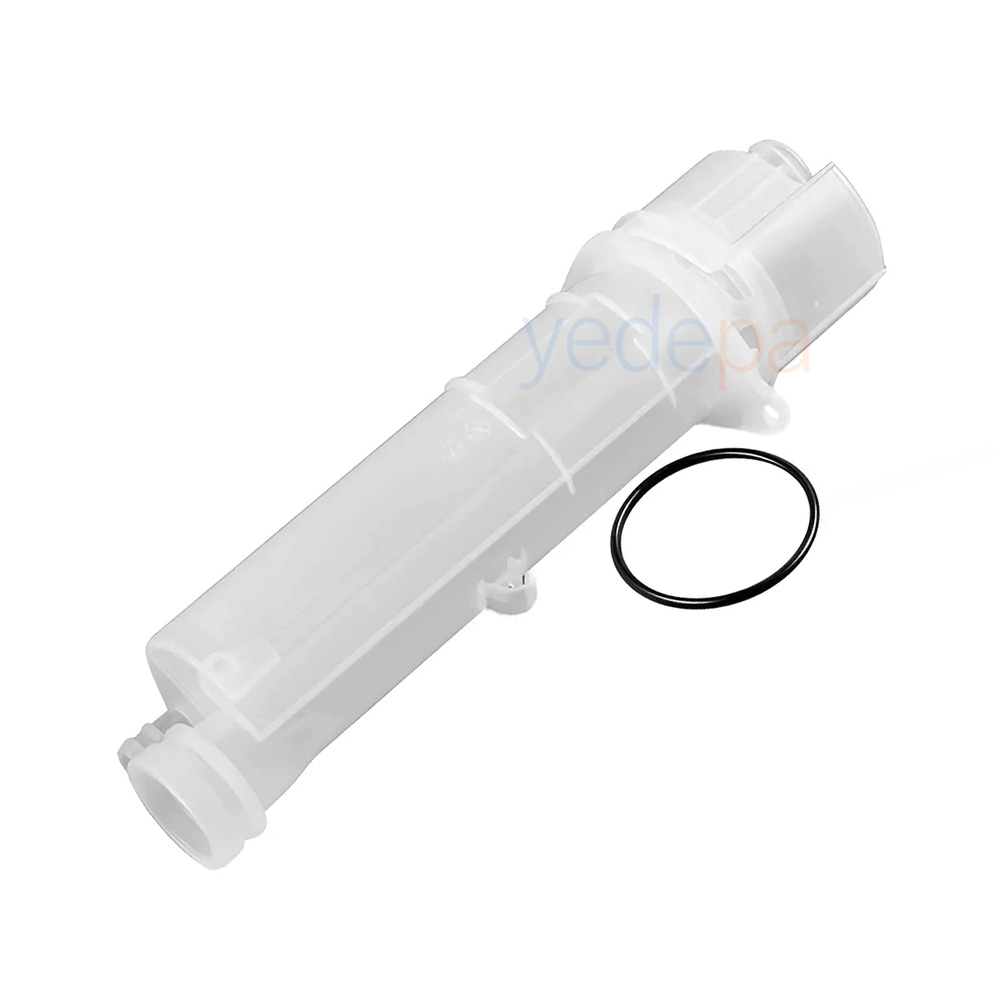

Ariston 65117391 Combi Boiler Condensate Siphon — Original spare part for the Clas One, Genus One, Alteas One Net and Cares Premium models. Price: 13 USD.

All our products are delivered in their original packaging, with a production date label and an invoice. Corporate account benefits are offered to service companies placing bulk orders.

\\ \\

Professional Selection Criteria

As an HVAC technician, you must consider the following criteria when choosing a condensing system part:

Capacity Match: The pump's discharge head (usually 4-6 meters) and flow rate (10-30 L/hour) must meet the combi boiler's capacity. That is why the 50 kW threshold is critical in the Sauermann Si-61 example.
Acid Resistance: All gaskets, hoses and body materials must withstand down to pH 2. EPDM and PP materials are standard in this respect.
Brand Compatibility List: When choosing an equivalent siphon, check the manufacturer's compatibility list. Compatibility with several brands such as Protherm, Baymak and Baxi, as with I.T.M siphons, is a big advantage.
Certificates: Products complying with CE, EN 14471 and EN 677 standards should be preferred.
Warranty Period: A manufacturer warranty of 2 years on original parts and at least 1 year on equivalents is standard.
Quiet Operation: For homes, condensate pumps with an operating noise below 40 dB should be preferred.

\\ \\

Installation Steps and Tips

Installing condensing system parts can be completed in 30-90 minutes with the right equipment. The general procedure is as follows:

The combi boiler's electricity and gas supplies are shut off and it is allowed to cool down.
Before removing the old siphon, an acid-resistant bucket is placed underneath; the water inside is drained.
The O-ring seal of the new siphon is lightly greased with petroleum jelly and fitted into the body.
When installing a condensate pump, make sure the pump is positioned at a point where it can be vented.
The asbestos guard used when replacing a heat exchanger is mandatory to protect the surrounding plastic parts.
At first start-up, the condensate flow is observed for at least 10 minutes and a leak test is performed.

\\ \\

Use and Maintenance Recommendations

The condensing system is the most neglected yet most sensitive part of the combi boiler. The following maintenance schedule can double the system's life:

Annual Siphon Cleaning: At the start of the season, the siphon should be removed, rinsed with lukewarm water and cleared of accumulated calcium deposits.
Heat Exchanger Brushing: Brushing once a year with the 188 mm Generous cleaning tool increases heat transfer efficiency by up to 8%.
Pump Hose Check: On condensate pumps such as the Sauermann Si-61, the inlet and outlet hoses should be visually inspected for cracks every 6 months.
Neutralizer Granule Renewal: If such models are used, the granule level should be renewed every 2 years.
Frost Protection: On outdoor runs, the drain line should be wrapped with insulation tape.

\\ \\

Common Mistakes and Solutions

The most common condensing system faults in the field and recommended solutions:

Siphon Blockage: If the combi boiler shows error code E96 / E110, check the siphon for limescale build-up. Replacement with an I.T.M equivalent siphon is often the fastest solution.
Condensate Pump Stops Working: In the Sauermann Si-61, the float sensor can stick due to sticky deposits; it is cleaned with a vinegar-water solution.
Heat Exchanger Blackening: Occurs when cleaning is done without protection from flame exposure. Use of the Generous asbestos guard is mandatory.
Wrong Siphon Selection: When an equivalent siphon is fitted to Ariston series combi boilers, a flue gas leak can occur; the original reference number 65117391 should be preferred.

\\ \\

Frequently Asked Questions (FAQ)

1. How often should the condensate siphon be cleaned?
\\ At least once a year, ideally before the heating season.

2. Which combi boilers is the Sauermann Si-61 pump compatible with?
\\ It can be used in all condensing combi boilers up to 50 kW and in air conditioner drain applications; it is independent of the manufacturer.

3. Does using an equivalent siphon affect the warranty?
\\ If the combi boiler is still under warranty, an original part is recommended. On combi boilers out of warranty, certified equivalents such as I.T.M can be used safely.

4. Can the condensate be connected directly to the drain?
\\ According to municipal regulations, combi boilers under 35 kW can be connected to the drain without a neutralizer; a neutralizer is mandatory for boilers above this.

5. Is the heat exchanger cleaning tool single-use?
\\ No, the 188 mm Generous tool can be used for years; only the asbestos guard part is renewed when it wears out.

6. What is the life of the Ariston 65117391 siphon?
\\ With regular maintenance it works trouble-free for 8-10 years.

\\ \\

Conclusion and Yedepa Advantages

Condensing system parts are the cornerstone of efficient and safe operation of modern combi boilers. The right product choice both lowers the end user's energy bill and enhances the service technician's reputation. Yedepa.com offers a wide portfolio, from Sauermann's acid-resistant condensate pumps to Generous heat exchanger cleaning sets, and from I.T.M's widely compatible siphon bodies to Ariston's original spare parts.

Yedepa advantages:

Original product guarantee and delivery with invoice
Corporate accounts for technicians and service companies
Free pre-sale consultation from our technical team
Transparent infrastructure reflecting live stock information
Advanced search by OEM code, brand and model

For any questions about choosing condensing system parts, you can contact our expert team at Yedepa.com. With the right part, the right installation and the right maintenance, extending the life of the combi boiler is in your hands.
