Air Conditioner Installation Kits and Copper Pipe Sets: Complete BTU-Based Guide

When it comes to air conditioner installation, the first thing that comes to mind is not the unit itself but the fine engineering that lets the indoor unit talk to the outdoor unit: the complete set in which copper pipe, insulation, drain hose and signal cable come together. As Yedepa.com, we have for years been supplying air conditioning technicians and authorized service centers through the B2B channel with physically verified copper pipe sets that ship in a single carton. In this guide, using example products, we explain which diameter-length combination suits which unit, from a small 12,000 BTU room air conditioner to a 50,000 BTU commercial packaged unit, the difference between 5 meter and 10 meter kits, and why buying a "complete set" is both more economical and safer than putting it together piece by piece.

💱 Price Note: The prices given on this page are USD-based reference values. For the current TL equivalent and stock status, we recommend visiting the product page. On Yedepa.com, prices are calculated at the daily exchange rate.

What Is an Air Conditioner Installation Kit, and Why Choose a Complete Set?

An air conditioner installation kit consists of two insulated copper pipes (supply and return, i.e. liquid and gas line), the closed-cell polyethylene insulation surrounding them (usually 9 mm), a drain hose and the signal/power cable between the indoor and outdoor units. The advantages of ready-made sets over assembling the parts one by one fall under three headings: correct diameter matching (the wrong inch pipe shortens the life of the compressor), factory insulation (wrapping insulation on site means both time and a risk of sweating) and cost (buying 10 meters of pipe + 10 meters of insulation + drain + cable separately is always more expensive than a complete kit).

The most common mistake on the technician's side is trying to install a unit above 24,000 BTU with a standard 1/4–3/8 set, saying "that's how the previous house was done". Undersized pipe causes a pressure drop in the compressor's gas flow; the unit does not cool but draws current. As the Yedepa.com team, the data we have collected from service returns over the years is very clear: the vast majority of air conditioners installed with a wrong BTU-diameter match come back with compressor failure within the first three summers.

BTU-Based Diameter Selection Table: Which Set for Which Air Conditioner?

AC Capacity (BTU/h)	Recommended Pipe Diameter (inch)	Suitable Yedepa.com Set	Typical Price
9,000 – 12,000 BTU	1/4" – 3/8"	AC Installation Kit / Set 1/4 - 3/8 5 M, 12000 BTU or AC Installation Kit / Set 1/4 - 3/8 10 M, 12000 BTU	20 – 22 USD
18,000 BTU	1/4" – 1/2"	AC Installation Kit / Set 1/4 - 1/2 5 M, 18000 BTU or AC Installation Kit / Set 1/4 - 1/2 10 M, 18000 BTU	23 – 26 USD
24,000 – 36,000 BTU	3/8" – 5/8" (3/8" – 3/4" on long runs)	AC Installation Kit / Set 3/8 - 5/8 5 M, 36000 BTU, AC Installation Kit / Set 3/8 - 5/8 10 M, 36000 BTU, AC Installation Kit / Set 3/8 - 3/4 5 M, 36000 BTU, AC Installation Kit / Set 3/8 - 3/4 10 M, 36000 BTU	26 – 31 USD
48,000 – 50,000 BTU (packaged / commercial)	1/2" – 3/4"	AC Installation Kit / Set 1/2 - 3/4 5 M, 50000 BTU or AC Installation Kit / Set 1/2 - 3/4 10 M, 50000 BTU	32 – 37 USD

Note when reading the table: the BTU values are based on the assumption that "the distance between the indoor and outdoor units does not exceed 5 meters and the vertical difference is less than 3 meters". As the distance or height difference increases, move up to the next diameter set; if you are taking a 36,000 BTU packaged unit up a 12 meter height difference, 3/8" – 3/4" is preferred instead of 3/8" – 5/8".

5 Meters or 10 Meters? The Logic of Length Selection

After measuring the straight-line distance between the indoor and outdoor units, you need to add at least 15% allowance, because wall turns, routing through trunking and the bends at the outdoor unit bracket always turn out "longer than measured". A 5 meter set comfortably does the job for a typical living room air conditioner — if the outdoor unit is on the back of the same wall or on a side balcony — and offers a price advantage. For example, the AC Installation Kit / Set 1/4 - 3/8 5 M, 12000 BTU at 20 USD is the most affordable option in its class.

10 meter sets, on the other hand, are essential in apartments where the indoor unit is in the living room and the outdoor unit is on the roof or on a side facade bracket. Increased pipe length means extra load for the compressor; therefore, if a long run is chosen for units above 36,000 BTU, it is right to select a larger diameter combination such as the AC Installation Kit / Set 3/8 - 3/4 10 M, 36000 BTU. In the 50,000 BTU class, the AC Installation Kit / Set 1/2 - 3/4 10 M, 50000 BTU is the standard choice; Yedepa.com lists this set at 37 USD.

Insulation Quality: The "Invisible" Determinant of the Set

As copper pipe prices fall, insulation is the first thing cut back in cheap sets. A thickness of 6 mm instead of 9 mm, and sponge-like material instead of closed-cell polyethylene, let condensation collect on the pipe; half of the "AC water" complaints dripping from the ceiling on a hot summer afternoon come from the wrong insulation. In all the sets we offer for sale on Yedepa.com, the insulation is closed-cell polyethylene at least 9 mm thick, and the copper pipe is O2-free, drawn copper.

The second checkpoint is the copper wall thickness. New-generation high-pressure refrigerants such as R32 and R410A are not compatible with walls below 0.61 mm; especially in sets above 36,000 BTU, this thickness increases to 0.76 mm. The AC Installation Kit / Set 3/8 - 5/8 5 M, 36000 BTU in our list and all sets above it comply with this wall standard.

What Comes in the Set? Cable, Drain and Auxiliary Materials

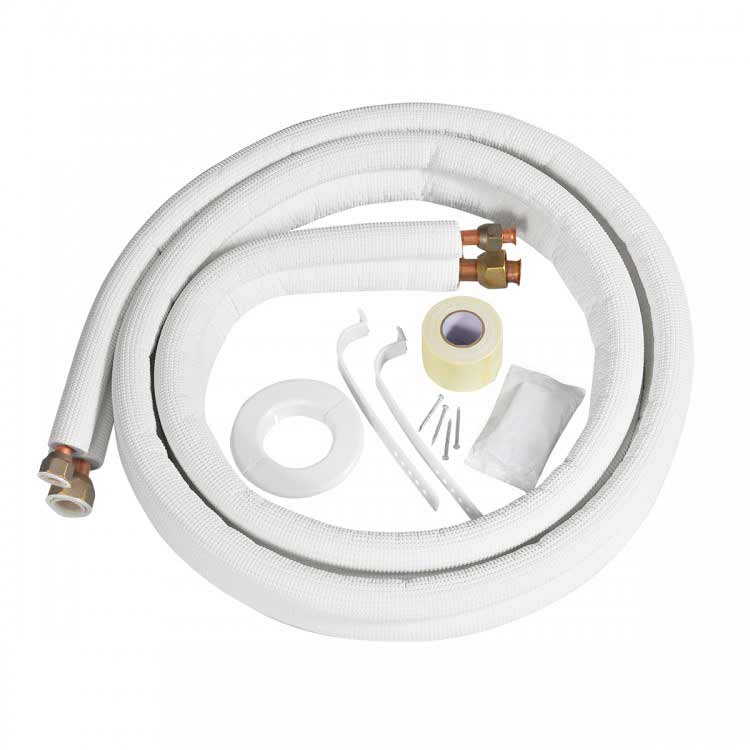

The essence of the complete set advantage is that the technician does not have to look for additional materials in the van. A standard kit contains: two insulated copper pipes (according to the diameter combination), 9 mm closed-cell insulation, a flexible drain hose (usually 16–20 mm inner diameter) and a 3x1.5 mm² or 4x1.5 mm² signal/power cable. In 50,000 BTU commercial sets, the cable cross-section increases to 4x2.5 mm²; the AC Installation Kit / Set 1/2 - 3/4 5 M, 50000 BTU is the reference product of this class.

Five Common Installation Mistakes and Their Effect on Set Selection

1) Bending the copper pipe too much: A bend with a radius smaller than 6 times the outer diameter narrows the inner cross-section of the copper and chokes the gas flow. Solution: use the bend accessories in the set.

2) Leaving the insulation off at the joint: If the flare nut area is left uninsulated, it drips condensate.

3) Running the drain with a reverse slope: Water starts to back up; the indoor unit drips.

4) Choosing a diameter below the BTU rating: The "whatever 5 meters is in stock" approach without looking at the table is a classic mistake.

5) Opening the refrigerant without pulling a vacuum: No matter how good the set is, this mistake kills the compressor.

The Yedepa.com Advantage: B2B Supply from Stock

In Turkey, the air conditioning season opens at the end of April and stays busy until mid-September. During this period, "needed tomorrow morning" is the key phrase for a technician, and few suppliers can deliver on it. The Yedepa.com stock model is based on the quantity shown on the product page being physically verified; it eliminates the "shown in stock but not available" problem. In the 18,000 BTU class, the AC Installation Kit / Set 1/4 - 1/2 10 M, 18000 BTU at 26 USD is the most preferred reference of the season.

For our B2B customers, open invoicing, payment terms and bulk order discounts are standard. For technician teams supplying sets to several projects at the same time, package pricing is offered for 5–10 sets; simply contact the sales team for a quote.

Frequently Asked Questions (FAQ)

1) Can I fit an 18,000 BTU set to a 12,000 BTU air conditioner?
Technically it can be fitted and gas flow will be fine; however, reducers are needed to convert the flare nut diameters, and the cost increases. The right approach is to buy the set that matches the capacity — for example the AC Installation Kit / Set 1/4 - 3/8 5 M, 12000 BTU.

2) What is the advantage of choosing 3/4" instead of 5/8" for a 36,000 BTU air conditioner?
On long runs (over 10 meters) and with large height differences, a 3/4" gas return line reduces pressure loss; the compressor runs more easily. For this reason, our AC Installation Kit / Set 3/8 - 3/4 10 M, 36000 BTU at 30 USD is the choice for long-run projects.

3) Is the 50,000 BTU class mandatory for commercial use?
Yes. For 50,000 BTU packaged air conditioners and VRF outdoor units, the 1/2" – 3/4" diameter combination is the factory recommendation. In this range, the AC Installation Kit / Set 1/2 - 3/4 10 M, 50000 BTU is Yedepa.com's strongest stock item.

4) How long does the insulation last?
UV-protected closed-cell polyethylene insulation lasts 5–7 years on outdoor runs exposed to the sun, and 10+ years inside trunking. When covered with PVC wrapping tape, this extends to 10–12 years.

5) Is it compatible with R32 refrigerant?
The copper wall thickness in all our sets is sufficient for R32 and R410A (≥0.61 mm). In sets above 36,000 BTU, a 0.76 mm wall is standard.

6) Does the set include a vacuum pump?
No; a vacuum pump is a separate tool category. The set is a ready-to-install pipe–insulation–cable–drain combination. We sell vacuum pumps separately in the "Service Tools" category on Yedepa.com.

7) How long does shipping take?
In-stock products are handed over to the courier on the day of the order; delivery within 1–3 business days throughout Turkey. During the peak season, a scheduled delivery option is also available for technician teams.

Which Sets Should Be Kept as Spares in the Service Vehicle?

At the start of the season, the minimum stock an air conditioning technician should carry in the vehicle consists of four items. For 12,000 BTU, the AC Installation Kit / Set 1/4 - 3/8 5 M, 12000 BTU covers the most frequent in-city job call of the day; for 18,000 BTU, the AC Installation Kit / Set 1/4 - 1/2 5 M, 18000 BTU is the standard for mid-range residential jobs. For living room air conditioners and long runs, the AC Installation Kit / Set 3/8 - 5/8 10 M, 36000 BTU is always in demand; for commercial job calls, the AC Installation Kit / Set 1/2 - 3/4 5 M, 50000 BTU allows jobs to be closed quickly. A technician who keeps these four items as spares in the vehicle does not end up saying "the set wasn't enough, I couldn't make it to the second call".

For restocking during the season, Yedepa.com continuously replenishes the same category; an order placed the night before is on its way the next morning. This is the logistical lifeline of small and medium-sized service teams, especially in the June–August peak period.

Storage and Handling Rules for Copper Pipe Sets

Sets should not be taken out of their packaging before use. Direct contact of copper with open air starts oxidation on the surface; when the flare nut is tightened, this oxide layer opens micro-channels and leads to refrigerant leaks. The ends of the set are closed with plastic plugs at the factory; these plugs are not removed until the moment of installation. Likewise, the set coil should be stored 10 cm above the floor, and no moisture should collect inside the pipe.

During transport, the minimum bending radius of the set must be observed; otherwise internal cracks may form in the copper and service life is shortened. The risk of bending during transport is particularly high with large diameters such as 1/2" – 3/4"; heavy 10 meter sets such as the AC Installation Kit / Set 1/2 - 3/4 10 M, 50000 BTU should be unloaded by two people.

Conclusion

The right choice of air conditioner installation kit determines, on the very first day, the unit's 8–10 year service life. Diameter suited to the BTU rating, length suited to the distance, quality insulation and the correct cable cross-section — when these four elements come together, the installation becomes a guaranteed investment. The ten reference sets in the Yedepa.com category (from 12,000 BTU to 50,000 BTU, with 5 and 10 meter options) are arranged to make this decision easier; the technical summary on the product page also makes it possible to read the table from a mobile phone. For a technician who wants to win the season, choosing the right supplier is as important as the product.
