What Are Drain Hoses and Fittings?

For air conditioning systems to operate properly, the water that condenses in the indoor unit must be drained safely to the outside. This is exactly where drain hoses and fittings come into play. Without a drain line of the correct diameter, made of the correct material and laid at a suitable slope, the condensate formed when moisture in the air condenses on the evaporator surface of the air conditioner can drip from the indoor unit, cause dampness on the wall and even lead to electronic board failures. For this reason, for professional HVAC technicians the drain system is a component as critical as the refrigerant line.

At Yedepa.com, we offer technicians and service companies a wide range of drain hoses and fittings, one of the most searched subcategories of our air conditioner spare parts category, led by the Artiko and OEM brands. With the products we have gathered under a single category, from 100-meter industrial rolls to 5/8 inch straight, T and Y type nipples, you can fully complete the drain line of a combi boiler installation or of a 30-apartment VRF project.

Operating Principle and Technical Details of the Air Conditioner Drain System

In the indoor unit of a split air conditioner, when warm, humid room air contacts the cold evaporator fins, the water vapor in the air condenses. This condensate can be thought of as a pool collecting in the drain pan under the fins. To discharge this water, a drain outlet coming from the drain pan is connected to the outside of the building or to a waste line via a flexible or semi-flexible hose. Our AC Drain Serum Hose - Per Meter product, as its name suggests, has a transparent structure similar to medical IV (serum) sets, which allows the water flow inside to be checked visually; this means easier diagnosis, especially when a blockage is suspected.

There are three basic engineering criteria in a drain line: slope, diameter and leak-tightness. As for slope, a drop of at least 1-2 cm per meter is recommended. As for diameter, in household split air conditioners the original drain outlet of the indoor unit usually has an outside diameter of 16 mm, and hoses of the 5/8 inch standard fit it perfectly. Leak-tightness is ensured at the hose joints, nipples and connectors; otherwise, even a tiny drip can rot a drywall ceiling within months.

Drain Hose Types and Models

Drain hoses are produced in several different types depending on their intended use. The most popular types in the Yedepa.com catalog are:

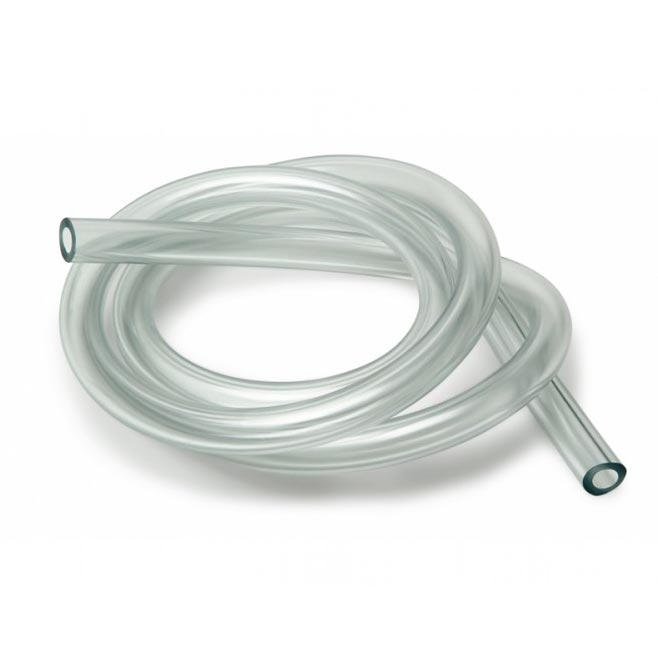

Serum-type transparent hose: Made of flexible PVC, it allows the flow inside to be observed and is a suitable solution for low-flow drainage, usually with an inside diameter of 5-8 mm. 100 Meter AC Drain Serum Hose is the best-selling industrial roll in this category.
5/8 inch standard drain hose: This is the diameter used as factory standard in the vast majority of split air conditioners. AC Water Drain Hose 5/8 50 Meter is one of the basic consumables that service companies should carry in their vehicles.
Spiral-reinforced drain hose: Types with a plastic spiral inside to resist kinking; they prevent flow restriction in long-distance and in-shaft applications.
Connector and nipple fittings: Used to join two hoses, make an elbow or connect the drain lines of multiple indoor units to a common riser.

Drain Fittings: Differences Between Nipple, Spout and Y Connector

The second main group in the drain system, as important as the hose itself, is the connection fittings. Here there are four basic parts that many new technicians confuse:

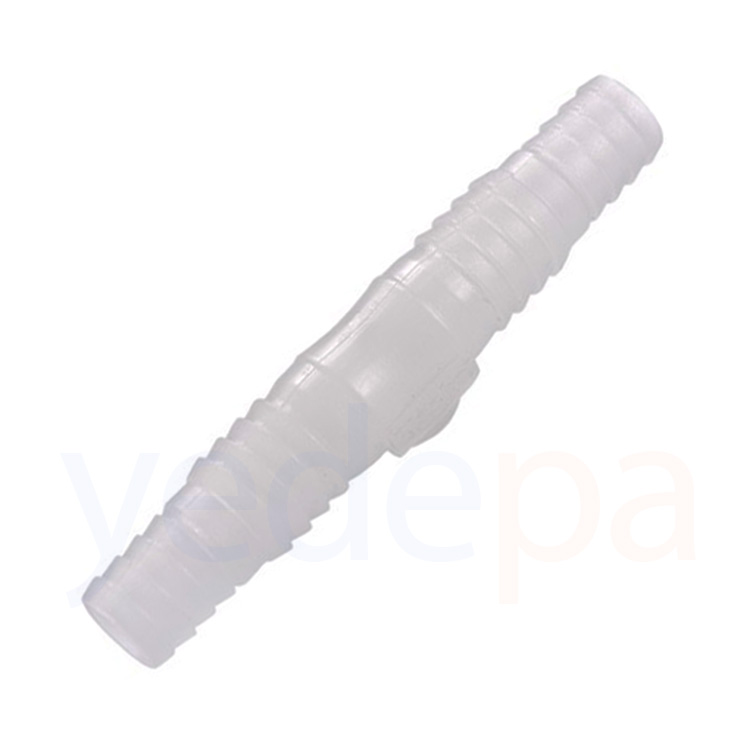

Straight nipple (AC Drain Hose Nipple 5/8 Straight Type): Used to extend two hose pieces along the same axis. If your existing hose is too short, it is the cleanest way to make a joint.

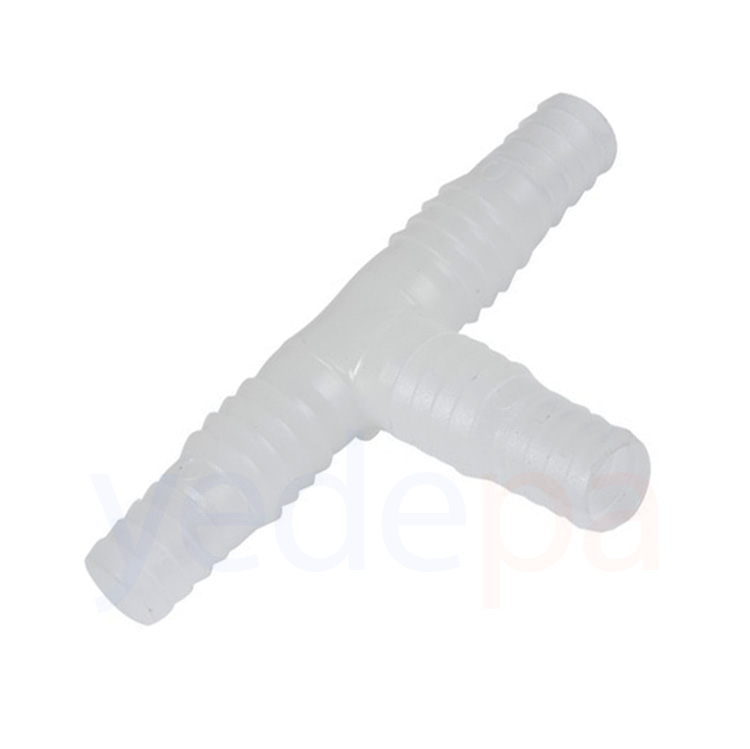

T-type nipple (AC Drain Hose Nipple 5/8 T Type): Has three connection points and provides right-angle distribution. Ideal for connecting the drain lines of two separate indoor units to a common riser.

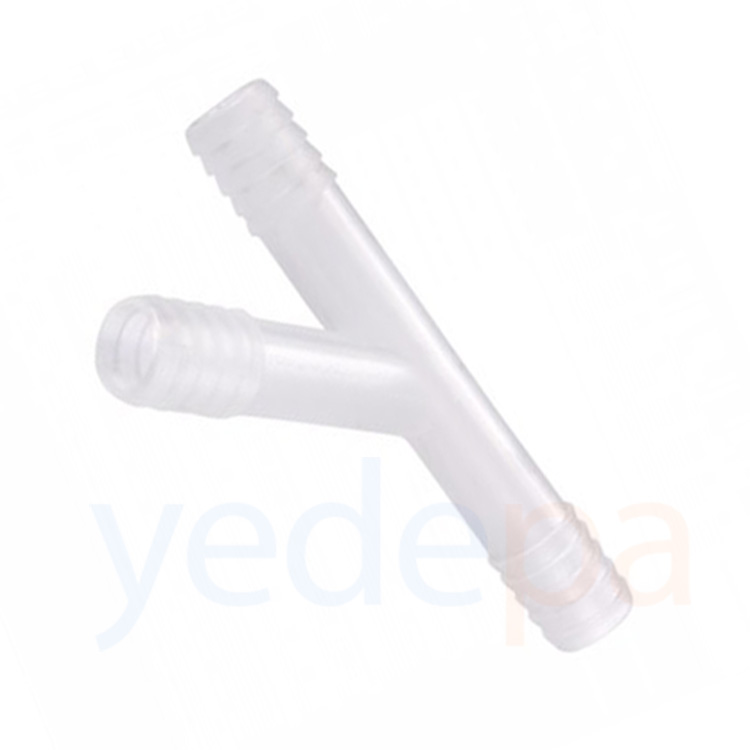

Y-type nipple (AC Drain Hose Nipple 5/8 Y Type): Although similar to the T type, it joins the flow direction at a gentle angle, so the risk of clogging is lower; it is preferred especially in VRF indoor units with heavy condensation.

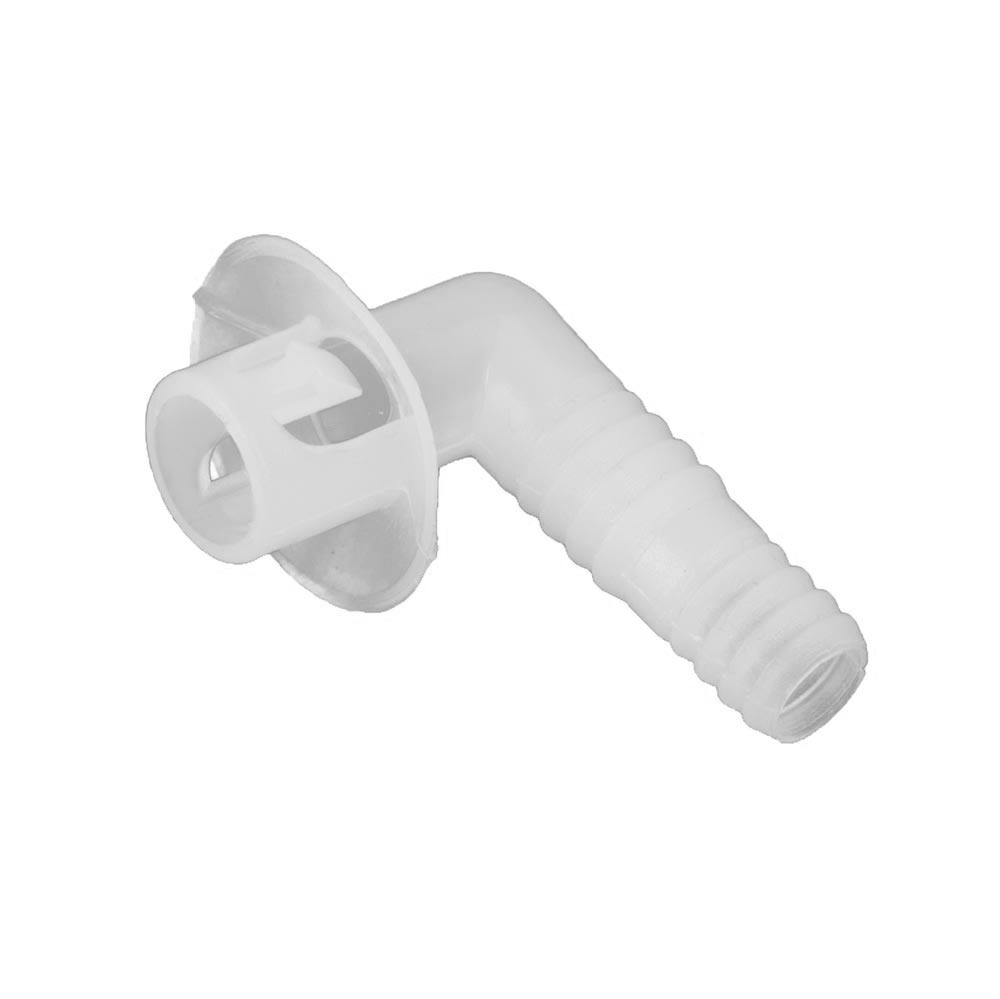

Spout fitting (AC Drain Hose Spout 5/8): A small nozzle fitted to the outer outlet end of the hose that directs the flow. It prevents water from splashing onto the wall or being blown back by the wind.

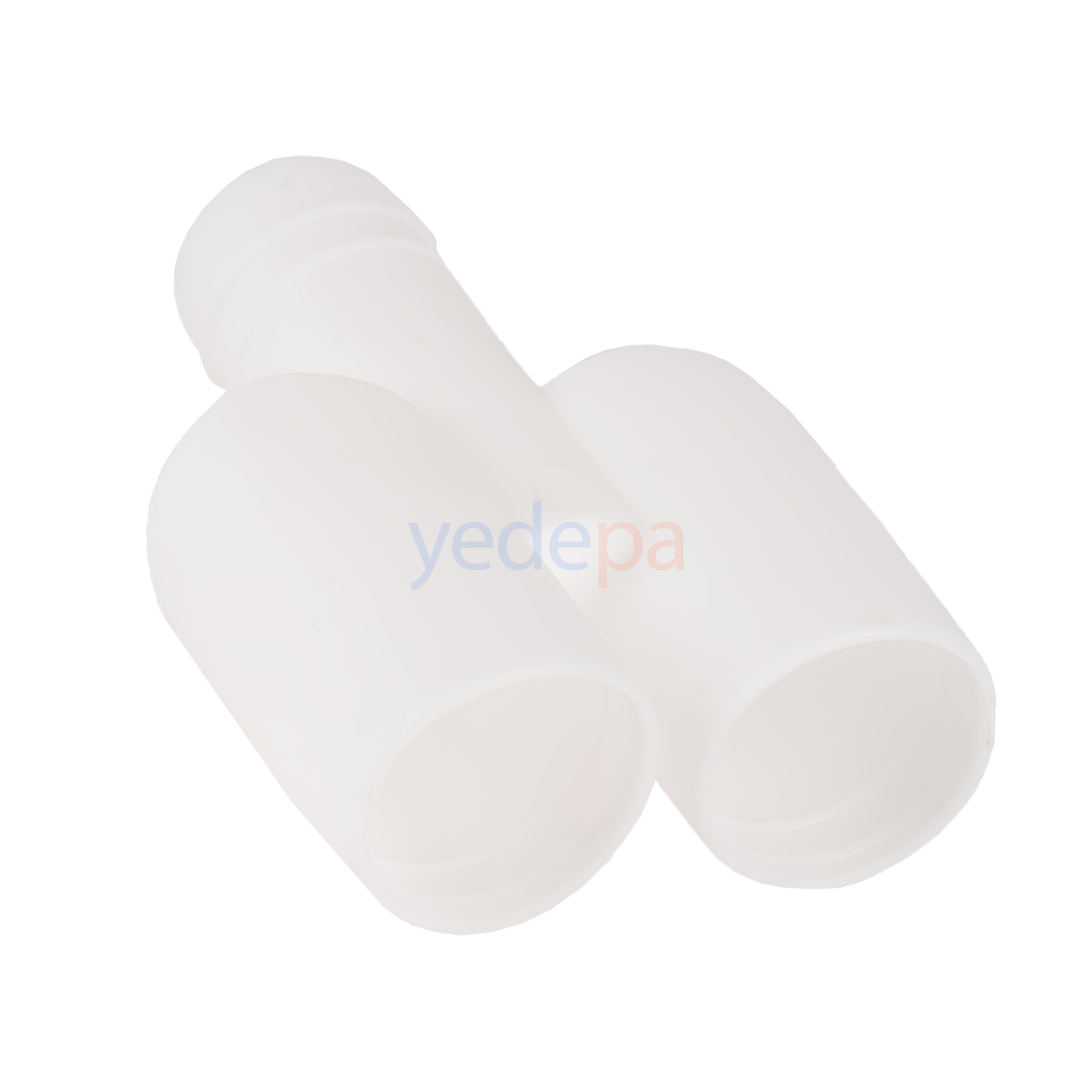

In addition to these, there is the AC Drain Y 5/8 Connector - Drain System Connection Fitting, which is the right solution especially for combining the drains of the indoor units on each floor into a common downpipe in multi-story buildings.

Which Model Should You Choose? Drain Hose Decision Guide

To make the right choice, you need to answer three questions: How many meters of hose do you need? What is the size of the indoor unit outlet in inches? Are there joints and distribution points?

Application	Recommended Product	Typical Quantity
Single split AC installation (3-5 m)	5/8 50 Meter hose + 1 spout	1 roll, shared
Service vehicle stock	100 Meter serum hose + nipple set	1 large roll
Two indoor units on a common riser	5/8 hose + T or Y nipple	20-30 m
VRF / multi-apartment project	100 m serum + Y connectors by quantity	Project-based
Repair of existing hose	Straight nipple + 1-2 m hose	1-2 pcs

If you are a professional service company, buying 50 or 100 meter rolls instead of small lengths both lowers your costs and prevents lost work time. For a home user or a small renovation, just a few meters may be enough.

Drain Hoses and Fittings Available at Yedepa.com

The main products in stock in the drain hoses and fittings subcategory of the Yedepa.com catalog are:

100 Meter AC Drain Serum Hose (Artiko) — Large roll ideal for industrial use, 27 USD.
AC Water Drain Hose 5/8 50 Meter (OEM) — The standard diameter preferred by service companies, 14 USD.
AC Drain Serum Hose - Per Meter (Artiko) — Sold by the meter for small repairs, 1 USD.
AC Drain Y 5/8 Connector (OEM) — Drain system connection fitting, 1 USD.
AC Drain Hose Spout 5/8 (OEM) — Directs the flow at the outer outlet end, 1 USD.
AC Drain Hose Nipple 5/8 Straight Type (OEM) — Straight nipple for extension, 1 USD.
AC Drain Hose Nipple 5/8 T Type (OEM) — For three-way distribution, 1 USD.
AC Drain Hose Nipple 5/8 Y Type (OEM) — Gentle-angle joining, 1 USD.

Whether you are a maintenance service company or an end user looking to solve a drip problem in your own home, all these products are offered with the assurance of Yedepa.com and with real stock information. If the product you order is out of stock, we tell you so clearly; we do not work with phantom stock or exaggerated promises.

Professional Selection Criteria: Drain Materials from a Technician's Perspective

When an HVAC technician chooses drain materials, not only price but also several technical criteria are very important:

Wall thickness: In cheap hoses, wall thickness can drop below 0.3 mm; these hoses easily collapse at bends and block the flow. Artiko serum hoses are produced with thicker walls.
UV resistance: UV-stabilized material should be used for the parts of the hose near the outdoor unit that are exposed to sunlight; otherwise it hardens and cracks within 1-2 years.
Temperature range: A drain hose should maintain its elasticity between -5°C and +70°C. Low-quality products become brittle in winter.
Nipple dimensional precision: A nipple sold as 5/8 inch must actually be within the 15.87 mm outside diameter tolerance. Otherwise, leakage is inevitable.
Odor and hygiene: Although AC condensate is not drinking water, it is in contact with indoor air. Recycled low-quality PVC causes odor and mold growth.

At Yedepa.com, we highlight brands that meet these criteria; Artiko is our reference point for industrial hoses, and OEM for nipple and connector fittings.

Use and Maintenance Recommendations: How to Prevent Drain Line Clogging?

The most common problem with the drain system is the hose clogging over time. The main causes of clogging are dust drawn in from the air, bacterial slime (biofilm) coming from the evaporator, and the entry of insects and pests. The following maintenance steps significantly extend the life of your drain line:

At the start of each season, spray a special AC cleaner into the indoor unit drain pan and observe the flow.
Always fit the AC Drain Hose Spout 5/8 fitting to the outer outlet end of the hose; it both directs the flow and makes it harder for insects to get in.
When laying the drain hose, give it a slope of 1-2 cm per meter; in flat or reverse-sloped lines, water flows back.
If more than one indoor unit is connected to a common riser, prefer a Y-type nipple instead of a T; flow losses are reduced.
If it is not possible to remove the hose once a year, blow air in the reverse direction from the outer end with a household pump to break up the biofilm layer.
Replace old, hardened hoses completely instead of patching them; with our AC Drain Serum Hose - Per Meter product you can make economical repairs by the meter.

Common Mistakes and Professional Solutions

A significant portion of the technical questions Yedepa.com receives actually stem from easily preventable installation mistakes. The three most common mistakes are:

Raising the drain line upward: Water flows by gravity; the drain line must never rise above the level of the indoor unit outlet. If this is unavoidable, a condensate pump is used.
Using an insufficient diameter: Using thin serum hose instead of 5/8 over long distances inevitably causes overflow.
Using tape instead of a connector: Joining two hose ends with insulation tape may seem like a temporary solution, but it will definitely leak within 3-6 months. The right solution is always to use a suitable nipple.

Frequently Asked Questions (FAQ)

Question: What size in inches should an AC drain hose be?
Answer: In the vast majority of household split air conditioners, the standard diameter is 5/8 inch. It is recommended to verify this by measuring the indoor unit's drain outlet with a caliper.

Question: Does a 100-meter roll of hose make sense for an individual user?
Answer: No, the 100-meter Artiko serum hose is intended for professional service companies and installation firms. For a one-off repair, the AC Drain Serum Hose - Per Meter option is more suitable.

Question: What is the biggest difference between a Y-type nipple and a T-type nipple?
Answer: The T type joins at a right angle, while the Y type joins at a gentle angle; for this reason, the Y type reduces flow losses and the risk of clogging.

Question: Can a drain hose freeze?
Answer: Sections left outdoors can freeze in winter; therefore, the outdoor run should be kept short or an insulation sleeve should be used.

Question: How do you clear a clogged drain hose?
Answer: First blow compressed air in the reverse direction from the outer end. If that does not work, remove the hose and wash it with warm soapy water; if there is limescale, use water with vinegar.

Question: How do I track my Yedepa.com orders?
Answer: After logging in, you can find your shipment tracking number in the My Account section and see the status of your products live.

Conclusion and Yedepa Advantages

Drain hoses and fittings are one of the unseen but most critical links of air conditioning systems. Choosing the right diameter, the right material and the right fitting ensures customer satisfaction and prevents callbacks. At Yedepa.com, with the Artiko and OEM brands, we deliver the entire drain ecosystem, from 100-meter industrial rolls to a single nipple, to our technicians and end users.

When you choose us, you get real stock information, the HVAC know-how available through our technical support line, and the advantage of our supplier network that has been in the industry for many years. A customer ordering a single spout fitting for one combi boiler repair and a customer working with 100-meter rolls for the VRF project of a 200-apartment complex are served with the same care at Yedepa.com. If you have a technical question while planning your drain line, you can contact us through the comment section below the products or through our contact page; the author of this page also draws on technicians who have used these products in the field for years.
