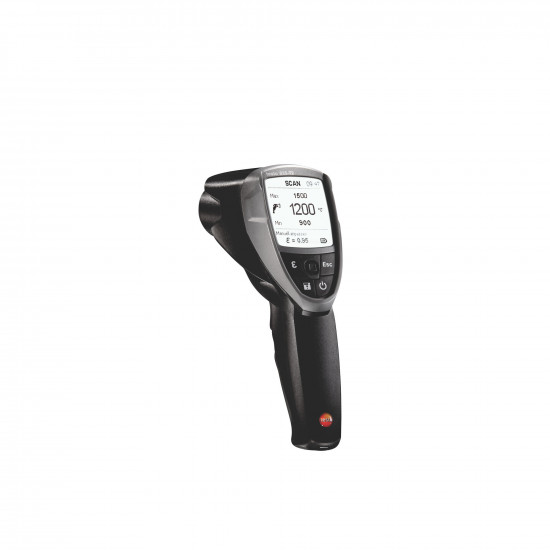

Testo 835-T2 High-Temperature Infrared Thermometer – −10…+1500 °C, 50:1 Optics, 4-Point Laser, with Memory (0560 8352)

Testo 835-T2 (product code 0560 8352) is a high-temperature infrared thermometer (pyrometer) that measures surface temperature without contact in the range −10 … +1500 °C. Thanks to its 50:1 optics, it measures an area about 10 cm in diameter from a distance of 5 m; the 4-point laser shows the boundaries of the measuring area. It is designed for high-temperature applications such as monitoring product temperature in the glass, ceramics and metal industries; it also performs contact measurement from −50 … +1000 °C with a connected type K thermocouple probe.

Measurement from a Safe Distance with 50:1 Optics and a 4-Point Laser

Small, hard-to-reach, moving or very hot objects are measured from a safe distance. Holding the trigger gives a spot measurement (SCAN), or a single press gives continuous measurement (CONT); when measurement ends, the value stays on the display with HOLD. The display shows max./min. values together with the infrared temperature; with a probe connected, the probe temperature, infrared temperature and the difference between them are shown together. Upper and lower alarm limits can be set for infrared and probe temperature; when a limit is exceeded, it gives an audible and visual alarm.

Emissivity is set in three ways: selection from the material list in the device, manual entry in the range 0.10 … 1.00, or automatic calculation by comparing contact and infrared measurements with a connected type K probe; 20 emissivity values can be stored. Measurements are saved to memory up to 200 values, time- and date-stamped with the measuring location name, and transferred to a computer via USB with the free Testo EasyClimate PC software. The device is operated with a joystick and an icon menu; the dot matrix display is illuminated.

Technical Specifications (Official Testo Information)

• Brand / Model: Testo 835-T2 high-temperature infrared thermometer · product code 0560 8352
• Infrared Temperature: −10 … +1500 °C · resolution 0.1 °C (−10.0 … +999.9 °C), 1 °C (+1000 … +1500 °C) · measuring rate 0.5 s
• Infrared Accuracy: ±2.0 °C or ±1% of measured value (the larger value applies)
• Type K Thermocouple (external probe): −50 … +1000 °C · accuracy ±(0.5 °C + 0.5% of measured value) · resolution 0.1 °C
• Optics: 50:1 · approx. 10 cm measuring spot at 5 m distance
• Laser Marking: 4 points, switchable · laser class 2, < 1 mW
• Emissivity: 0.10 … 1.00 (0.01 steps) · material list, manual or automatic with probe · 20 values can be stored · spectral range 8 … 14 µm
• Memory: 200 measured values (with measuring location, date and time) · PC transfer via USB (Testo EasyClimate)
• Alarm: upper/lower limit for infrared and probe temperature · audible and visual
• Display: dot matrix, illuminated (dims after 30 s) · auto power-off after 120 s (disabled during continuous measurement and USB connection)

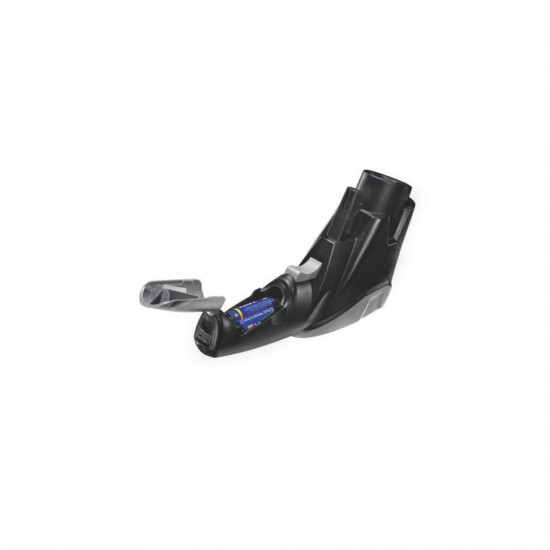

• Power Supply: 3 × AA batteries or USB (with EasyClimate software) · battery life 25 hours (laser and display illumination off), 10 hours (display illumination off), at +25 °C
• Operating / Storage Temperature: −20 … +50 °C / −30 … +50 °C
• Dimensions / Weight: 193 × 166 × 63 mm · 514 g (including batteries)
• Housing / Standard: ABS + PC · EN 61326-1

Scope of Delivery

• Testo 835-T2 high-temperature infrared thermometer (4-point laser)
• Batteries
• Test protocol
• Testo EasyClimate PC software (free download)

Technician Tips

• Remove the lens cap: remove the orange protective cap from the lens before measuring and refit it after measuring.
• Determine emissivity with a probe: use the automatic emissivity calculation on unknown materials; if the difference between the surface and ambient temperature is very small, the calculation cannot be made.
• Mind the limit of emissivity tape: emissivity tape withstands up to approx. +250 °C; on hotter surfaces, determine emissivity by probe comparison.
• Immerse the immersion probe deep enough: the minimum immersion depth for immersion probes is 10 times the probe diameter; do not use them in aggressive acids and alkalis.
• Define measuring locations: for repeated checks, create measuring location names in the device; values are saved so that they can be compared.
• Do not look into the laser: the laser is class 2; do not point the beam at the eyes or, via reflective surfaces, at the face.

Technical document: Testo 835 infrared thermometer series product brochure (PDF, Turkish)
