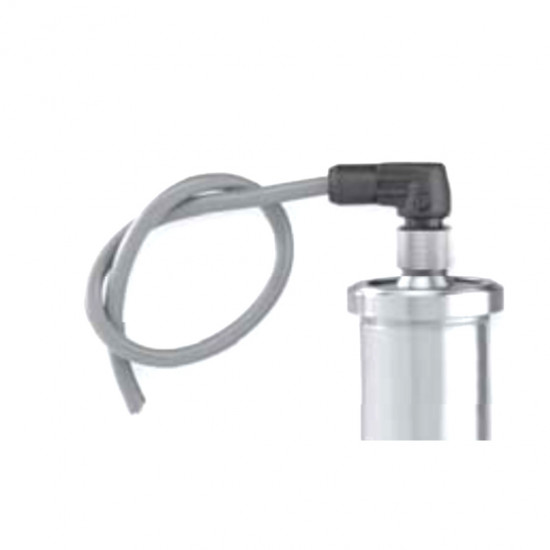

Sporlan EEV M12 Connection Cable – 6 Meters (For SER / SERI / SEH Series)

Sporlan EEV M12 connection cable (6 m) plugs into the M12 socket on the motor head of SER, SERI and SEH series stepper motor electronic expansion valves and connects the valve to the EEV driver.

Technical Specifications

• Length: 6 meters
• Connector: M12, ready socket on the valve side; free end on the driver side
• Compatibility: Sporlan SER-B/C/D, SERI-F/G/J/K/L, SEH(I) series EEVs

• 🔧 When securing the cable to the suction line, keep it away from sharp edges and the hot discharge line.
• Tighten the socket by hand — an M12 nut tightened with pliers crushes the seal and lets moisture in.
