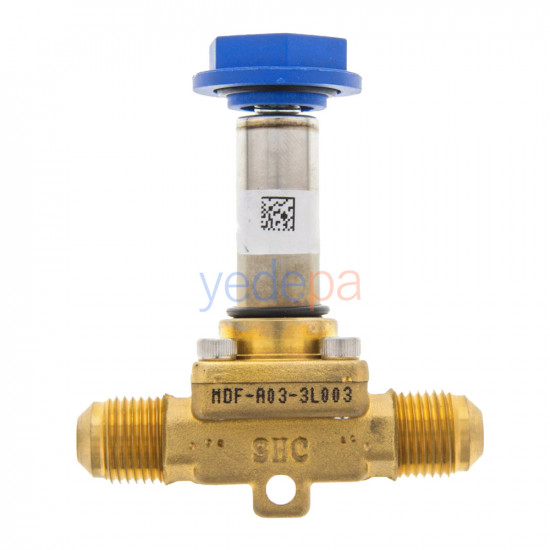

Sanhua MDF-A03-3L003 Solenoid Valve – 3/8" Flare, 0.23 m³/h (HFC/HFO Compatible)

Product Description

The Sanhua MDF-A03-3L003 is a reliable solenoid valve solution for refrigeration and air conditioning systems with its direct-acting compact design. With its 3/8" (9.52 mm) flare connection and 0.23 m³/h flow capacity, it provides effective control in small and medium capacity systems. Thanks to its wide refrigerant compatibility, it is preferred in commercial and industrial applications.

Technical Specifications

• Model: MDF-A03-3L003
• Valve Type: Direct-acting solenoid valve
• Connection: Flare, 3/8" (Inlet-Outlet)
• Flow Rate (Kv): 0.23 m³/h
• Refrigerant Compatibility: R134a, R404A, R407A/F, R407C, R410A, R448A, R449A, R450A, R452A, R513A, R507A
• Operating Temperature: -30 °C / +105 °C (MDF 2H...22H), -40 °C / +140 °C (MDF 25H...40H)
• Ambient Temperature: -30 °C to +55 °C
• Relative Humidity: 0% - 95% RH
• Installation Position: Can be used in liquid, suction and discharge lines
• Mounting Recommendation: Coil facing up and in line with the flow direction
• Coil: MQ-A0322G-000001 (220-240V) – Sold separately
• Conformity: LVD / PED compliant

Applications

Commercial refrigeration systems, industrial chiller applications, display coolers, split air conditioning systems, air dryers and similar refrigeration circuits operating with HFC/HFO.

Advantages

• Highly durable brass body
• Compatibility with common refrigerants
• Easy installation in tight spaces thanks to its compact design
• Ensures system efficiency with fast opening-closing response

Frequently Asked Questions

What does the Sanhua MDF-A03-3L003 solenoid valve do?

It is a compact, direct-acting solenoid valve that electrically opens and closes the passage of refrigerant in refrigeration and air conditioning circuits. With its 3/8 inch flare connection and 0.23 m³/h flow capacity, it provides flow control in small and medium capacity systems; it can be used in liquid, suction and discharge lines.

Which refrigerants is this solenoid valve compatible with?

It is compatible with R134a, R404A, R407A/F, R407C, R410A, R448A, R449A, R450A, R452A, R513A and R507A refrigerants. It is used in commercial refrigeration, chiller, display cooler and split air conditioner circuits operating with HFC/HFO.

What is the original code of the solenoid valve?

The original code is MDF-A03-3L003, and the Yedepa product code is 41.09.002.

Is the valve coil included in the package, and what should be considered during installation?

The coil is sold separately; the compatible coil model is MQ-A0322G-000001 (220-240V). During installation, it is recommended to fit the valve with the coil facing up and in line with the flow direction.
