Refrigerator Compressors: A Complete Selection Guide for Hermetic Reciprocating and Rotary Models

The compressor, the heart of your refrigerator, is the single part that carries the entire refrigeration cycle. Choosing the right compressor directly determines not only cooling performance but also energy consumption, noise level and the service life of the appliance. Yedepa.com offers a wide range of original and equivalent hermetic compressors under one roof, from household refrigerators to small commercial coolers. In this guide, Bristol Hermetic 1.5 HP Compressor H7BG194CHBCA, Danfoss Hermetic Refrigerator Compressor SC15CL, Embraco Hermetic Refrigerator Compressor NJX 6250 GK and other featured models are covered in detail: their technical differences, which refrigerant they are compatible with and what you need to watch out for in service practice.

1. Which Compressor Types Are Used in Household Refrigerators?

There is a point that is often confused: the market offers many compressor architectures, including scroll, screw, hermetic reciprocating and rotary, but household refrigerators almost without exception use hermetic reciprocating or rotary types. Scroll and screw models belong to high-capacity commercial applications such as cold storage rooms, supermarket display cases and air conditioner outdoor units; you will not see them in your household refrigerator.

1.1 What Is a Hermetic Reciprocating Compressor?

A hermetic reciprocating compressor is the classic architecture in which the motor and the mechanical compression assembly are combined inside a welded steel shell. With the back-and-forth movement of the piston, the gas is drawn in, compressed and pushed to the condenser. The vast majority of household refrigerators produced worldwide use this type. Embraco NJX 6244 US and Embraco NJ 9238 P are typical examples of this class.

1.2 Advantages of the Rotary Compressor

Rotary models work by a rotating vane sweeping the cylinder. Because they contain fewer moving parts, they run quietly and produce little vibration. In recent years they have become increasingly common in inverter-controlled refrigerators.

1.3 Why Are Scroll and Screw Types Not Used in Household Refrigerators?

Scroll and screw compressors are designed for capacities of 3-5 HP and above. Your household refrigerator typically needs between 1/6 HP and 1/3 HP; for this reason, these compressors are incompatible both physically and electrically.

2. Refrigerant Type: R134a or R600a?

The first requirement for choosing the right compressor is knowing which refrigerant your system runs on. Fitting a compressor designed for the wrong refrigerant will at best not cool; at worst it will burn out the motor due to oil incompatibility.

2.1 R134a Systems

Most refrigerators produced from the 2000s until around 2015 use R134a. Refrigerator Compressor NJ 6226 Z (R134a) and Tecumseh Hermetic Compressor (R134a, 1/4 HP) are among the most readily available models on the market that are fully compatible with this refrigerant.

2.2 R600a (Isobutane) Systems

The majority of today's refrigerators run on environmentally friendly R600a refrigerant. Cubigel Compressor R600a is a typical choice for these systems. Since R600a is a flammable gas, the electrical terminal boxes of these compressors are designed to be sealed so that sparks do not reach the surrounding environment.

3. Horsepower (HP) Calculation and Choosing the Right Model

Selecting a compressor by horsepower requires taking into account not only the peak load but also the daily operating cycle, the cabinet internal volume and the ambient temperature.

3.1 HP-to-Liter Matching

Roughly: compressors of 1/6 - 1/5 HP are preferred for a 200-300 liter refrigerator, 1/4 HP for 300-450 liters, and above 1/3 HP for over 450 liters and no-frost combi models. Bristol Hermetic 1.5 HP Compressor H7BG194CHBCA, on the other hand, is not intended for a conventional household refrigerator; it is suitable for cold rooms, display coolers or industrial applications.

Compressor Model	Type	Refrigerant	Typical Application	Price (USD)
Bristol H7BG194CHBCA	Hermetic Reciprocating	R22 / R404a	Commercial Refrigeration 1.5 HP	5,075
Danfoss SC15CL	Hermetic Reciprocating	R134a	Display / Medium Capacity	2,345
Embraco NJX 6250 GK	Hermetic Reciprocating	R290 / R600a	Commercial Refrigerator	316
Embraco NJX 6244 US	Hermetic Reciprocating	R404a	Low-Temperature Display	282
Embraco NJ 9238 P	Hermetic Reciprocating	R134a	Medium-Temperature Commercial	264
Cubigel R600a	Hermetic Reciprocating	R600a	Household Refrigerator	145
Tecumseh 1/4 HP	Hermetic Reciprocating	R134a	Household / Small Display	98

4. Featured Brands and Models

4.1 Bristol Compressors

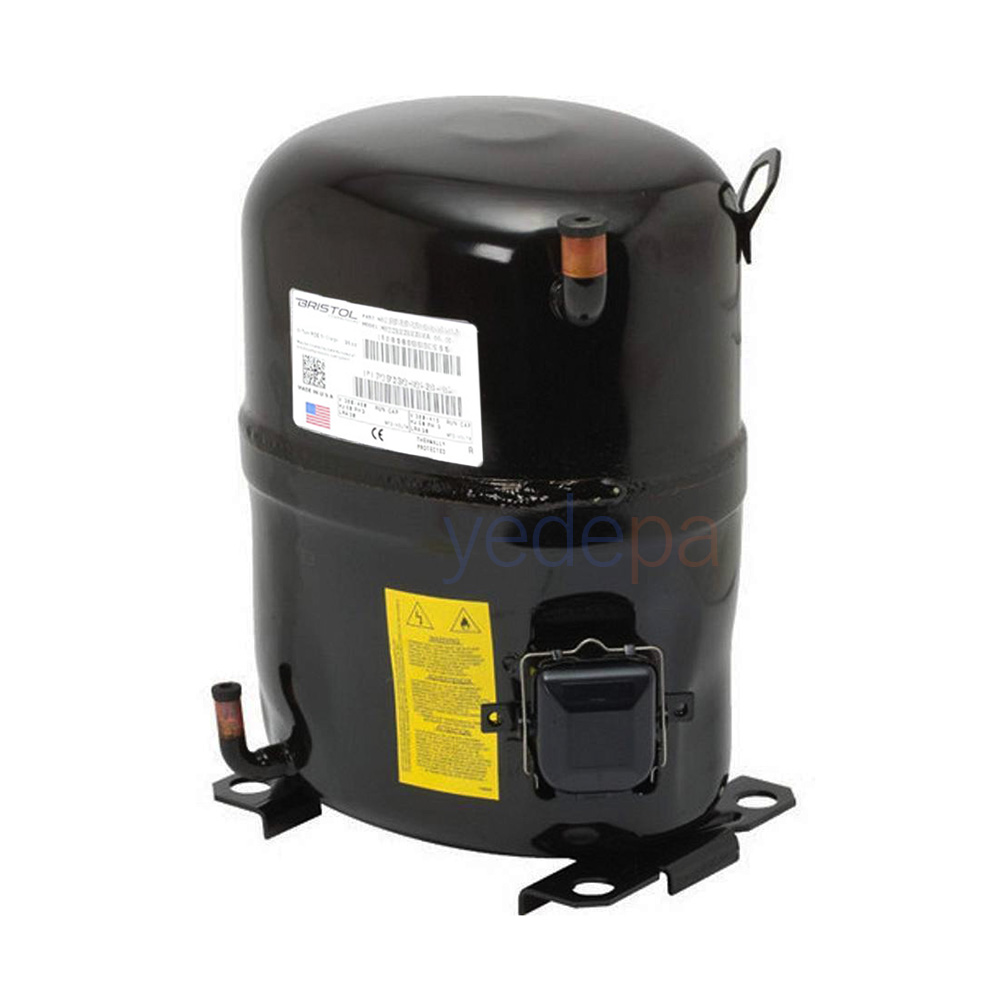

Bristol is known for its durability under heavy workloads. Bristol Hermetic 1.5 HP Compressor H7BG194CHBCA is a high-capacity hermetic reciprocating model that is ideal especially for industrial refrigerators and supermarket cabinets.

4.2 Danfoss SC Series

Danfoss Hermetic Refrigerator Compressor SC15CL is one of the industry's reference models for medium-capacity applications such as chilled food displays, beverage coolers and wine cabinets. It is known for low oil carryover and a high COP value.

4.3 Embraco NJ and NJX Series

Embraco Hermetic Refrigerator Compressor NJX 6250 GK is R290 and R600a compatible and is among the models that have adapted fastest to environmental regulations. Embraco NJ 2212 GS on the other hand is preferred in smaller-capacity household refrigerators.

5. Symptoms of Compressor Failure

Refrigerator runs but does not cool: There is usually a refrigerant leak or low compressor discharge.
Compressor is hot and there is clicking from the relay: This is a sign of a short circuit in the windings or a start capacitor failure.
Excessive noise and vibration: The suspension springs may be broken or the internal motor bearing may be seized.
Compressor runs and trips the overload protector after a few seconds: Winding resistance may have increased, or there may be a motor winding fault.

6. Service Steps for Compressor Replacement

6.1 Recovering the Old Refrigerant

Before removing the old compressor, the refrigerant in the system must be recovered with a recovery machine. Venting it to the atmosphere is both legally prohibited and, for R600a, a serious fire risk.

6.2 Vacuum and Leak Test

After installing the new compressor, the system must be evacuated for at least 30 minutes, followed by a leak test. Otherwise moist air enters the system and clogs the capillary tube.

6.3 Oil Compatibility

While POE or mineral oil is used in R134a systems, a special ester oil is used in R600a systems. Choosing the wrong oil burns out the motor windings.

7. Windings and Spare Parts

In some cases, repairing the winding may be sufficient instead of replacing the entire compressor. Hermetic Refrigerator Compressor Motor Winding offers an economical alternative for compressors with a diagnosed winding fault; however, this work requires a qualified hermetic compressor workshop.

8. Warranty, Stock and the Yedepa.com Advantage

All compressors we sell at Yedepa.com carry an importer warranty. Our stock includes dozens of brands and hundreds of models, led by Bristol, Danfoss, Embraco, Tecumseh and Cubigel. We offer open-account sales to our service company and technician customers with a dedicated B2B account; if you cannot find the model you need on our website, you can reach us using our product request form. The Yedepa.com catalog is one of the largest archives in Turkey for both domestic and imported compressors.

9. Frequently Asked Questions

9.1 Can I fit an R134a compressor in an R600a system?

No. The refrigerant type, oil compatibility and electrical sealing requirements are different. Only a compressor labeled R600a, with a fire-safe sealed electrical box, may be fitted in an R600a system.

9.2 What HP compressor does my refrigerator need?

Photograph the label of your existing compressor and choose the same HP or one step higher. If the label is unreadable, our team can recommend one via Yedepa.com based on the cabinet volume.

9.3 Why is a scroll compressor not used in my household refrigerator?

Scroll architecture is economical only for capacities above a minimum of 1 HP. Since household refrigerators are around 1/4 HP, scroll is both expensive and unnecessary in this segment.

9.4 What applications is the Bristol H7BG194CHBCA suitable for?

Bristol Hermetic 1.5 HP Compressor H7BG194CHBCA is designed for cold rooms, supermarket display cases and plate freezer applications; it is not used in household refrigerators.

9.5 Can I put the oil from the old compressor into the new compressor?

Never. The old oil may have become acidic in the event of a winding burnout; the new compressor must be used with its factory-charged oil.

9.6 How do I order warranted products from Yedepa.com?

You can add the product to your cart from the product page and follow the standard steps, or have an open-account invoice issued with a B2B service account. Yedepa.com customer representatives provide technical advice via WhatsApp.

9.7 How many years does a compressor last?

There are compressors that run for 10-15 years under proper service conditions. Ambient temperature, voltage fluctuations and the refrigerant charge amount directly affect service life.

Refrigerator compressors are critical parts that require correct diagnosis and correct equivalent matching. At Yedepa.com, our goal is to ensure that technical service companies, technicians and end users find the right part at the right price with the right warranty coverage. For your questions, you can use the live support button below the product pages.

10. Practical Notes from the Service Workshop

There are typical problems that a service technician working with hermetic compressors faces in the workshop every day. A significant portion of them result from wrong HP selection, refrigerant type incompatibility and incorrect selection of electrical starting components (relay, PTC, capacitor). The following points are the most frequently repeated diagnostic steps in the field:

When testing a compressor, measuring the winding resistances before applying voltage directly to its terminals protects the motor from a possible short circuit.
When fitting a new Embraco NJ 9238 P or Embraco NJX 6244 US, replacing the filter drier as well prevents moisture from being retained in the system.
Ventilating the area when brazing on R600a systems is a critical precaution against fire risk.
Oxidized copper on the tube ends coming out of the old compressor is a clue that the oil has become acidic.
Danfoss Hermetic Refrigerator Compressor SC15CL and similar premium models burn out their motor in 3-4 seconds if the start and run pins are connected in reverse in the wiring diagram.
Listed in the Yedepa.com catalog, the Cubigel Compressor R600a and Bristol Hermetic 1.5 HP Compressor H7BG194CHBCA are shipped together with an invoice and a warranty certificate.

11. Energy Efficiency and Inverter Compressors

The share of inverter rotary compressors in latest-generation refrigerators is increasing every year. Instead of running at a fixed speed, these compressors adjust their speed according to demand and provide up to 30% savings in energy consumption. However, inverter models must always be replaced with an inverter compressor of the same type; if you try to replace them with a conventional single-speed compressor, the system constantly shows faults because the electronic board cannot send the inverter signal. At Yedepa.com, we offer technical support that confirms brand-model compatibility in advance for inverter compressor requests.

11.1 The Importance of the Energy Label

To keep your refrigerator's energy label valid after a compressor replacement, a model of the same or a higher efficiency class should be chosen.

11.2 Practices That Extend Compressor Life

A voltage regulator, periodic condenser cleaning and keeping the cabinet's ventilation openings clear directly extend the service life of even premium models such as the Embraco Hermetic Refrigerator Compressor NJX 6250 GK.

At Yedepa.com, we incorporate all these technical details into the product descriptions in our catalog to simplify the decision-making process on the customer side; this way technicians, service companies and end users can choose the right compressor effortlessly.

12. Ordering Workflow for B2B Service Companies

A dedicated B2B panel is available on Yedepa.com for service companies. With this panel, you can list your past orders, add frequently used compressor models to your favorites and reorder the same model with a few clicks. In addition, the account statement, invoice PDF and shipment tracking information are consolidated in a single window. For urgent jobs that require fast supply, the WhatsApp support line offers an additional speed advantage; the stock of the model you want is verified instantly by our team.

12.1 Urgent Order Scenarios

When a Tecumseh Hermetic Compressor (R134a, 1/4 HP) failure is detected in the field, the only uncertainty for the technician is usually compatibility. Yedepa.com customer service views the label information of the old compressor via WhatsApp and offers an alternative within minutes. Likewise, Embraco NJ 2212 GS and similar small-capacity models are at your door the next day by courier.

12.2 Stock Notification

For out-of-stock products, you can request a notification and receive an automatic e-mail alert as soon as the product arrives. Due to seasonal demand peaks, stock tracking is a critical advantage for service companies, especially for the Bristol Hermetic 1.5 HP Compressor H7BG194CHBCA and large-capacity commercial models.

13. Logistics and Packaging Standards

Hermetic compressors are heavy and delicate parts. Yedepa.com uses foam-filled double-wall boxes and vibration-absorbing internal packing for all compressor shipments; copper tube ends are closed with plastic plugs, preventing moisture ingress during shipping. Damage that may occur during shipment is covered by the Yedepa.com warranty.

At Yedepa.com, we deliver compressors all over Turkey on the same or the next business day; payment methods include bank transfer/EFT, debit card, credit card and B2B open-account options.
