Refrigerator Defrost Timer Models and Selection Guide

? Price Note: The prices given on this page are USD-based reference values. For the current TL equivalent and stock status, we recommend visiting the product page. On Yedepa.com, prices are calculated at the daily exchange rate.

What Is a Refrigerator Defrost Timer? Why Is It So Critical?

The refrigerator timer (defrost timer) is an electromechanical or electronic control component that can be seen as the "brain" of no-frost and static refrigerators. It is a timing relay that stops the refrigeration cycle at certain intervals to switch to defrost mode, and then puts the system back into cooling mode. If a refrigerator cooled for hours with the compressor alone, ice would quickly build up on the evaporator, air circulation would stop and the cabinet would no longer be able to cool. This is exactly where the timer comes in: by giving a periodic defrost command, it switches the heater on for a short time and melts the frost/ice accumulated on the evaporator.

As Yedepa.com, we offer HVAC technicians and refrigeration technicians timer types across a wide range of brands, led by Bosch, Ariston, Indesit, Vestel and Arçelik. In this guide you will find a professional resource covering everything from the timer's operating principle to the symptoms of a faulty timer, and from correct model selection to measurement techniques.

\\ \\

Timer Operating Principle and Technical Details

A classic electromechanical timer consists of a small synchronous motor (usually 220-240V AC) and a gearbox. This motor rotates in synchronization with the mains frequency (50 Hz) and drives a cam mechanism. The cam opens/closes the internal contact sets at certain intervals. A typical refrigerator timer switches to defrost mode for approximately 18-25 minutes at the end of a full cooling cycle of 6 to 12 hours. During defrost, the compressor stops and the defrost heater and thermal protection relay come into play; the evaporator thermostat (bimetal) cuts the circuit when a certain temperature is reached.

Electronic timers, on the other hand, are microcontroller-based; they perform adaptive defrost according to sensor inputs (number of door openings, ambient temperature, compressor running time). This reduces energy consumption and prevents unnecessary defrosting. In most no-frost refrigerators, the timer has a standard 4-pin connection (numbered 1, 2, 3, 4) inside the terminal box:

Pin 1: Phase input (L)
Pin 2: Defrost heater output
Pin 3: Compressor output (cooling mode)
Pin 4: Neutral (N) — timer motor supply

Thanks to this standard, many timers on the market can replace one another; however, physical dimensions, mounting bracket and direction of rotation differ from model to model.

\\ \\

Timer Types and Models

Classifying the timer types you encounter in the field correctly is the first requirement for finding the right spare part. Let us look at the types in the Yedepa.com catalog under main headings:

Electromechanical (Mechanical) Timer: The most common type. The Bosch Refrigerator Timer JS4-802-1 is an example of this class. It is the classic model with a synchronous motor and cam-contact structure, with an audible "tick-tick".
Universal No-Frost Timer: Brand-independent models that conform to the 4-pin standard. The Universal Refrigerator Defrost Timer TMDC625-1 is a solution preferred by professionals in this category.
Bracket / Metal Chassis Timer: Comes with a metal mounting bracket in older Arçelik, Vestel and some Beko refrigerators. The Metal Bracket Refrigerator Timer Nofrost represents this type.
Brand-Specific Timer: Plastic-bodied models with the manufacturer's original pin layout. The Vestel - Arçelik Refrigerator Timer Nofrost and Ariston - Indesit Refrigerator Timer Nofrost belong to this group.
Electronic Timer / Defrost Board: Found mostly in no-frost and inverter refrigerators produced after 2015; it is PCB-based and usually integrated into the main board.

\\ \\

Which Timer Model Should You Choose? Professional Decision Guide

When replacing a refrigerator timer, you should check three basic criteria in order: pin layout, defrost duration and physical compatibility. The table below summarizes in which situations the best-selling timer models at Yedepa.com should be preferred:

\\ \\ \\ \\ \\ \\ \\ \\ \\ \\ \\ \\

Model	Type	Recommended Use	Brand
Bosch Refrigerator Timer JS4-802-1	Electromechanical	Bosch, Siemens, Profilo no-frost	OEM
Ariston - Indesit Refrigerator Timer Nofrost	Brand-specific	Ariston, Indesit, Whirlpool family	Sanyko
Vestel - Arçelik Refrigerator Timer Nofrost	Brand-specific	Vestel, Arçelik, Beko, Altus	Arçelik
Universal Refrigerator Timer TMDC625-1	Universal	All models with a matching pin layout	OEM
Metal Bracket Refrigerator Timer Nofrost	Bracket type	Older Arçelik / Vestel bracket seat	OEM

If the customer's original timer is still in place, the safest way is to read the model code (for example TMDC, JS4, TMDF series) from the label on the body. If the label has worn off, the combination of pin count + refrigerator brand + year of manufacture leads to the right timer with 95% accuracy.

\\ \\

Defrost Timer Models Available at Yedepa.com

As Yedepa.com, we offer original OEM, Sanyko and Arçelik brand timer types from stock with fast shipping. Below you can find the featured products in our catalog:

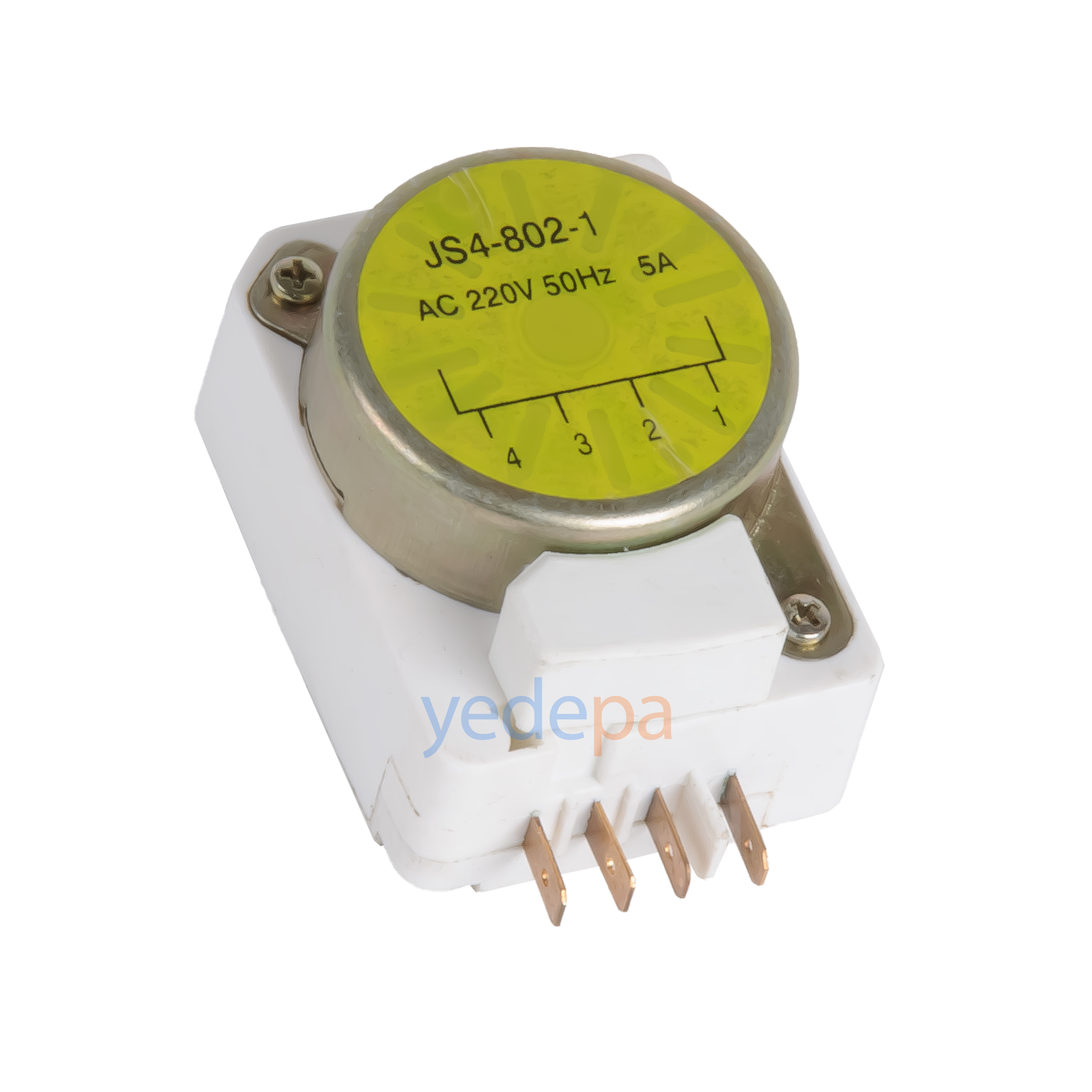

Bosch Refrigerator Timer JS4-802-1 — OEM quality for the Bosch and Siemens group, 5 USD.

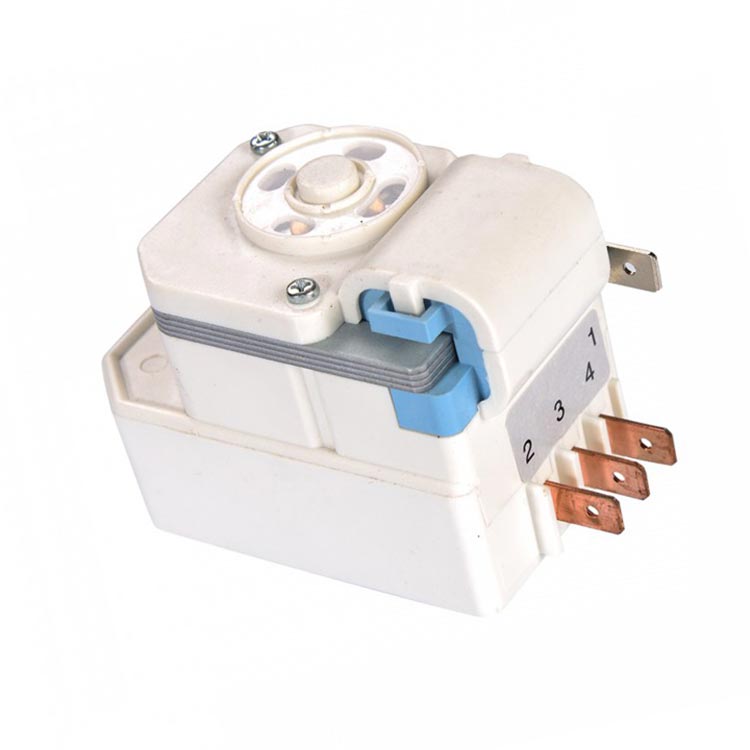

Ariston - Indesit Refrigerator Timer Nofrost — made by Sanyko, specific to the Ariston and Indesit line, 5 USD.

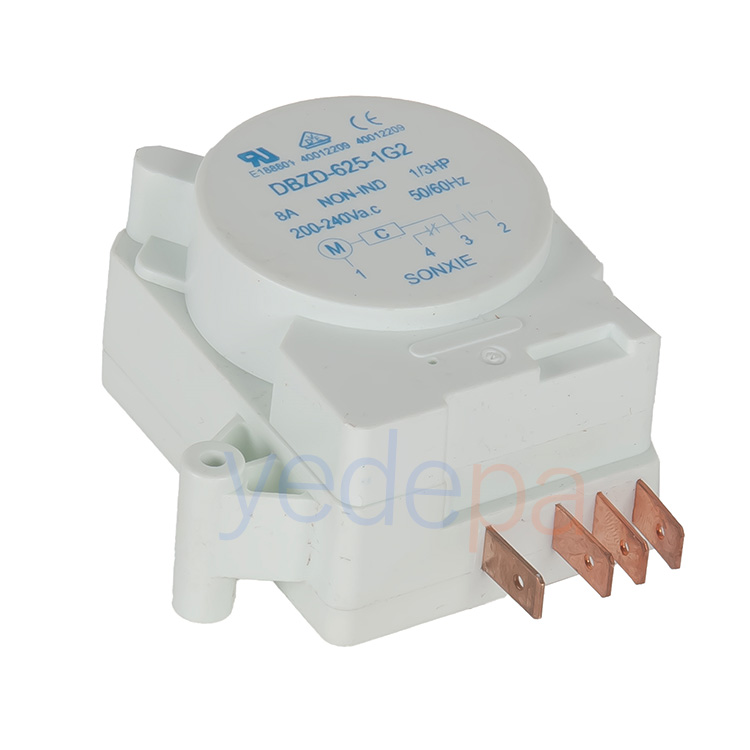

Vestel - Arçelik Refrigerator Timer Nofrost — Arçelik original series, 4 USD.

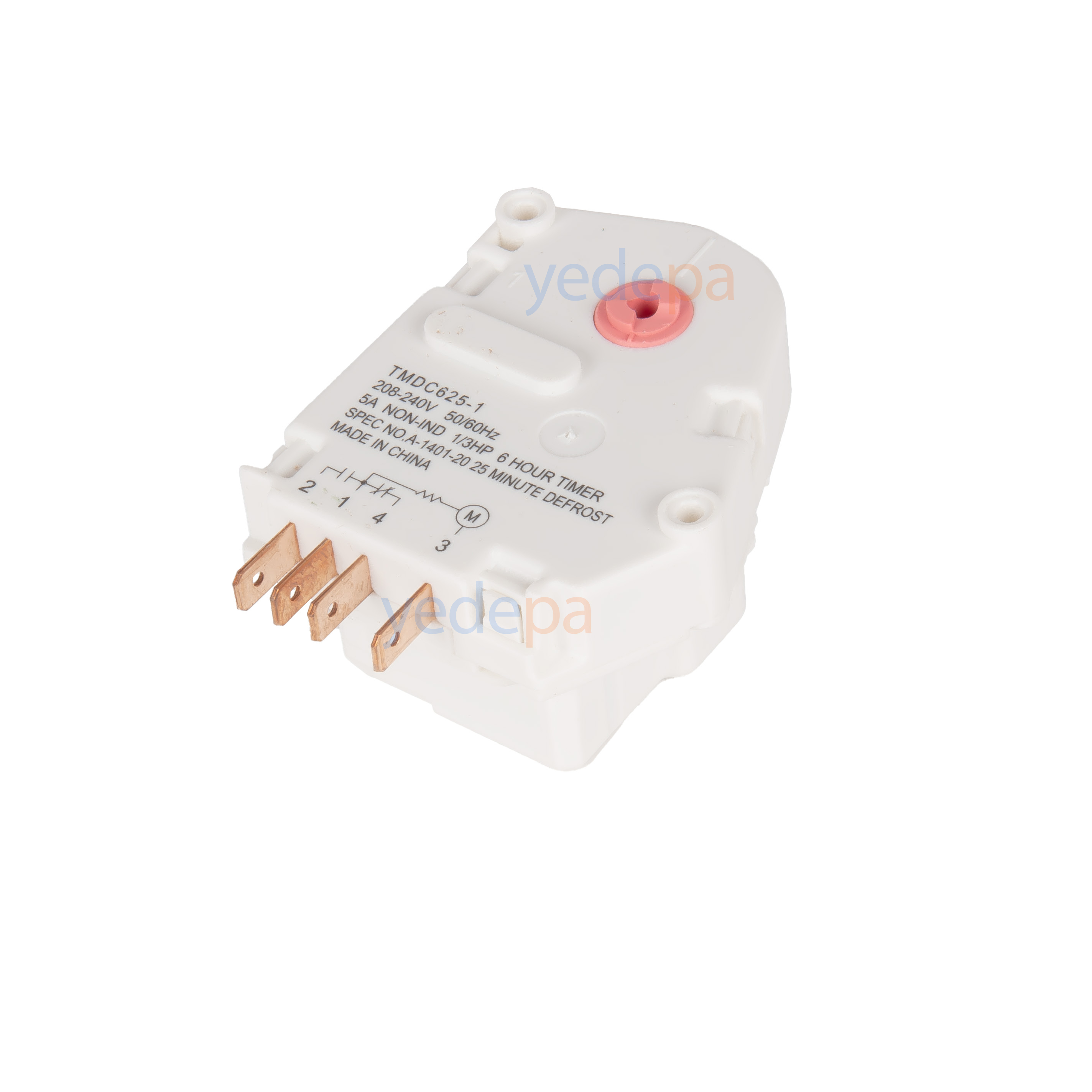

Universal Refrigerator Defrost Timer TMDC625-1 — with universal pin layout, 4 USD.

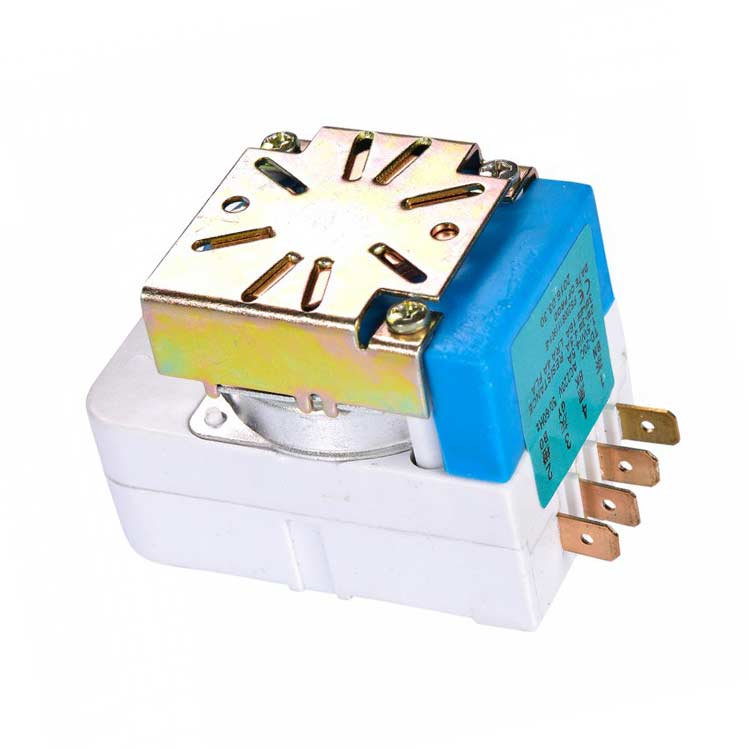

Metal Bracket Refrigerator Timer Nofrost — for older bracket-type seats, 4 USD.

All our products are field-tested models selected for HVAC technicians and service technicians. At Yedepa.com, fitment information (which brand/model it fits) is given in detail on the product page.

\\ \\

Professional Selection Criteria

The range of timers a technician should keep in the service vehicle varies according to the customer profile served. The following criteria are critical for correct stock management and correct diagnosis:

Defrost Cycle Time: There are 6-hour, 8-hour and 12-hour versions. If a timer with the wrong cycle is fitted, the refrigerator either defrosts too often (wasted energy + food spoilage) or not enough (the evaporator ices up).
Defrost On Time: Usually 18, 21 or 25 minutes. When the thermal protection relay comes into play, the heater switches off anyway, but choosing the correct duration is important for energy efficiency.
Contact Current: The compressor line must be able to carry 10A and the defrost line 5-7A. Timers with lower amperage lead to burnt contacts.
Operating Voltage: 220-240V AC 50 Hz is standard for Turkey; 110V American timers are not compatible.
Physical Size and Shaft Type: On models with a manual advance knob, the shaft profile (D-type, slotted) is important.

\\ \\

Faulty Timer Symptoms and Diagnostic Method

The most frequent complaints encountered in the field are: the refrigerator does not cool, there is icing on the top shelf, the fan runs but there is no cooling, defrost water overflows, the compressor never stops. Most of these symptoms point to a timer fault. Follow these steps for a correct diagnosis:

Unplug the refrigerator and remove the timer from its seat.
With a multimeter, measure the motor winding resistance between pins 1-4 — 8-12 kΩ is normal; if it reads infinite, the motor has burned out.
Turn the timer shaft clockwise with your finger; a contact change should be felt along with a "click".
There should be continuity (0 Ω) between pins 1-3 in cooling mode and continuity between pins 1-2 in defrost mode.
If either of these is not achieved, the timer must be replaced.

Some false faults are also blamed on the timer: if the defrost heater has burned out or the bimetal is faulty, the timer may actually be working correctly. For this reason, the complete defrost circuit (timer + heater + bimetal + thermal fuse) must be tested as a whole.

\\ \\

Installation, Usage and Maintenance Recommendations

Timer replacement looks like a simple job; however, an incorrect wiring connection can put the refrigerator's main board or compressor at risk. Pay attention to these recommendations for professional practice:

Take a photo: Before removing the old timer, photograph the wiring connections; if the pin numbers have worn off, color matching saves the day.
Transfer one by one: Instead of disconnecting all wires at once, transfer each wire from the old timer to the new one in turn.
Earthing check: On metal chassis timer models, make sure the earth line is sound.
First start-up: After fitting the timer, run the refrigerator empty for 24 hours; observe that the defrost cycle starts without problems.
Periodic maintenance: The timer is a mechanical part and wears out roughly every 5-7 years. The contact resistance must be measured during annual servicing.

\\ \\

Comparison of the OEM, Sanyko and Arçelik Brands

Three main brand groups stand out in the Yedepa.com catalog:

OEM (Original Equipment Manufacturer): Factory-original equivalent parts. Our Bosch JS4-802-1 and Universal TMDC625-1 models are in the OEM category. They offer long life and guaranteed operation in the field.
Sanyko: A manufacturer conforming to European standards and a reference for Ariston and Indesit in the Italian supply chain. Our Ariston-Indesit timer model is backed by Sanyko.
Arçelik: Turkey's leading household appliance manufacturer; the Vestel-Arçelik no-frost timer comes directly from the manufacturer's line and its fitment compatibility is 100%.

\\ \\

Frequently Asked Questions (FAQ)

Q: Does a universal timer fit every refrigerator?
\\ A: No. Even if the pin layout matches, the defrost duration and physical size may differ. Always check the model compatibility.

Q: Is my refrigerator's timer faulty, or the compressor?
\\ A: Turn the timer manually to defrost mode and wait 2-3 minutes. Then turn it back to cooling mode; if the compressor runs, the problem is in the timer.

Q: Can a mechanical timer be fitted to a refrigerator with an electronic timer?
\\ A: No. In systems with an electronic defrost board, the sensor inputs are different; if a mechanical timer is fitted, the main board may be damaged.

Q: How many hours after replacing the timer does the refrigerator reach normal temperature?
\\ A: An empty refrigerator reaches the set temperature in 4-6 hours, a full refrigerator in 12-24 hours.

Q: Is there a warranty on the timer I buy from Yedepa.com?
\\ A: Yes, all our OEM, Sanyko and Arçelik brand timer products are covered by the manufacturer's warranty.

Q: Does the Bosch JS4-802-1 timer fit a Siemens refrigerator?
\\ A: Yes, since Bosch and Siemens are in the same BSH group, the timer is shared; however, the year and model code should be checked.

\\ \\

Conclusion and Yedepa.com Advantages

Although the refrigerator timer is a small part, it is like the heart of the system. When the right type, the right defrost duration and the right physical compatibility are chosen, the refrigerator works without problems for years. Choosing the wrong timer, on the other hand, leads to both wasted energy and repeated service calls.

As Yedepa.com, we offer HVAC technicians and refrigeration technicians the Bosch, Ariston-Indesit, Vestel-Arçelik, Universal TMDC625-1 and Metal Bracket no-frost timer models from stock. All our products are OEM, Sanyko or Arçelik branded; they are field-tested and their fitment information is shared in detail. Our customer service is ready to support you with technical questions and compatibility matters. For the right part, the right information and reliable supply, Yedepa.com is with you.
