What Are Fittings and Unions? Their Role in AC Installations

Encountered at the most critical connection points of an air conditioning installation, fittings and unions, which are brass and forged metal parts, join two copper pipe lines to each other in a leak-tight way. The gas line between the split air conditioner indoor unit and outdoor unit, the distribution points of VRF systems, and the measurement and service ports in the refrigeration circuit all work thanks to these small but vitally important connection elements. At Yedepa.com, we have gathered under one roof, in a wide range of sizes, the parts that HVAC technicians and refrigeration technicians search for most often in their daily field work.

Although an air conditioner union or fitting may look like a simple connection element, its cone angle, sealing surface quality and thread profile are manufactured to extremely precise standards. The forged brass body withstands the high pressure of the refrigerant, while the mirror-smooth conical surface on its inside forms a gas-tight seal when joined with the flared copper tube end. This is why standard sizes such as 3/8 air conditioner pipe connection union, 1/2 air conditioner pipe connection union and 5/8 air conditioner pipe connection union are the most requested items in the field.

Technical Details and Working Principle

Fittings and unions work on the flare (bell-mouth) connection principle, in which a seal is achieved by compressing two surfaces together with mechanical force. The copper tube end is first cut, deburred and opened into a 45-degree cone with a flaring tool. Then the flare nut is slipped onto the tube, and the conical end of the forged brass union and the flared end of the copper are brought face to face. When the flare nut is tightened to a specified torque, the copper flare seats against the brass cone and a metal-to-metal seal is formed. This principle is also applied safely with different refrigerants such as R32, R410A and R22.

Forged brass is preferred because it offers a much more homogeneous grain structure than cast brass and does not crack under pressure fluctuations. The Gauge Tee - Forged Brass 1/4" Flare Connection product that we offer on Yedepa.com provides long service life in manifold gauge sets thanks to exactly this forged production advantage. Since the surface is machined to micron-level quality, a complete seal is achieved on the first tightening, and it also withstands repeated removal and refitting.

Types and Models

In the HVAC sector, fittings and unions are divided into five basic families: straight union, reducer, T connection (flange union tee), nipple-flare nut combinations and gauge tee. Each type serves a different function in the circuit:

Straight Union: Joins two copper tubes of the same diameter end to end. 5/8 air conditioner pipe connection union and 3/4 air conditioner pipe connection union are the best-selling items in this class.
Reducer: Joins two tubes of different diameters. 1/2" - 5/8" air conditioner pipe connection reducer and 5/8" - 3/4" air conditioner pipe connection reducer are lifesavers in the field, especially on the large outdoor units of inverter air conditioners.
Flange Union Tee: Joins three lines at a single point; ideal for VRF distribution and service branches. 3/8, 1/2 and 5/8 air conditioner pipe connection flange union tee models are in stock at Yedepa.com.
Nipple-Flare Nut: A hybrid design with a threaded nipple on one side and a flare nut on the other. 1/2" nipple - 5/8" flare nut air conditioner pipe connection and 5/8" nipple - 1/2" flare nut air conditioner pipe connection are transition parts that allow an old installation to work compatibly with a new system.
Gauge Tee: Connects the pressure measurement line to the main line in manifold gauge sets. The forged brass version with a 1/4" flare connection is standard in service kits.

Which Model Should You Choose? A Practical Decision Guide

The right fitting choice becomes clear with the answers to three basic questions: (1) what is the diameter of the tubes to be joined, (2) will it be a single line or a branch, (3) and which refrigerant and pressure class does the system operate with. The table below summarizes the recommended selection for the scenarios most often encountered in the field:

Scenario	Recommended Product	Typical Use
9,000-12,000 BTU split liquid line	1/4" and 3/8" union	Gas line connection between indoor and outdoor units
18,000-24,000 BTU split gas line	1/2 Air Conditioner Pipe Connection Union	Medium-capacity inverter systems
36,000-48,000 BTU floor-standing gas line	5/8 and 3/4 union	Cassette, ducted and large split systems
Transition between tubes of different diameters	1/2" - 5/8" or 5/8" - 3/4" reducer	Installation conversions, part mismatch
VRF distribution or service branch	3/8, 1/2 or 5/8 flange union tee	Line splitting in multi-indoor-unit systems
Pressure measurement with a manifold gauge	Gauge Tee with 1/4" flare connection	Service and charging operations

Another detail not to be forgotten when selecting is the tube wall thickness. While flaring is easily done on soft annealed copper tube, brazed transition fittings are safer than unions on hard-drawn tubes.

Fittings and Unions You Can Find on Yedepa.com

So that our HVAC technicians and refrigeration service companies do not lose time in the field, we keep the most requested fitting and union models in OEM quality in stock at Yedepa.com. Here are the featured products from current stock:

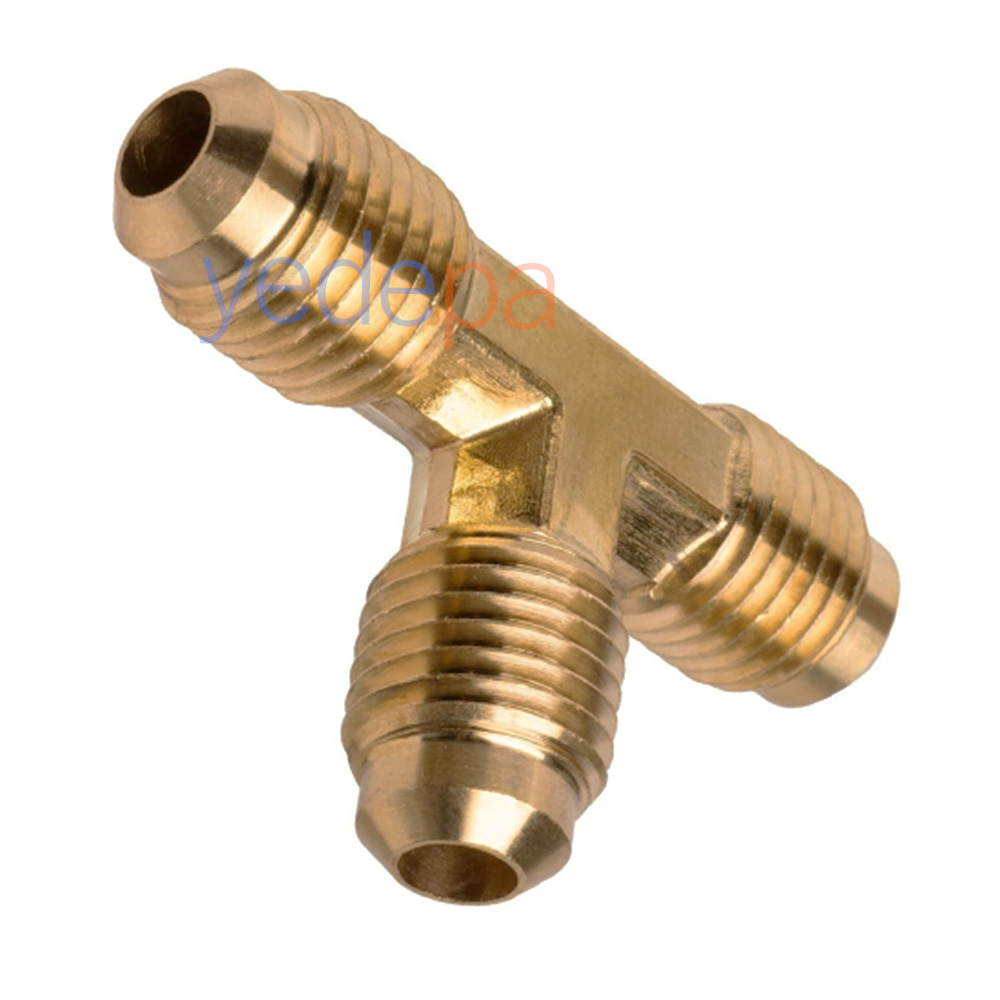

5/8 Air Conditioner Pipe Connection Flange Union Tee — for branch connections in high-capacity systems, 6 USD
1/2 Air Conditioner Pipe Connection Flange Union Tee — for T distribution on medium-capacity lines, 5 USD
Gauge Tee - Forged Brass 1/4" Flare Connection — an essential for manifold gauge sets, 3 USD
3/8 Air Conditioner Pipe Connection Flange Union Tee — for small-diameter liquid line branches, 3 USD

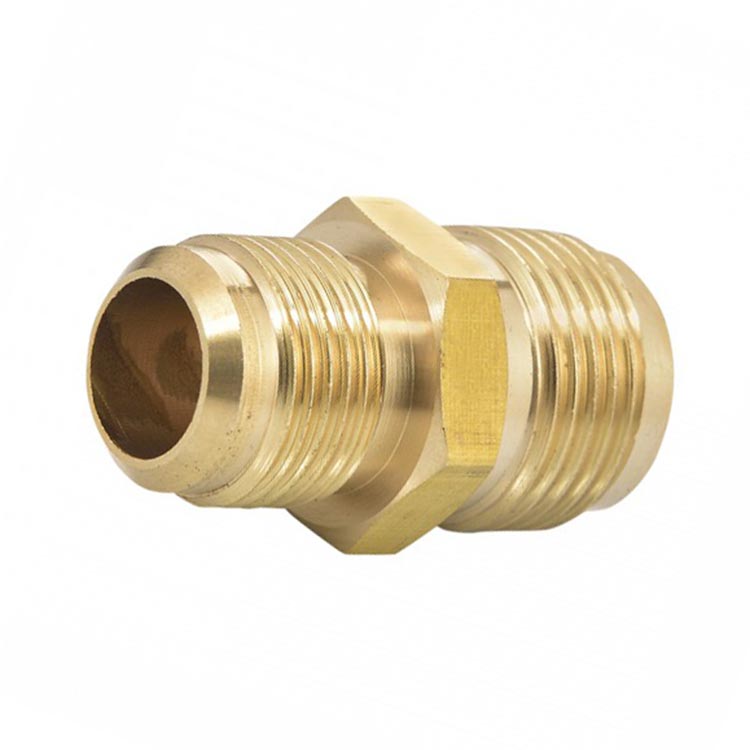

5/8" - 3/4" Air Conditioner Pipe Connection Reducer — for large-diameter transitions, 2 USD

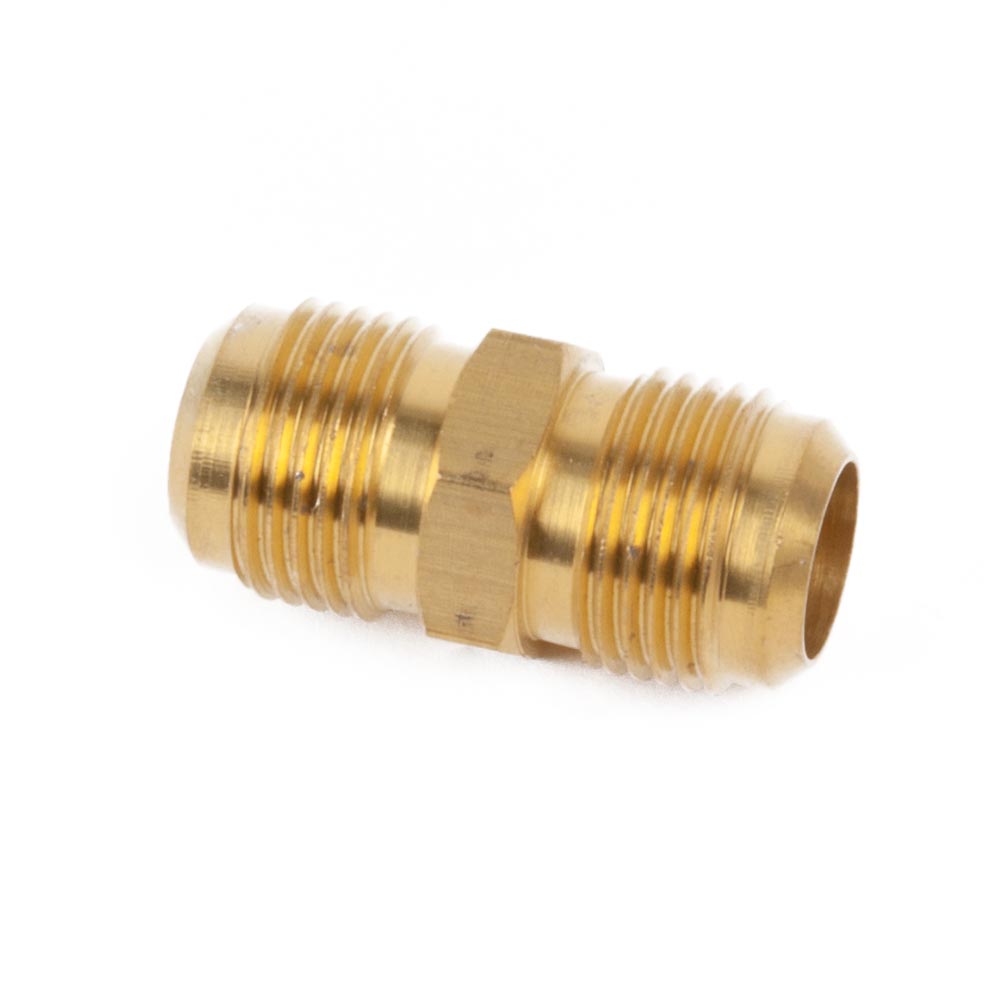

5/8 Air Conditioner Pipe Connection Union — for straight line joining, 2 USD

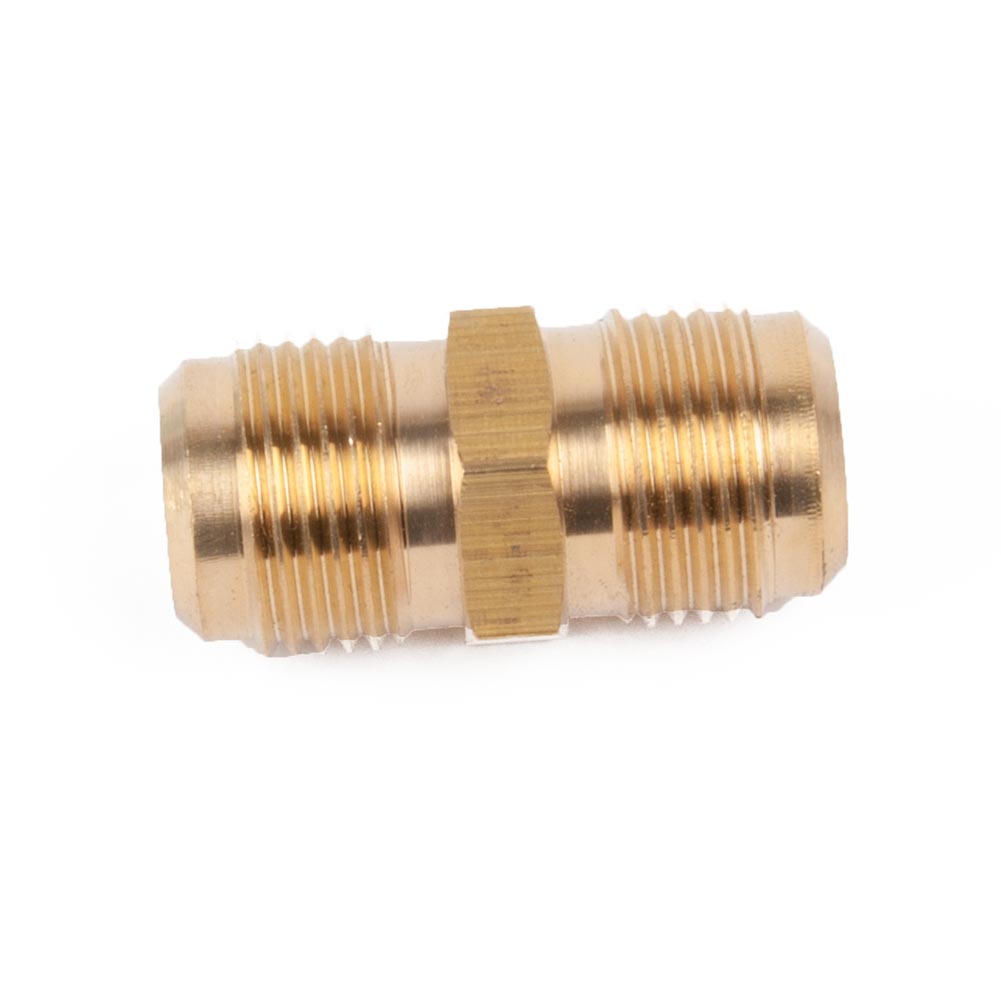

3/4 Air Conditioner Pipe Connection Union — for cassette and ducted systems, 2 USD
1/2" Nipple - 5/8" Flare Nut Air Conditioner Pipe Connection — as a transition part, 2 USD
5/8" Nipple - 1/2" Flare Nut Air Conditioner Pipe Connection — for reverse diameter transition, 2 USD
1/2" - 5/8" Air Conditioner Pipe Connection Reducer — for the most common diameter transition, 2 USD

What all these parts have in common is that they are made of OEM-quality forged brass and operate safely under high pressure without deforming.

Professional Selection Criteria

There are several critical criteria an HVAC technician should consider when selecting unions and fittings. These directly affect not only the life of the product but also the gas-holding performance of the system and customer satisfaction:

Material type: Forged brass is far superior to cast brass. All OEM unions we sell on Yedepa.com are forged.
Cone angle precision: The 45-degree flare angle must have the same tolerance on the union as well; otherwise micro-leakage is unavoidable even when tightened.
Thread profile quality: The flare nut must be of an SAE or metric thread standard compatible with the union. Mixed standards increase the risk of stripping threads during removal and refitting.
Surface finish: A mirror-smooth conical surface is a prerequisite for achieving zero leakage in the vacuum test.
Pressure class: In systems operating with high-pressure refrigerants such as R410A, a union approved by the manufacturer for this pressure class must be used.
OEM compatibility: Unions that conform to the original flare standard of brands such as Daikin, Mitsubishi, LG and Vestel do not void the warranty.

Usage and Maintenance Recommendations

The key points of making a leak-tight connection with fittings and unions are shaped by practical knowledge distilled over years in the field. The following seven steps form the basis of a successful flare connection:

Cut the tube end precisely: Use a tube cutter to make a square cut; never use a saw. Remove the burrs from the inside with a reamer.
Slip the flare nut on first: Do not forget to slip the flare nut onto the tube before flaring; otherwise the nut cannot be fitted after flaring and you will have to cut again from scratch.
Use the right flaring tool: An eccentric flaring tool set produces a smoother and more symmetrical cone.
Apply a little oil: A thin film of ester or POE oil strengthens the seal on the conical surface.
Tighten with torque control: Aim for 14-18 Nm for 1/4", 33-42 Nm for 3/8", 50-60 Nm for 1/2" and 63-75 Nm for 5/8".
Perform a vacuum test: It should remain stable below -500 microns for 15 minutes; if the pressure rises, check the connection again.
Annual periodic check: Check the unions, especially on the outdoor unit line, at the start of the season with a soap bubble test or an electronic leak detector.

Removing and refitting an old union is risky in most cases; the conical surface may be marked from the previous tightening. For this reason, we recommend always replacing unions that have been removed. Thanks to the competitive prices on Yedepa.com, union replacement lets you provide a quick solution without eroding your service margin.

Frequently Asked Questions (FAQ)

Is there a difference between a fitting and a union?
In the field, these two terms are mostly used interchangeably. Technically, a union refers to the complete connection that joins two threaded parts with an intermediate nut, while a fitting refers to the threaded nut that seats against the cone, or a nut-nipple set. Both terms appear in product titles in the Yedepa.com catalog.

Which union should I use on R32 air conditioners?
R32 operates at high pressure; therefore always choose a forged brass flare union approved by the manufacturer for R32. On Yedepa.com, the 1/2 air conditioner pipe connection union and 5/8 air conditioner pipe connection union models are used safely in this class.

How do I connect tubes of different diameters?
To transition between two diameters, you need to use a reducer union. The most common transition is the 1/2" - 5/8" pair. On Yedepa.com, the 1/2" - 5/8" air conditioner pipe connection reducer and 5/8" - 3/4" air conditioner pipe connection reducer products meet exactly this need.

When do I use a flange union tee?
A flange union tee is used when you want to split a single gas line into two or to join two lines. In VRF, multi-split and service branches, the three diameters 3/8, 1/2 and 5/8 are the most commonly needed.

What is a gauge tee used for?
It is used to connect the pressure measurement line to the main service port on a manifold gauge set. The forged brass version with a 1/4" flare connection is a standard accessory for professional service.

How many times can I remove and refit a union?
Since the conical surface undergoes minimal deformation with each tightening, manufacturers generally recommend using a union only once. If it has been removed, fitting a new union is the safest way.

Conclusion and Yedepa Advantages

Fittings and unions are the unseen but most critical connection points of air conditioning and refrigeration systems. When the right size, the right material and the right installation procedure come together, the system runs leak-free for years; otherwise even the smallest leak shortens the life of the compressor and leads to customer complaints. That is why union selection should never be seen as a minor detail.

As Yedepa.com, we can summarize the advantages we offer to HVAC technicians and refrigeration service companies under three headings: (1) keeping all standard sizes from 1/4" to 3/4" ready in stock; (2) offering forged brass products of OEM quality, suitable for the R32 and R410A pressure class; (3) providing technical advice from our expert team before product selection. We have sped up our ordering processes so that our technicians in the field do not lose work, and we update stock information in real time. Whatever you need for your air conditioning installation, straight union, reducer, flange union tee, nipple-flare nut or gauge tee, you can find the right part on Yedepa.com. We are at your side as the professional's choice and the professional's supplier.
