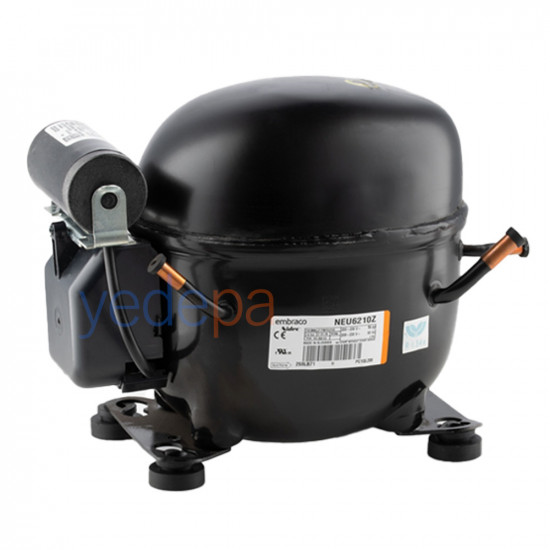

Embraco NEU 6210 Z Refrigerator Compressor (Hermetic Compressor) – 1/2 HP, R134a, HBP, 1,231 W / 4,200 BTU/h, 220-240 V

The Embraco NEU 6210 Z (also written NEU6210Z; searched for in the field simply as 6210 Z) is a hermetic reciprocating refrigerator compressor running on R134a. According to the Embraco catalogue it is designed for HBP (high back pressure) applications. With a displacement of 12.1 cm³ it delivers a cooling capacity of 1,231 W (4,200 BTU/h) at the ASHRAE rating point (+7.2 °C evaporating / +54.4 °C condensing); its efficiency is 2.37 W/W. At the EN 12900 point (+5 °C evaporating / +50 °C condensing) it provides 1,102 W capacity and 2.33 W/W efficiency. Its power class is 1/2 HP. The single-phase CSIR motor runs on a 220-240 V / 50 Hz supply. It is used in bottle coolers, display cabinets, commercial refrigerators, water dispensers and similar refrigeration systems with high evaporating temperatures.

Important: In the Embraco catalogue the cooling method of this compressor is specified as fan and an airflow of 520 m³/h is required. The compressor must not be installed without providing a fan blowing air over it. Thanks to its high starting torque (HST) motor it starts in both capillary tube and expansion valve circuits.

HBP Hermetic Compressor Running on R134a for Bottle Coolers, Display Cabinets and Commercial Refrigerators

The CSIR motor starts with a start relay and start capacitor; no run capacitor is required (Embraco electrical kit code ELKOM NEU6210Z 268HA51N1A). As required by the warning on the compressor label, it must not be run without the starting device connected. The locked rotor current (LRA) is 18.5 A. The dual-frequency 200-230 V 50 Hz / 208-230 V 60 Hz version of the same compressor is a separate product: Embraco NEU 6210 Z Dual Frequency.

The compressor oil is POE (polyolester) ISO 22 type and the factory charge is 350 ml. Its weight is 10.6 kg. It is manufactured at the Embraco plant in Slovakia.

Technical Specifications (Embraco Europe Catalogue)

• Brand / Model: Embraco NEU6210Z (NEU 6210 Z) · Embraco code 268HA51 (kit code 268HA51M1AJ)
• Type: hermetic reciprocating (on-off) · single-phase CSIR motor · HST high starting torque
• Application / Refrigerant: HBP (high back pressure) · R134a
• Power Class: 1/2 HP
• Cooling Capacity (ASHRAE): 1,231 W (4,200 BTU/h) · +7.2 °C evaporating / +54.4 °C condensing · 2.37 W/W
• Cooling Capacity (EN 12900): 1,102 W · +5 °C evaporating / +50 °C condensing · 2.33 W/W
• Displacement: 12.1 cm³
• Electrical: 220-240 V / 50 Hz · single phase · LRA 18.5 A
• Electrical Components: start relay + start capacitor (CSIR) · no run capacitor · overload protector · Embraco electrical kit ELKOM NEU6210Z 268HA51N1A
• Oil: POE (polyolester) ISO 22 · 350 ml
• Cooling Method: by fan · 520 m³/h airflow
• Expansion Device: capillary tube or expansion valve
• Weight: 10.6 kg
• Country of Manufacture: Slovakia (Embraco Slovakia)

Dimensions, Connections and Installation Notes

• Overall Dimensions: height 200 mm · body width 199 mm · width including connections 241 mm · depth 162 mm

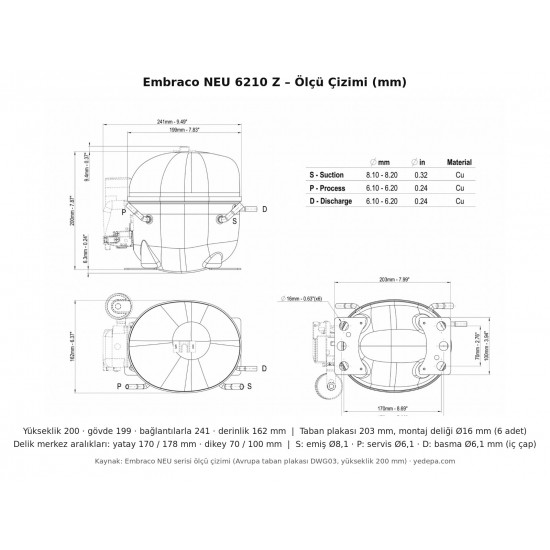

• Base Plate: European type (Embraco DWG03) · width 203 mm · mounting holes Ø16 mm (6 pcs) · hole centre spacing 170 mm and 178 mm (horizontal), 70 mm and 100 mm (vertical) · dimensioned drawing in the 2nd image
• Suction Connection: copper, inside diameter 8.10-8.20 mm (corresponds to 5/16 inch tube)
• Discharge Connection: copper, inside diameter 6.10-6.20 mm (corresponds to 1/4 inch tube)
• Service (Process) Connection: copper, inside diameter 6.10-6.20 mm

Capacity Table (Embraco Europe Catalogue, EN 12900, 220 V / 50 Hz, R134a)

Values are given at the EN 12900 condition (20 °C return gas, fan-cooled); the tolerance is ±5%.

Technician Tips

• Do not neglect the fan: the compressor is designed to be fan-cooled; Embraco requires an airflow of 520 m³/h. Direct the airflow of the condenser fan over the compressor body as well.
• Use in the HBP range: this model is for high evaporating temperatures (bottle coolers, display cabinets, commercial refrigerators); for freezer (LBP) applications choose Embraco's LBP series.
• Take care with POE oil: the compressor contains POE ISO 22 oil. POE oil absorbs moisture quickly; open the compressor immediately before installation, evacuate the system thoroughly and always replace the filter drier.
• Wire the electrical connection correctly: the CSIR motor runs with a start relay, start capacitor and overload protector; no run capacitor is connected. The starting current is 18.5 A; do not run the compressor without the starting device connected.
• Choose tube sizes to match the connections: suction inside diameter 8.10-8.20 mm (5/16 inch), discharge and service inside diameter 6.10-6.20 mm (1/4 inch) copper.
• Choose the right version: if your supply is 220-240 V / 50 Hz, this product; for a 60 Hz or 200-230 V supply, choose the dual-frequency NEU 6210 Z version.

Technical document: Embraco Europe compressor catalogue 2020 – NEU6210Z page 29, dimensional drawing DWG03 page 52 (PDF, English)
