Danfoss MMIGRS2 Remote Control Panel with Graphic Display (080G0297) | For EKE / MCX Series | CANbus

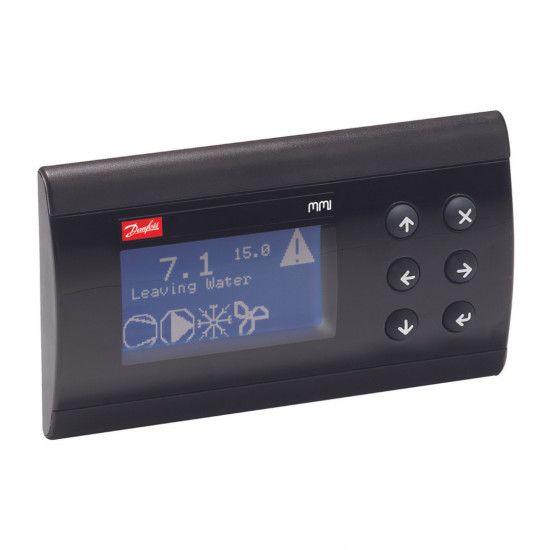

The Danfoss MMIGRS2 (code 080G0297) is a remote control / display panel with graphic LCD for Danfoss MCX family and EKE series controllers. While the controller stays inside the panel, the MMIGRS2 is mounted on the door or at a remote location; parameter settings, alarm display and operating values are managed from this screen. Connection is made via CANbus.

Graphic Remote Display for EKE and MCX Controllers

A controller without display (e.g. EKE 1A) + MMIGRS2 combination is the standard way to achieve a flexible and economical installation compared with a model with built-in display: commissioning is done with one display, which can be used on multiple devices in the field. 080G0297 is the industrial pack code of the panel-mount type; the standard kit connector is included in the pack (drilling template included).

Technical Specifications (Official Danfoss Data Sheet)

• Model: Danfoss MMIGRS2 | Code: 080G0297 (panel mount, industrial pack)
• Display: Graphic LCD, blue, 128 × 64 dots, active area 66.5 × 33.2 mm, white LED backlight (software-adjustable)
• Keypad: 6 keys, individually software-controlled white LED backlighting
• Communication: CANbus — 4-pole screw terminal + CAN-RJ (RJ12) telephone-type socket
• Power Supply: 12-30 V DC / 24 V AC (SELV) or from the controller via RJ12
• Protection: IP64 (panel-mount version)

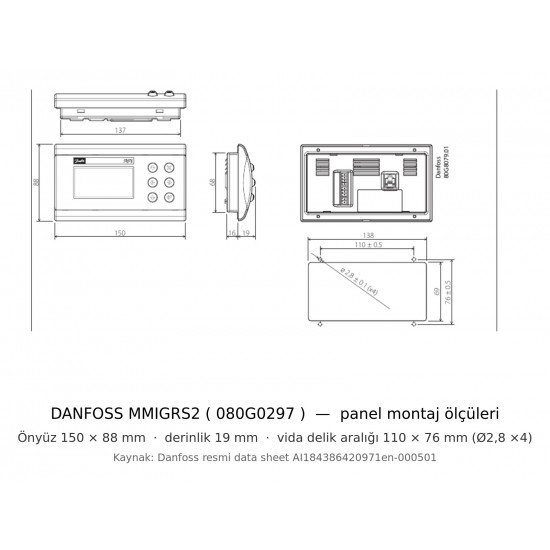

• Dimensions: 150 × 88 mm front, 19 mm depth — official panel-mount drawing in the 2nd image
• Compatibility: Danfoss EKE 1A / 1B / 1C superheat controllers, MCX family, AK-PC series (via CAN)

• 🔧 Termination (CANH-R) must be fitted at the first and last nodes of the CAN line; the display performs automatic address detection only when connected directly to the controller.
• A separate power supply is recommended for remote mounting (12-30 V DC SELV); powering via RJ12 is for short distances.
• The connection cable is sold separately: Danfoss ACCCBI 1.5 m (080G0075) / 3 m (080G0076).
