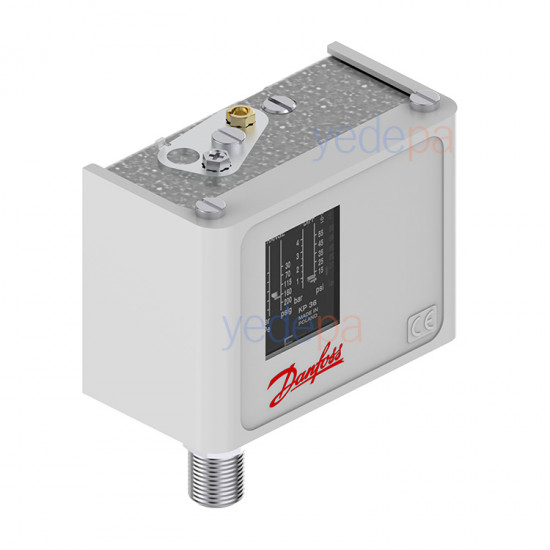

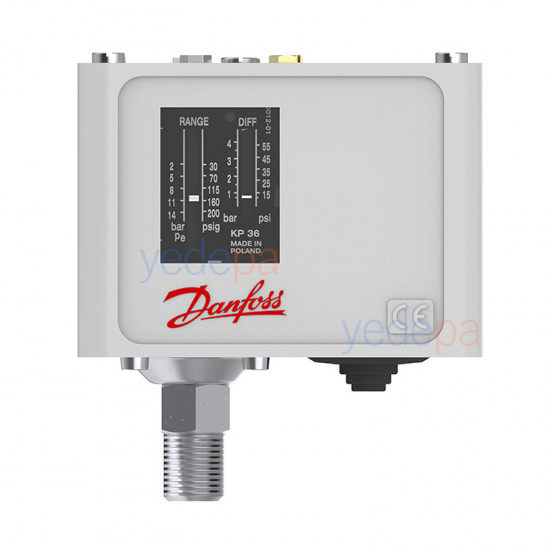

Danfoss KP36 Pressure Switch 060-110866 – SPDT, 2 - 14 bar, Automatic Reset, IP30

The Danfoss KP36 (060-110866) model is a reliable pressure switch solution for systems operating in the 2 to 14 bar range. With its SPDT contact arrangement and automatic reset feature, it is widely used in HVAC and industrial applications. Thanks to its compact design and IP30 protection class, it is suitable for in-panel installations.

Technical Specifications

• Product Code: 060-110866
• Model: KP36
• Contact Type: SPDT
• Reset Function: Automatic
• Connection Type: G 1/4" Male
• Protection Class: IP30 / NEMA 1

Pressure Setting Ranges

• Regulation Range: 2 to 14 bar
• Differential Setting: 0.7 – 4 bar (10 – 58 psi)

Electrical Specifications

• AC15: 10 A / 400 V
• AC1 / AC3: 16 A / 400 V
• DC13: 12 W / 220 V
• LR (Starting Current): 112 A / 400 V
• Short-Circuit Protection: 16 A fuse
• Insulation Voltage: 400 V
• Impulse Withstand: 4 kV

Environmental Conditions

• Ambient Temperature: -40 °C ~ +65 °C
• Short-Term Maximum: 80 °C (max. 120 minutes)
• Max. Test Pressure: 22 bar
• Max. Working Pressure: 17 bar

Application and Compatibility

• Application Note: Not suitable for liquid lines
• Pressure Sensing Element: Bellows
• Electrical Connection: 6-14 mm rubber cable gland

Certificates and Compliance

• CE, UL, EAC, CCC, CMIM, LVD, PZH, RINA, RMRS
• RoHS Compliance: China and Europe
• SCIP Dossier No: 5702423146635

Physical Properties

• Gross Weight: 0.334 kg
• Net Weight: 0.303 kg
• Volume: 0.57 L
• EAN: 5702423146635

Applications

The Danfoss KP36 is widely preferred in applications such as compressor protection, fan control and pressure limiting. With its high reliability and precise setting capability, it provides optimum performance in professional refrigeration and air conditioning systems.
