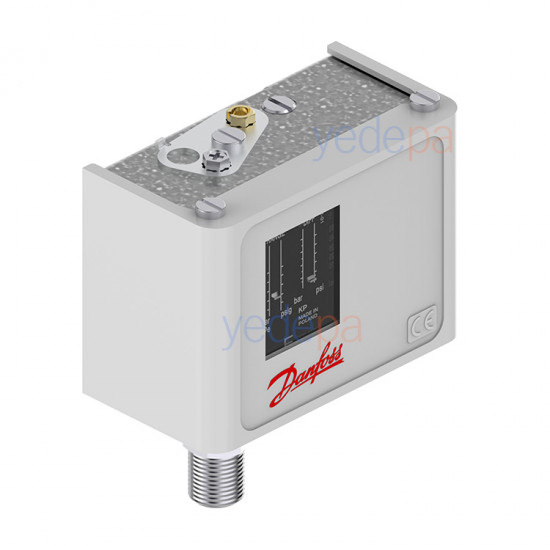

Danfoss KP35 Pressure Switch 060-113366 – SPDT, -0.2 - 7.5 bar, Automatic Reset

The Danfoss KP35 (060-113366) model is a pressure switch (pressostat) specially designed for low pressure control in HVAC and industrial systems. With its SPDT contact arrangement, automatic reset function and compact design, it provides reliable control. With its IP30 protection class, it is suitable for in-panel installations.

Technical Specifications

• Product Code: 060-113366
• Model: KP35
• Contact Type: SPDT
• Reset Function: Automatic
• Connection Type: G 1/4" Male
• Protection Class: IP30 / NEMA 1

Pressure Setting Ranges

• Regulation Range: -0.2 to 7.5 bar (6 inHg - 108 psig)
• Differential: 0.7 – 4 bar (10 – 58 psi)

Electrical Specifications

• AC15: 10 A / 400 V
• AC1 / AC3: 16 A / 400 V
• DC13: 12 W / 220 V
• LR (Starting Current): 112 A / 400 V
• Short-Circuit Protection: 16 A Fuse
• Insulation Voltage: 400 V
• Impulse Withstand: 4 kV

Environmental Conditions

• Operating Temperature: -40 °C ~ +65 °C
• Short-Term Maximum: 80 °C (120 minutes)
• Max. Test Pressure: 22 bar
• Max. Working Pressure: 17 bar

Application and Compatibility

• Application Note: Must not be used in the liquid line
• Compatible Fluids: Compatible with oil-free refrigerants
• Pressure Sensing Element: Bellows
• Electrical Connection: Rubber cable gland (6-14 mm)

Certificates and Standards

• CE, UL, EAC, CCC, CMIM, LVD, PZH, RINA, RMRS
• RoHS Compliance: China and Europe RoHS

Physical Properties

• Gross Weight: 0.338 kg
• Net Weight: 0.304 kg
• Volume: 0.57 L
• EAN: 5702423146642

Applications

The Danfoss KP35 pressure switch is an ideal choice for refrigeration systems, fan control circuits, compressor protection and general HVAC applications requiring low pressure monitoring and control.
