Danfoss 061H5217 NSK Sensor Cable – Packard Metri-Pack, 1.7 m, 3 Conductors, IP66

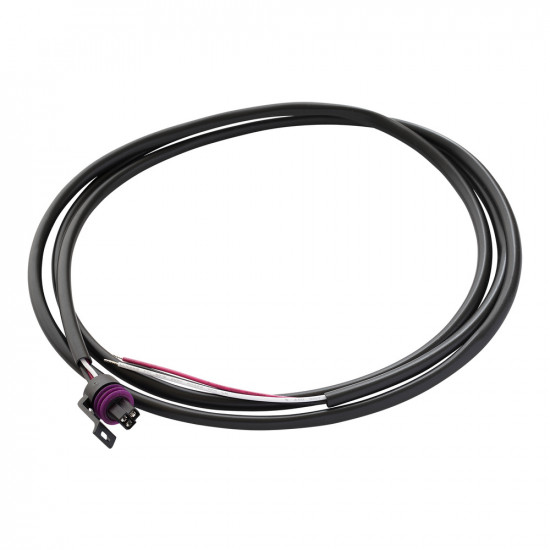

Danfoss 061H5217 is made to connect Danfoss NSK series sensors to the controller: a pre-terminated cable assembly. One end has a round Packard Metri-Pack connector, and the other end has free conductor ends.

Pre-Terminated Cable Assembly: No Connector Crimping Needed in the Field

There is no need for connector crimping, pin insertion or soldering in the field — the sensor side comes ready with a factory-made connector. This both shortens installation time and prevents measurement faults caused by poor contact.

Conductor color code: Pin A red · Pin B black · Pin C white. Verify which pin has which function in the wiring diagram from your controller's manual.

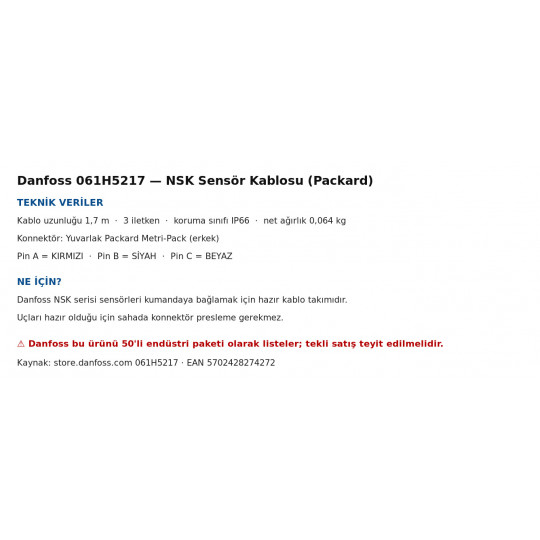

Technical Specifications (Official Manufacturer Data)

• Code: Danfoss 061H5217
• Cable Length: 1.7 m
• Number of Conductors: 3 (A red · B black · C white)
• Connector: Round Packard Metri-Pack (male)
• Protection Class: IP66
• Net Weight: 0.064 kg | EAN: 5702428274272
• Certificate: CE · RoHS

• 🔧 Check whether the cable length is sufficient. The 1.7 m length is fixed; if an extension is made, the joint must be insulated so that it does not take in moisture.
• Do not route the sensor cable in the same duct as power cables — inductive noise corrupts the measurement.
• ℹ️ Package note: Danfoss lists this product in its catalog as an industrial pack of 50; supply confirmation is recommended for single-unit sales.
