Cubigel NPT16RA Hermetic Compressor – 2/3 HP, R290, HBP 2,310 W

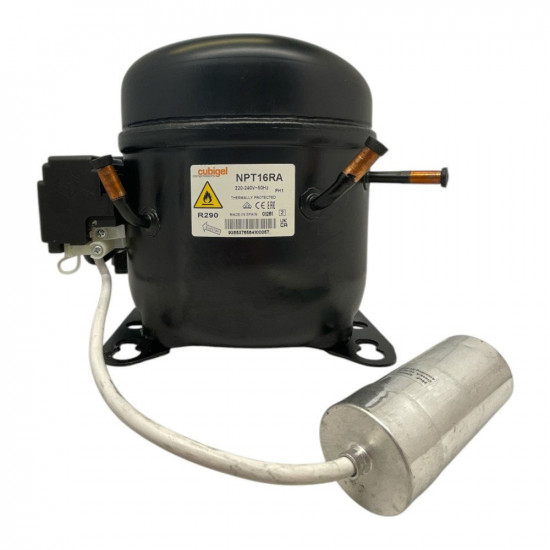

Cubigel NPT16RA is a 2/3 HP hermetic reciprocating compressor made for commercial refrigeration appliances operating at positive temperatures, such as multi-door beverage coolers, display cases and large-volume bottle coolers. It runs on R290 (propane); with a displacement of 16.1 cm³ it delivers a cooling capacity of 2,310 W (7,882 BTU/h) at ASHRAE HBP conditions.

R290 Propane HBP Compressor: For Large-Volume Beverage Coolers and Display Cabinets

Built on the P series body, the NPT16RA can be used in capillary tube and expansion valve systems with its fan-cooled design and CSR (start and run capacitor) motor. At HBP ASHRAE conditions it produces high capacity efficiently with COP 2.55. Propane has a GWP of 3; it is a suitable option for low-charge systems that are not affected by F-Gas restrictions.

Key Technical Specifications and Equipment

• Brand / Model: Cubigel NPT16RA · P series
• Refrigerant: R290 (propane) · explosion safety approved to EN 60335-2-34 for R290 and R600a
• Application: HBP (high back pressure) · evaporating −15 … +10 °C
• Displacement: 16.10 cm³ · bore 31.19 mm · stroke 21.13 mm
• Motor: CSR · locked rotor current (LRA) 21.1 A · max. continuous current 5.8 A
• Power supply: 220-240 V / 50 Hz single-phase · operating range 198-255 V
• Cooling: fan-cooled · expansion: capillary tube or expansion valve
• Oil: ISO VG 32 ester, 400 cm³
• Tube inner diameters: suction Ø8.1 · service Ø8.1 · discharge Ø6.5 mm
• Dimensions: height 210.5 mm · base 204 × 162 mm (231 mm with terminal box)
• Mounting holes: European type 6 × Ø16 (170 × 70 mm) · American type 4 × Ø19 (165 × 101.6 mm)
• Weight: 12.34 kg · max. ambient temperature 43 °C

Performance (ASHRAE, Condensing +55 °C)

ASHRAE: liquid 46 °C, ambient and suction 35 °C. At CECOMAF HBP conditions (+5 °C, liquid 55 °C) 1,911 W, 878 W power input, COP 2.18. Capacity decreases as the evaporating temperature drops; make your selection according to the target cabinet temperature.

Electrical Equipment (Manufacturer References)

• Start capacitor: 72-88 µF 330 V
• Run capacitor: 25 µF 420 V
• Relay: 2014 166 or QLZ-11.0A (with NTC 15 Ω · pick-up 11.00 A / drop-out 9.35 A)
• Overload protector: T0348 or B154-105

• 🔥 R290 is a flammable refrigerant (class A3). Brazing, leak testing and charging must be carried out according to the rules for flammable refrigerants: a ventilated area, no ignition sources and compliance with charge limits are essential. This compressor is for R290 systems only.
• ⚡ Supply voltage: The lower limit of the operating range is 198 V; in areas with voltage drops, the use of a voltage regulator is recommended.

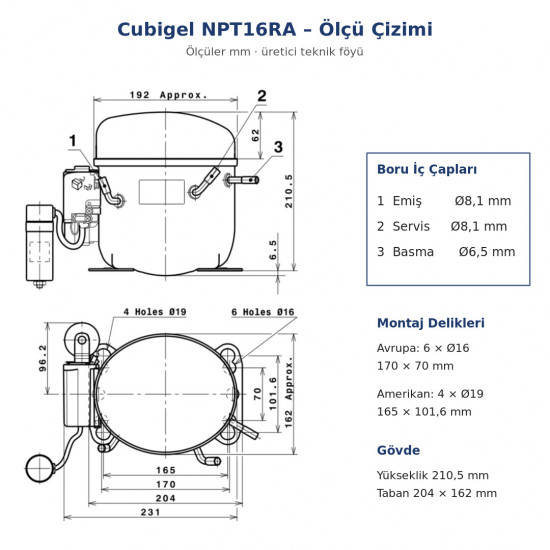

• 🔧 When replacing: with the CSR connection, the start and run capacitors are used together; compare the refrigerant, HBP class and mounting hole spacing of the old compressor with the dimension drawing.
• Application limit: This model is HBP — it is for positive-temperature coolers. It is not used in freezer (LBP) applications.
