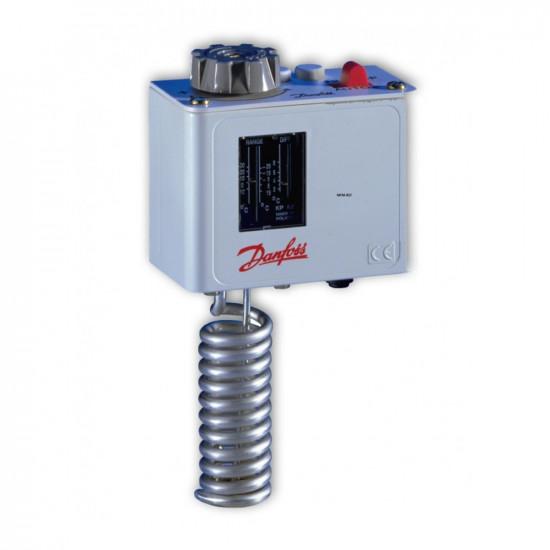

Danfoss KP 62 Thermostat (060L110666) – −30 / +15 °C, SPDT, Automatic Reset, Ø40 mm Air Coil Sensor

The Danfoss KP 62 (code 060L110666) is a thermostat that switches according to air temperature in refrigeration and air conditioning installations. Its setting range is −30 … +15 °C; when the set temperature is exceeded or undershot, the contact changes over to switch the compressor, fan or heater on/off.

Control by Air Temperature: Sensor Attached to the Housing, No Capillary Tube

This model’s sensor is a type C1 Ø40 × 30 mm air coil and is attached directly to the bottom of the housing — it has no remote sensor or capillary tube. In other words, the device measures the air temperature where it is mounted. It is used by mounting directly inside a cold room, on a display cabinet body or at an air duct outlet.

If you need to measure a remote point (such as the evaporator outlet or product temperature), KP 61 models with capillary tube should be preferred; the KP 62 is not suitable for this job.

Technical Specifications (Official Danfoss Data Sheet)

• Model: Danfoss KP 62 | Code: 060L110666 | Sensor Code: C1
• Setting Range: −30 … +15 °C
• Differential: At max. range 1.5 – 7 K · at min. range 6 – 23 K (adjustable)
• Contact: SPDT (single pole, double throw) | Reset: Automatic
• Sensor: Ø40 × 30 mm air coil, attached to the housing — no capillary tube
• Charge Type: Vapour-charged thermal system
• Max. Sensor Temperature: 120 °C | Ambient Temperature: −40 … +65 °C
• Contact Load: AC1 16 A / 400 V · AC3 16 A / 400 V · AC15 10 A / 400 V · DC13 12 W / 220 V · LR 112 A
• Protection Class: IP30 | Cable Entry: Rubber gland, 6-14 mm cable

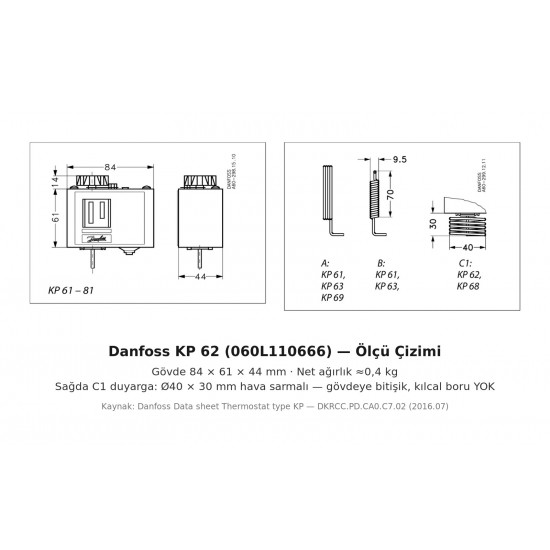

• Housing Dimensions: 84 × 61 × 44 mm | Weight: ≈0.4 kg — official dimension drawing in the 2nd image
• EAN: 5702428014533

• 🔧 The mounting location determines the measurement. Since the sensor is attached to the housing, the thermostat must be mounted where the air you want to measure is located. Above a door, near a heat source or in a dead-air zone gives false readings.
• Choose the differential to suit the job: A narrow differential (1.5-7 K) keeps the temperature steady but cycles the compressor often; a wide differential reduces the number of starts but increases temperature swing.
• ⚠️ SPDT contact: Can be used for both cooling (switch on when temperature rises) and heating (switch on when temperature falls) — wire according to the terminal diagram.
• IP30 is for indoor use; in wet/washed-down areas, place it inside an enclosure or use a model with higher protection.
• Do not cover the sensor coil — if air circulation is blocked, the thermostat responds with a delay.
