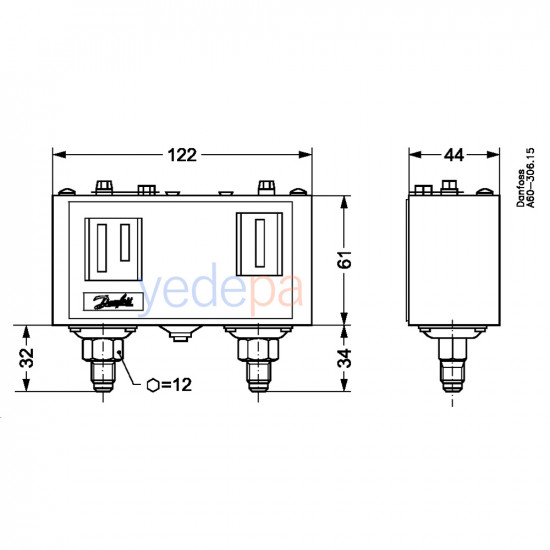

Danfoss KP15 Pressure Switch 060-124366 – Dual, -0.2 - 32 bar, SPDT, Automatic/Manual Reset

The Danfoss KP15 is a dual pressure switch (pressostat) that offers combined high and low pressure control in refrigeration and HVAC systems. With its wide adjustable pressure ranges, SPDT contact arrangement, automatic reset for the left side and manual reset for the right side, it raises system safety to the highest level. With its compact design and IP30 protection class, it is ideal for indoor installations.

Product Features

• Model: KP15
• Product Code: 060-124366
• Contact Arrangement: SPDT (single pole double throw)
• Reset Function: Left side: Automatic | Right side: Manual
• Connection Type: 1/4" Flare, Male (DIN 8906)
• Protection Class: IP30

Pressure Setting Ranges

• Left Side (Low Pressure): -0.2 to 7.5 bar
• Right Side (High Pressure): 8 to 32 bar
• Left Side Differential: 0.7 – 4 bar
• Right Side Differential: Fixed 4 bar

Electrical Specifications

• AC15: 10 A, 400 V
• AC1 / AC3: 16 A, 400 V
• DC13: 12 W, 220 V
• LR (starting current): 112 A, 400 V
• Insulation Voltage: 400 V
• Impulse Withstand: 4 kV

Operating and Withstand Values

• Operating Temperature: -40 °C ~ +65 °C
• Short-Term Maximum Temperature: 80 °C (120 minutes)
• MWP Left: 17 bar (245 psig)
• MWP Right: 35 bar (510 psig)
• Test Pressures: Left: 20 bar, Right: 35 bar

Compatible Refrigerants

• R134a, R22, R404A, R407A/C/F/H, R410A, R448A, R449A/B, R452A, R507A, R513A, R515B, R1234yf, R1234ze(E), R438A and others

Certificates and Standards

• Approvals: CE, c UL us (UL873), EAC, CCC, DNV, GL, BV, RINA, LR, RMRS, CMIM, PZH
• RoHS Compliance: China and EU RoHS
• SCIP Dossier No: b1323c86-8856-44cc-b1c6-6849abe37ee4

Physical Information

• Gross Weight: 0.496 kg
• Net Weight: 0.432 kg
• Volume: 0.861 L
• EAN: 5702422032939

Applications

The Danfoss KP15 pressure switch is suitable for applications such as compressor protection, condenser fan control and system pressure limiting. Thanks to its dual control feature, it can act on both the low and high pressures of the system at the same time. It is ideal for professionals looking for a safe, durable and easy-to-install solution.
