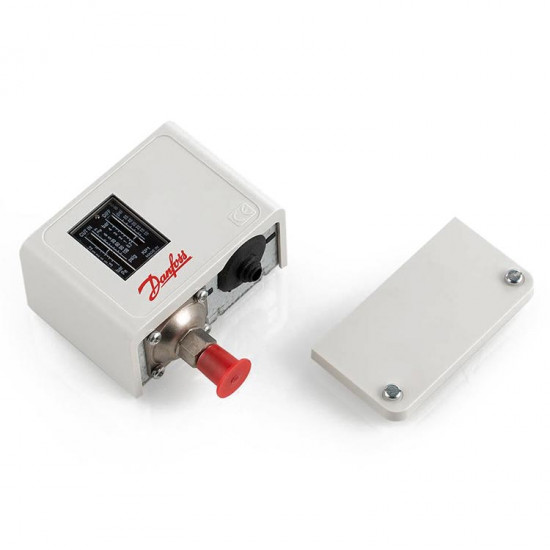

Danfoss KP1 Pressure Switch 060-110166 – SPDT, -0.2 - 7.5 bar, Automatic Reset, IP44

The Danfoss KP1 (060-110166) model is an ideal pressure switch (pressostat) solution for refrigeration and HVAC systems. With its wide adjustable pressure range, automatic reset function and SPDT contact arrangement, it offers reliable control. Thanks to its compact design and IP44 protection class, it can be used safely in demanding environmental conditions.

Technical Specifications

• Product Code: 060-110166
• Model: KP1
• Contact Type: SPDT
• Reset Function: Automatic
• Connection Type: 1/4" Male Flare (DIN 8906)
• Protection Class: IP44 / NEMA 2
• Pressure Sensing Element: Bellows

Pressure Setting Ranges

• Setting Range: -0.2 to 7.5 bar (6 inHg - 108 psig)
• Differential: 0.7 – 4 bar (10 – 58 psi)

Electrical Specifications

• AC15: 10 A / 400 V
• AC1 / AC3: 16 A / 400 V
• DC13: 12 W / 220 V
• Starting Current (LR): 112 A / 400 V
• Insulation Voltage: 400 V
• Impulse Withstand: 4 kV
• Cable Entry: Rubber gland (6–14 mm)

Operating Conditions

• Ambient Temperature: -25 °C ~ +65 °C
• Short-Term Maximum: 80 °C (120 minutes)
• Test Pressure: 20 bar (290 psig)
• Max. Working Pressure: 17 bar (245 psig)

Refrigerant Compatibility

• R134a, R22, R404A, R407C/F/H, R410A, R448A, R449A/B, R507A, R513A, R515B, R1234yf, R1234ze(E), R452A, R454C, R438A and more

Certificates and Compliance

• Approvals: CE, c UL us (UL353, UL873), EAC, CCC, DNV, GL, BV, RINA, RMRS, CMIM, PZH, PED
• RoHS Compliance: China and EU RoHS
• SCIP Dossier No: 23785618-b379-4da7-a913-ecd40c8fae6d

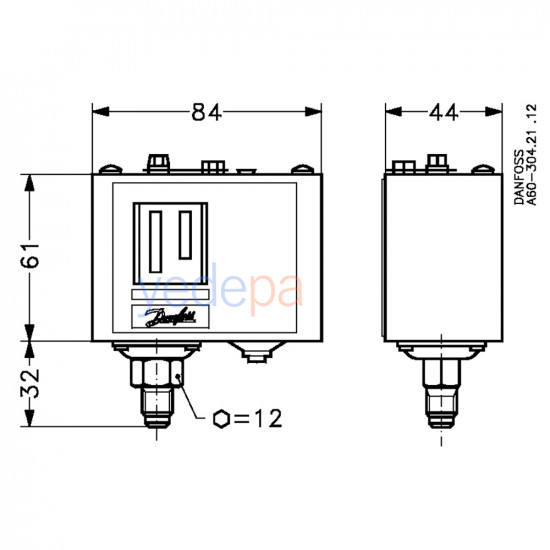

Physical Properties

• Gross Weight: 0.344 kg
• Net Weight: 0.3 kg
• Volume: 0.57 L
• EAN: 5702422002185

Applications

The Danfoss KP1 pressure switch is used in applications such as compressor protection, system pressure limiting and fan control. With its durable construction, precise setting options and wide refrigerant compatibility, it offers professional solutions.
