Zingfa QR3-35 Hermetic Compressor – 1.5 HP, R404A, 3-Phase 380 V, 5,030 W

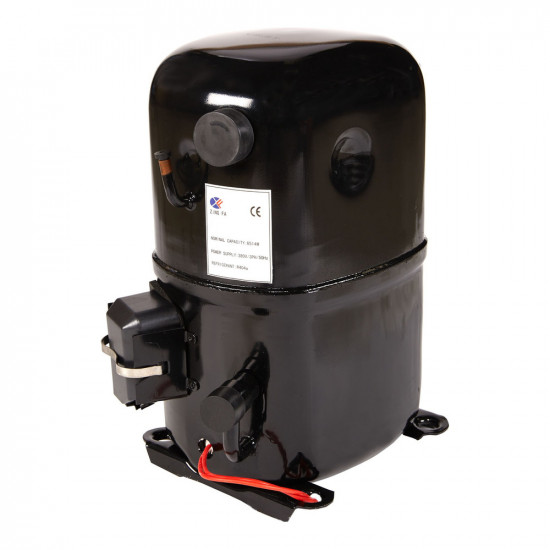

Zingfa QR3-35 is a 1.5 HP hermetic reciprocating compressor built for commercial refrigeration systems operating at positive temperatures, such as cold rooms, beverage coolers and display coolers. It runs on R404A; with a 34.45 cm³ displacement it delivers 5,030 W (17,162 BTU/h) at +7.2 °C evaporating / +54.5 °C condensing of cooling capacity. It is supplied with 380-400 V 3-phase power and requires no capacitor or relay.

R404A 3-Phase Reciprocating Compressor: For Positive-Temperature Cold Rooms and Commercial Coolers

The QR3 series, manufactured by Zhejiang Ankang (Xingfa), is designed for medium and high back pressure (M/HBP) applications and operates in the −30 … +10 °C evaporating range. It is protected by an internal motor thermal protector and an internal pressure relief valve. Its compact body saves space in small 3-phase cold rooms and condensing units.

Key Technical Specifications and Equipment

• Brand / Model: Zingfa QR3-35 · manufacturer Zhejiang Ankang (Xingfa)
• Refrigerant: R404A
• Application: M/HBP (medium/high back pressure) · evaporating −30 … +10 °C · condensing +30 … +60 °C
• Displacement: 34.45 cm³ · speed 2,900 rpm
• Motor: 3-phase, 2-pole · locked rotor current (LRA) 23 A · rated running current 4.3 A · winding resistance 8.5 Ω (25 °C) · insulation class F
• Power supply: 380-400 V / 3~ / 50 Hz · no capacitor or relay required
• Protection: internal motor thermal protector · internal pressure relief valve
• Oil: POE, ISO VG 32, 500 ml
• Connections: suction 1"-14 UNF · discharge Ø10 mm · service (process) tube Ø7 mm
• Dimensions: height 282 mm · base 235 × 179 mm

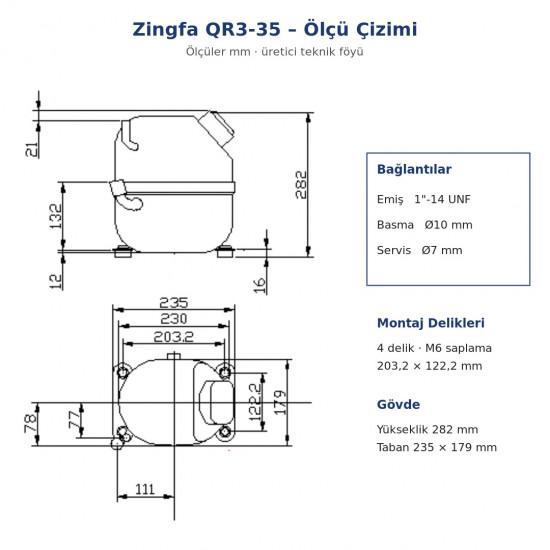

• Mounting: 4 × M6 studs (203.2 × 122.2 mm) · with 4 rubber grommets and sleeves
• Sound power: ≤ 60 dB(A) · protection class IP21
• Pressure limits: high side max. 3.2 MPa · low side max. 2.0 MPa · discharge temperature ≤ 125 °C

Rated Performance

+7.2 °C evaporating / +54.5 °C condensing (suction gas 35 °C, subcooling 8.3 K, ambient 35 °C): 5,030 W (17,162 BTU/h) cooling capacity, 2,100 W input power, COP 2.4. Capacity decreases as the evaporating temperature drops; choose according to your cabinet's target temperature.

• ⚡ 3-phase connection: The compressor must not run in reverse for long periods; check the phase sequence and the phase protection relay. The system must have pressure, temperature, overcurrent and phase failure protection.
• 🔧 Commissioning: Do not evacuate the system with the compressor; do not run the compressor without a refrigerant charge or under vacuum. Charge refrigerant from a remote charging point, not from the suction/discharge line near the compressor. After removing the connection plugs, complete brazing within 15 minutes.
• 🌡️ Crankcase heater: A 45 W crankcase heater is recommended to prevent refrigerant migration during standstill; energize it 12 hours before the first start or after a long shutdown. Maintain suction line superheat to prevent liquid floodback.
• ⏱️ Operating pattern: To maintain the oil level, at least 10 minutes of continuous running and at least 3 minutes between stop and start are recommended. The tilt must not exceed 15° during operation.
