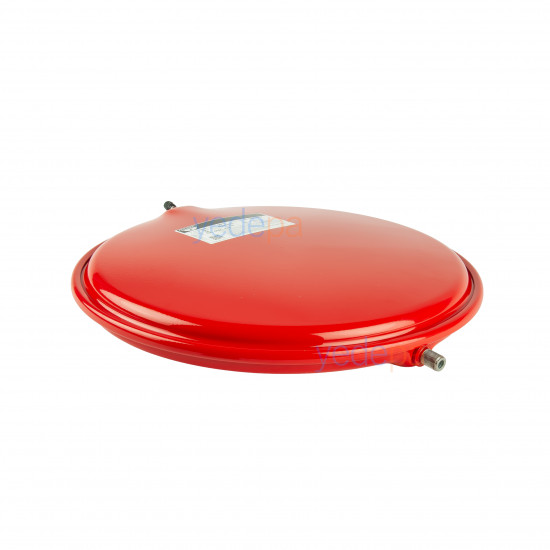

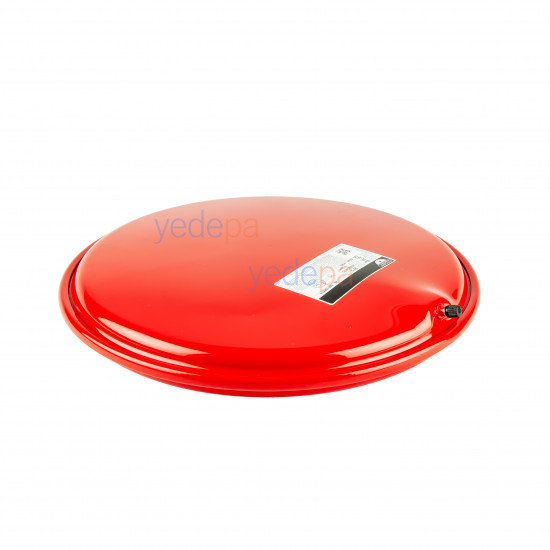

Zilmet 521 OEM-PRO 6 Liter M14 Combi Boiler Expansion Vessel – Baxi, Baymak, Westen Compatible

This is the Zilmet equivalent of the 6 liter expansion vessel with M14 connection used in Baxi, Baymak, Westen, Chappee, Lambert and Falke combi boilers. This vessel from the OEM-PRO series with drawing number 521 of the Italian brand Zilmet absorbs the expansion of the heated system water, balancing the system pressure and preventing the safety relief valve from opening unnecessarily.

Original Zilmet Vessel Compatible with Baxi, Baymak, Westen, Chappee, Lambert and Falke Combi Boilers

• Brand / Series: Zilmet / Drawing 521 – Family 13C OEM-PRO
• Yedepa Product Code: ZLM07-R
• Equivalent / Original Codes: JJJ005693920, 5693920, 13CC000604
• Nominal Volume: 6 liters
• Connection: M14 thread (installation inside the boiler)
• Maximum Working Pressure (P max): 3 bar
• Precharge Pressure: 1 bar
• Maximum Working Temperature (T max): 90°C

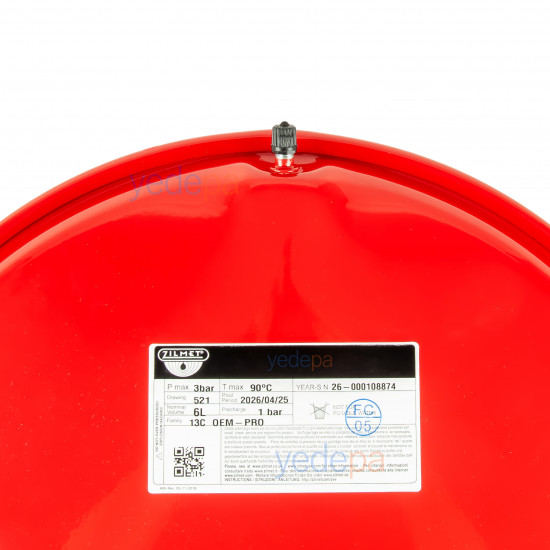

• Body: Steel body, red oven-baked paint; precharge check valve (Schrader valve) on top.

Zilmet 521-6 (Family 13C OEM-PRO) Technical Specifications and Installation Warnings

• Not for use in drinking water installations. As stated on the product label, this vessel is for closed-circuit heating systems; do not fit it to a booster pump or potable water line.
• Measure the precharge pressure before installation. The vessel comes with a 1 bar precharge; if the system fill pressure is different, adjust it at the valve. Measurement and adjustment must always be done with the water side of the vessel empty.
• For membrane life, a precharge check every six months is recommended. If the pressure keeps dropping or water instead of air comes out of the valve, the membrane is punctured and the vessel must be replaced.
• Do not strain the vessel body when tightening the M14 fitting, do not neglect replacing the gasket, and check for leaks after installation with the system under pressure.
• For installation inside the boiler, refit the vibration pads on the surfaces of the vessel that contact the casing; metal-to-metal contact causes both noise and, in the long term, fatigue cracks.
