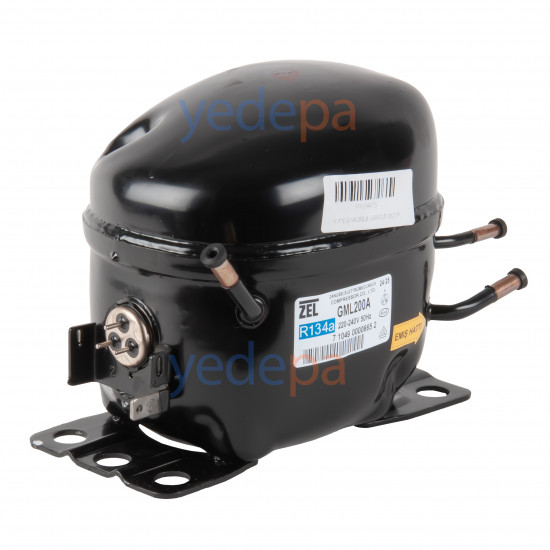

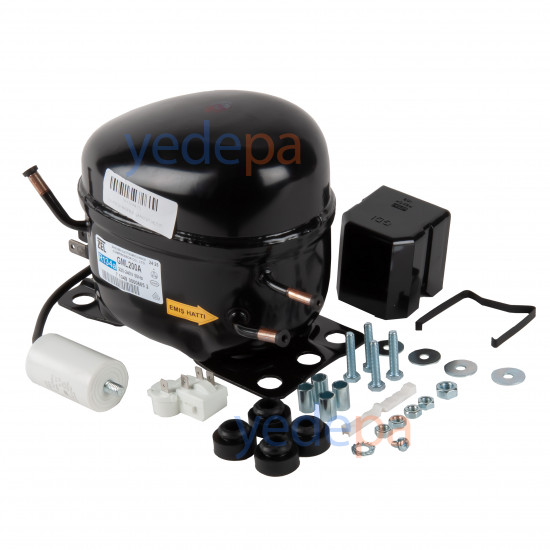

Zel (Zanussi) GML200A 1/4 HP R134a Household Refrigerator Compressor

Zel (Zanussi) GML200A is a 1/4 HP compressor designed for use in household refrigerators. This model is ideal for static cooling systems operating with R134a refrigerant. The compressor offers high efficiency with 200 W cooling capacity and a COP of 1.48. An RSCR motor type is used for energy savings and long-lasting performance.

Product Features

• Country of Manufacture: China
• Brand: Zel (Zanussi)
• Compressor Power: 1/4 HP
• Cooling Capacity: 200 W
• Refrigerant: R134a
• Displacement: 7 cm³
• Net Weight: 7 kg
• Evaporating Temperature Range: -35°C to -10°C
• Maximum Operating Temperature: 43°C
• Operating Voltage: 220-240V, 50 Hz

Motor Specifications

• Motor Type: RSCR
• Current: 0.71 A
• Input Power: 135 W
• Capacitor: 5 µF

Performance Data

• COP (Coefficient of Performance): 1.48 W/W
• Oil Quantity: 140 cc (RL9EB)

Applications

• Household refrigerators
• Small refrigeration systems

The Zel (Zanussi) GML200A offers reliable performance and energy efficiency in household refrigeration systems. With 1/4 HP of power, this compressor is ideal for refrigerators operating with R134a gas.
