YDK80-6H AC Outdoor Unit Fan Motor 80W - Compatible with Midea, Airfel, Vestel

Ensuring that heat transfer in air conditioner outdoor units continues uninterrupted and efficiently, the YDK80-6H Outdoor Unit Fan Motor stands out with its high performance and durability. Fully compatible with many leading air conditioner brands such as LG, Haier and Chigo, above all Midea, Airfel and Vestel, this 80 Watt OEM spare part helps your appliance return to its original cooling and heating capacity.

Wide Compatibility and High Performance

Manufactured to withstand harsh weather conditions and long operation, this motor offers a direct replacement for your faulty, slow-running or noisy outdoor unit fan motor. Operating at the standard mains voltage of 220-240V, the motor provides sufficient airflow over the condenser thanks to its speed of 830 revolutions per minute (r/min), contributing greatly to easy compressor operation and overall energy saving of the appliance.

Key Technical Specifications and Equipment

The technical details of the YDK80-6H fan motor, designed for long service life and easy installation, based on its label and measured values are as follows:

• Model: YDK80-6H (Outdoor Unit Fan Motor)
• Power Ratings: 80W / 0.81A / 220-240V ~ 50Hz
• Number of Poles and Speed: 6P (6 Poles) / 830 r/min speed
• Shaft Size: 115 mm long durable steel shaft with threaded end
• Mounting Dimensions: 110 mm between mounting lugs and 122 mm base diameter mounting spacing

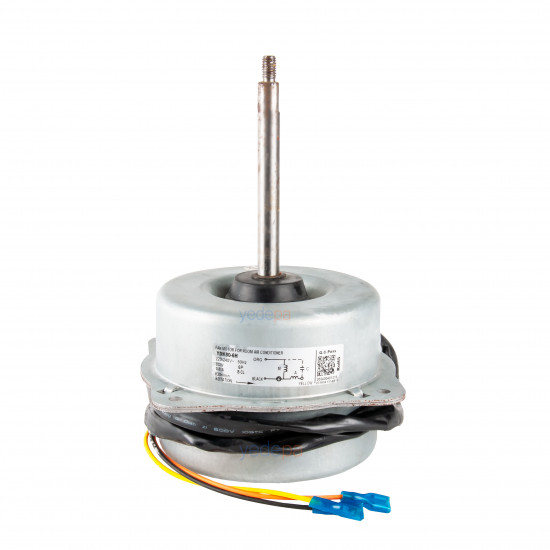

• Connection Type: 3-wire (Orange, Yellow, Black) insulated wiring with practical socket/terminal ends
• Compatible Brands: Midea, Airfel, Vestel, LG, Haier, Chigo and 80W OEM air conditioner outdoor units with the same physical/technical values.

Practical Note for Field Technicians

Technician Note: Always follow the wiring diagram on the motor during installation. When making the capacitor and neutral/live connections of the Orange (ORG), Black (BLACK) and Yellow (YELLOW) wires, make sure they match the original diagram of the existing outdoor unit. The long 115 mm shaft leaves ideal allowance to suit different fan blade depths; when fitting the fan blade, take care not to overtighten the nut and upset the balance. If the faulty motor you removed is rated at 80W and the lug spacings match, you can use this motor reliably in most Asian and domestically produced appliances.

Frequently Asked Questions

What is the YDK80-6H AC outdoor unit fan motor used for?

The YDK80-6H is an 80W fan motor that provides airflow over the condenser in the air conditioner outdoor unit, keeping heat transfer going without interruption. With sufficient airflow, it helps the compressor run easily and the appliance return to its original cooling-heating capacity.

Which air conditioner brands is the YDK80-6H outdoor unit fan motor compatible with?

It is an OEM spare part compatible with air conditioners from Midea, Airfel and Vestel above all, as well as LG, Haier and Chigo. Before replacement, it is recommended to compare the label values and mounting dimensions of your existing motor with this product.

What are the technical values and mounting dimensions of the YDK80-6H fan motor?

The motor is rated at 80W / 0.81A / 220-240V ~ 50Hz, with 6 poles (6P) and a speed of 830 r/min. Its shaft is 115 mm long with a threaded end; the mounting dimensions are 110 mm between mounting lugs and 122 mm base diameter, and it has a 3-wire connection (orange, yellow, black).

Which symptoms indicate that the outdoor unit fan motor needs replacing?

If the outdoor unit fan motor is faulty, runs slowly or makes noise, this motor can be used as a direct replacement. The Yedepa product code is 01 87 172.
