YDK80-6H AC Outdoor Unit Fan Motor (80W, 830 R/Min)

Designed to provide optimum heat transfer and air circulation in air conditioner outdoor units (condenser), the YDK80-6H Fan Motor is an ideal spare part for bringing your unit’s cooling performance back to full capacity. With its high-speed design and stable operating frequency, you can use it reliably in air conditioners with compatible outdoor units, notably LG and Midea.

High Performance and Quiet Operation

Lowering the outdoor unit condensing temperature, which is critical for the long life of your air conditioner, is achieved by this motor’s stable rotation at 830 RPM. With a nominal power of 80W, the product produces the continuous airflow the outdoor unit needs even in harsh weather conditions, quietly and with minimal vibration.

Key Technical Features and Equipment

Equipped with a coil and shaft design that withstands heavy-duty conditions, the technical details of this spare part are as follows:

• Model: YDK80-6H (Outdoor Unit Condenser Fan Motor)
• Electrical Ratings: 220-240V~ 50Hz, 0.81A
• Power and Speed: 80W motor power, 830 r/min (revolutions/minute)
• Poles / Class: 6P / B Class

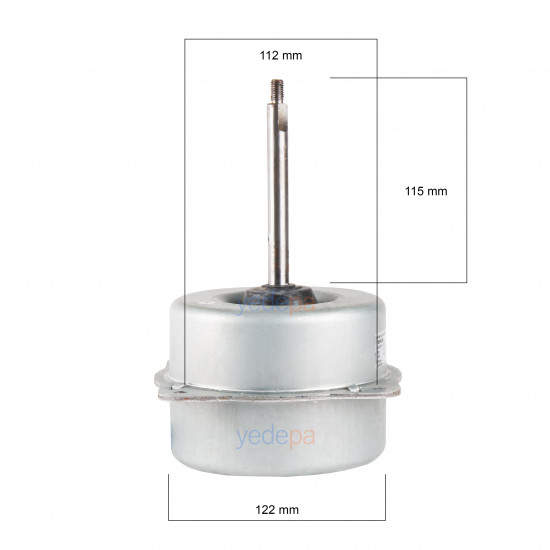

• Physical Dimensions: 112 mm shaft length, 115 mm body height, 122 mm body diameter.

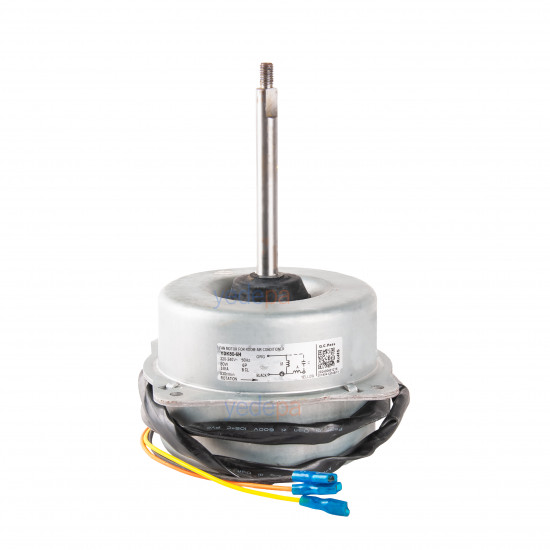

• Connection: 3-wire connection with blue socket (Orange, Black, Yellow leads).
• Compatible Models: All brands/models with matching dimensions, notably LG and Midea outdoor units with the corresponding ratings.

Practical Usage Note for Technicians in the Field

Technician’s Note: When replacing the motor, always pay attention to the wiring diagram and the direction (ROTATION) marking on the label. Connecting the run capacitor correctly according to the diagram (between the Orange and Yellow wires) is very important for the motor to turn in the correct direction and for the windings not to burn out. When fitting the fan blade onto the 112 mm shaft, avoid overtightening the nut and stripping the thread, and make sure the bearing is not out of balance.
