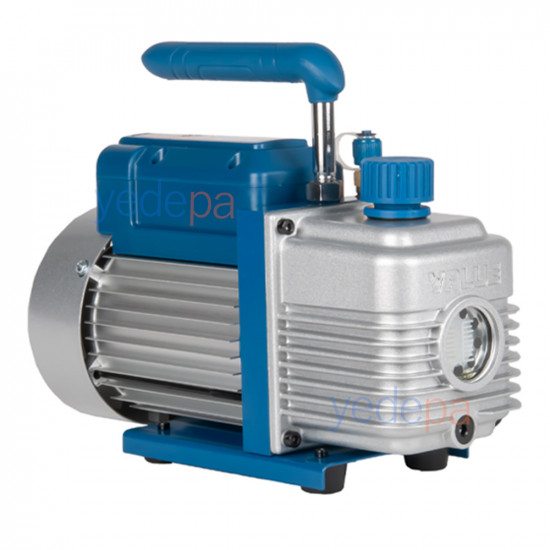

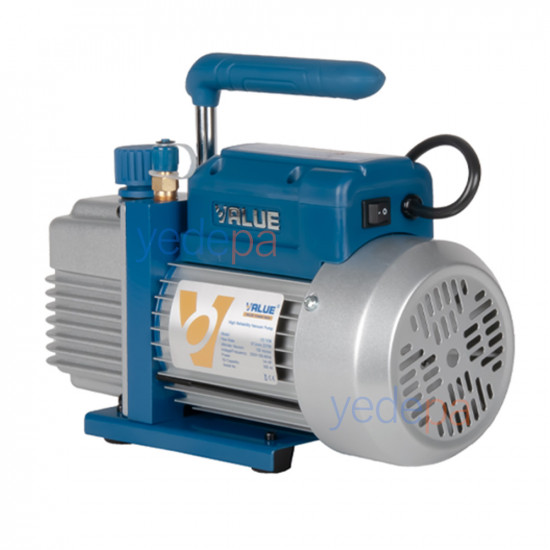

Value VE 160N Vacuum Pump – Single Stage, 1/2 HP, 170 L/min (6 CFM), 150 Micron | For Air Conditioning and Refrigeration

Value VE 160N vacuum pump is a single stage vacuum pump used to quickly evacuate air and moisture from the circuit before refrigerant charging in air conditioning and commercial refrigeration systems. With its 1/2 HP motor it delivers 170 L/min (6 CFM) at 50 Hz and reaches an ultimate vacuum of 150 microns. It is also searched for in the field as VE160N.

6 CFM Single Stage Vacuum Pump for Large Air Conditioning and Commercial Refrigeration Circuits

With approximately three times the flow rate of the VE 115N, it significantly shortens the evacuation time in large-volume and long-pipe circuits. It has two intake connections, 1/4" and 3/8" SAE; the flow rate is fully utilised when working with a thick vacuum hose. It comes with the one-piece body structure, forced oil circulation and large oil sight glass of the Value VE-N series.

Technical Specifications (Value Official Values)

• Brand / Model: Value VE 160N (VE-N series)
• Type: Single stage rotary vane vacuum pump
• Flow Rate: 170 L/min (6 CFM) @ 50 Hz · 198 L/min (7 CFM) @ 60 Hz
• Ultimate Vacuum: 150 microns (total pressure) · 2 Pa (partial pressure)
• Motor Power: 1/2 HP
• Power Supply: 220 V, 50 Hz
• Intake Connection: 1/4" SAE and 3/8" SAE
• Oil Capacity: 415 mL
• Dimensions: 338 × 138 × 244 mm
• Weight: 9.9 kg

Areas of Use

• Circuit evacuation during installation of multi split, ducted and floor-standing air conditioners
• Evacuation before refrigerant charging in commercial refrigeration cabinet, cold room and condensing unit service
• Fast evacuation that saves time in long-pipe or multi-unit circuits
• Air removal in laboratory and mould casting applications

Technician Tips

• Use a thick hose: do not restrict the 6 CFM flow with a thin 1/4" hose; if possible use the 3/8" connection and a short, large-bore vacuum hose.
• Oil maintenance: 415 mL of oil collects moisture more quickly in large circuits; change the oil when you see cloudiness in the sight glass, otherwise the pump cannot reach 150 microns.
• Measure the vacuum: check with a digital vacuum gauge that reads microns; the target is usually below 500 microns. Watch that the value does not rise for a few minutes after the pump is switched off.
• Shutdown sequence: first close the valve on the circuit side or disconnect the hose, then stop the pump.
• Caution with flammable refrigerants: in systems with flammable refrigerants such as R32 and R290, prefer a spark-free (ex-proof) vacuum pump.
