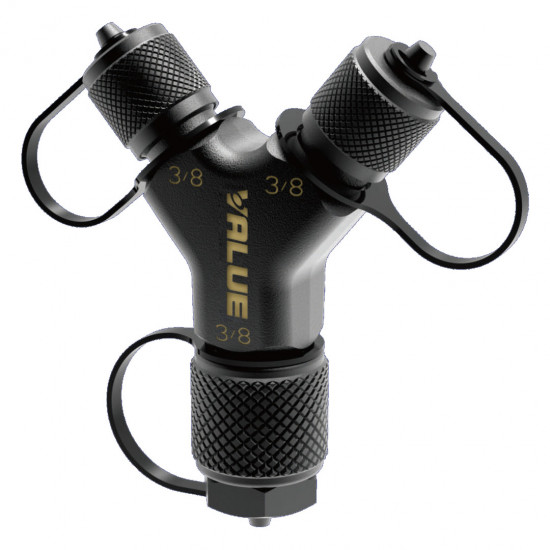

Value VRF1028 Rapid-Y Fast Vacuum and Refrigerant Recovery Adapter (2x 3/8" Male - 1x 3/8" Female)

This is the Value VRF1028 Rapid-Y adapter with a one-piece solid brass body, designed to shorten evacuation and refrigerant recovery times in air conditioning and refrigeration systems. Thanks to its large internal passage, it connects two lines (low and high pressure) to a single vacuum pump or recovery unit inlet at the same time; this eliminates the flow restriction of conventional tee/manifold connections and speeds up the process noticeably.

One-Piece Solid Brass, 20 Micron Vacuum, R410A Compatible Y Connector

Key Technical Specifications and Field Advantages

• Large Internal Diameter (Full Flow): The unrestricted wide internal passage increases flow rate and helps reach the final 20 micron vacuum faster.
• 20 Micron Vacuum Rating: Can be used reliably for deep vacuum work.
• High Pressure Compatibility: Designed for high-pressure refrigerants such as R410A.
• One-Piece Solid Brass Body: Durable and leak-tight; long service life with quality brass fittings.
• Simplified Connection: Easily connects several hoses to a single point and reduces leak points. Allows multi-line work even with vacuum pumps that have few ports.
• Speed Gain: Increases the speed of any vacuum or recovery pump with a 3/8" connection.

Technical Specifications

• Brand and Model: Value / VRF1028 (Rapid-Y series)
• Connection Configuration: 2 x 3/8" Male (inlet) - 1 x 3/8" Female (outlet)
• Body: One-piece solid brass
• Vacuum Rating: 20 micron
• Pressure Compatibility: High pressure (R410A etc.)
• Dimensions: 80 x 120 x 30 mm
• Weight: 0.28 kg

Why Rapid-Y instead of a conventional tee/manifold?

• Conventional manifold and tee connections have narrow passages, are not designed for deep vacuum and contain many potential leak points. Rapid-Y solves these problems in a single product: it simplifies the job, increases transfer speed and reduces working time.

Technician Tips

• Full benefit of the vacuum/recovery speed is obtained when used together with 3/8" hoses (e.g. Value VHB series Big Boy evacuation hoses) and Schrader valve core removal tools (VCR1).

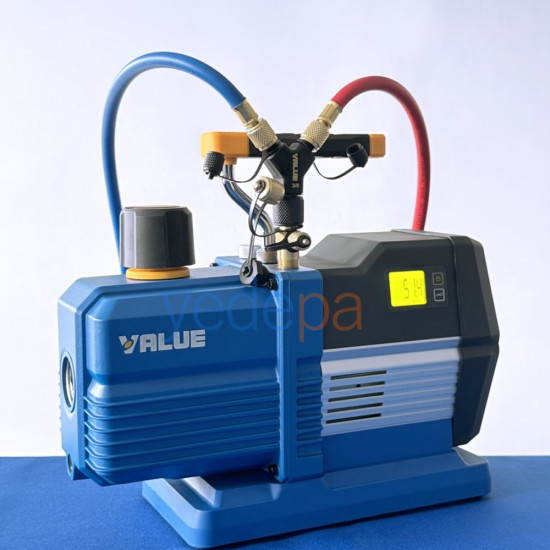

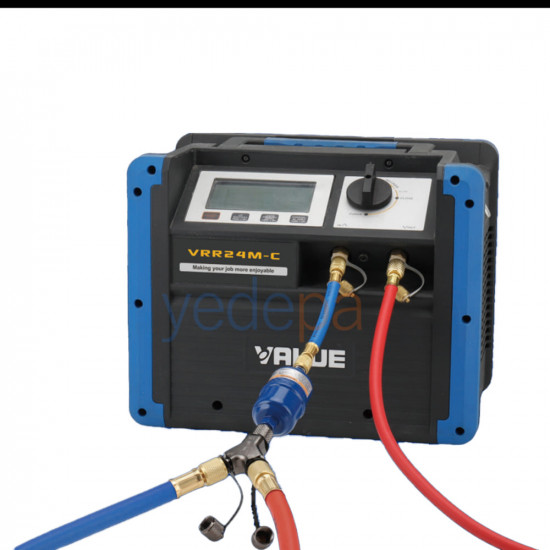

• Connect the two 3/8" male ends to the low and high pressure lines of the system and the single 3/8" female end to the vacuum pump / recovery unit inlet.
