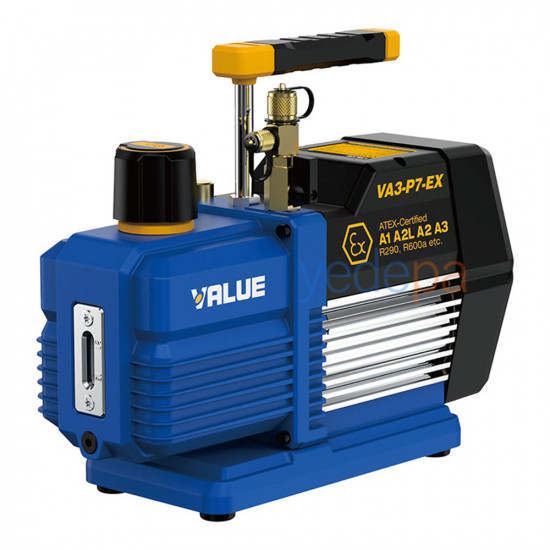

Value VA3-P7-EX Two-Stage Ex Vacuum Pump (170 L/min - 7 CFM, 15 Micron, Spark-Free, R32 Compatible)

The Value VA3-P7-EX is a two-stage (dual-stage) Ex series vacuum pump designed for safe evacuation with flammable refrigerants in air conditioning and refrigeration systems. Thanks to its ignition-proof design, it can be used safely with new-generation flammable (A2L) refrigerant classes such as R32. With a flow rate of 170 L/min (7 CFM), it pulls split air conditioners and medium-volume refrigeration lines down to 15 micron in a short time.

Safe Evacuation with Flammable Refrigerants Thanks to the Spark-Free Ex Design

In installation and service work where the transition to R32 is accelerating, the VA3-P7-EX combines deep vacuum and work safety in one body with its integrated-cylinder two-stage design, built-in check valve and forced oil circulation. With a weight of 11.8 kg and a hanging hook, it is easy to carry in the service vehicle and on rooftop jobs.

Key Technical Features and Equipment

• Ignition-Proof Ex Design: Spark-preventing design for safe use with A2L flammable refrigerants such as R32.

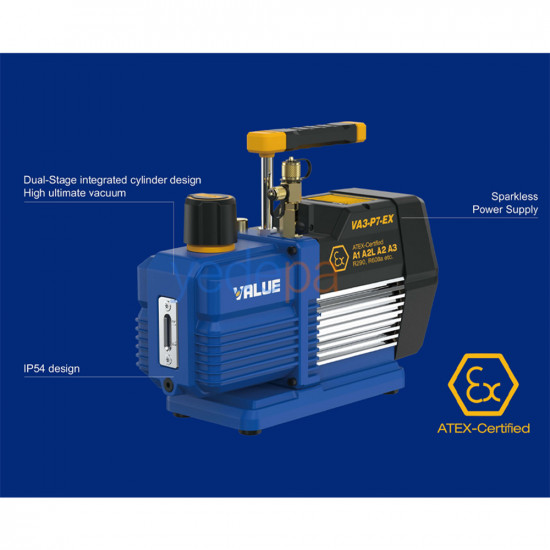

• Two-Stage Integrated Cylinder: Reaches an ultimate vacuum of 2 Pa (15 micron) with two-stage compression.

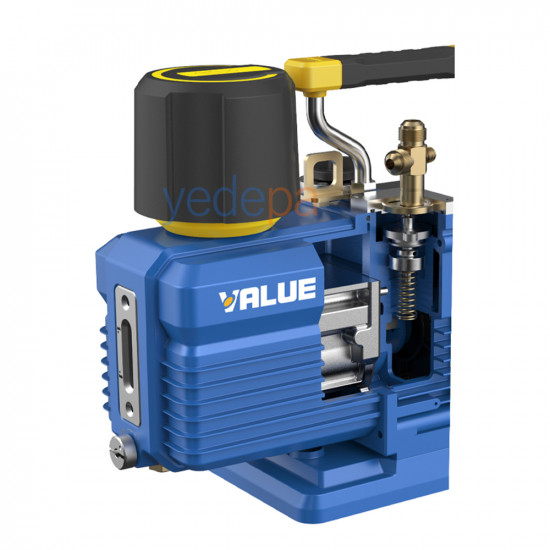

• Built-In Check Valve: Holds the vacuum when the pump stops and prevents oil from flowing back into the system.

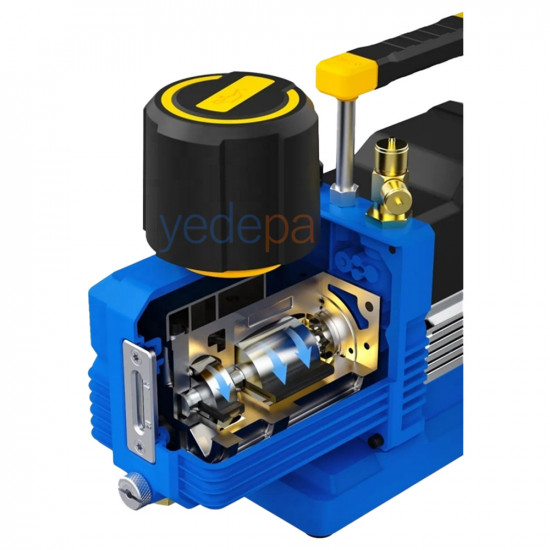

• Forced Oil Circulation: Ensures regular lubrication of the bearings at every revolution, extending pump life.
• Hanging / Carrying Hook: Safe carrying in the field and at service, and easy operation when hung.
• Multiple Inlet Connections: 1/4 inch and 3/8 inch SAE — direct compatibility with different hoses and lines.

Technical Specifications

• Brand / Model: Value / VA3-P7-EX (Ex Series, Two-Stage)
• Flow Rate: 170 L/min - 7 CFM (50 Hz); 198 L/min (60 Hz)
• Ultimate Vacuum: 2 Pa (15 micron)
• Motor Power: 0.55 kW (3/4 HP)
• Number of Stages: 2 (two-stage)
• Power Supply: 230 V, 50-60 Hz
• Inlet Connection: 1/4 inch and 3/8 inch SAE
• Oil Capacity: 426 ml
• Dimensions: 346 x 130 x 287 mm
• Weight: 11.8 kg

Technician Tips

• Check the oil level before first use; in the 426 ml reservoir the level should be in the middle of the sight glass.
• When servicing with flammable refrigerant (R32), run the pump in a well-ventilated area and keep the exhaust outlet away from enclosed spaces.
• For the fastest evacuation, use the 3/8 inch inlet together with a large-diameter vacuum hose (e.g. Value VHB Big Boy series).
