Ulka EX5 Pump Motor 48 Watt

Ulka EX5 is a 48 W vibration water pump from the Italian ULKA brand that operates on a 230 V 50 Hz mains supply. In the field it is known as the Ulka pump motor or carpet washing pump; it is used to deliver water under pressure in spray-extraction carpet and upholstery cleaning machines, steam cleaners and espresso coffee machines.

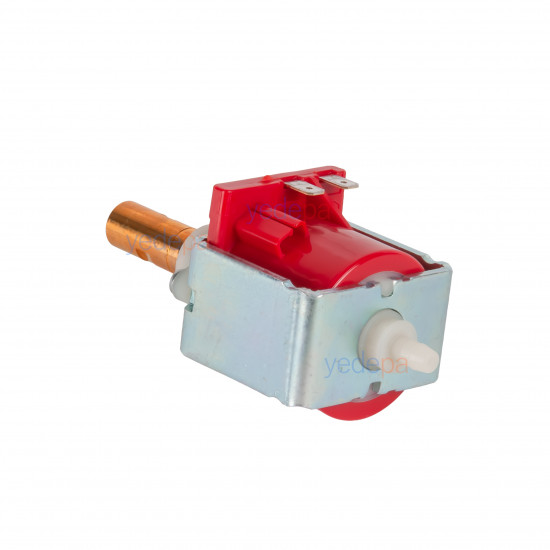

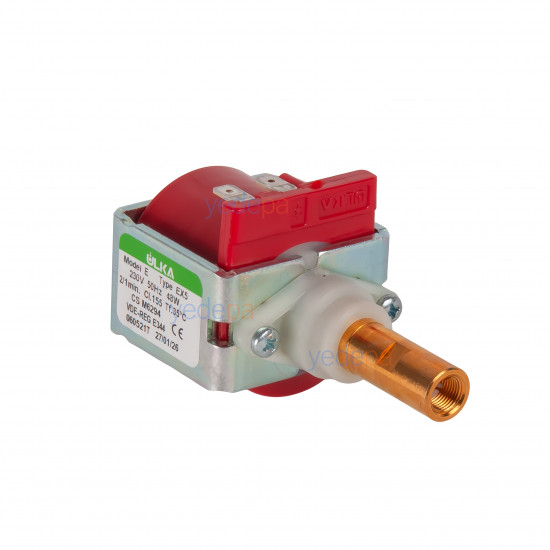

The pump works with a piston moving back and forth inside the coil; there is no rotating motor or impeller inside, which is why it delivers pressurized water despite its small body. The inlet end has a Ø6 mm hose connection and the outlet end is a 1/8 inch female-threaded brass fitting.

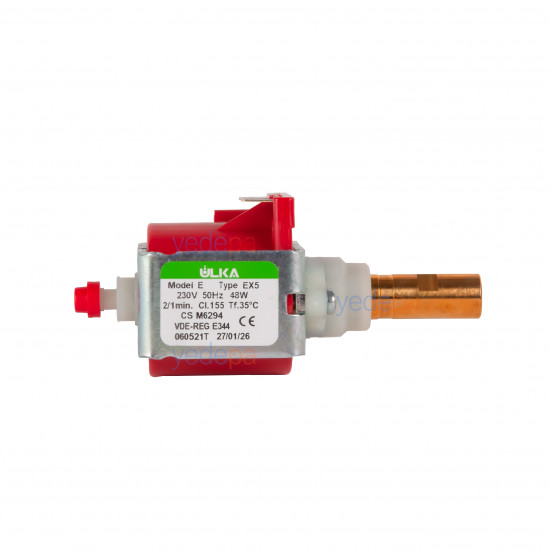

What Do the Label Values Mean?

• 230V 50Hz 48W — supply voltage, mains frequency and the power drawn by the pump.
• 2/1 min — duty cycle: maximum 2 minutes of continuous operation, followed by 1 minute of rest. The pump is designed for intermittent operation.
• CL.155 — coil insulation class (class F, 155 °C).
• Tf 35 °C — maximum temperature of the pumped water. The pump is connected to the machine's cold water line; hot water or steam is not passed directly through the pump.
• VDE-REG E344 and CE — VDE registration number and CE conformity mark.

Points to Note When Replacing

• Check that the label of the removed pump says EX5 and 230V 48W. It must not be confused with the Ulka EX5GW, which operates on 24 V; the voltage is different.
• Models of the same power such as the Ulka EP5 may have a different outlet fitting. Compare with the outlet connection of the old pump.
• The pump must not be run dry; dry running quickly wears the piston and seals. After installation, make sure there is water in the tank.

Technical Specifications

• Brand / model: ULKA EX5 (Model E)
• Type: Vibration water pump
• Supply: 230 V ~ 50 Hz
• Power: 48 W
• Duty cycle: 2 min on / 1 min off
• Insulation class: CL.155
• Maximum water temperature: 35 °C
• Inlet: Ø6 mm hose barb

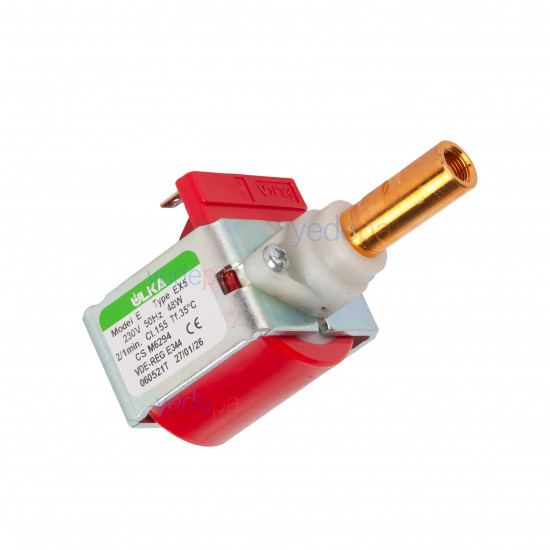

• Outlet: 1/8 inch female-threaded brass fitting
• Body length: approx. 123 mm
• Approval: VDE-REG E344, CE

Frequently Asked Questions

Which machines is the Ulka EX5 used in?

It is used as a water pump in spray-extraction carpet and upholstery cleaning machines, steam cleaners and espresso coffee machines. When replacing, the model and power values on the label of the old pump are taken as the basis.

Can the pump run continuously?

No. The 2/1 min value on the label indicates that the pump must run for a maximum of 2 minutes and then rest for 1 minute.

Can it pump hot water?

The temperature of the pumped water must not exceed 35 °C; the pump is connected to the cold water side of the machine.

Is it the same as the 24 V EX5GW?

No. The EX5GW operates on 24 V; this EX5 is used in machines connected directly to the 230 V mains.
