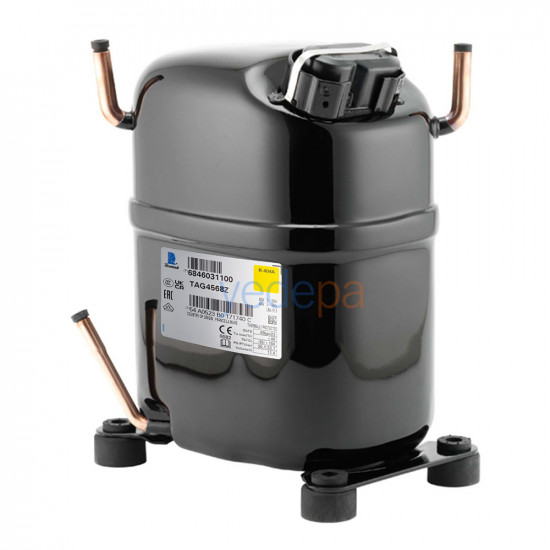

Tecumseh TAG 4568 Z 6 Hp Refrigeration Compressor R-404A (Brazed)

Model: Tecumseh TAG 4568 Z

Connection: Brazed

Power: 6 HP

Voltage: 380V, 3-phase, 50Hz

Refrigerant: R404A (also compatible with R507)

Displacement: 124.4 cm³

Oil Type: Polyolester (POE)

Oil Charge: 1960 cm³

Connection Sizes:

• Suction Line: 1-1/8" (28.6 mm)
• Discharge Line: 5/8" (15.9 mm)
• Process Tube: 3/8" (9.5 mm)

Design: Hermetic, Reciprocating

Motor Type: Three-phase induction

Cooling Capacity

Cooling Capacity with R404A (W):

• -10°C evaporating and 45°C condensing: 8449 W (approx. 28,810 BTU/h)
• -5°C evaporating and 45°C condensing: 10702 W
• 0°C evaporating and 45°C condensing: 13253 W
• +5°C evaporating and 45°C condensing: 16174 W
• +10°C evaporating and 45°C condensing: 19510 W
• +15°C evaporating and 45°C condensing: 23305 W

Electrical Data

Rated Load Amps (RLA): 10.2 A

Starting Current (LRA): 54 A

Maximum Continuous Current (MCC): 15.2 A

Rated Power Input: 5916 W

Technical Data

Weight: 47.2 kg

Expansion Device: Capillary Tube or Expansion Valve

Operating Temperature Range: -15°C to +15°C evaporating (Medium/High Back Pressure)

Condensing Temperature: 45°C to 55°C

Origin: France
