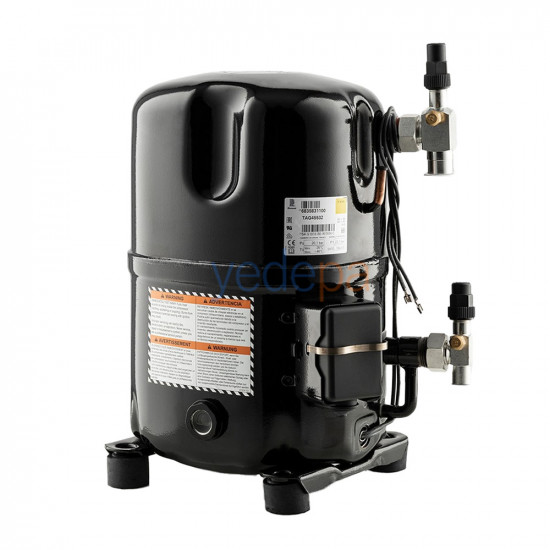

Tecumseh TAG 4553 Z 4.5 Hp Refrigeration Compressor R-404A

Product Features

• Model: Tecumseh TAG 4553 Z
• Power: 4.5 HP
• Voltage: 400V, 3-phase, 50Hz
• Refrigerant: R404A (compatible with R407B, R507A)
• Cylinder Volume: 100.7 cm³
• Oil Type: Polyolester (POE)
• Oil Quantity: 1.96 L (1960 cm³)
• Connection Type: Valved
• Connection Size: Suction line: 7/8" (22.2 mm)
• Design: Hermetic, Reciprocating
• Motor Type: TRI (Three-phase induction)

Cooling Capacity

• Cooling Capacity (W): At -10°C evaporating temperature: 6220 W (approx. 21,220 BTU/h)
• Cooling Capacity Conditions: Condensing temperature 54.5°C, suction gas temperature 46°C (EN12900 conditions)

Electrical Data

• Rated Current (RLA): 7.88 A
• Locked Rotor Current (LRA): 45 A

Technical Data

• Weight: 52.6 kg
• Dimensions (Height): 381 mm
• Sound Level: 82 dB(A) at 1 m
• Operating Temperature Range: Medium/High Back Pressure (MBP/HBP) applications
• Condensing Temperature: 54.5°C
• Expansion Device: Capillary Tube/Expansion Valve
• Origin: France

Product Description

The Tecumseh TAG 4553 Z 4.5 Hp refrigeration compressor is an excellent choice for commercial refrigeration systems. With 6220 Watts of cooling capacity and 100.7 cm³ cylinder volume, this model is designed to meet large commercial refrigeration needs. The use of R404A refrigerant provides energy efficiency and high performance. It is also compatible with R407B and R507A. This French-origin compressor offers long-lasting and reliable cooling solutions.

Applications

The Tecumseh TAG 4553 Z is ideal for cold storage rooms, beverage coolers and similar applications in supermarkets, restaurants and other large commercial premises.

Installation and Safety Information

Installation and maintenance must be carried out by authorized service centers or expert technicians, observing electrical safety precautions. The valved connection system offers flexible installation options and convenience.

Conclusion

The Tecumseh TAG 4553 Z 4.5 Hp refrigeration compressor offers high capacity and reliable performance for your commercial refrigeration needs. It is ideal for professionals looking for an energy-efficient, long-lasting solution.
