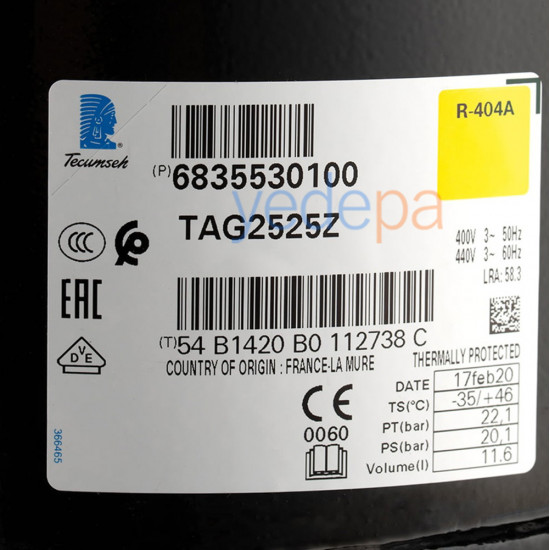

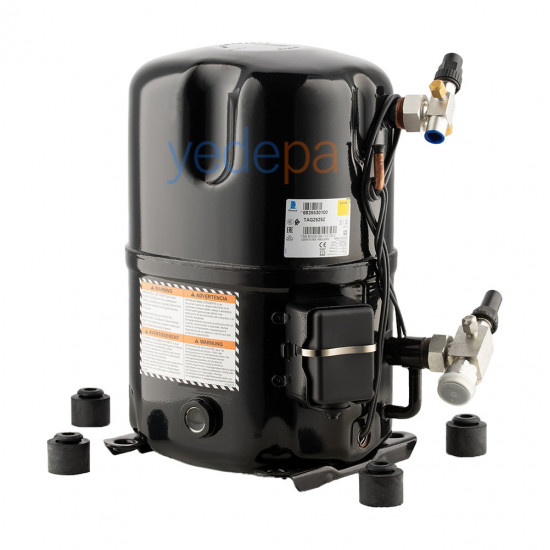

Tecumseh TAG 2525 Z 8 Hp Refrigeration Compressor R-404A

Product Features

• Model: Tecumseh TAG 2525 Z
• Power: 8 HP
• Voltage: 380-460V, 3-phase, 50/60Hz
• Refrigerant: R404A (compatible with R507)
• Cylinder Displacement: 145 cm³
• Oil Type: Polyolester (POE)
• Oil Quantity: 1960 cm³
• Connection: 2 valves
• Suction Line: 1-1/8" (28.6 mm)
• Discharge Line: 5/8" (15.9 mm)
• Design: Hermetic, Reciprocating
• Motor Type: Three-phase, High Starting Torque (HST)

Cooling Capacity

• -35°C evaporating and +40°C condensing: 2641 W
• -30°C evaporating and +45°C condensing: 3689 W
• -25°C evaporating and +45°C condensing: 5008 W
• -20°C evaporating and +45°C condensing: 6547 W
• -15°C evaporating and +45°C condensing: 8334 W
• -10°C evaporating and +45°C condensing: 10393 W (approx. 35,500 BTU/h)

Electrical Data

• Rated Load Amps (RLA): 6.3A (50Hz), 6.9A (60Hz)
• Locked Rotor Amps (LRA): 58A
• Maximum Continuous Current (MCC): 13.3A
• Voltage Range: 340-440V (50Hz), 396-499V (60Hz)

Technical Data

• Weight: 46 kg
• Operating Temperature Range: -40°C to -12.2°C evaporating (Low Back Pressure)
• Condensing Temperature: Between 45°C and 55°C
• Cooling: Fan-cooled
• Expansion Device: Capillary tube or expansion valve
