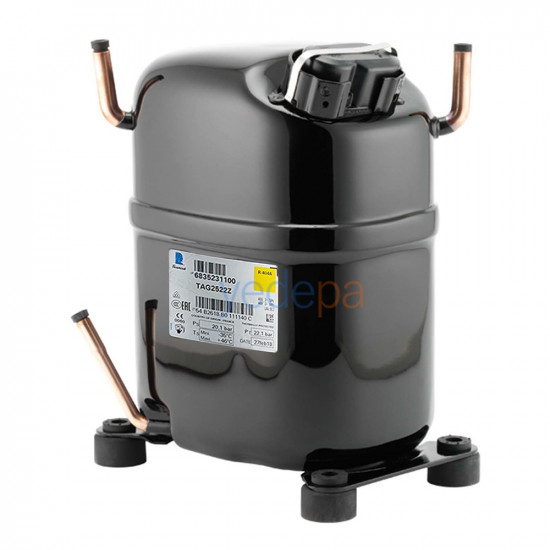

Tecumseh AG 2522 P-TZ (Old Code: TAG 2522 Z) 7 Hp R-404A Refrigeration Compressor (Brazed)

The TAG 2522 Z compressor by Tecumseh (France), well known in commercial refrigeration, is now produced under the code AG 2522 P-TZ following the brand's global catalogue update. The code change is only a naming standard: housing dimensions, brazed pipe connections and cooling capacity are identical. You can fit this original compressor with its new code in place of a failed TAG 2522 Z as a direct drop-in, without modifying the chassis or the fittings.

New Code and Old Code Cross-Reference

• New Model Code: Tecumseh AG 2522 P-TZ (AG2522P-TZ)
• Old Model Code: Tecumseh TAG 2522 Z (TAG2522Z)
• Code Suffix: TZ = three-phase motor, 400 V 3~ 50 Hz / 440 V 3~ 60 Hz
• Motor Power: 7 HP
• Cooling Capacity (R-404A, 50 Hz): 2,708 W / 9,240 BTU/h (−35 °C evaporating / +40 °C condensing, EN12900)
• Application: Low back pressure (LBP) deep freezing, evaporating −40 … −10 °C
• Approved Refrigerants: R-404A, R-452A, R-454C, R-455A
• Displacement: 135 cm³
• Current (50 Hz): RLA 6.2 A, LRA 61 A
• Oil: POE (polyolester), 1760 cm³
• Connection Type: Brazed (solder pipe)

Product Features

• Hp: 7
• Model: TAG 2522 Z
• Refrigerant Type: R-404A
• Application: Deep Freezing
• Origin: France
• -10 ºC Evap. 45 ºC Cond. (Watt): 2708
• Cylinder Displacement (cm³): 135
• Power Supply: 400 V - 50 Hz / 440 V - 60 Hz
• Connection Type: Brazed
• Suction Connection: 1.125 inch
• Discharge Connection: 0.625 inch

Product Description

With a cooling capacity of 2708 Watt and a cylinder displacement of 135 cm³, the Tecumseh TAG 2522 Z 7 Hp refrigeration compressor delivers excellent performance in industrial deep-freezing applications. Providing energy efficiency and powerful cooling with R-404A refrigerant, this model is manufactured in France to high quality standards. Its brazed connection system and wide voltage range (400 V - 50 Hz / 440 V - 60 Hz) allow easy adaptation to different electrical networks.

Applications

The Tecumseh TAG 2522 Z is designed especially for use in commercial and industrial environments with intensive refrigeration requirements. It is a reliable choice in areas such as food storage, medical refrigeration and process cooling.

Installation and Safety Information

For your safety, attention should be paid to electrical safety precautions during installation of the compressor. Installation and maintenance should be carried out by authorized services or expert technicians.

Conclusion

The Tecumseh TAG 2522 Z 7 Hp refrigeration compressor is ideal for professionals seeking high performance and reliability in all applications requiring deep freezing. Manufactured with French engineering, this product offers a long-lasting and effective solution for your refrigeration systems.
