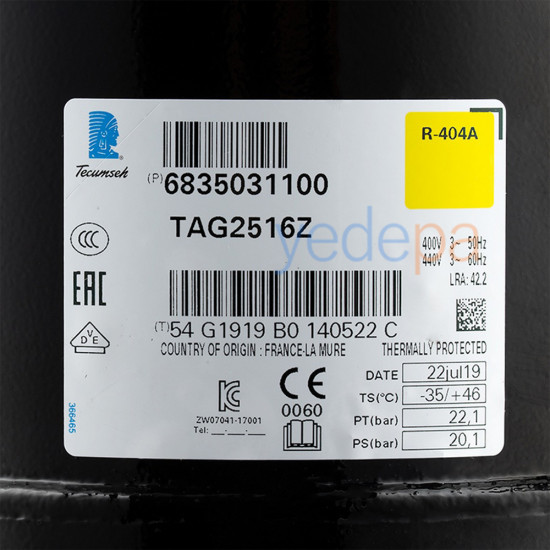

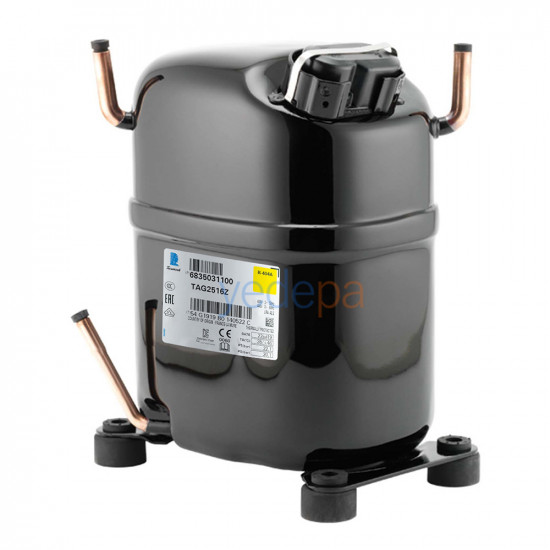

Tecumseh TAG 2516 Z 5 Hp Refrigeration Compressor R-404A (Brazed)

Product Features

• Model: Tecumseh TAG 2516 Z
• Power: 5 HP
• Voltage: 380-460V, 3-phase, 50/60Hz
• Refrigerant: R404A (also compatible with R507A)
• Displacement: 112.5 cm³
• Oil Type: Polyolester (POE)
• Oil Charge: 1960 cm³
• Connection: Brazed
• Design: Hermetic, Reciprocating

• Motor Type: Three-Phase, High Starting Torque (HST)

Cooling Capacity

• Cooling Capacity (W):
• At -35°C evaporating and +40°C condensing temperature: 2132 W
• At SC3 conditions: 3687 W (approx. 12,580 BTU/h)

Electrical Data

• Rated Power: 2962 W
• Running Current: 4.64 A
• Starting Current: 45 A
• Maximum Current: 9.81 A

Technical Data

• Weight: 47 kg
• Dimensions (Height): 368 mm
• Operating Temperature Range: -40°C to -12.2°C evaporating (Low Back Pressure)
• Sound Level: 77 dBA at 1m
• Cooling: Fan-cooled
• Expansion Device: Capillary Tube or Expansion Valve
