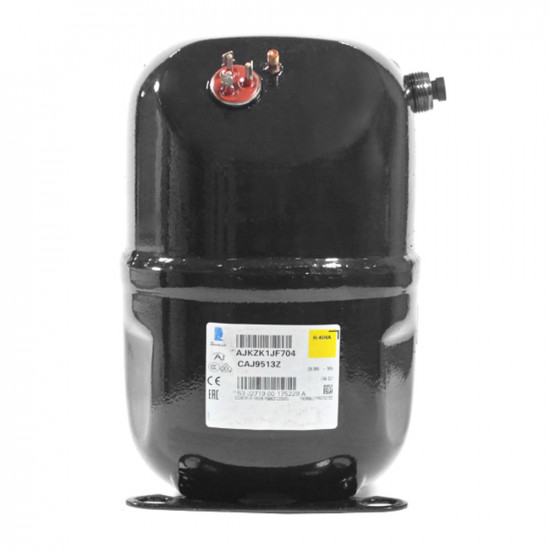

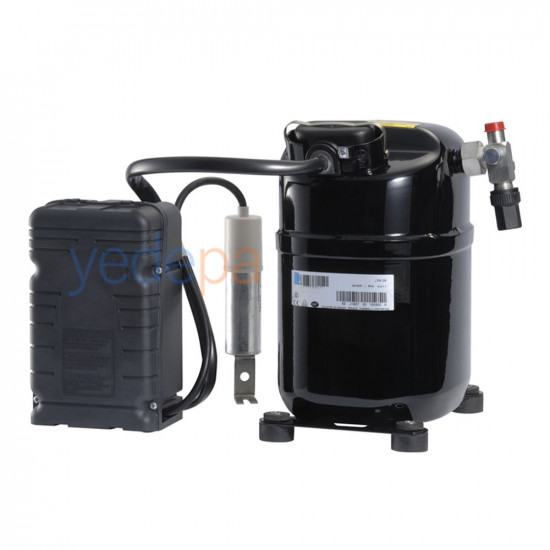

Tecumseh AJ 4513 P-FZ (Old Code: CAJ 9513 Z) 1+ Hp R-404A Refrigeration Compressor

The CAJ 9513 Z model of the French-made Tecumseh compressor family, which is at the heart of commercial refrigeration systems and famous for its durability, is now offered on the market under the product code AJ 4513 P-FZ as a result of the brand's global catalog update. This update is only a naming procedure; the compressor's housing dimensions, valved connection layout and legendary performance are fully preserved in their original form. When you remove the old motor from your installation, you can safely install (drop-in) this newly coded compressor without any modification to the chassis or copper pipes.

1+ Hp High-Efficiency Medium and High Back Pressure (MBP/HBP) Performance

Specially developed for systems operating at medium/high evaporating temperatures such as dairy cabinets, refrigerated display sections and industrial water chillers, this motor has a powerful capacity of 1+ HP. The unit's 24.2 cm³ cylinder volume achieves an excellent thermodynamic balance with R-404A refrigerant, producing 1702 Watts (approx. 5800 BTU/h) of cooling capacity at -10°C evaporating conditions. Thanks to its fan cooling method and hermetic motor with CSR (Capacitor Start, Capacitor Run) technology, it starts with high torque and does not stall even in the hottest summer months or during grid fluctuations.

Key Technical Specifications and Capacity Data

With its valved design that makes service and refrigerant recovery extremely practical, the unit's technical details for our field technicians are as follows:

• New Model Code: Tecumseh AJ 4513 P-FZ
• Old (Familiar) Model Code: CAJ 9513 Z
• Motor Power: 1+ HP
• Application: Medium and High Back Pressure (MBP / HBP)
• Refrigerant: R-404A
• Operating Voltage: 220-240V / 50Hz / Single Phase
• Motor Type: CSR (Capacitor Start, Capacitor Run)
• Cooling Capacity: 1702 W / ~5800 BTU/h (at -10°C evaporating temperature)
• Displacement (Cylinder Volume): 24.2 cm³
• Connection Type: Valved (Rotalock)
• Line Sizes: Suction Line 5/8" (15.9 mm) - Discharge Line 5/16" (7.9 mm)
• Current Values: Rated (RLA) 7.2 A - Locked Rotor (LRA) 36 A - Maximum (MCC) 9.9 A
• Rated Power Input: 1448 W
• Oil Type and Quantity: POE (Polyolester) / 887 cm³
• Cooling Method: Fan
• Weight: 24 kg
• Origin: France

Installation and Maintenance Note for Field Refrigeration Technicians

Technician's Note: When your order reaches you, do not let the "AJ 4513 P-FZ" label on the box make you hesitate; this is exactly the same as the CAJ 9513 Z model that has stood the test of time. During installation, bearing in mind that the compressor will draw 36 Amperes (LRA) at start-up, be sure to check the contacts of the contactors in the panel and the rating of the start capacitor. Because the POE oil in the system is sensitive to moisture (hygroscopic), keep the compressor valves closed until the last moment before you start piping. In systems installed with a capillary tube or expansion valve (TXV), carry out the evacuation completely, and take care not to damage the teflon gaskets when tightening the 5/8" and 5/16" rotalock valves.
