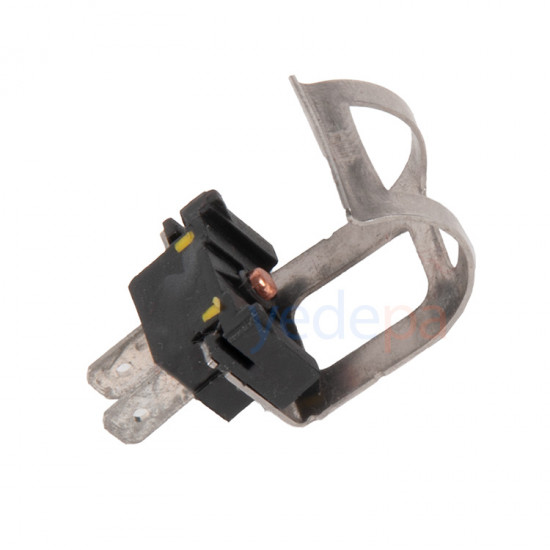

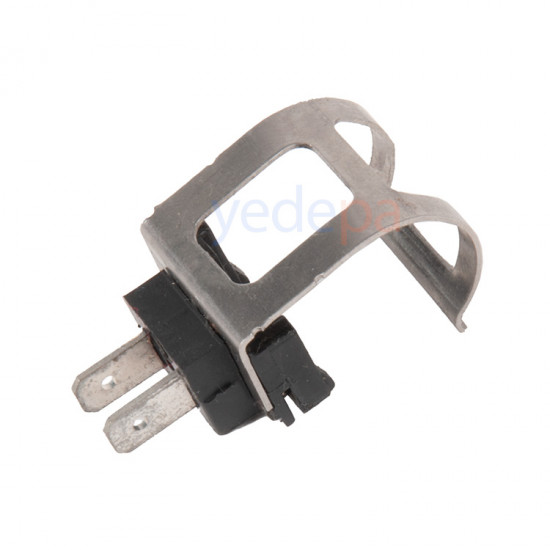

Surface-Type Thick Socket 3/4 Combi Boiler NTC Sensor

The Surface-Type Thick Socket 3/4 Combi Boiler NTC Sensor maximizes system performance by accurately monitoring the temperature data of your combi boiler system. This pipe-type sensor precisely detects temperature changes and makes the adjustments needed to keep the boiler temperature at the optimum level.

Key Features

• Size: 3/4" - Suitable for the requirements of various combi boiler systems.
• Type: Pipe Type - Detects temperature changes directly and precisely.
• Sensitivity: Provides extremely precise readings with NTC (Negative Temperature Coefficient) technology.

Detailed Technical Specifications

• Temperature Coefficient Type: NTC
• Thermal Coefficient: 4.4%/°C
• Resistance at 25°C: 10kΩ
• Tolerance: ±3.6%
• Maximum Power Rating: 18mW
• Depth: 19.2mm
• Minimum Operating Temperature: 5°C
• Dimensions: 22 x 19.2mm
• Maximum Operating Temperature: +85°C

Energy Efficiency and Performance Improvement

Thanks to NTC technology, this sensor improves your boiler's energy efficiency and overall performance. By providing extremely precise readings of temperature changes, it optimizes energy consumption and increases the efficiency of your boiler system.

Conclusion

The Surface-Type Thick Socket 3/4 Combi Boiler NTC Sensor offers energy savings and improved performance by making your boiler systems run more efficiently. It can be chosen as an excellent spare part or performance enhancer for your boiler.
