Sanhua SBV02-319T Ball Valve with Service Port – 1/4" ODF Solder, Kv 1.9, 49 bar

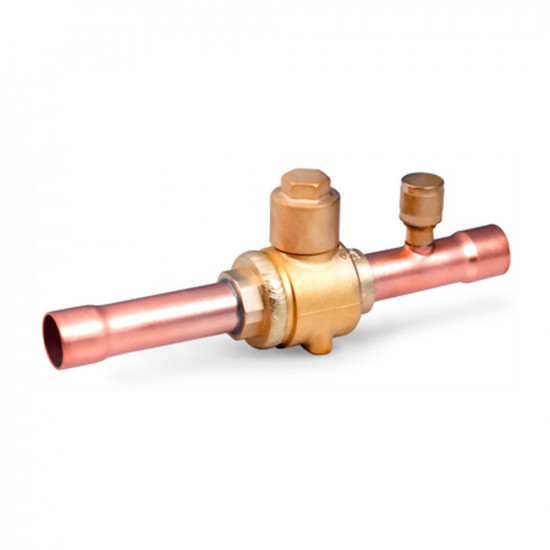

Sanhua SBV02-319T is a 1/4" ODF solder ball valve with service port used in refrigeration and air conditioning lines. Its full port body does not restrict the line, it opens and closes fully with a 1/4 turn and operates bidirectionally.

Full Port Ball Valve with Service Port — Close the Line, Pull Vacuum Through the Same Valve

During servicing, compressor replacement or drier renewal, a section of the line needs to be isolated. SBV02-319T does this in a single movement: you turn the handle 90° and the line is closed. Thanks to the service port (access fitting) on the body, you can measure pressure, pull vacuum and charge refrigerant from the closed side — there is no need to braze in a separate charging fitting.

The body and ball seat are welded; there are no external gaskets or packing. This is its most notable advantage over threaded/gasketed valves that loosen and leak over the years.

Technical Specifications (SBV02-319T)

• Model: Sanhua SBV02-319T | Manufacturer code: 10150129902
• Connection: 1/4" ODF (solder), both ends the same size
• Service port: YES (access fitting) — code starts with 319T
• Kv value: 1.9 m³/h
• Wrench size: 19 mm | Stem thread: M4 × 0.7

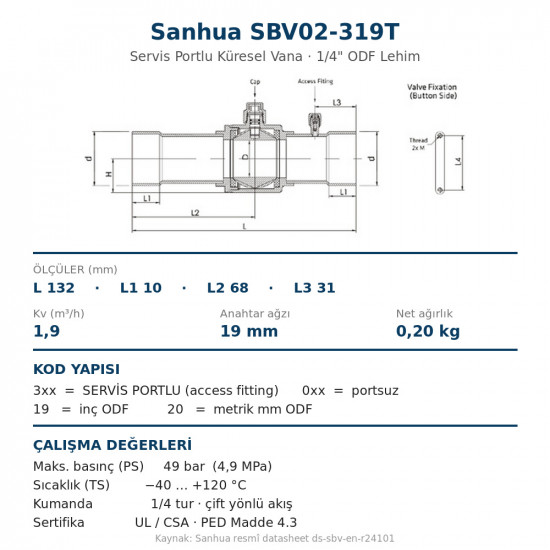

• Dimensions: overall length L 132 mm · body L2 68 mm · port center L3 31 mm · solder depth L1 10 mm
• Net weight: 0.20 kg
• Max. pressure (PS): 49 bar | Temperature (TS): −40 … +120 °C
• Version without service port: SBV02-019T (same body, no port)

Common Technical Specifications (Official Sanhua Datasheet ds-sbv-en-r24101)

• Body type: straightway, full port — does not restrict the line diameter, pressure loss is minimal
• Operation: 1/4 turn (90°) for fully open ↔ fully closed · bidirectional flow (bi-directional), no direction restriction for mounting
• Max. working pressure (PS): 4.9 MPa = 49 bar
• Operating temperature (TS): −40 … +120 °C
• Body and sealing: body and seat welded, no external gasket/packing — permanent sealing
• Compatible refrigerants: R134a, R404A, R407A/C/F, R410A, R507A, R448A, R449A, R452A, R1234ze(E), R290 (propane)
• Mounting location: liquid, suction and discharge line — mounting in any position is possible
• Certification: UL / CSA approved · PED Article 4.3 (Fluid Group 1 and 2)

• 🔑 Code reading: SBV02-319T → 3 as the first digit: the code has a service port (access fitting / charging fitting on the body). 0 as the first digit (-019T): no service port. The ending 19 indicates inch, 20 metric mm connections.
• What the service port is for: with the valve closed, it allows you to measure pressure, pull vacuum or charge refrigerant on that side of the line. It eliminates the hassle of brazing in a separate charging fitting when replacing a compressor or drier.
• ⚠️ Brazing (soldering) warning: When brazing the ODF ends, leave the valve fully open and cool the body with a wet cloth / heat paste. Excessive heat permanently damages the ball seat.
• Wrench size 19 mm — the same for all three sizes; one wrench does the job in the field.
• Cap: the cap on the stem must remain fitted during operation; it acts as a secondary seal.
